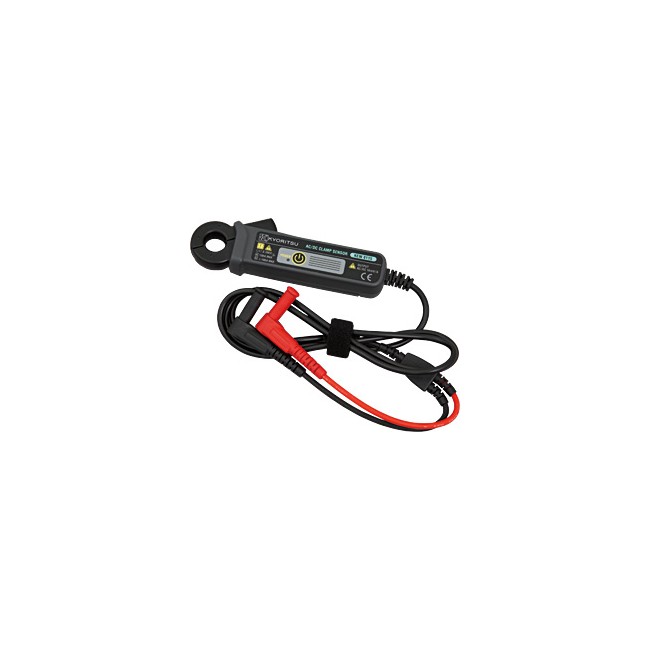

8115KY AC/ DC CURRENT CLAMP SENSOR

12MM O/D SENSOR - KYORITSU

Code: 46010190

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
$825 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Permits extension of the AC and DC current ranges of almost any Digital Multimeters (DMMs) without breaking the circuit under test.

Using KEW 8115 with KEW 1051/1052 (DMM) the display can be set for direct reading in A.

Measuring range AC 0.1~130Arms (185Apeak) DC 0±180A
Output voltage AC 10mV/A DC 10mV/A
Accuracy ±1.2%rdg±0.4mV (50/60Hz)
±2.5%rdg±0.4mV (40~1kHz)
±1.2%rdg±0.4mV (*)
Low battery warning 2.2V±0.2V or less - Red LED flash
(1.9V±0.2V - Automatically power off)
Conductor size Max. F12mm
Withstand voltage AC 3540V (RMS 50/60Hz) for 5 sec.
Operating temperature & humidity range -10 to 55 C, relative humidity 85% or less (no condensation)
Output impedance Approx. 10O or less
Applicable standards IEC 61010-1 CAT.III 300V Pollution degree 2,
IEC 61010-2-032, IEC 61326-1
Power source DC3V (size AAA alkaline battery LR03x2pcs)
* Continuous use: approx. 40 hours
(Auto power off: approx. 20 minutes)
Cord length Approx. 1,200mm
Output connector F4mm banana plug
Dimensions 127(L)x42(W)x22(D) mm
Weight Approx. 140g
Accessories Soft case, LR03x2, Instruction manual

*This accuracy is defined after the completion of the Kew8115 zero-adjustment whilst connected to a DMM.
