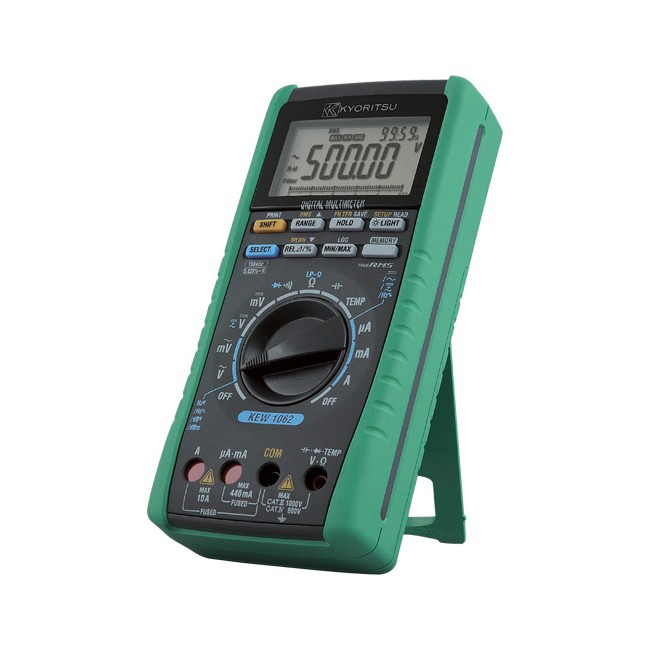

1062KY HIGH PERFORMANCE PROFESSIONAL

DUAL DISPLAY MULTIMETER, CAT4

Code: 44488295

EACH
Special Buy-In
$1650 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

High Accuracy, High Performance and Reliable Measurements

High Accuracy, High Performance and Reliable Measurements

  • 0.02% basic DC accuracy
  • Large display with 50,000 counts
  • Dual display for double indication for AC and DC, V and Hz, etc.
  • True-RMS Measurements AC and AC DC
  • Wide AC Frequency bandwidth from 10Hz to 100kHz
  • True-RMS or MEAN value detection mode can be selected
  • Fast Peak Hold response time of 250 s
  • Low-pass filter for motor drive measurements
  • Low Power O for resistance measurements on sensible electronic circuits by a low and safe test current
  • User calibration function

Safety design for industrial use

  • Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -20 to 55 C

Reliable support for data management

  • Large data internal memory
    KEW 1062: 10,000 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface
    (Option for USB Communication set)
    * MAX 32,767 data can be transferred.

Specification

Detection mode MEAN/Ture RMS (switch)
DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MO [50/500/2400mV], 10MO [5/50/500/1000V])
0.02%rdg 2dgt (Basic accuracy)
AC V [Ture RMS] 50.000/500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MO<50pF [50/500mV/5V], 10MO<50pF [50/500/1000V])
0.4%rdg 30dgt (Basic accuracy)
AC V [MEAN] 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V
(Input impedance:11MO<50pF [50/500mV/5V],10MO<50pF [50/500/1000V])
1%rdg 30dgt (Basic accuracy)
DCV ACV 5.0000/50.000/500.00/1000.0V
(Input impedance: 11MO<50pF [5V], 10MO<50pF [50/500/1000V])
0.5%rdg 10dgt (Basic accuracy)
DC A 500.00/5000.0 A/50.000/500.00mA/5.0000/10.000A
0.2%rdg 5dgt (Basic accuracy)
AC A [Ture RMS] 500.00/5000.0 A/50.000/500.00mA/5.0000/10.000A
0.75%rdg 20dgt (Basic accuracy)
AC A [MEAN] 500.00/5000.0 A/50.000/500.00mA/ 5.0000/10.000A
1.5%rdg 20dgt (Basic accuracy)
DCA ACA 500.00/5000.0 A/50.000/500.00mA/5.0000/10.000A
1%rdg 10dgt (Basic accuracy)
O 500.00O/5.0000/50.000/500.00kO/5.0000/50.000MO
0.05%rdg 2dgt (Basic accuracy)
LowPower-O 5.000/50.00/500.0kO/5.000MO
0.2%rdg 3dgt (Basic accuracy)
Continuity buzzer 500.0O
(The buzzer turns on at resistances lower than 100 50O)
Diode test 2.4000V
1%rdg 2dgt
Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance 5.000/50.00/500.0nF/5.000/50.00/500.0 F/5.000/50.00mF
1%rdg 5dgt (Basic accuracy)
Frequency 2.000 to 9.999/9.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz
0.02%rdg 1dgt (Basic accuracy)
DUTY 10 to 90%
1%rdg
Temperature -200 to 1372 C
1%rdg 1.5 C
-328 to 2501.6 F
1%rdg 2.0 F (with the use of K-type Temperature probe)
Measurement functions DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-O
Other functions

Data Hold (D/H), Auto Hold (A/H), Peak Hold (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN)
Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Applicable standards IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6 (1.5V) 4
(Auto power off: approx. 20 minutes)
Dimension 192(L) 90(W) 49(D) mm
Weight Approx. 570g (including batteries and blank cover)
