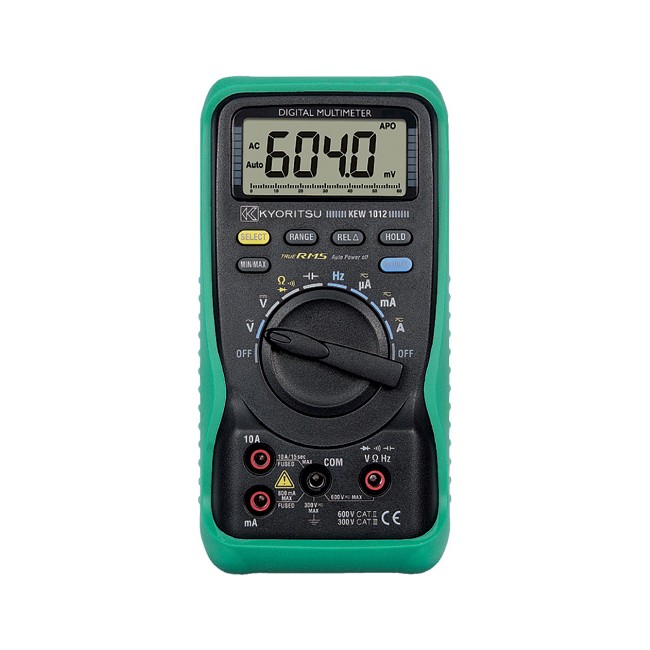

1012KY TRUE-RMS DIGITAL MULTIMETER

CAT3 RATED KYORITSU

Code: 44488260

0.4630 kg
4560187060731
EACH
2 IN
STOCK
$349.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

1012 Kyoritsu Compact Digital True RMS Multimeter

Kyoritsu 2010 Multimeter Product Selection Guide (442kb PDFPDF filefile)

High performance and wide range digital multimeter from the world class manufacturer, Kyoritsu.

Wide range for various test fields!

High-powered Digital Multi Meter Series

  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function to indicate the measurement variation.
    • (Saving the initial value at the start of measurement as a reference value(= zero). The difference between the later measured values and the referencevalue is indicated on the display)
  • True RMS can measure and indicate distorted waveforms
  • DUTY function
    • (It is possible to measure Pulse width / Pulse period)
  • Data Hold function, Auto Power Off function
  • Continuity with buzzer and Diode Check function
  • Capacity measurement of capacitors
  • Current ranges are protected by fuses (600V ceramic)
  • Designed to meet international safety standards

Included accessories:

  • Test leads, fuse, batteries, carry case, manual.

FEATURES:

  • True RMS can measure and indicate distorted waveforms
  • 6040 counts with Bar Graph display
  • MIN/MAX function enables to record min & max value
  • REL(relative value) function to indicate the measurement variation
  • DUTY function
  • Data Hold function, Auto Power Off function
  • Continuity with buzzer and Diode Check function
  • Capacity measurement of capacitors
  • Current ranges are protected by fuses
  • Designed to meet international safety standards: IEC61010-1 CAT.III 300V / CAT.II 600V

SPECIFICATIONS:

DC V 600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV)
t (600.0mV/6.000/60.00/600.0V)
t (600V)
AC V 6.000/60.00/600.0/600V
(Input Impedance: 10MΩ)
t (6.000V)
t (60.00/600.0V)
t (600V)
DC A 600/6000µA/60/600mA/6/10A
t (600/6000µA/60/600mA)
t (6/10A)
AC A 600/6000µA/60/600mA/6/10A
t (600/6000µA/60/600mA)
t (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ
t (600Ω/6/60/600kΩ/6MΩ)
t (60MΩ)
Continuity buzzer 0~600Ω (Buzzer sounds below 100Ω)
Diode Check 2.8V Release Voltage:Approx. 0.4mATest Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1~99.9% (Pulse width/Pulse period)
t (~10kHz)
Display 6040 Counts
Withstand Voltage AC 3700V / 1min.
Applicable standards IEC 61010-1 CAT.III 300V Pollutiondegree 2
IEC 61010-1 CAT.II 600V Pollution degree 2
IEC 61010-031
IEC 61326
Power Source R6P (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Accessories KTL04 (Test Lead)
0.8A/600V (Ceramic Fuse) × 1built-in
10A/600V (Ceramic Fuse) × 1built-in
R6P × 2
Instruction Manual
