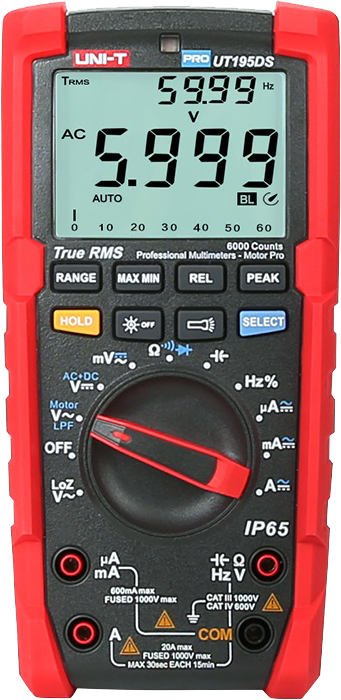

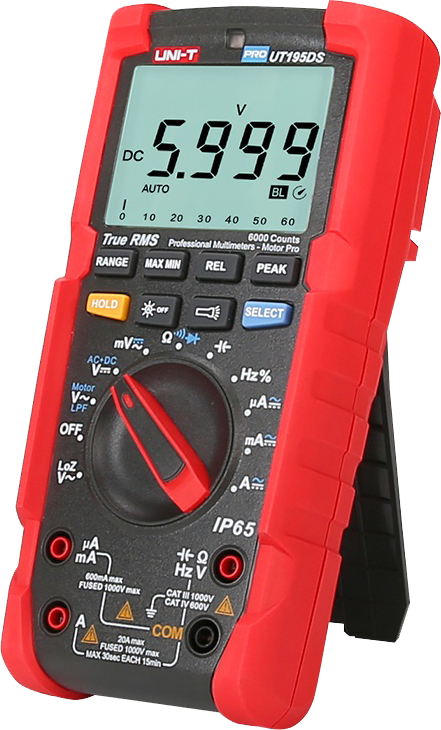

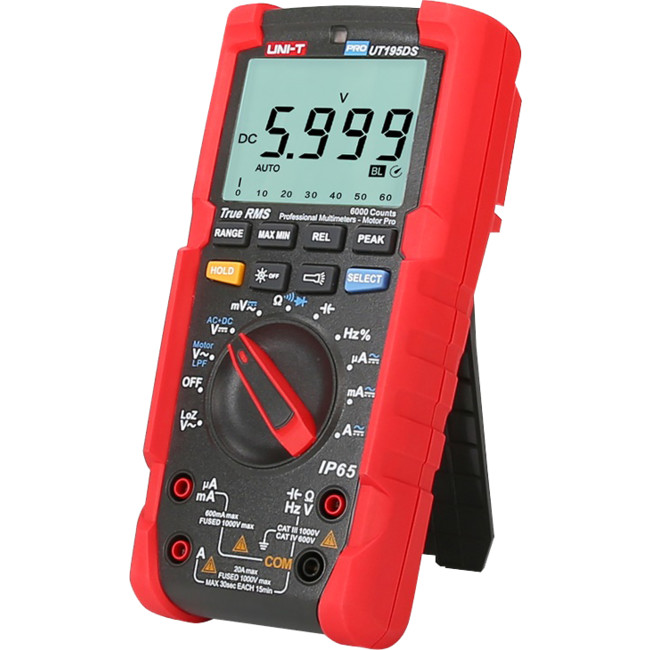

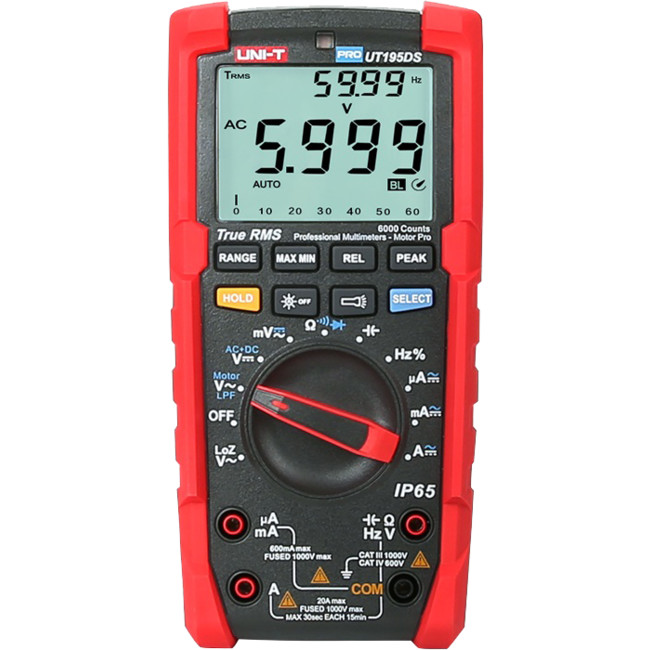

UT195DS IP65 TRUE RMS PRO MULTIMETER

UT195DS Professional Multimeter

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. It can be applied in mines, oilfields and other harsh environments. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution and repair etc. It is exquisitely designed and easy to operate.

Features

• IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
• Large 6000-count LCD screen
• sampling rate
• True RMS
• ACV 750V 5kHz bandwidth
• (AC DC) or (AV FREQ) and more, dual mode

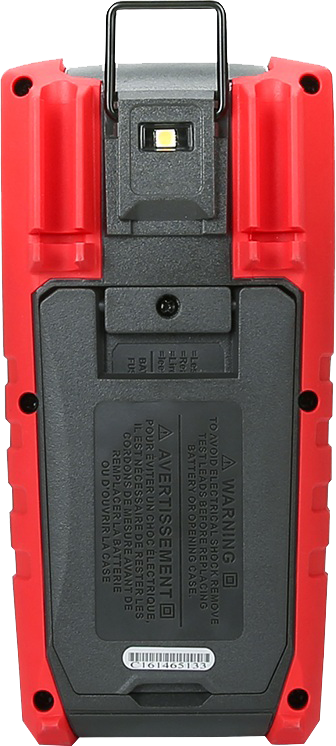

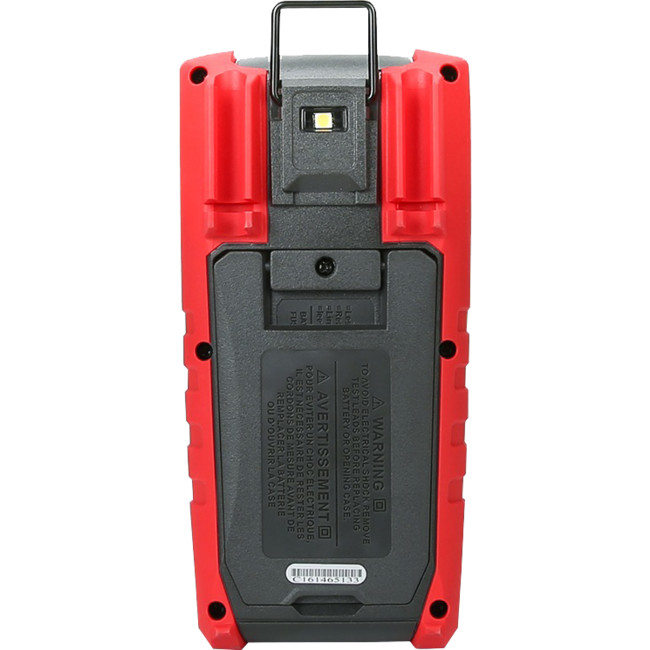

• Flashlight
• Auto LCD backlight controlled by light sensor (can beturned off)
• LoZ voltage test, for ghost voltage measurement
• Motor phase sequence measurement with 2 probes
• 20A current measurement (max 30 seconds)
• 31 analog bar
• Low pass filter, 1kHz 3dB attenuation

Specifications

Specifications	Range	Best Accuracy
Model		UT195DS
DC voltage	600mV ~ 1000V	±(0.5% 3)
AC DC	6.000V ~ 600V	±(1.5% 4)
AC voltage	600mV ~ 750V	±(0.7% 3)
LoZ ACV	600.0V	±(2.0% 3)
DC current (A)	600.0µA ~ 20A	±(0.8% 3)
AC current (A)	600.0µA ~ 20A	±(1.0% 3)
Resistance (O)	600.0O ~ 60.00MO	±(0.8% 2)
Capacitance	6.000nF ~ 60.00mF	±(3% 5)
Frequency	60.00Hz ~ 40.00MHz	±(0.1% 4)
Duty ratio	0.1% ~ 99.9%	±(2.0% 5)
Peaks hold	250µs
Features
Display count		6000
Display interface (HTN)		Dual display
Measurement of digital conversion rate	times/s	5
Measurement of analogue bar conversionrate	times/s	20
Analogue bar	31 section	v
True RMS		v
AC voltage frequency response		45 ~5kHz
AC current frequency response		45 ~5kHz
Low pass filter test		v (1kHz 3dB attenuation)
Diode/Continuity test		3V
Auto/Manual range	v
Auto power off	v
Continuity buzzer	v
Low battery indication	v
Data hold	v
MAX/MIN	v
Function selection	v
Flashlight	v
Auto backlight	v
Working temperature	0°C ~40°C
2m drop proof	v
Protection rating	IP65
General Characteristics
Power supply	9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size	66mmx51mm
Device color	red and grey
Device weight	450g
Device size	206.5mmx95.5mmx61mm

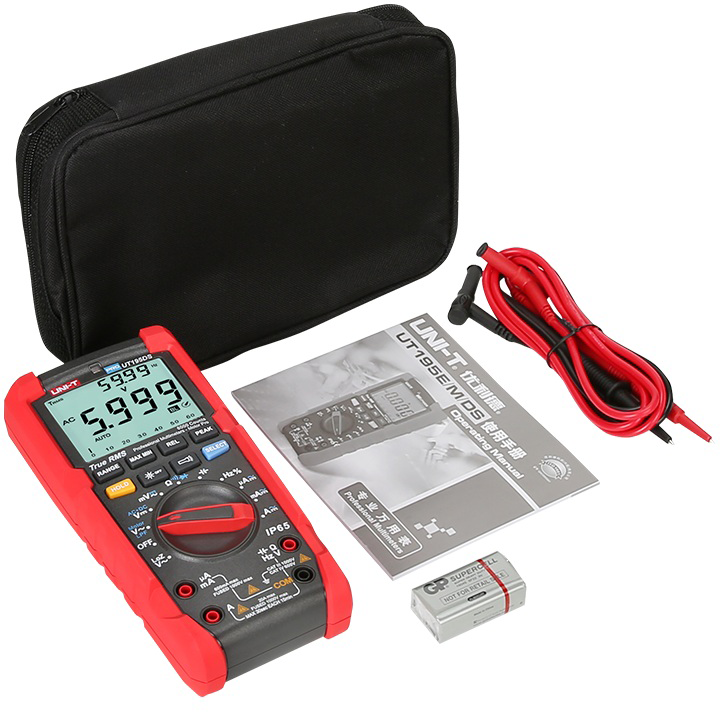

Standard accessories	Test probes,battery, carrying bag
Standard individual packing	Gift box, user manual, blister
Standard quantity per carton	10pcs
Standard carton size	605mmx335mmx405mm
Standard carton gross weight	11.8kg
