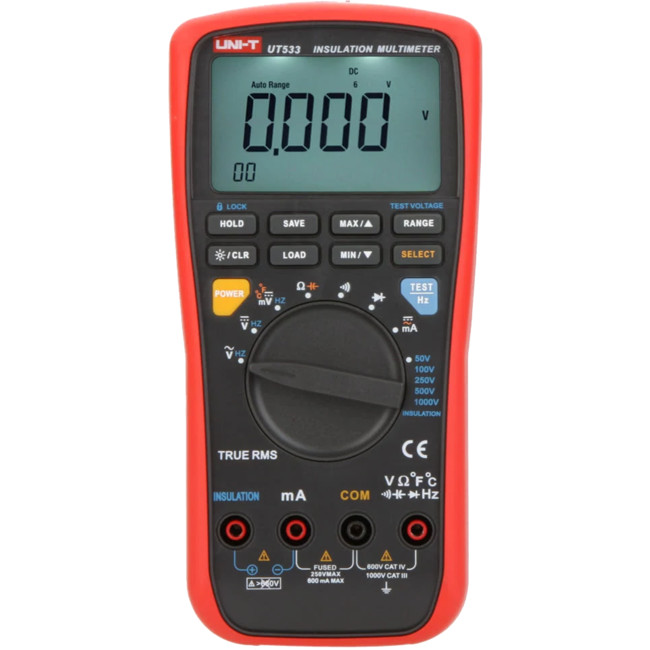

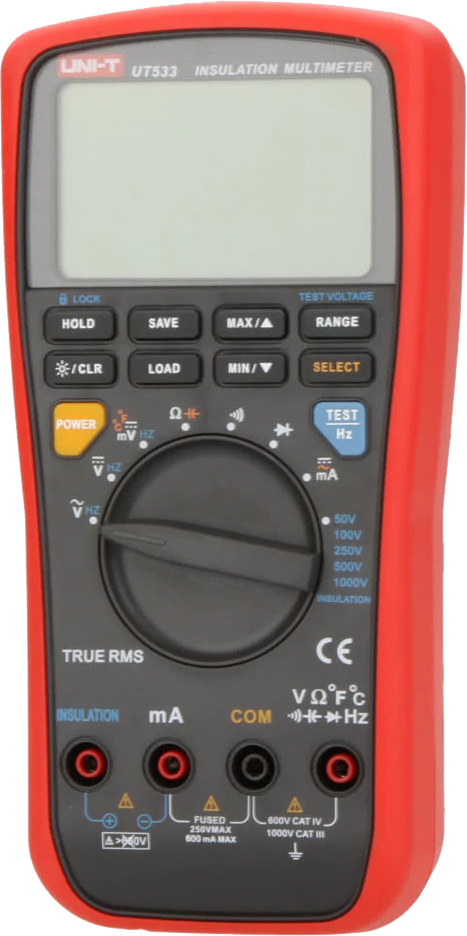

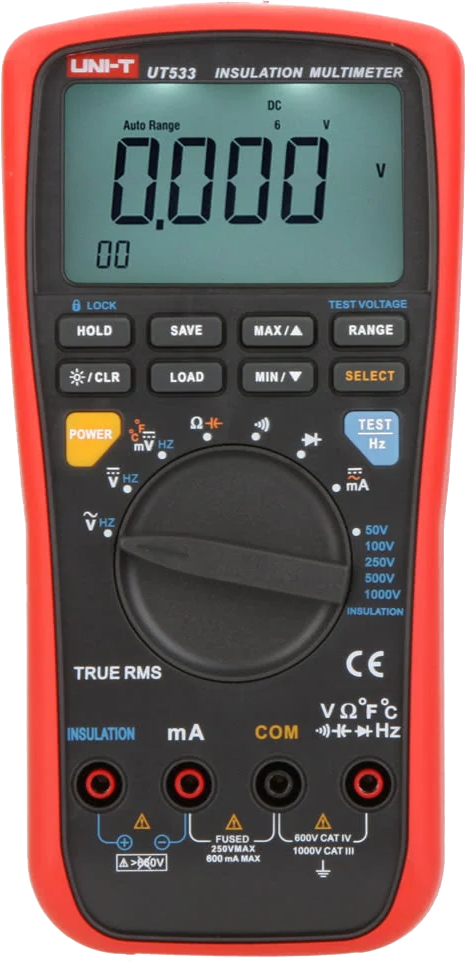

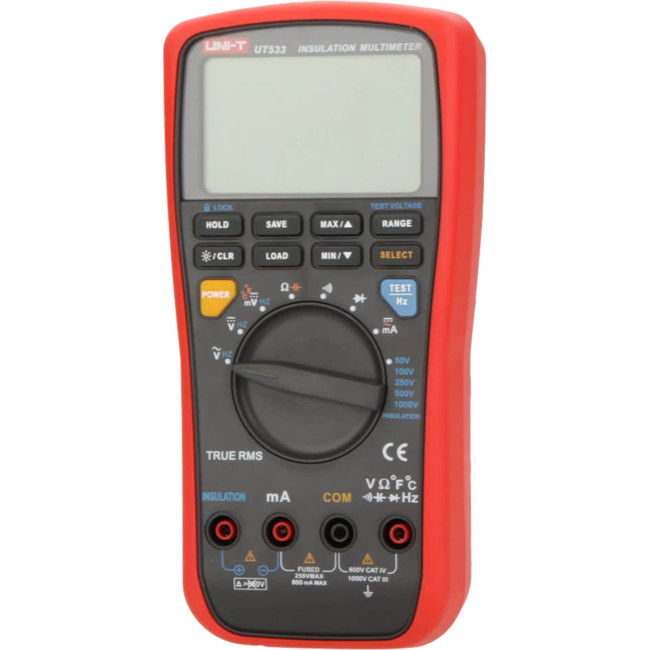

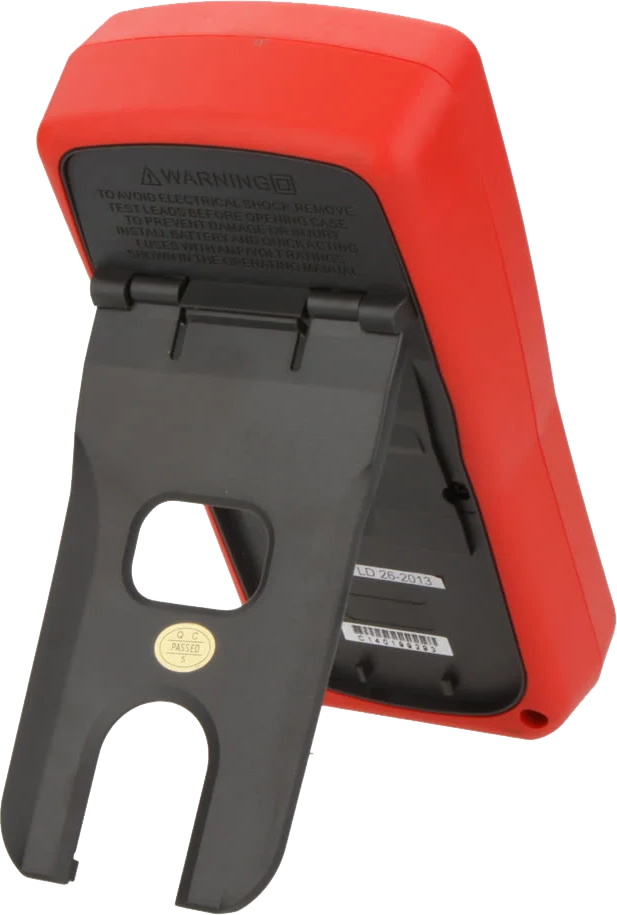

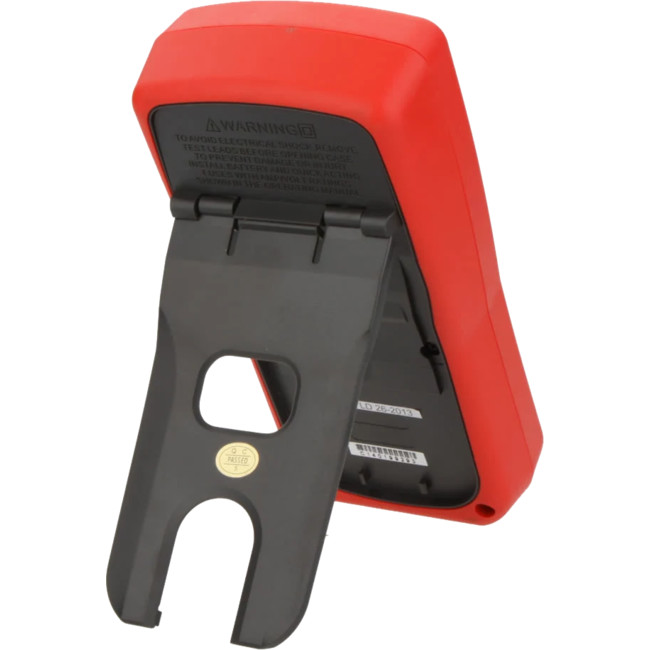

UT533 INSULATION TRUE RMS MULTIMETER

AUTO RANGING RESISTANCE TEMP

Code: 44488245

1.10 kg
6935750553305
EACH
10
ETA
2024-02-28
$299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode



This battery-powered, true RMS insulation multimeter with6000 count display can measure or test the following:

  • AC/DC voltage and current
  • Resistance
  • Voltage and current frequency
  • Diode
  • Continuity
  • Capacitance
  • Temperature
  • Insulation testing

What is in the box?

  • UT533 x 1pc
  • Manual x 1pc

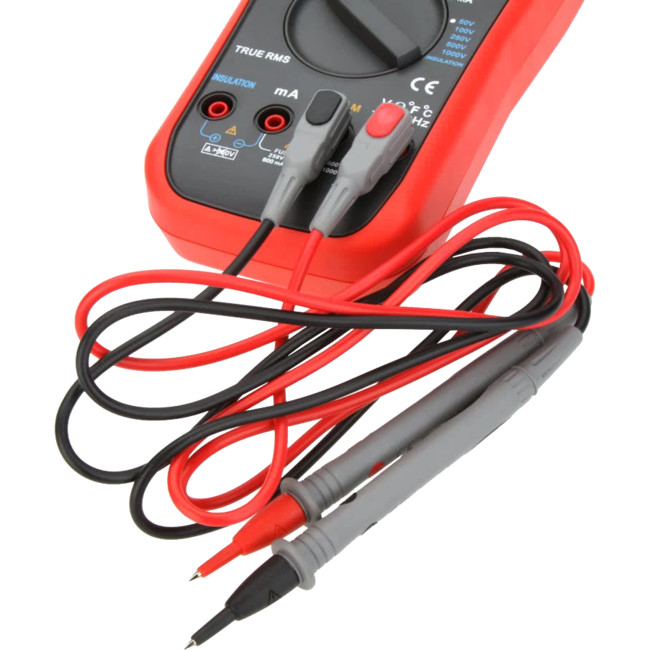

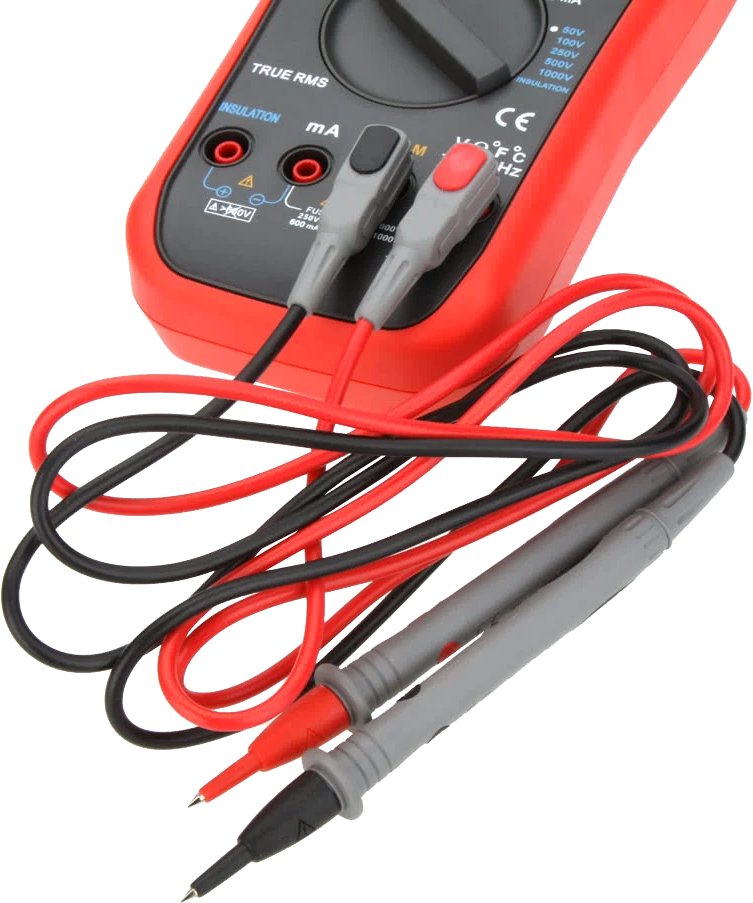

  • Test lead x 1 pair
  • Short lead x 1 pair
  • Alligator clip x 1 pair
  • K Type thermocouple x 1pc
  • AA Battery x 6pcs
  • Carry bag x 1pc

Specifications:

Maximum Voltage Applied to any Terminal

1000V rms

mA Input Terminal

1A/240V Fast Fuse, High breaking capacity Fuse

Maximum display

6000, updates 5 times per second

Operating temperature

0°C ~40°C (32°F ~104°F)

Storage temperature

-10°C ~50°C (14°F ~122°F)

Relative humidity

≤ 75% @ 0°C to below 31°C
≤ 50% @ 31°C to above 40°C

Altitude

Operating: 2000 meter
Storage: 10000 meter

Batteries

Six AA 1.5V batteries (included) AM3/LR6 standard capacity around 2450mAh

Low battery

LCD display

Auto power off

The meter will be automatically off when the meter is not in use for more than 15 minutes

LCD size

81mm x 46mm

Size

97mm x 202mm x 46mm

Weight

Around 505g (including batteries)

Electrical Specifications

Accuracy: ±(a % of rdg b digits), guarantee for 1 year
Operating Temperature: 23°C ± 5°C
Relative humidity: < 75%

AC Voltage Measurement

Range Resolution Accuracy Input protection
50Hz - 60Hz 60Hz - 1KHz
6.000V 1mV ± (1% 3) ± (2% 3) 1000Vp
60.00V 10mV
600.0V 100mV ± (2% 6)
1000V 1V ± (2% 3)

Remarks:

  • Input Impedance: ≥ 10MQ
  • Displays effective value of sine wave
  • Frequency Response: 50Hz-1kHz

DC Voltage Measurement

Range Resolution Accuracy Input protection
6.000V 1mV ± (0.3% 4) 1000Vp
60.00V 10mV
600.0V 100mV
1000V 1V

Remark:

  • Input Impedance: ≥ 10MΩ

DC Millivolts Measurement

Range Resolution Accuracy Input protection
60.00mV 10µV ± (0.4% 4) 600Vp
600.0mV 100µV

Remark:

  • Input Impedance: ≥ 4000MΩ

AC Current Measurement

Range Resolution Accuracy Input protection
60.00mA 10µA ± (1.5% 2) Fuse, Fast, 1A, 240V
600.0mA 100µA

Remark:

  • Displays True RMS value
  • Frequency Response 50Hz – 1KHz

DC Current Measurement

Range Resolution Accuracy Input protection
60.00mA 10µA ± (1.0% 2) Fuse, Fast, 1A, 240V
600.0mA 100µA

Ohms Measurement

Range Resolution Accuracy Input protection
600.0Ω 0.1Ω ± (0.9% 2) 600Vp
6.000kΩ
60.00kΩ 10Ω
600.0kΩ 100Ω
6.000MkΩ 1kΩ
40.00MkΩ 10kΩ ± (1.5% 3)

Capacitance Measurement

Range Resolution Accuracy Input protection
10.00nF 10pF ± (3% 5) 600Vp
100.0nF 100pF
1000nF 1nF
10.00µF 10nF
100.0µF 100nF

Diode Test:

  • Resolution: 1mV
  • Input Protection: 500Vp
  • Open circuit voltage: around 3V
  • Display approximate forward voltage drop nearest value

Continuity Test

  • Continuity Indication: Continuous audible tone fortest resistance below 30Ω
  • Open circuit voltage: around 3V
  • Input Protection: 500Vp
  • Resolution: 0.1Ω

Temperature Measurement

Range Resolution Accuracy Input protection
-40°C ~537°C 1°C ± (1% 10) 600Vp
-40°F ~998°F 2°F ± (1% 18)

Frequency Measurement

At mV Range

Range Resolution Accuracy Input protection
60.00Hz 0.01Hz ± (0.1% 3) 600Vp
600.0Hz 0.1Hz
6.000kHz 1Hz
60.00kHz 10Hz
600.0kHz 100Hz
1.000MHz 1kHz

Remark:

  • Input Sensitivity:
    ≤ when 100kHz: ≤ 100mV rms
    ≥ 30mV rms
    > when 100kHz: ≥ 100mV rms
    ≤ 30V rms

At DCV/ACV Range

Range   Accuracy Input protection
10Hz - 100kHz ± (0.1% 3) 600Vp

Remark:

  • Input amplitude: ≥ 600mV rms

Insulation Specifications

Testing Voltages Measurement Range Resolution Accuracy
50V 0.1MΩ to 50.0MΩ 0.1MΩ ± (3% 5)
(0% to 10%)
100V 0.1MΩ to 100.0MΩ 0.1MΩ
(0% to 10%)
250V 0.2MΩ to 99.9MΩ 0.1MΩ
(0% to 10%) 100MΩ to 250MΩ 1MΩ
500V 0.5MΩ to 99.9MΩ 0.1MΩ
(0% to 20%) 100MΩ to 500MΩ 1MΩ
1000V 4.0MΩ to 99.9MΩ 0.1MΩ
(0% to 20%) 100MΩ to 999MΩ 1MΩ
  1.00GΩ to 2.00GΩ 10MΩ ± (5% 5)

Remark:

  • Short-circuit test current less than 2.0mA
