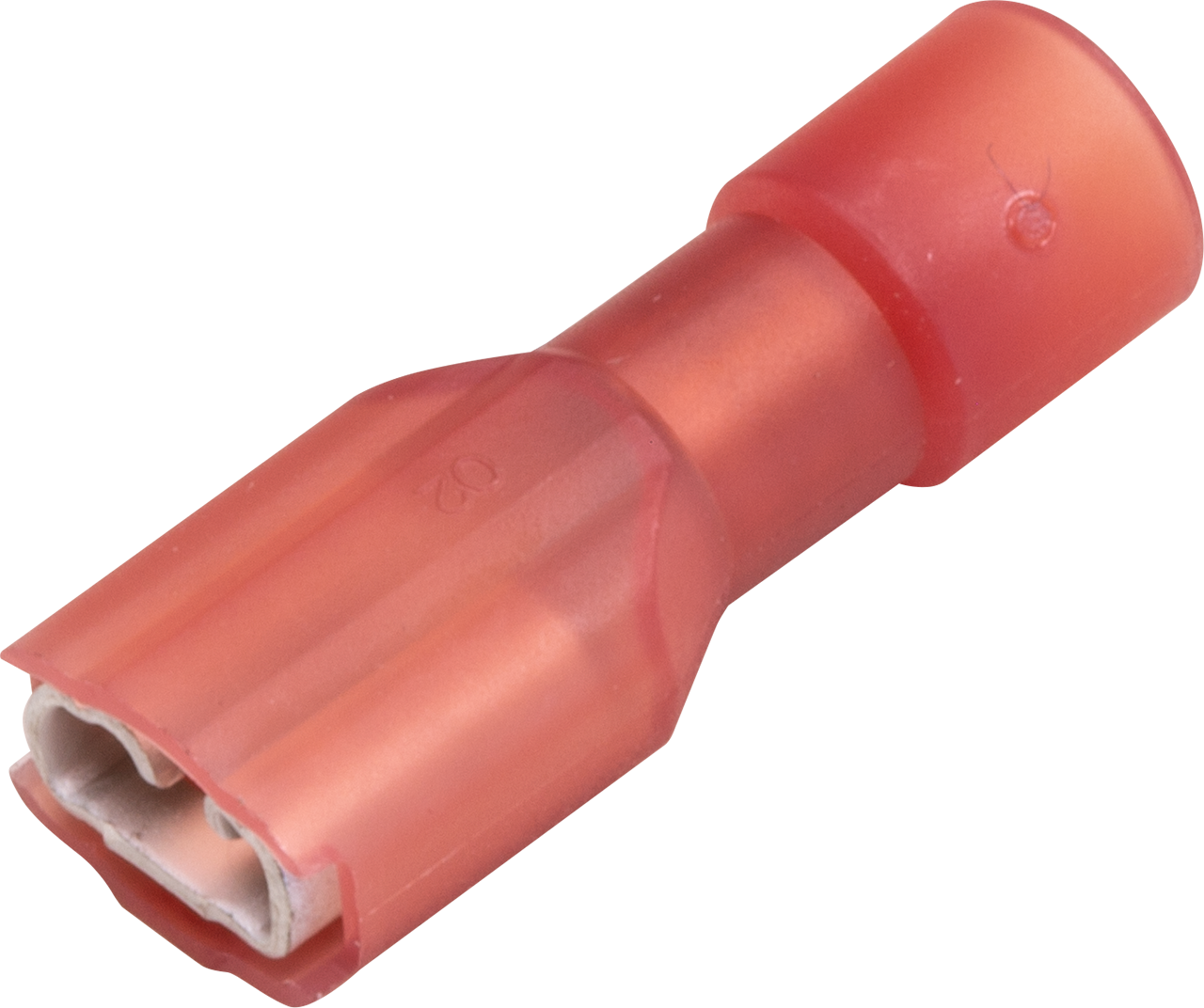

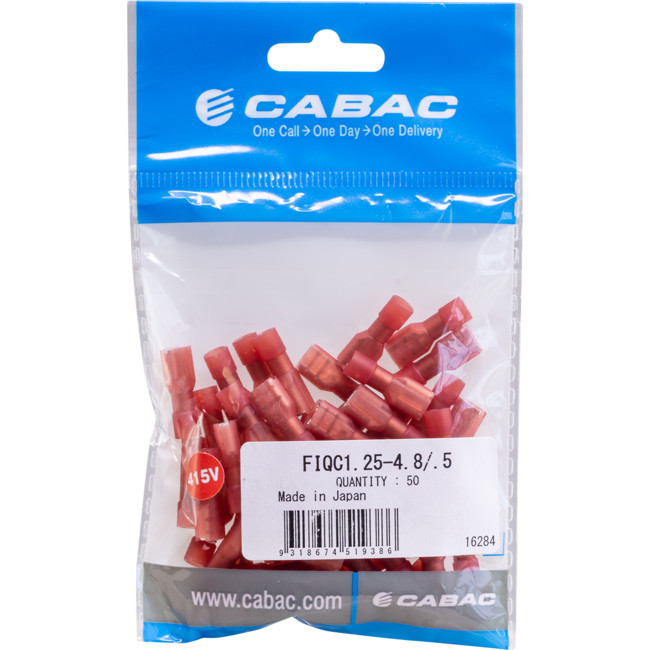

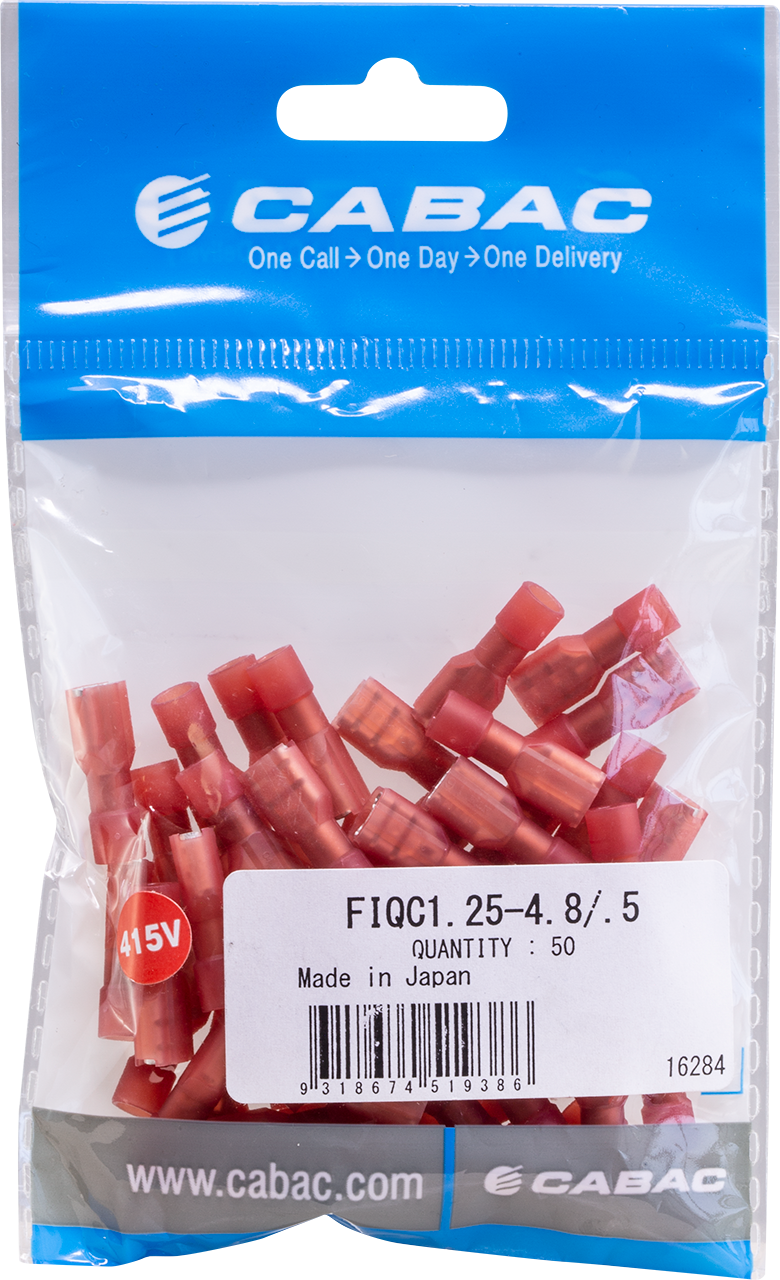

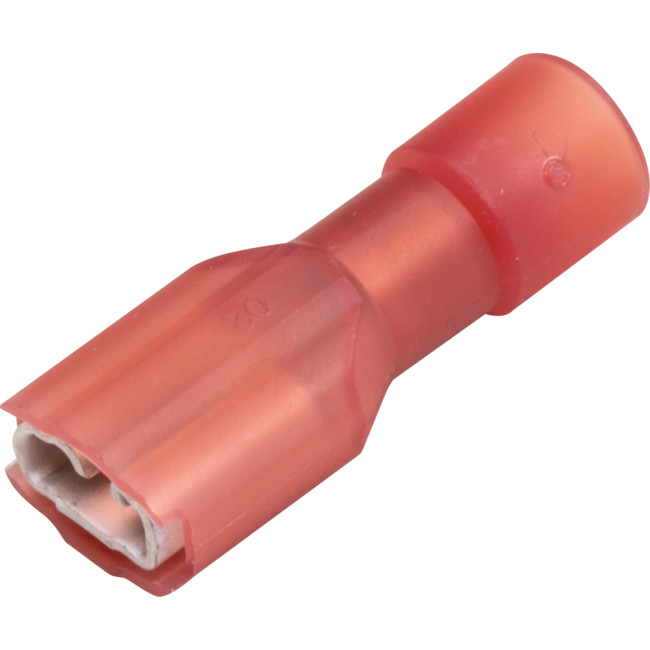

FIQC1.25-4.8-50 INSULATED TERMINAL - RED 50PK

WIRE RANGE 0.5 - 1MM SQUARED

Code: 43576648

0.0420 kg
9318674519386
Pack
ETA
Soon
$18.15 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode
The funnel entry has been specifically developed to speed up wire terminating, whilst ensuring maximum reliability of the crimped connection.Only single grip terminals are funnel entry.(Features):
- Translucent nylon in fully insulated quick connectors reduces installation errors
- Approved by Government Authorities
- Conform to AS 3169
- Conductivity of copper 99.9% IACS (except Quick Connect Range - Brass: 30%, Zinc Copper 70%)
- Electroplating: Tin 99.9%
- Insulation: PVC - for all except, Nylon 6 or Nylon 66 for FIQC
- Top working temperature: 105°C
- Voltage rating: 600V AC/DC
- RED INSULATED: Conductor 0.25 ~ 1.65mm2/Current: 24 Amps
- BLUE INSULATED: Conductor 1.04 ~ 2.63mm2/Current: 32 Amps
- Colour/Tab Width: Red /4.8mm
