TBL2001-EACH SINGLE SCREW TERMINAL BLOCK

32AMP, 450V MAX

Code: 43322001

0.0030 kg
9318674553991
EACH
85 IN
STOCK
$0.75 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

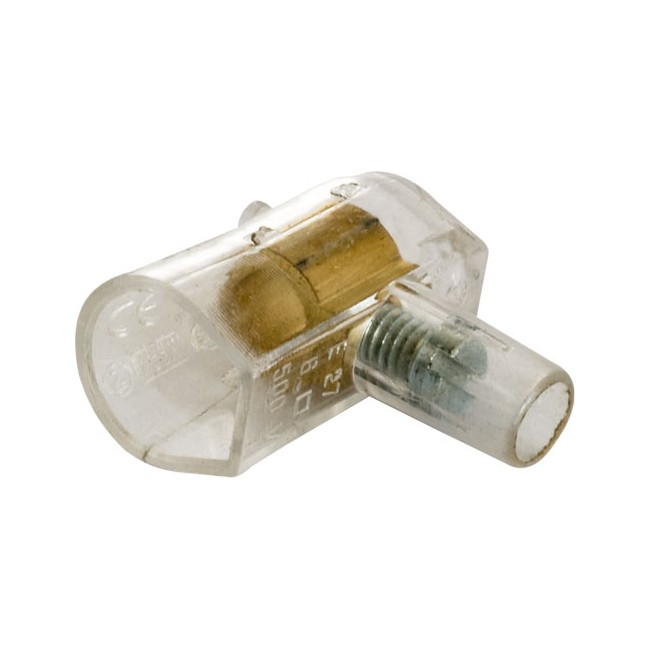

FLOATING SCREW TERMINAL

Heavy duty insulated screw connectors accommodate a maximum of 2 x 6mm2 cables, and are made in one and two screw formats, the two screw being for the earth.

They are typically used by electricians, in junction boxes for general connections, to connect light fittings, and virtually anywhere in general purpose wiring.

Supplied in handy screw top jars (100 X individual units to one Jar)

FEATURES:

  • They have a clear plastic housing so that the termination can be visually checked
  • Soft plastic housing with no sharp edges for user comfort
  • Nominal 32A rating, dependant on conductor loading
  • Rated for normal 240/415V applications
  • Connectors are supplied in handy screw top jar

SPECIFICATIONS:

Material
Body: PVC
Connections: Brass
Nominal ratings
Voltage: 240/415V
Amperage: 32A
