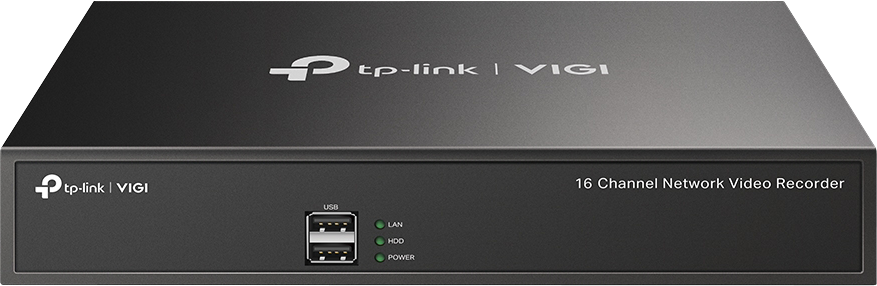

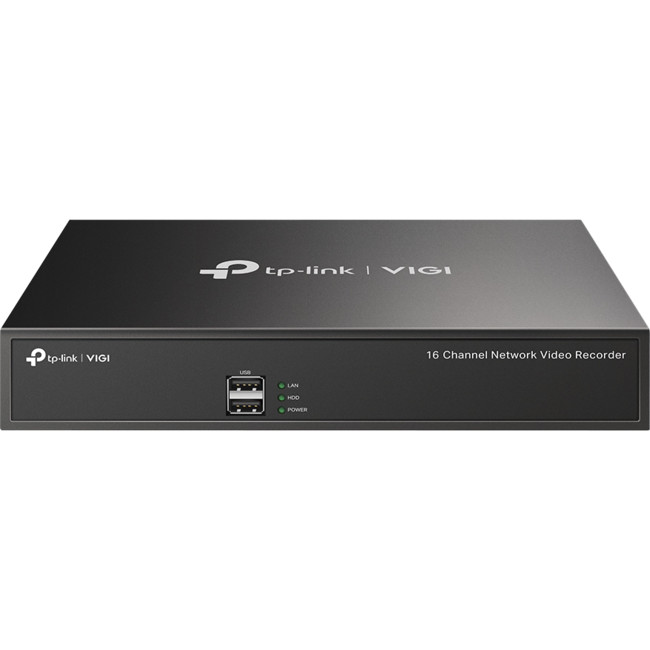

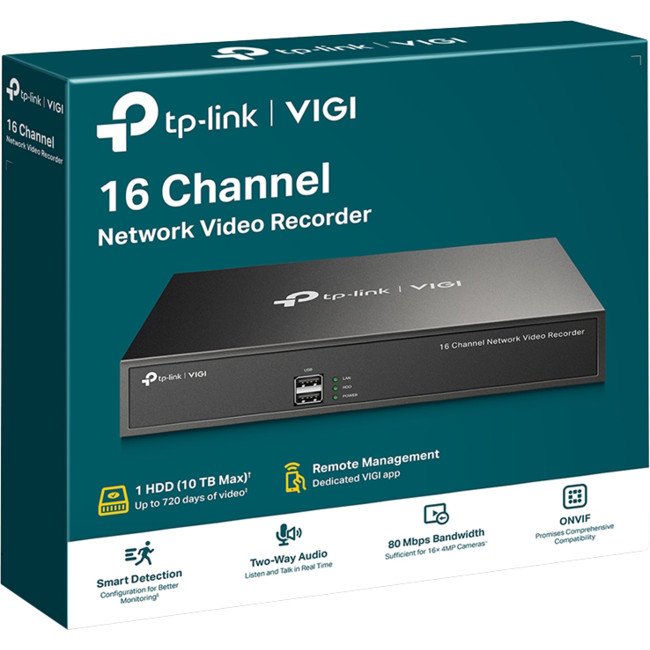

VIGI 16 Channel Network Video Recorder
Security for every hour and every day
24/7 Continuous Recording Stores up to 10TB of footage from connected cameras to secure your data for quick, convenient access.
16-Channel Real-Time Live View
Every angle all on one screen. Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
Quick Lookup & Playback
Reviewing footage is faster than ever. Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

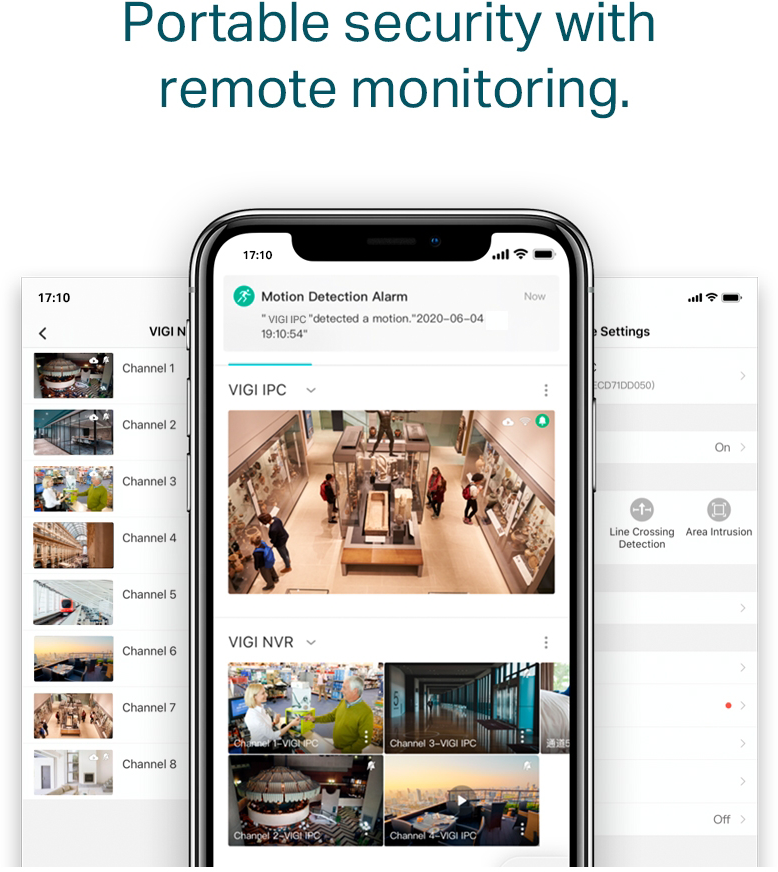

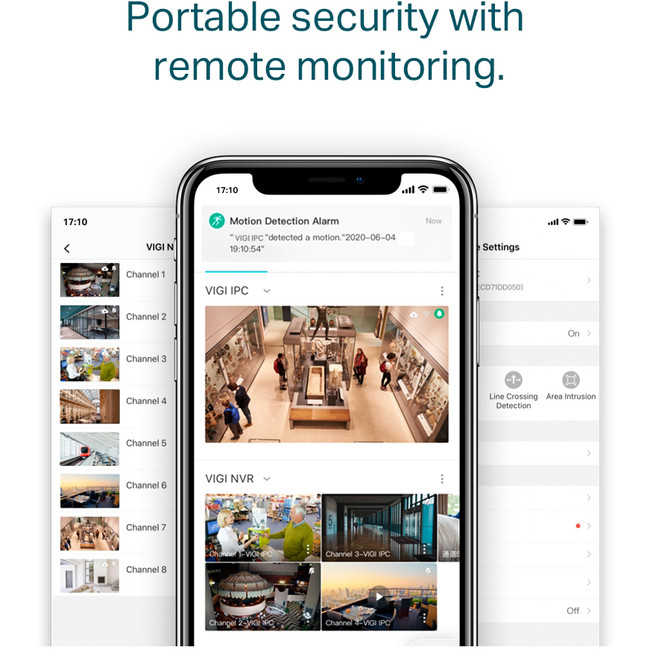

Remote Monitoring
Keep an eye on things even when you are on the move. The dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. More compression. More savings. Same quality.
ONVIF Ensures Compatibility
No need to check long compatibility lists. Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

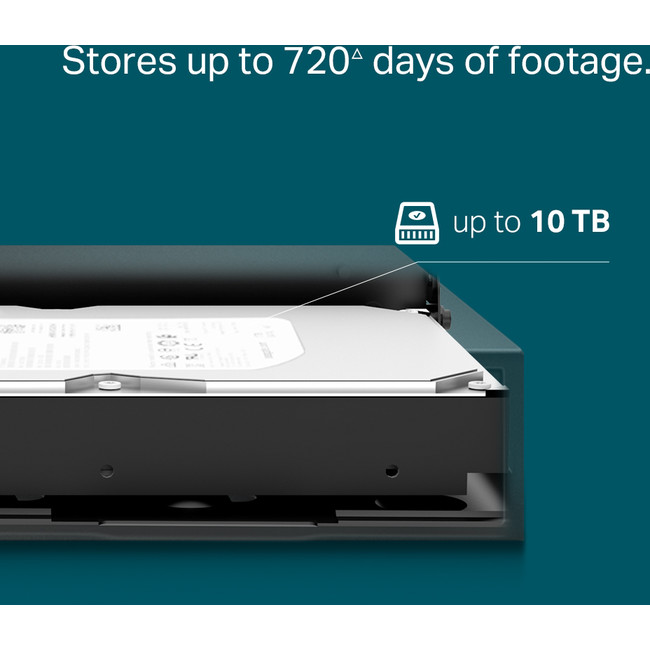

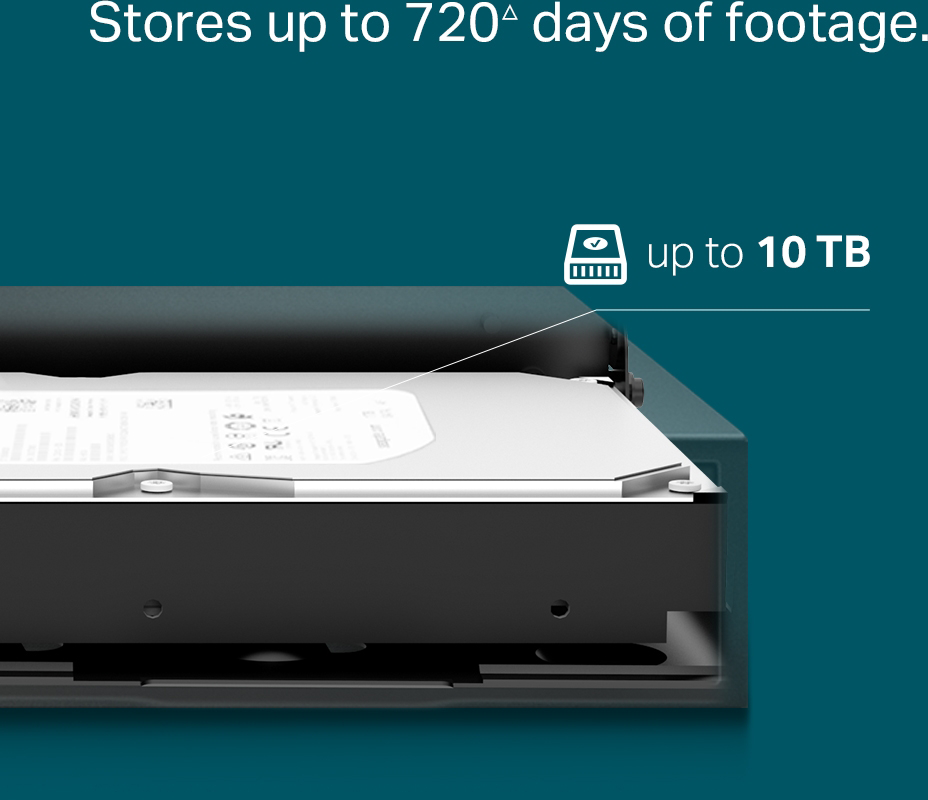

Up to 720 days of footage stored locally
1 × HDD (up to 10TB). Stores up to 10TB (720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Two-Way Audio
Greet your visitors before they enter with voice intercom support. Carry two-way conversations while watching your feed from anywhere. Suitable for management.
80Mbps Video Access Bandwidth
More bandwidth for more cameras. High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16 × 4MP cameras.
{tab Specifications}
Specifications
| NETWORK | Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| GENERAL | Operating Temperature | −10°C~55°C |
| Dimensions(H×W×D) | 246.2mm × 148.2mm × 45mm |
| Weight | 578.5g |
| External Power Supply | 12V DC/1.5A |
| Power Consumption | - 4.25W (without disk)
- 13.10W (with disk)
|
| VIDEO/IMAGE | Video Input | 16-Channel IP Video Input, up to 8MP Resolution |
| Video Output | Recording Resolution - 8MP / 5MP / / 4MP / 3MP
- 1080p / 720p
- UXGA / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF / HDMI / VGA
Output Resolution - 1920×1080 / 60Hz
- 1280×1024 / 60Hz
- 1280×720 / 60Hz
- 1680×1050 / 60Hz
- 1440×900 / 60Hz
|
| DECODING | Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Live View/Playback Resolution | - 8MP / 5MP / 4MP / 3MP
- 1080p / 720p
- UXGA / VGA / 4CIF / DCIF / 2CIF / CIF / QCI
|
| Capability | - 1-ch @ 8MP
- 2-ch @ 4MP
- 4-ch @ 2MP
|
| HARD DISK | SATA | 1 × SATA Interface |
| Capacity | Up to 10TB |

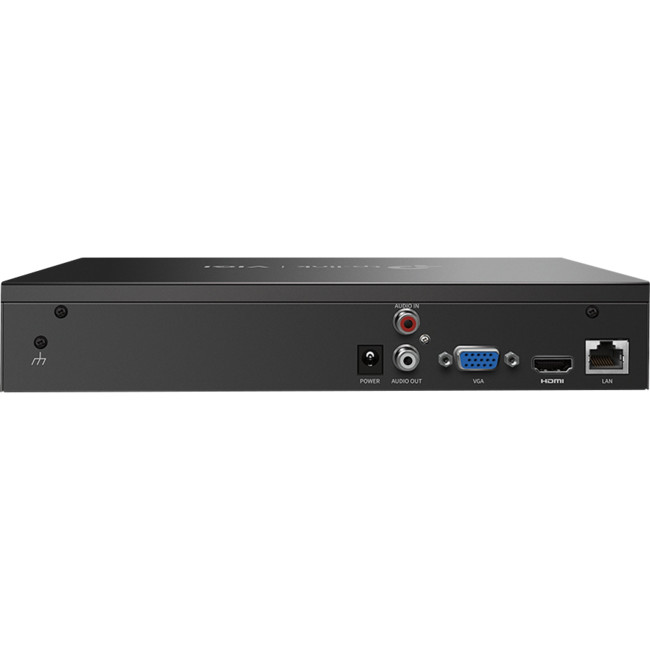

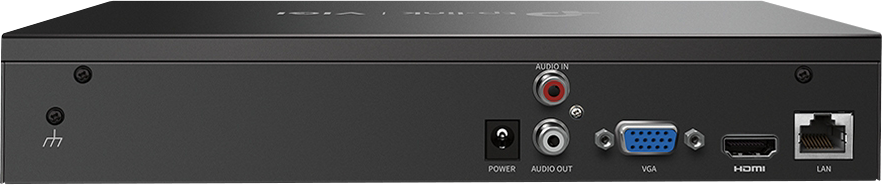

| INTERFACES | Network Interface | 1 × RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 × USB 2.0 |
