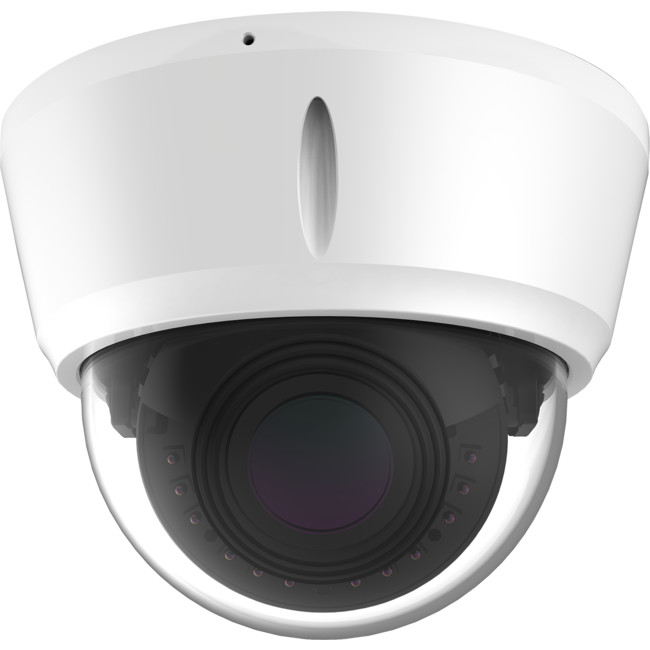

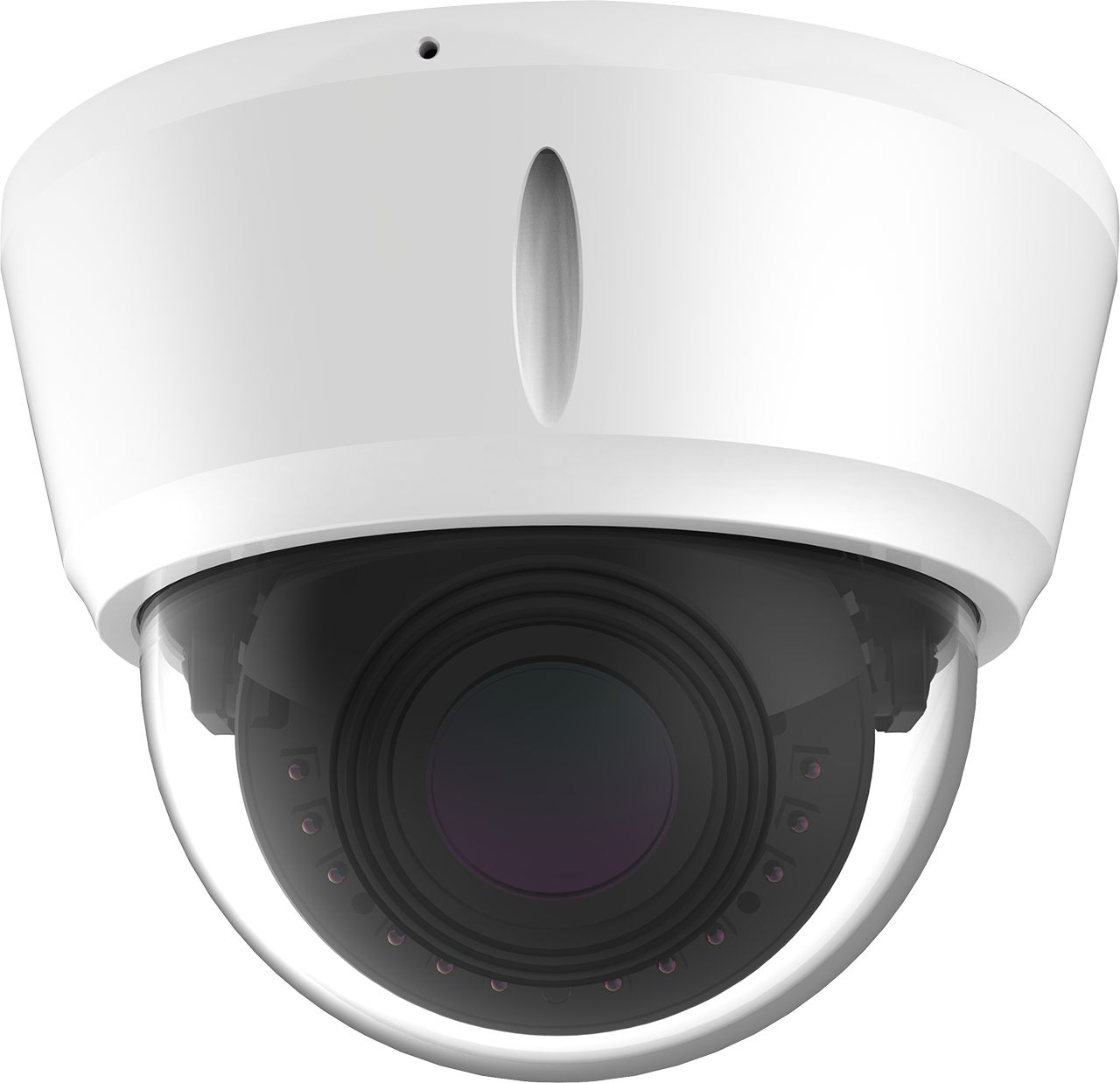

The new Doss cameras are smarter. Real smart. Whether youwant to make sure a particular object has been removed or not or whether you need to know if a fire has started or not, the new Doss IQ range cameras have it all.
| CAMERA |
| Image sensor | 1/2.5" 8MP Progressive scan CMOS |
| Min.illumination | 0Lux/F1.4(IR ON)Color:0.1Lux/F1.4,B/W0.05Lux/F1.4 |
| IR distance | 20-30M(12* IR leds) |
| Electronic shutter | Auto/ Manual(1/25~1/10000),FLK |
| Day/ Night | ICR switch, auto, color, B/W, ext |
| Lens | 3.0-10 mm motorized lens |
| Lens interface | F14 |
| Output | PAL/ NTSC adjustable |
| WDR | WDR (Off/ Low/ Middle/ High) |
| Light board control | Auto/ Manual/ Off |
| 3D N/R | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180 rotation/ Corridor mode(90 rotation, 270 rotation) |
| Slow Shutter | Off/ On |
| Exposure control | Auto/ Manual |
| Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| AUDIO/VIDEO ENCODING | |
| Video compression | H.265/ H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | Base Line / Main Profile / High Profile |
| Encoding features | NTSC: main stream: 3840*2160@30fps, sub-stream: D1@30fps
PAL: main stream: 3840*2160@25fps, sub-stream: D1@25fps
|
| Max. Resolution | 3840*2160 |
| Video bit rate | Constant bit rate, variable bit rate(32Kbps~16Mbps) |
| Video type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Support input/ output volume gain control |
| ROI | Support 4 zones, multi-stage level |
| Watermark function | / |
| NETWORK | |
| Network protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Access protocol | ONVIF,GB28181 (optional) |
| Browser | Support IE, Chrome, Firefox, Safari |
| Video preview meanwhile | 4 |
| User permission | User add/modify/delete, permission management |
| Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
| Motion detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent analysis | Target Counting, Area Detection, Left/Lost, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast function | Support |
| ANR | Support,match with NVR |
| Mobile surveillance | Support Apple, Android |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encodingresolution |
| System Upgrade | Support remote upgrade |

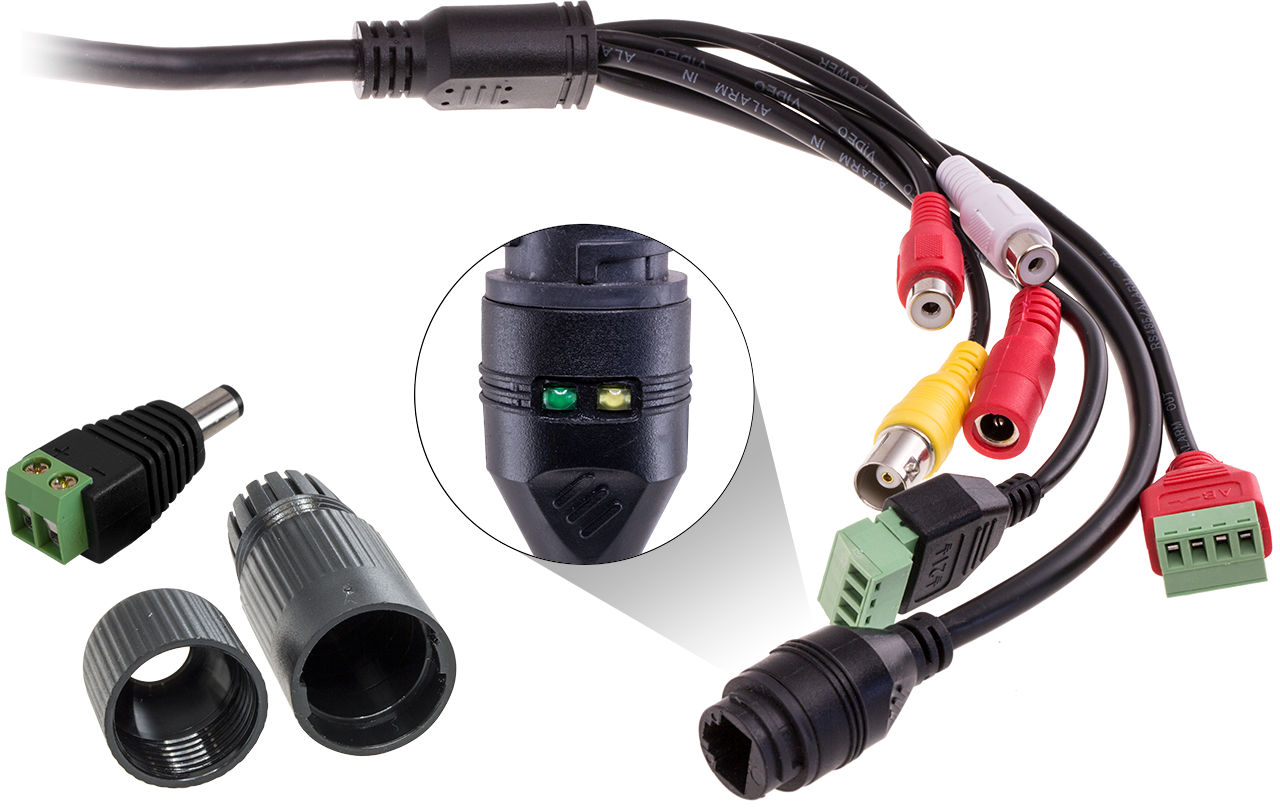

| INTERFACE | |
| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite Video Output |
| Audio | Line Input/Output |
| Alarm input | 2CH |
| Alarm output | 1CH |
| Reset | Support |
| RS485 | Support |
| TF card | Support Max 256G, Micro SD(SDHC /SDXC) card local-storage |
| Other | / |
| GENERAL |
| Operating temperature | -20°C ~ 55°C |
| Protection grade | IP66/IK10 |
| Power supply | DC12V /AC24V/PoE optional |
| PoE | Optional |
| Power consumption (max) | <9W |
| Dimensions(mm) | 86(H)*F117(L)mm |
