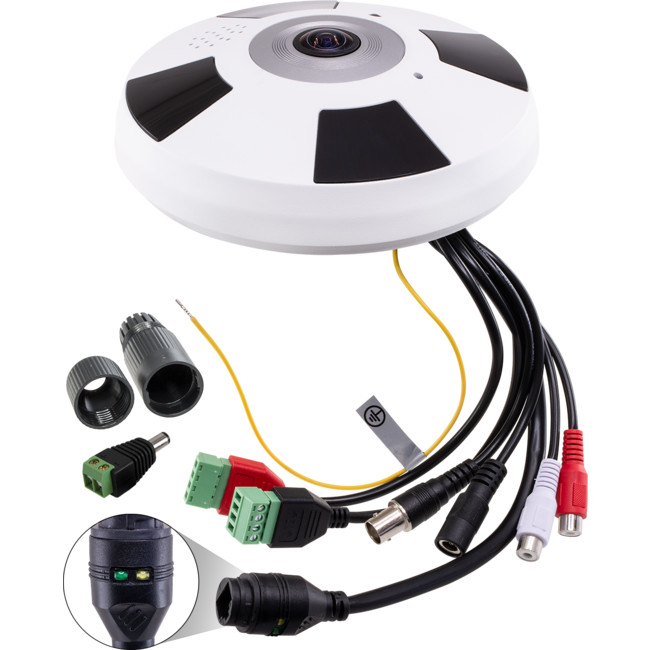

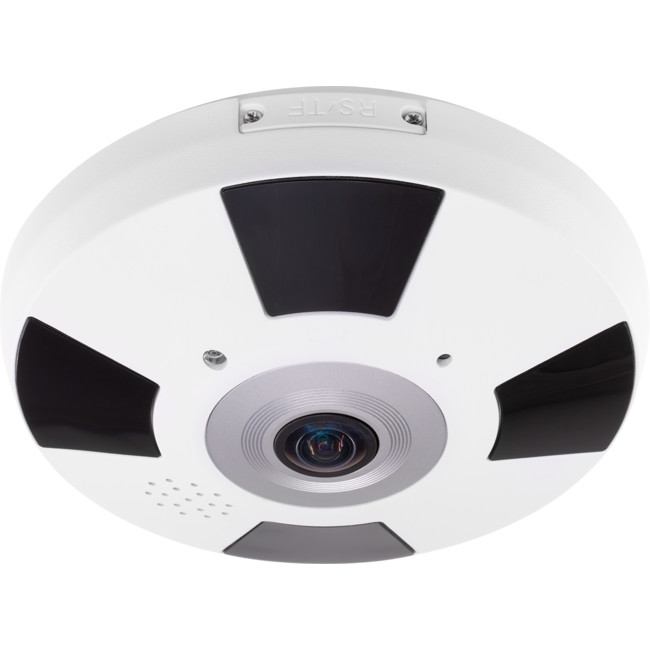

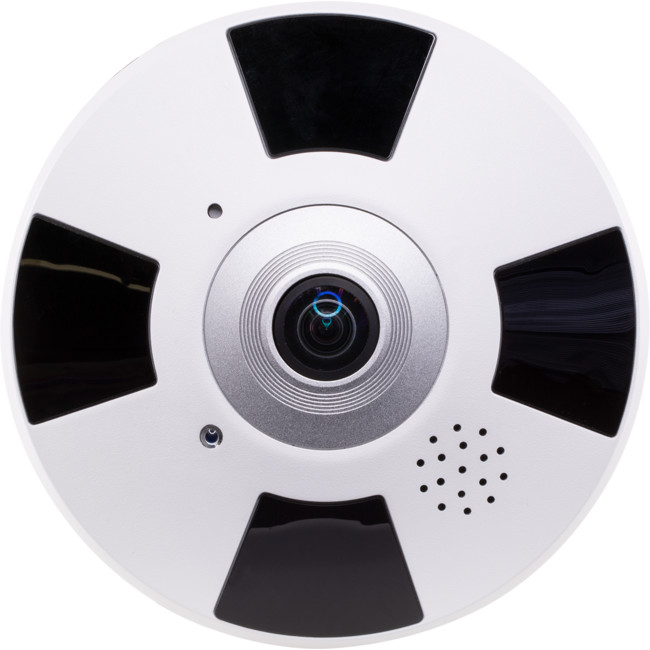

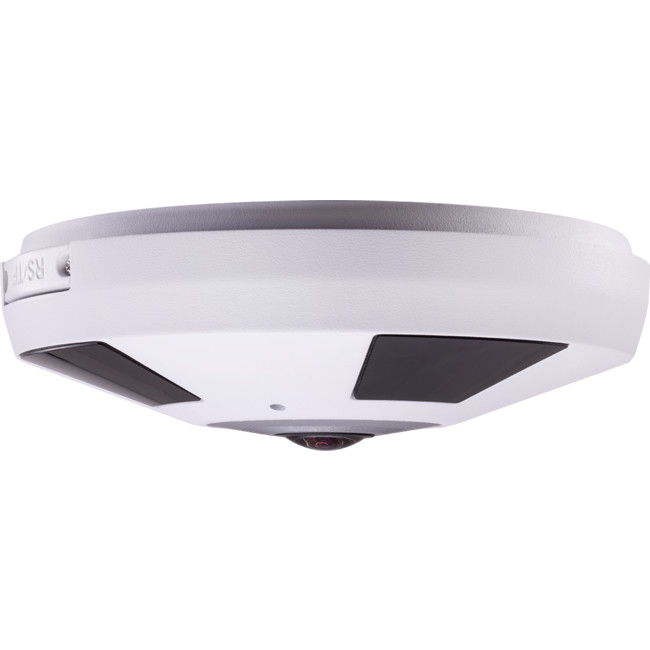

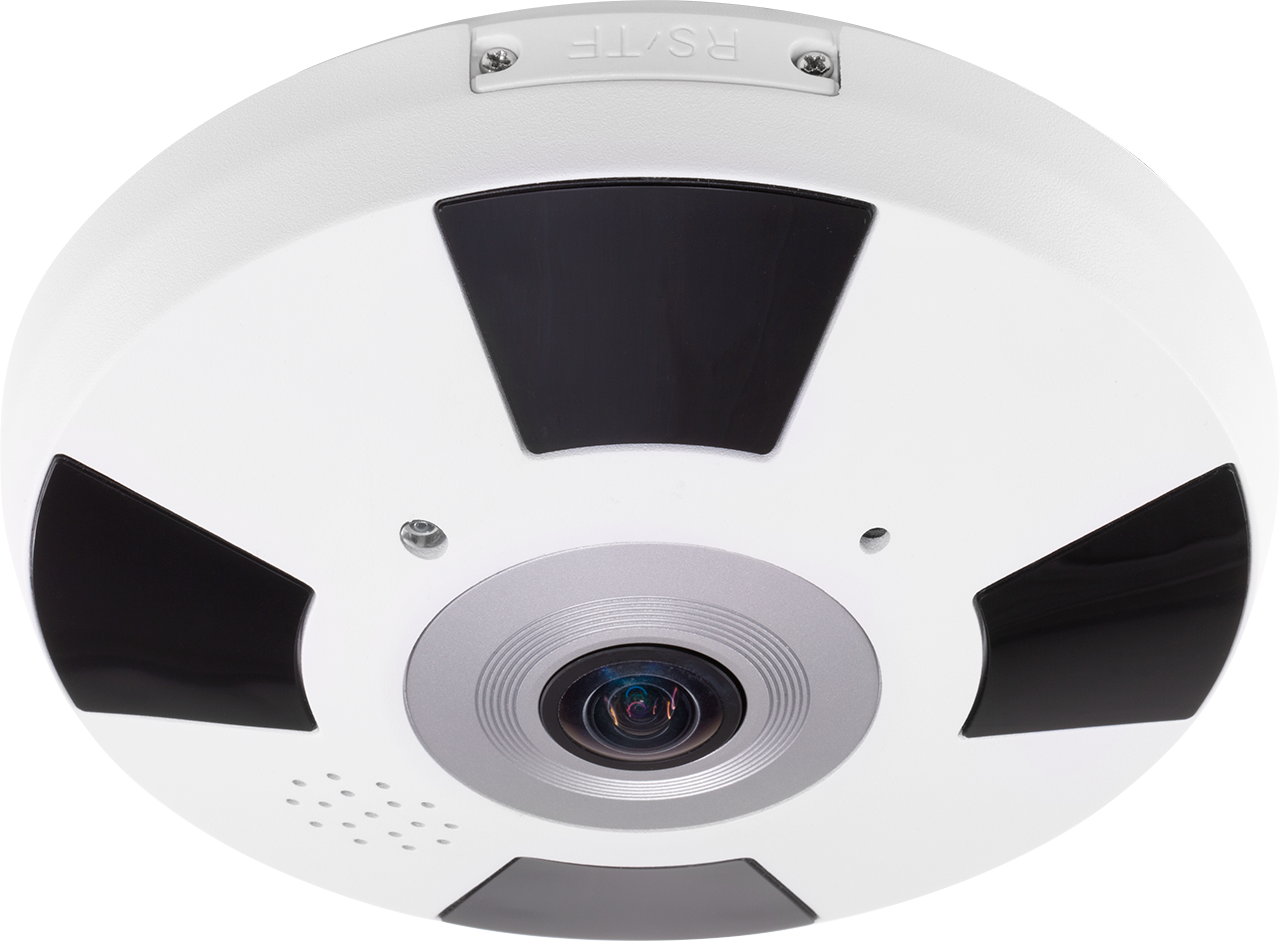

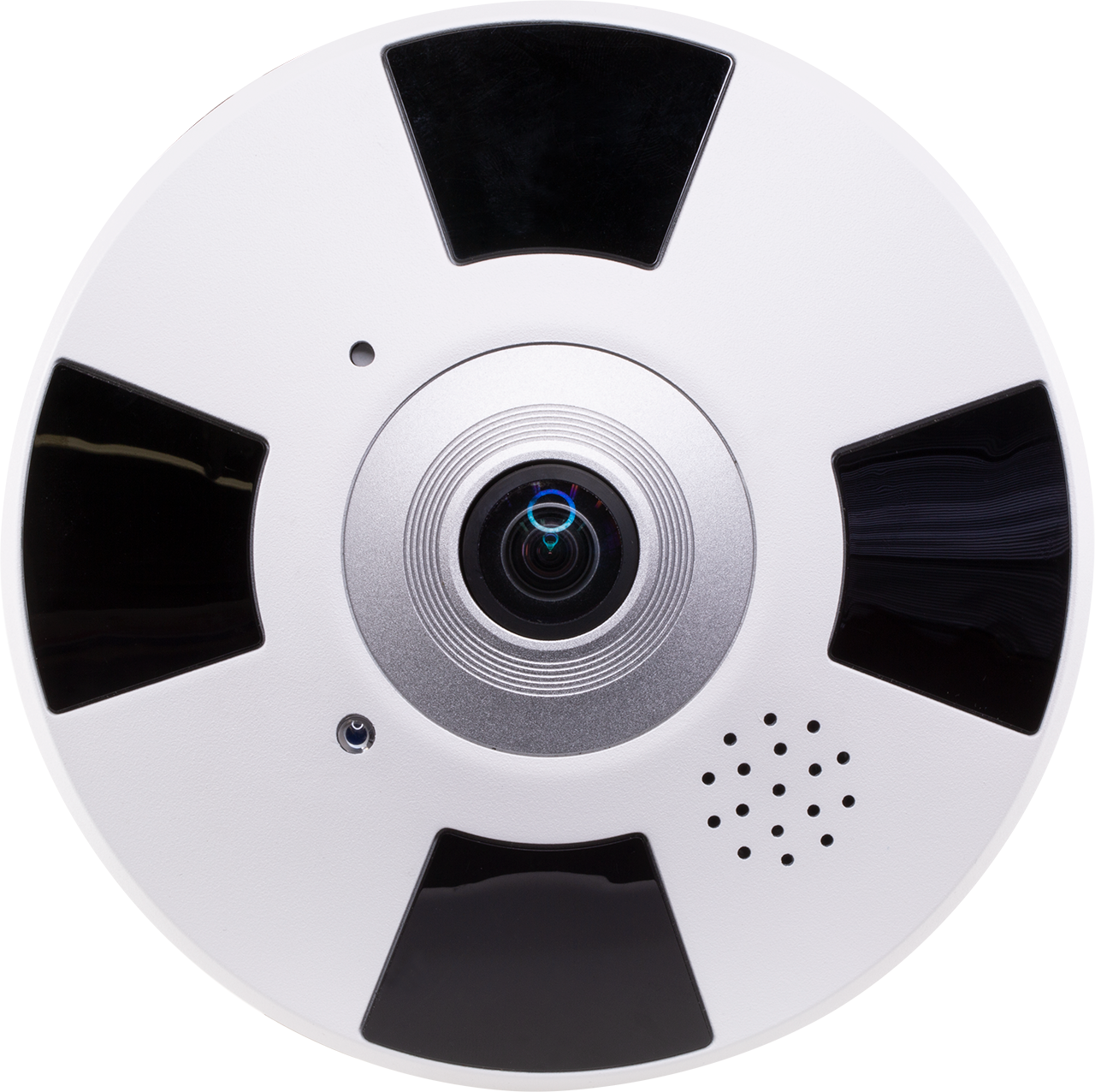

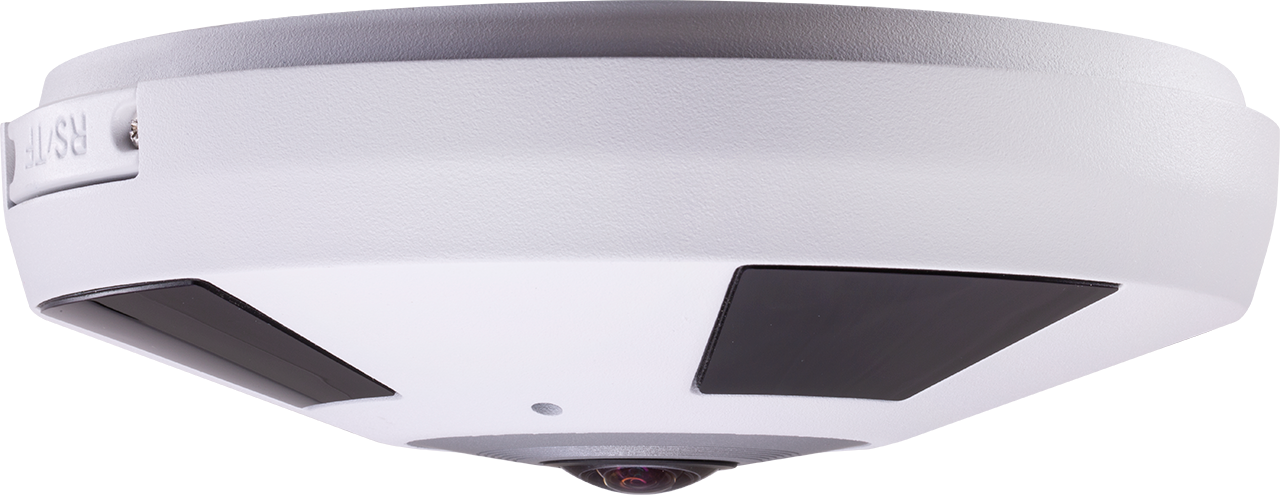

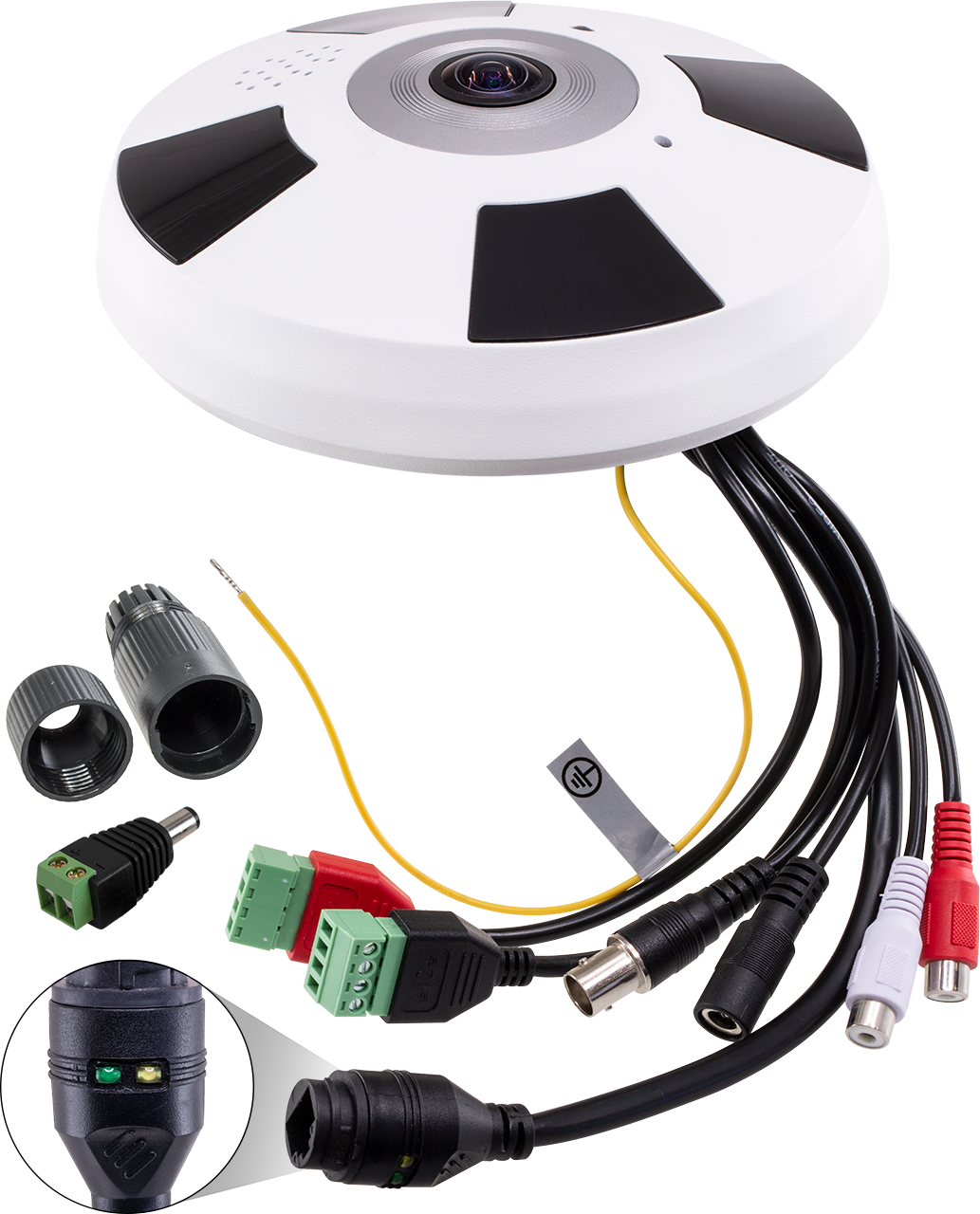

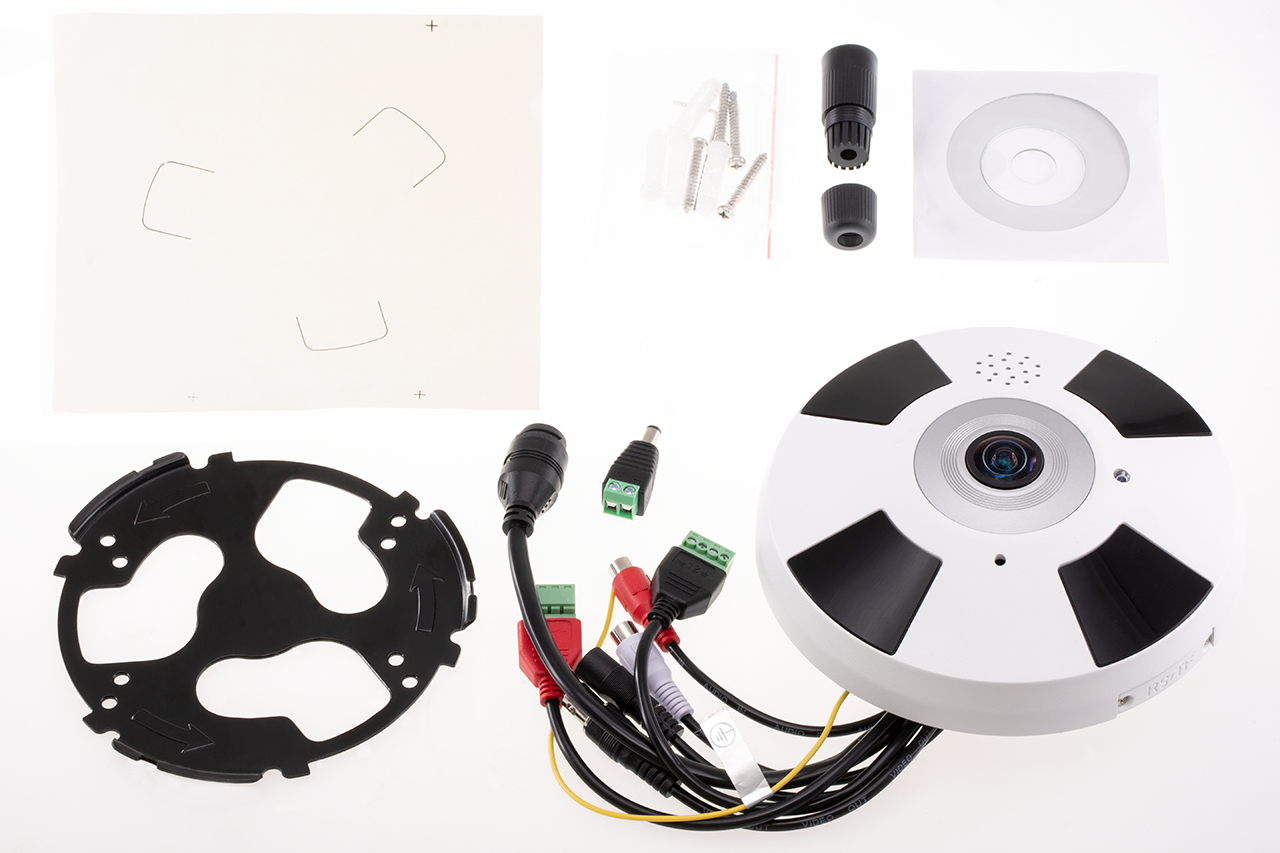

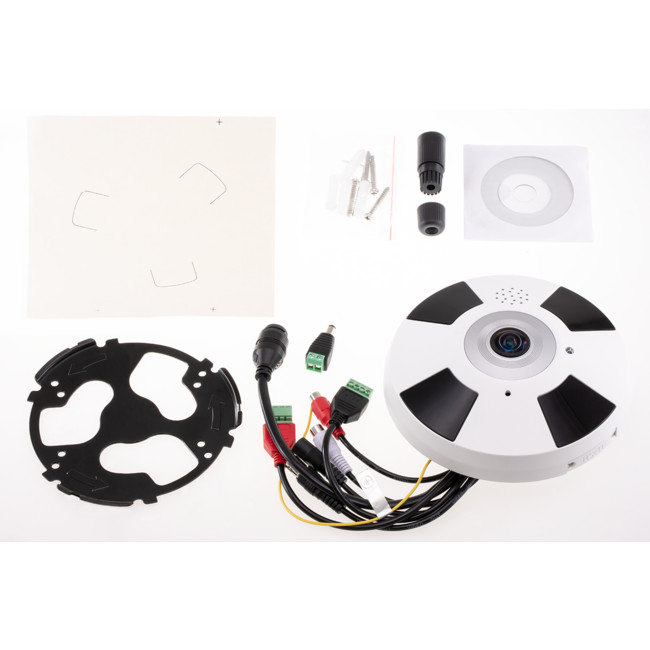

DMF20IPW FISHEYE 12MP PANORAMIC CAMERA

Features

• Max resolution 12MP (4000*3000 @20fps)
• One camera to 5 channels on NVR to cover a wide area
• Panoramic view of the camera
• Support low bit rate, low delay, and ROI enhance coding
• H.265 high effective compression, save bandwidth and storage space
• Support multi-line OSD, OSD color can be adjusted
• High effective IR LEDs, long service life, IR distance can reach 15-20m
• Support Smart IR, prevent IR overexposure at night
• ICR infrared filter plate automatic switch, achieve real D/N monitoring
• Support corridor mode, increase the monitoring area in longitudinal strip environment
• Support PoE
• Support Micro SD card (up to 128G) local storage
• Support 3D digital N/R, DWDR
• Support auto electronic shutter function, adapt different monitoring environment
• Support various intelligent alarm
• Support bidirectional talk
• Support 1CH alarm input / 1CH alarm output
• Support GB28181, Onvif access
• Support Emai, FTP, NTP
• Support HTTPS encryption transmission


Note: As it requires de-warping technology built into the NVR to correct the distortions of the videos obtained from the fisheye lens, the fisheye camera is not compatible with all NVRs, it is only compatible with DOSS IQ4K series NVR.
De-warping the 360-degree view to 4 channels in 4 directions, plus the main panoramic view, you can set up a total of 5 channels from this fisheye camera.

Built-in intelligence

The new Doss cameras are smarter. Real smart. Whether youwant to make sure a particular object has been removed or not or whether you need to know if a fire has started or not, the new Doss IQ range cameras have it all.

Here are some of the intelligent analysis baked into the cameras:

• Target counting
• Area detection
• Object detection
• Line crossing

{tab Specifications}

Specifications

{tab FAQ}

Q: No audio from the camera?

A: Refer to the article in the knowledge base under the IP camera section.
