PTZ5425 4MP IR MOTORISED VARIFOCAL DOME NETWORK CAMERA

VIGI INSIGHT

Code: 43160264

1210002620208
EACH
6
ETA 2026-09-11
$1299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

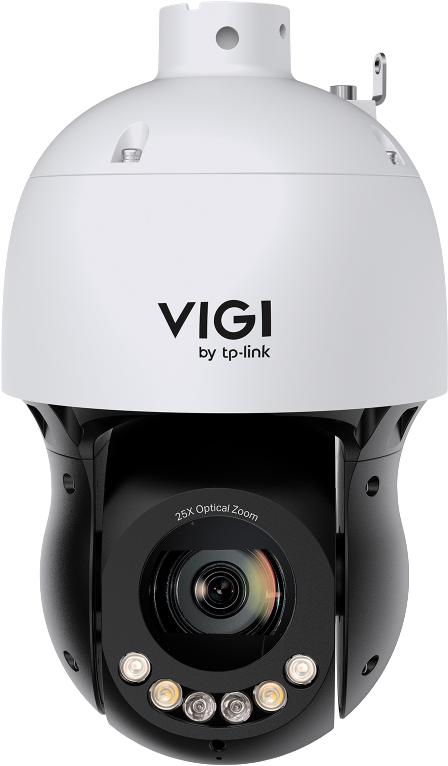

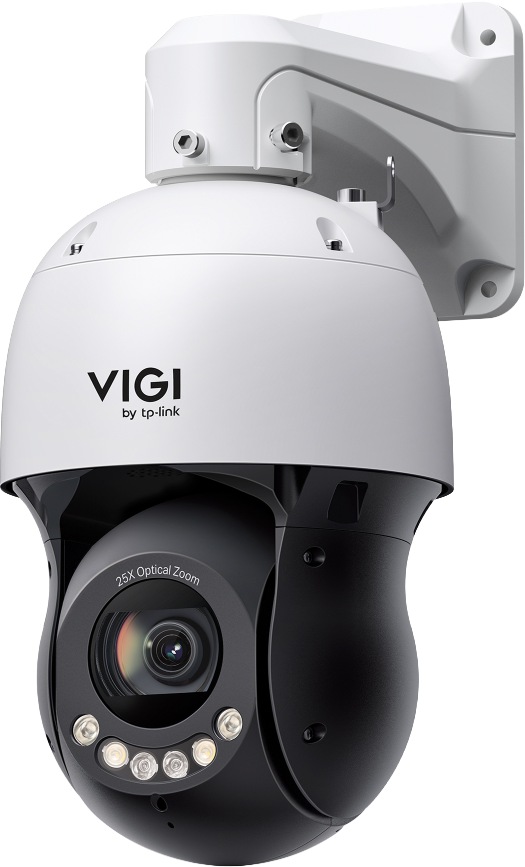

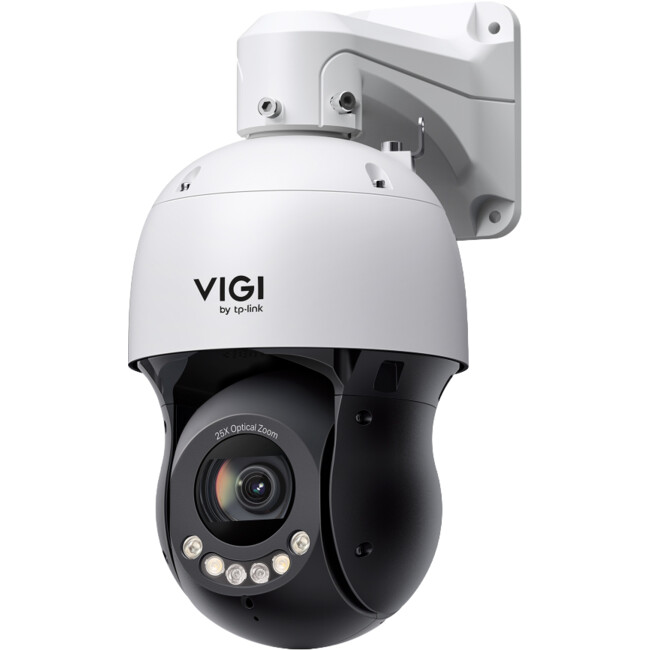

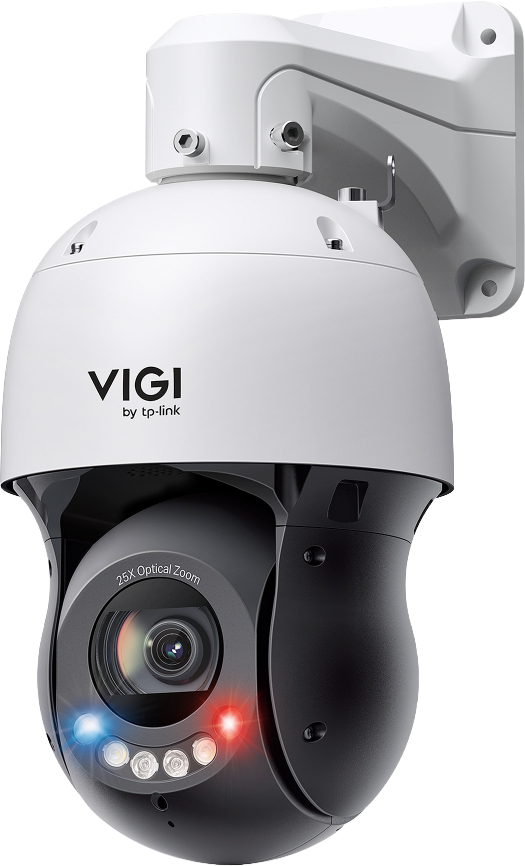

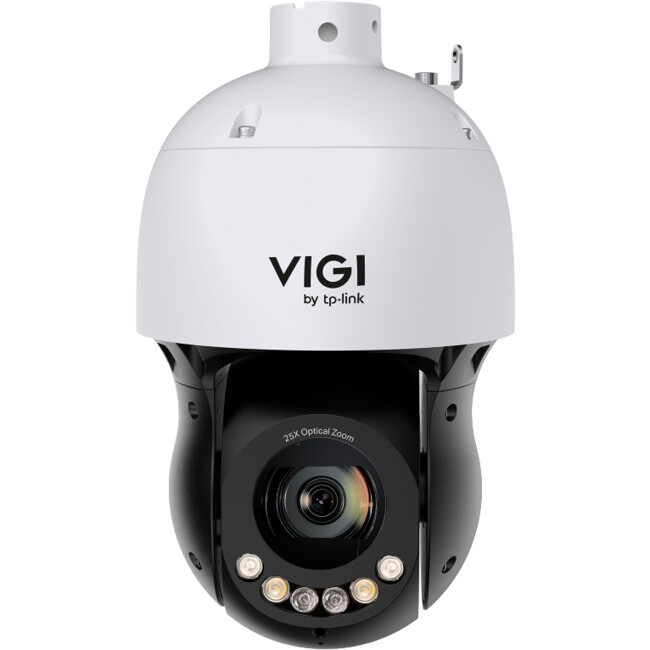

VIGI 5-inch 4MP 25X Full-Colour Network Speed Dome

  • 360° Wide-Area Coverage
  • 25X Optical Zoom & 16X DigitalZoom
  • Intelligent Auto Tracking
  • Up to 240°/Sec Pan Speed
  • Red & Blue Flashing Lights and Sirens
  • People & Vehicle Attributes Analytics‡
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP66Weatherproof / IK08Vandal-Proof / 6kV Lightning Protecting
  • Digital Defog / Bulit-in Lens Heater
  • H.265+ Compression Technology
CAMERA
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/30000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified / Scheduled / Auto
LENS
TypeMotorized Varifocal Lens
Focal Length5.2-130 mm (25X Optical Zoom)
ApertureMax. F1.6
FOV• Horizontal FOV: 2.30°-57.06°
• Vertical FOV: 1.31°-32.74°
• Diagonal FOV: 2.63°-65.01
DORI DistanceWide
• D: 351 ft (107 m)
• O: 144 ft (44 m)
• R: 69 ft (21 m)
• I: 36 ft (11 m)


Tele
• D: 8530 ft (2600 m)
• O: 3553 ft (1083 m)
• R: 1706 ft (520 m)
• I: 853 ft (260 m)
PTZ
Pan/tilt RangePan: 0° to 360°, Tilt: -20° to 90° (Auto Flip)
Pan/tilt SpeedPan Speed:
• Configurable from 0° to 160°/s
• Preset Speed: 240°/s

Tilt Speed:
• Configurable from 0° to 120°/s
• Preset Speed: 200°/s
Proportional PanYes
Presets300
Patrol Scan8 patrols, up to 8 presets for each patrol
Pattern Scan16 Pattern Scans
Park ActionPreset, Patrol Scan, Pattern Scan, Home
Power Up ActionsYes
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, Patrol Scan, Pattern Scan
PTZ ProtocolPelco-D, Pelco-P, Self-adaptive
ILLUMINATOR
Illuminator Type• 2× IR LED
• 2× Integrated Infrared-White LED
Illuminator Distance• IR LED: 100 m (328 ft)†
• White LED: 50 m (164 ft)†
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2688x1520
Main Stream• Frame Rate:
50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280
Sub-Stream• Frame Rate:
50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps

• Resolution:
840x480, 704x576, 640x480, 640x360, 352x288, 320x240
Third StreamH.264/H.265
• Frame Rate:
50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps
• Resolution: 1920x1080, 1280x960, 1280x720, 848x480, 704x576

MJPEG
• Frame Rate:
50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps
• Resolution: 1280x720, 848x480, 704x576
Bit Rate ControlCBR, VBR
Video Compression• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• Third-stream: H.265/H.264/MJPEG
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeHigh Profile
Main Profile
H.265+Main Stream Supported
Video Bit Rate• Main Stream: 4096 Kbps to 16384 Kbps

• Sub-Stream: 128 Kbps to 2048 Kbps

• Third Stream:
H.264/H.265: 768 Kbps to 16384 Kbps
MJPEG: 6144 Kbps to 16384 Kbps (1280x720); 4096 Kbps to 16384 Kbps (848x480)
Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• IR Light Intensity
• HLC Adjustable
• Low Illuminator
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
DefogDigital Defog
Image StabilizationEIS
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI8 Regions
OSD SettingYes
AUDIO
Audio CommunicationTwo-Way Audio
Audio InputBuilt-in Microphone
Audio In Interface
Audio OutputBuilt-in Speaker
Audio Out Interface
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
ProtocolTCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIFYes
APIOpen Network Video Interface (Profile G/S/T)
Simultaneous Live View3 Main Streams & 3 Sub-Streams & 3 Third-streams
ClientVIGI App, Web UI, VIGI Cloud VMS
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
ALARM AND EVENT MANAGEMENT
Smart Event• Intrusion Detection
• Line Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Human Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login)
Alarm Linkage• Memory Card Video Recording
• Upload Capture
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm
• Smart Tracking
Smart TrackingIntelligent Auto Tracking
• Human-Triggered
• Vehicle-Triggered
• Event-Triggered
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm2 Alarm In, 1 Alarm Out
Red and Blue Warning Lights
Reset ButtonYes
PowerDC Power Port
RS-485 PortYes
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
Audio1 Audio In, 1 Audio Out
GENERAL
Operating Temperature-30 °C to 65 °C (-22 °F to 149 °F)
Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package Content• VIGI Network Camera
• Installation Guide
• Waterproof Cable Attachments
• Mounting Accessories
MaterialMetal
Net Weight2.8 kg
Power SupplyDC
• 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug
• Recommended Power Supply: T120100-2C1 (for EU Regions)

PoE
• PoE: 802.3at, Class 4, Max. 24.7 W

ErP Information
• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 9.2W
Protection• IP66 Weatherproof
• IK08 Vandal-Proof
• 6 kV Lightning Protection
Product Dimensions (L x W x H)Φ6.3 × 10.6 in (Φ160 × 270 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF
