1: Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.
2: This feature must be used with VIGI specified software.
3: AI-trigger notification supports playback of specific event clips, notifications triggered by external alarm devices only support live view.
4: Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
5: The Micro SD card and pole mounting kits are not included in the package.
| CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | 1/3s to 1/10000s |
| Slow Shutter | |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |

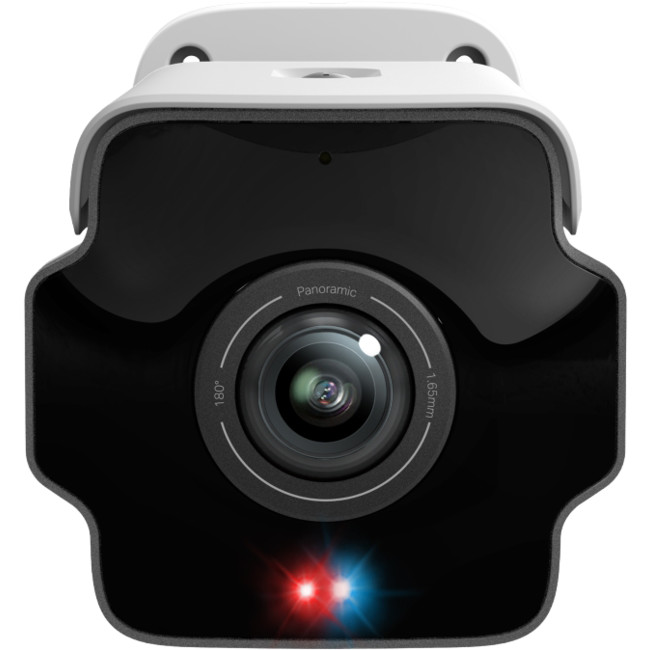

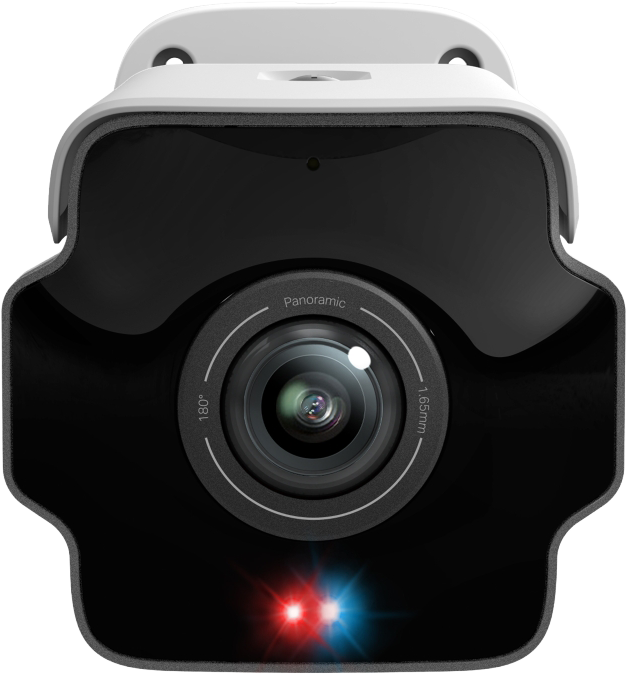

| LENS | Type | Fixed Focal Lens |
| Focal Length | 1.65mm |
| Aperture | F2.0 |
| FOV | - Horizontal FOV: 180°
- Vertical FOV: 86°
- Diagonal FOV: 180°
|
| Lens Mount | M12 |
| DORI Distance | 1.65mm:- D: 144.36ft (44m)
- O: 60.15ft (18.33m)
- R: 28.87ft (8.8m)
- I: 14.44ft (4.4m)
|
| Angle Adjustment Range (Manual) | - Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotation: 0° to 360°
|
| ILLUMINATOR | IR LED | - Quantity: 4
- Range: 65.62ft (20m)*¹
- Wavelength: 850nm
|
| Illuminator On/Off Control | Auto/Scheduled/Always On/Always Off |
| VIDEO | Max. Resolution | 3840 × 2160 |
| Main Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
Video Compression | - Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
| | H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | - Main Stream: 256 Kbps to 8 Mbps
- Sub-Stream: 64 Kbps to 1024 Kbps
|
| IMAGE | Image Settings | - Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Over-Exposure to Infrared Light
- HLC Adjustable by Client Software
|
| Image Enhancement | |
| Wide Dynamic Range | 120 dB |
| SNR | ≥52 dB |
| Image Parameters Switch | |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | |
| AUDIO | Audio Communication | Two-Way Audio |
| Audio Input | - Built-In Microphone
- Audio In Interface
|
| Audio Output | - Built-In Speaker
- Audio Out Interface
|
| Audio Compression | |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | - 3 × Main Streams
- 3 × Sub-Streams
|
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | - Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
|
| Cloud | |
| Security | - Password Protection
- HTTPS Encryption
- IP Address Filter
- Digest Authentication
|
| ALARM AND EVENT MANAGEMENT | Smart Event | - Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- People Detection
- Vehicle Detection
- Abnormal Sound Detection
- Scene Change Detection
|
| Basic Event | - Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception (Illegal Login)
- Alarm Input Device
|
| Alarm Linkage | - Memory Card Video Recording
- Upload to FTP Server
- Alarm Output Device
- Push Notifications
- Send to Alarm Server
- Active Defence-Sound Alarm
- Active Defence-Light Alarm
- Email Alarm
|
| Deep Learning Function | People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier*². |
| INTERFACES | Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | - 1 × Alarm In
- 1 × Alarm Out
- Red-Blue Warning Lights
|
| Reset Button | |
| Power | DC Power Port |
| On-board Storage | Built-in Memory Card Slot, supports MicroSD Card, up to 512 GB*⁵. |
| Built-in Microphone | Yes; Records anything going on within a 16.4ft (5m) radius of the camera. |
| Built-in Speaker | |
| Audio | - 1 × Audio In
- 1 × Audio Out
|
| ENVIRONMENT | Operating Temperature | −30°C to 60 °C |
| Storage Temperature | −40°C to 60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| GENERAL | Power Supply | - 12V DC ± 5%, Max. 18W, 5.5mm Coaxial Power Plug
- PoE: 802.3at, Class 4, Max. 21W
|
|---|
| Protection | - IP67 Weatherproof
- IK10 Vandal Proof
|
| Material | Metal |
| Dimensions (L×W×H) | 266mm × 100mm × 101mm (10.5″ × 3.9″ × 4″) |
| Net Weight | 1.01 Kg |
| Package Contents | - VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
|
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
1: Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.
2: This feature must be used with VIGI specified software.
3: AI-trigger notification supports playback of specific event clips, notifications triggered by external alarm devices only support live view.
4: Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
5: The Micro SD card and pole mounting kits are not included in the package.
