CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS |
Shutter Speed | 1/3s to 1/10000s |
Slow Shutter | |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified/Scheduled/Auto |
LENS | Type | Fixed Focal Lens |
Focal Length | 4mm |
Aperture | F1.6 |
FOV | - Horizontal FOV: 80.4°
- Vertical FOV: 41.8°
- Diagonal FOV: 98.7°
|
Lens Mount | M12 |
DORI Distance | - Detect: 80m (262ft)
- Observe: 33m (109ft)
- Recognise: 16m (52ft)
- Identify: 8m (26ft)
|
Angle Adjustment Range (Manual) | - Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
|
ILLUMINATOR | IR LED | - Quantity: 2
- Range: 50m
- Wavelength: 850nm
|
White LED | |
Illuminator On/Off Control | Auto/Scheduled/Always On/Always Off |
VIDEO | Max. Resolution | 2688 × 1520 |
Main Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
|
Sub-Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | - Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
|
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | - Main Stream: 256 Kbps to 6 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
|
IMAGE | Image Settings | - Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Over-Exposure to Infrared Light
|
Image Enhancement | |
Wide Dynamic Range | 120 dB |
Image Parameters Switch | |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | |
AUDIO | Audio Communication | Two-Way Audio |
Audio Input | Built-In Microphone |
Audio Output | Built-In Speaker |
Audio Compression | |
Audio Sampling Rate | 8 KHz |
Environment Noise Filtering | |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | Protocol | CP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | |
API | Open Network Video Interface (Profile S/G/T) |
Simultaneous Live View | 3 × Main Streams & 3 × Sub-Streams |
Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
Web Browser | - Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
|
Cloud | |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
4G | Standard | LTE-TDD/LTE-FDD/WCDMA |
SIM Type | Nano SIM*¹ |
Category | 4 |
Frequency | - LTE-FDD: B 1/3/5/7/8/20/28
- LTE-TDD: B 38/40/41
- WCDMA: B 1/5/8
|
ALARM AND EVENT MANAGEMENT | Smart Event | - Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- People Detection
- Vehicle Detection
- Abnormal Sound Detection
- Scene Change Detection
|
Basic Event | - Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception (Illegal Login)
|
Alarm Linkage | - Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
- Upload to FTP server
- Send to Alarm Server
- Email Alarm
|

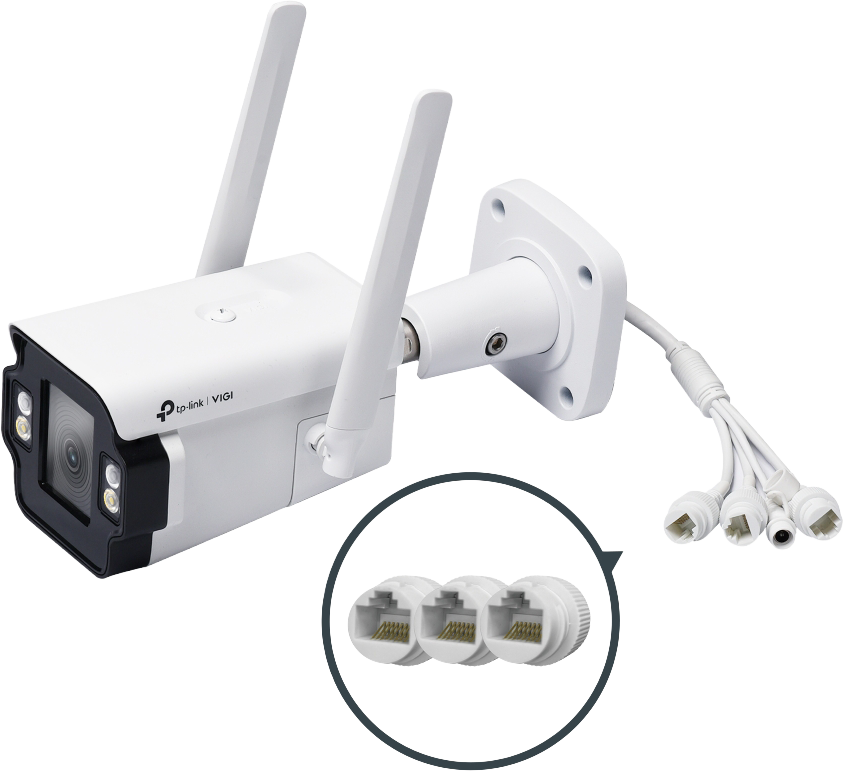

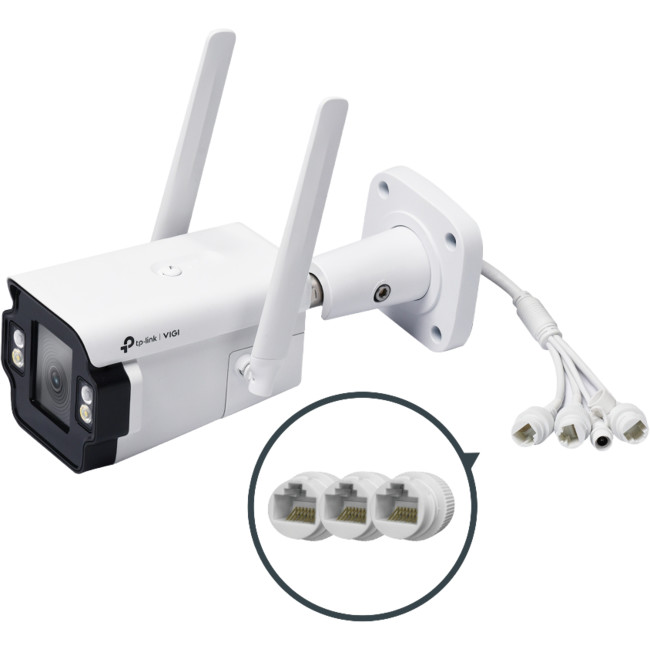

INTERFACES | Network Interface | 3 × RJ45 10/100M LAN Ports |
Alarm | N/A |
Reset Button | |
Power | DC Power Port |
On-Board Storage | Built-In Memory Card Slot, supports MicroSD Card up to 512 GB*¹ |

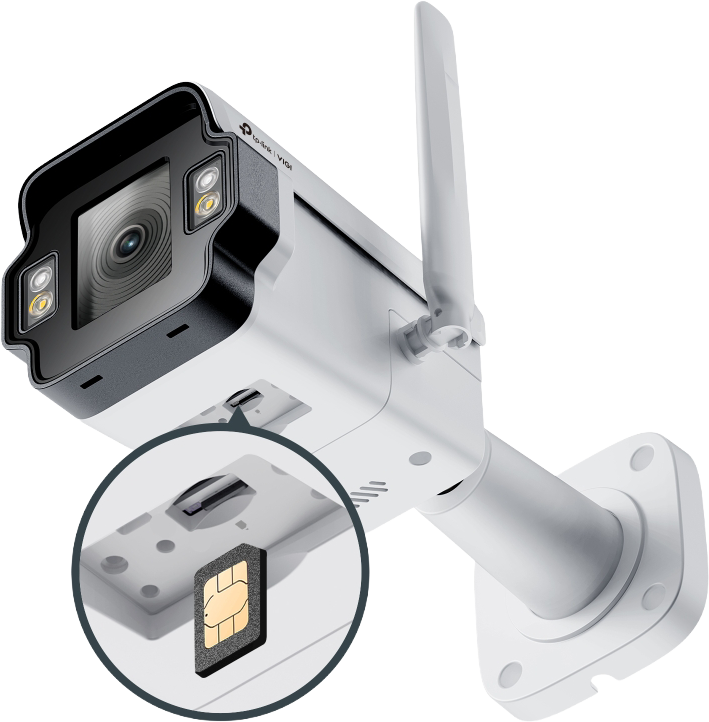

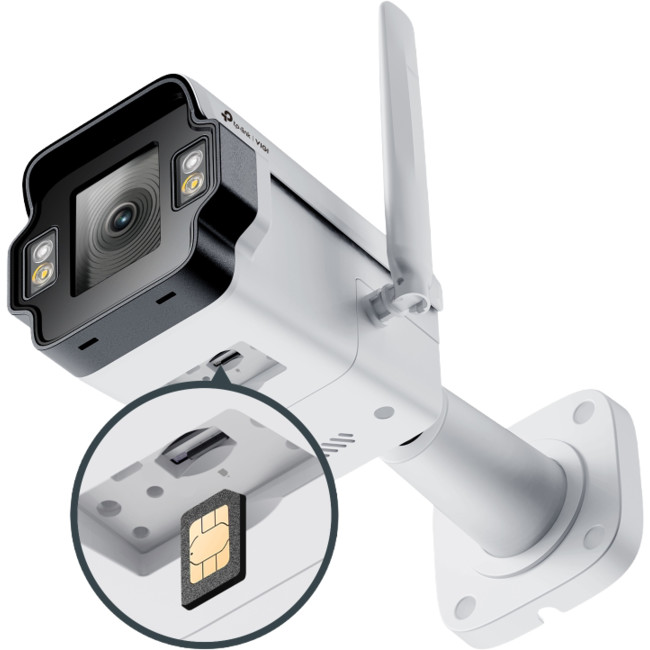

Built-in Nano-SIM Card Slot | |
Built-in Microphone | Yes; Records anything going on within a 15ft radius of the camera. |
Built-In Speaker | |
Audio | N/A |
ENVIRONMENT | Operating Temperature | −30°C to 60°C |
Storage Temperature | −40°C to 60°C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
GENERAL | Power Supply | 12V DC ±5%, 10.59W Max., 5.5mm Coaxial Power Plug |
Antenna | - Quantity: 2
- Type: 690~960 MHz & 1710~2690 MHz Dipole Omni-Directional Antenna
- Gain:
- Ant1: 0.84dBi @ 690~960 MHz, 2.85dBi @ 1710~2690 MHz
- Ant2: 0.74dBi @ 690~960 MHz, 3.06dBi @ 1710~2690 MHz
|
Protection | IP66 Weatherproof |
Material | Metal |
Dimensions, excluding antennas (L×W×H) | 256mm × 122mm × 101mm (10″ × 4.8″ × 4.0″) |
Net Weight | 1.09 Kg |
Package Contents | - VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Power Adapter
|
Certifications | WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66 |
