| CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS |
|---|
| Shutter Speed | 1/3 to 1/10000s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| LENS | Type | Fixed Focal Lens |
|---|
| Focal Length | 2.8/4mm |
| Aperture | F1.6 |
| FOV | 2.8mm:- Horizontal FOV: 111.4°
- Vertical FOV: 58.8°
- Diagonal FOV: 134°
4mm:- Horizontal FOV: 91.5°
- Vertical FOV: 46.1°
- Diagonal FOV: 109.6°
|
| Lens Mount | M12×P 0.5 |
| DORI Distance | 2.8mm- Detect: 85m (278 ft)
- Observe: 35m (116 ft)
- Recognise: 17m (56 ft)
- Identify: 8m (28 ft)
4mm- Detect: 107m (350 ft)
- Observe: 44m (146 ft)
- Recognise: 21m (70 ft)
- Identify: 11m (35 ft)
|
| Angle Adjustment (Manual) | Range- Pan: 0° to 360°
- Tilt: 0° to 85°
- Rotation: 0° to 360°
|
| ILLUMINATOR | IR LED | - Quantity: 4
- Range: 30m
- Wavelength: 850nm
|
|---|
| White LED | |
| Illuminator ON/OFF Control | Auto / Scheduled / Always On / Always Off |
| VIDEO | Max. Resolution | 3840 × 2160 |
|---|
| Main Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution:- 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution:- 704×576,640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | - Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
|
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile*¹ |
| H.265+ | Main Stream Supported*¹ |
| Video Bit Rate | - Main Stream: 256Kbps to 6Mbps
- Sub-Stream: 64Kbps to 512Kbps
|
| IMAGE | Image Settings | - Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
|
|---|
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120dB |
| SNR | ≥52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | Audio Communication | Two-Way Audio |
|---|
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64Kbps (G.711 alaw) |
| NETWORK | Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|---|
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | - Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
|
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | Smart Event | - Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- Smart Frame
- People Detection
- Vehicle Detection
|
|---|
| Basic Event | - Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
- Scene Change Detection
|
| Alarm Linkage | - Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
|
| Linkage Method | N/A |
| Output Notification | Message Push |
| INTERFACES | Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
|---|
| Alarm | N/A |

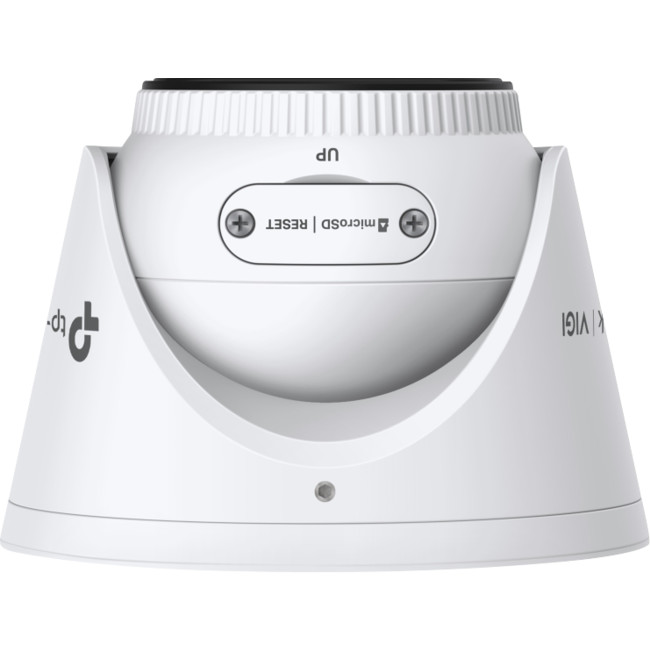

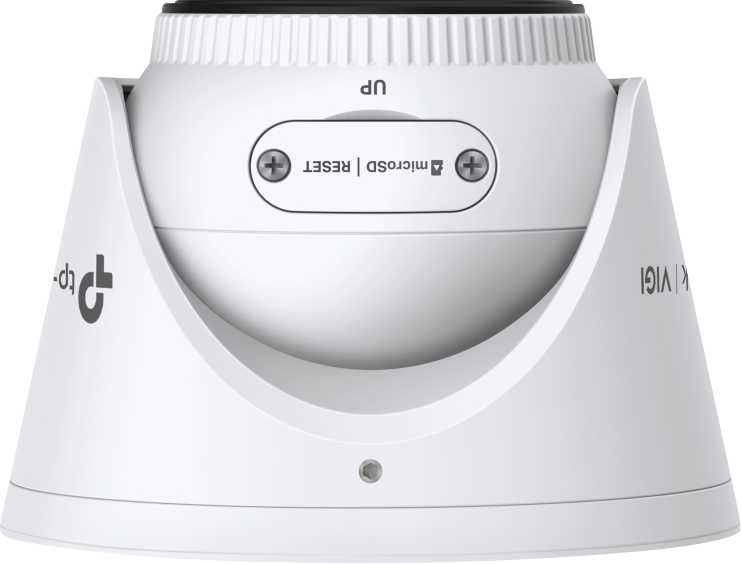

| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*² |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |

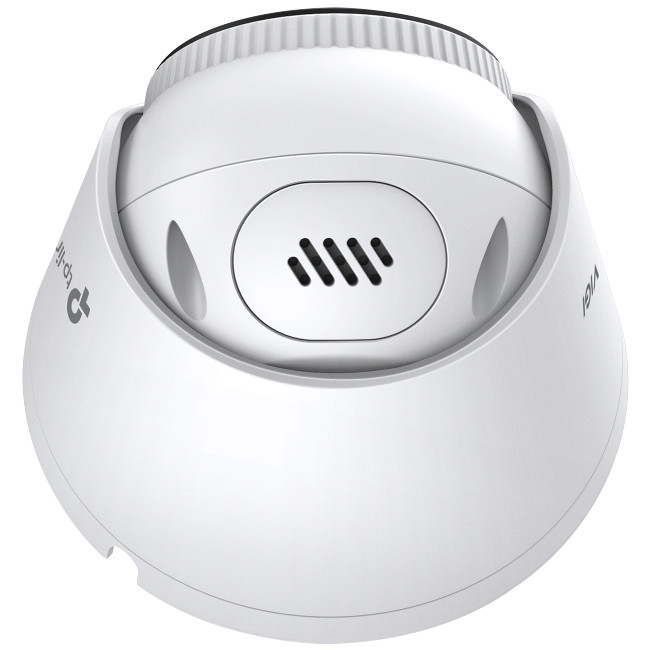

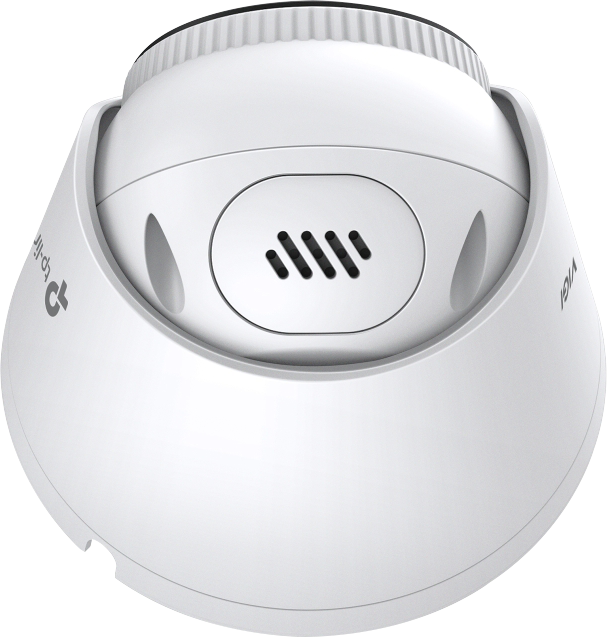

| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | Material | Metal |
|---|
| Power Supply | - 12V DC ±5%, Max. 11.5W, 5.5mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max. 12.5W
|
| Protection | IP67 |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| ENVIRONMENT | Operating Temperature | −30~60°C |
|---|
| Storage Temperature | −40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| PACKAGING | Product Dimensions (L×W×H) | 111mm × 111mm × 83.7mm |
|---|
| Net Weight | 0.48kg |
| Package Contents | - VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
|
