Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265+, respectively.*²
| CAMERA | Image Sensor | 1/2.7″ Progressive Scan CMOS |
|---|
| Shutter Speed | 1/3 to 1/10000s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | |
| LENS | Type | Fixed Focal Lens |
|---|
| Focal Length | |
| Aperture | F1.6 |
| FOV | 2.8mm:- Horizontal FOV: 111.4°
- Vertical FOV: 58.8°
- Diagonal FOV: 134°
4mm:- Horizontal FOV: 88°
- Vertical FOV: 46°
- Diagonal FOV: 105.4°
|
| Lens Mount | M12×P 0.5 |
| DORI Distance | 2.8mm:- Detect: 64m (210 ft)
- Observe: 27m (89 ft)
- Recognise: 13m (43 ft)
- Identify: 6m (20 ft)
4mm:- Detect: 80m (262 ft)
- Observe: 33m (108 ft)
- Recognise: 16m (52 ft)
- Identify: 8m (26 ft)
|
| Angle Adjustment (Manual) | Range- Pan: 0° to 360°
- Tilt: 0° to 85°
- Rotation: 0° to 360°
|
| ILLUMINATOR | IR LED | - Quantity: 4
- Range: 30m
- Wavelength: 850nm
|
|---|
| White LED | |
| Illuminator ON/OFF Control | - Auto
- Scheduled
- Always On
- Always Off
|
| VIDEO | Max. Resolution | 2880 × 1620 |
|---|
| Main Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate:- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:- 704×576,640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | - Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
|
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile*¹ |
| H.265+ | Main Stream Supported*¹ |
| Video Bit Rate | - Main Stream: 256 Kbps to 6 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
|
| IMAGE | Image Settings | - Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
|
|---|
| Image Enhancement | |
| Wide Dynamic Range | 120dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥52dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | Audio Communication | Two-Way Audio |
|---|
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| NETWORK | Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|---|
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS |
| Web Browser | - Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
|
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | Smart Event | - Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- Smart Frame
- People Detection
- Vehicle Detection
|
|---|
| Basic Event | - Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
- Scene Change Detection
|
| Alarm Linkage | - Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
|
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
|---|
| Alarm | N/A |

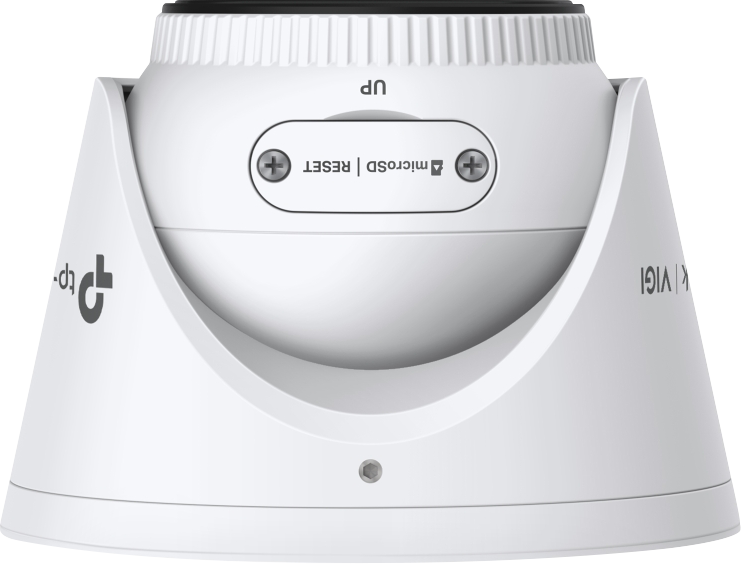

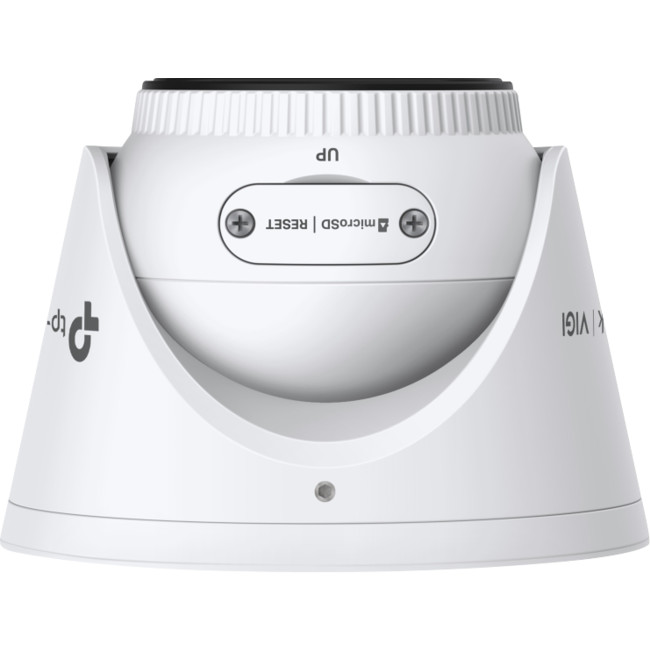

| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*² |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |

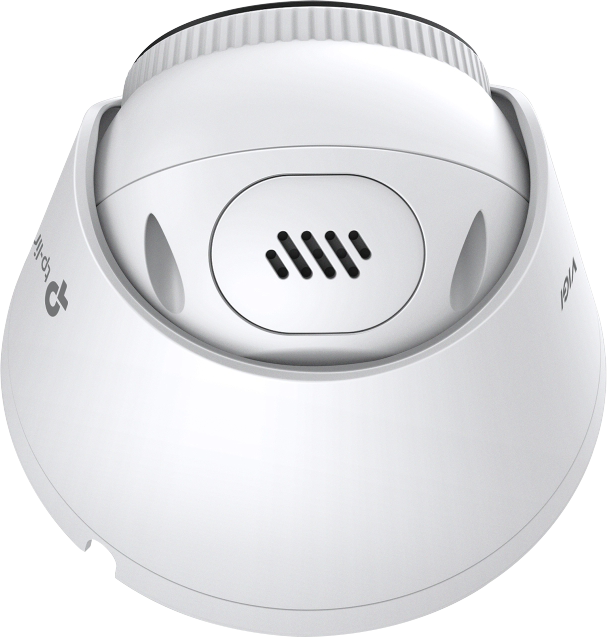

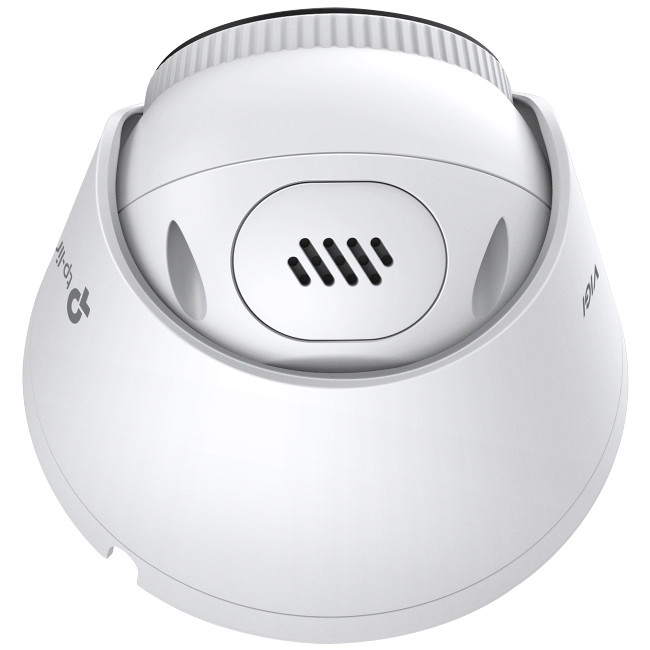

| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | Material | Metal |
|---|
| Power Supply | - 12V DC ±5%, Max. 11W, 5.5mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max. 12W
|
| Protection | IP67 |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| ENVIRONMENT | Operating Temperature | −30~60°C |
|---|
| Storage Temperature | −40~60°C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| PACKAGING | Product Dimensions (L×W×H) | 111mm × 111mm × 83.7mm |
|---|
| Net Weight | 0.48kg |
| Package Contents | - VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
|
