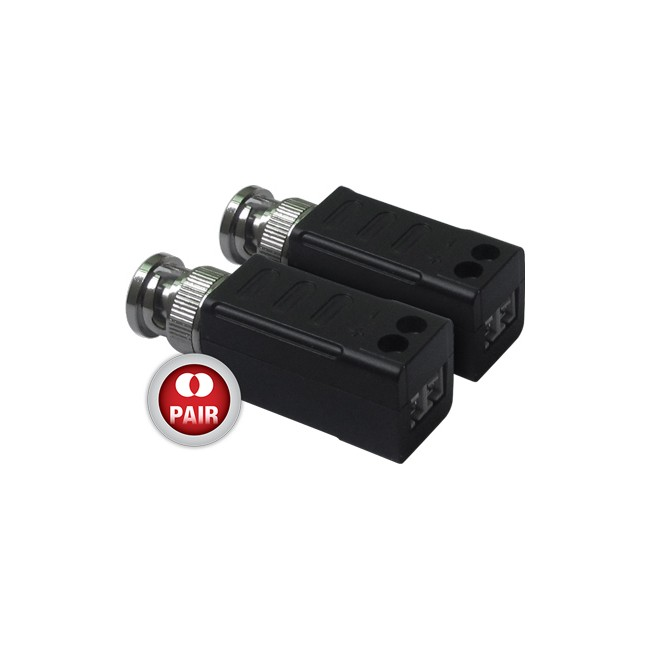

Name: BVB4102SHD SCREW TERMINAL BNC VIDEO BALUN MINI PASSIVE HD VERSION
Brand: DOSS
SKU: 43151304
Price: 10.9 AUD
Availability: InStock

MINI PASSIVE HD VERSION

Code: 43151304

0.0370 kg

9328202017864

300

In Stock

TRADE ALERT!

$10.90 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

{tab Features}

The Doss BVB4102SHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via Unsheilded Twisted Paired(UTP) cable. It is compatible with all HD-TVI, HD-CVI and AHD analog cameras.

BNC plug of the BVB4102SHD allows connection directly to the camera or DVR. Screw terminals of the BVB4102SHD allows easy connection of UTP cable output. Used in pairs, the BVB4102SHD eliminates costly and bulky coaxial cable.

Which is the best cable to work with?

We recommend to use it with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.

Features

Real-time transmission over UTP cat 5e/6
No power required
Compatible with NTSC, PAL & SECAM video format
Compatible wiith all HD-TVI, HD-CVI, AHD & CVBS analog cameras
Colour video max up to 440m for HD-CVI 720P camera
Colour video max up to 210m for TVT HD-TVI 720P camera, 230m for 1080P camera
Colour video max up to 300m for AHD 720P camera, 240m for AHD 960P and 220 for AHD 1080P
BNC Plug and two screw terminals connection for UTP cable
Built in TVS for surge protection
Wave filter and anti static design
Grade III Lightning protection design
60dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing

Applications

Security monitoring system
Multimedia network teaching system
Medical monitoring display system
Industrial Automation control system
Banking, securities, financial information display system
Remote network server monitoring
Department store security
Casino security
Hospitals Airport and banks
School/ campus

{tab Specifications}

Applied Devices		CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video	Video Format	PAL, NTSC, SECAM
	Operating Frequency	DC to 42MHz
	Max Distance	HD-TVI720P: 190m	HD-CVI720P: 440m	AHD720P: 300m
		HD-TVI 1080P:190m	HD-CVI 1080P: 220m	AHD960P: 200m AHD 1080P:220m
	Common-mode/Differential-mode rejection	15KHz to 42MHz60 dB type
	Impedance	Coax, Male BNC75Ω unbalanced
		UTP, two screwtermianl100Ω balanced
	Attenuation	1.5 dB typ Max
Wire Type	Network Wiring	One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
	Category Type	2 or better
	Impedance	100 ± 20 ohms
	DC Loop Resistance	52 ohms per 1,000ft (18 ohms per 100m)
	Differential Capacitance	19 pF/ft max (62 pF/m max)
Power	No external power required
Connector	Video input/ output	BNC Plug
	Videoinput/ output	Tool-less Screw terminal block
Protection	Surge Protection	renewable solid state surge protection
	Video Input	2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
	Video Output	2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical	Housing	ABS engineering plastic
	Body Color	Black
	Dimensions(LWH)	42.417.817.4mm (BNC connector excluded)
	Net Weight	20g
Environmental	Operating Temperature	−20°C~70°C
	Relative Humidity	0~95% (non-condensing)
	Storage Temperature	−40°C~150°C

{/tabs}
