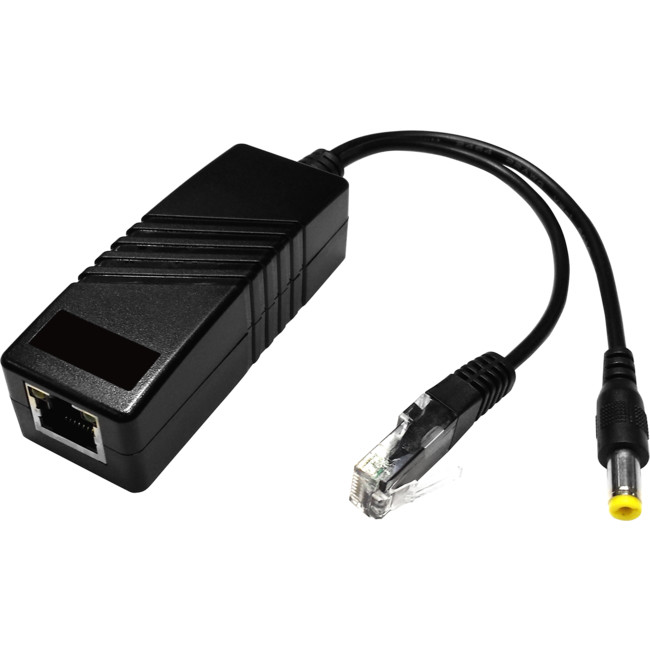

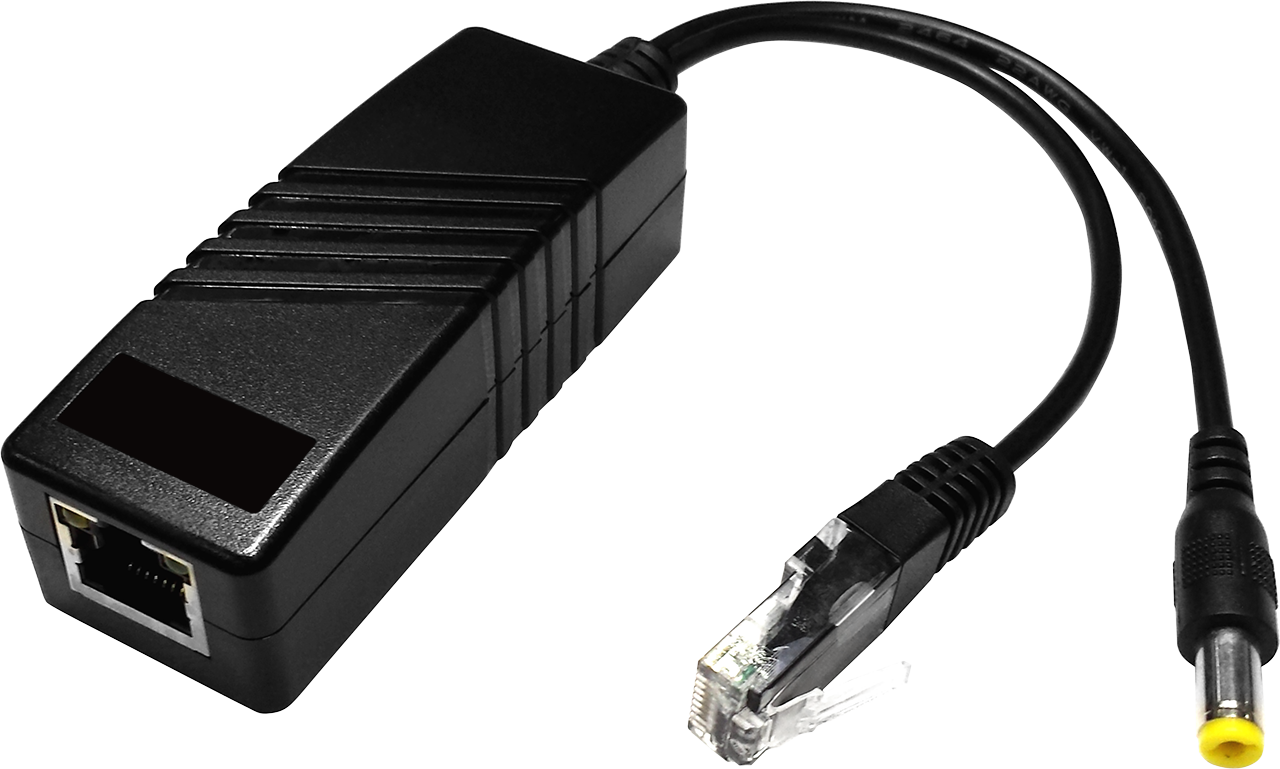

POE1SP PASSIVE SINGLE POE SPLITTER

DATA AND POWER DC12V 1.25A MAX

Code: 43151255

0.0690 kg
9328202018120
Each
OUT OF
STOCK!
$32.95 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

The Doss POE1SP is a POE Splitter which splits 37-57V input from PoE switch into DC 12V and RJ45 data connector. It supplies power and transmits data to devices which do notsupport PoE power supply (such as IP camera). The product supports IEEE802.3af standard abd uses the transformer for isolation design, which gives you more stable and secure solution for your system.

Features

  • Bandwidth: 10/100Mbps
  • Input Voltage: 37-57V
  • Input port: Supports Mid-Span (No. 4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
  • Output Voltage: 12V
  • Output current: 1.08A (Max)
  • Standard: Supports IEEE802.3af
  • Isolation protection: Using the transformer for isolation design, more stable, more secure
  • Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection

Specifications

Standard IEEE802.3af standard
Power supply mode Support Mid-span and End-span
PoE Input Voltage 37-57V
DC Voltage Output 12V
DC Current Output 1.08A (max)
Electrical interface parameters One input RJ45 port
One Output RJ45 plug
One Power supply output DC plug
Cable Type Cat5 UTP and above
Protocol Standards IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.3af Power Over Ethernet
Bandwidth 10/ 100M
LED indicator lights PoE input power supply indicator light
DC output power supply indicator light
Dimension 80*30*24.55mm
Weight 0.05kg
Environment temperature Work temperature: −5~45°C
Humidity: 90%
Storage temerature: −20~70°C
Humidity: 95%
