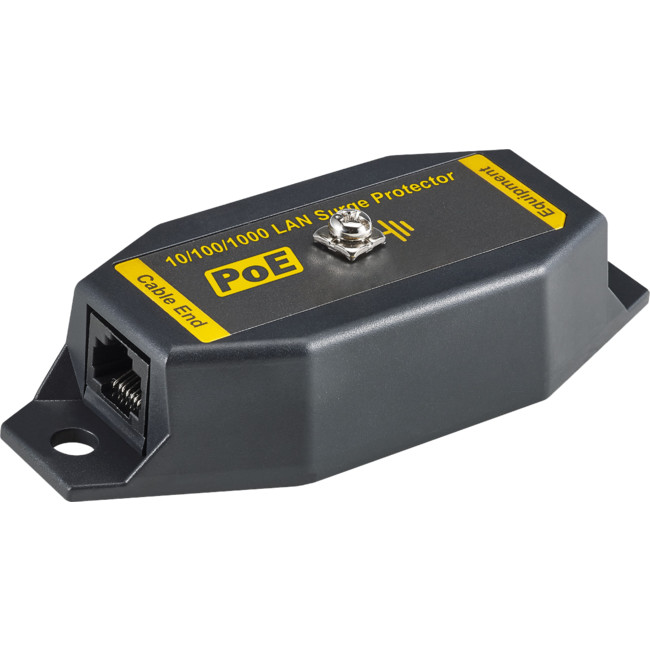

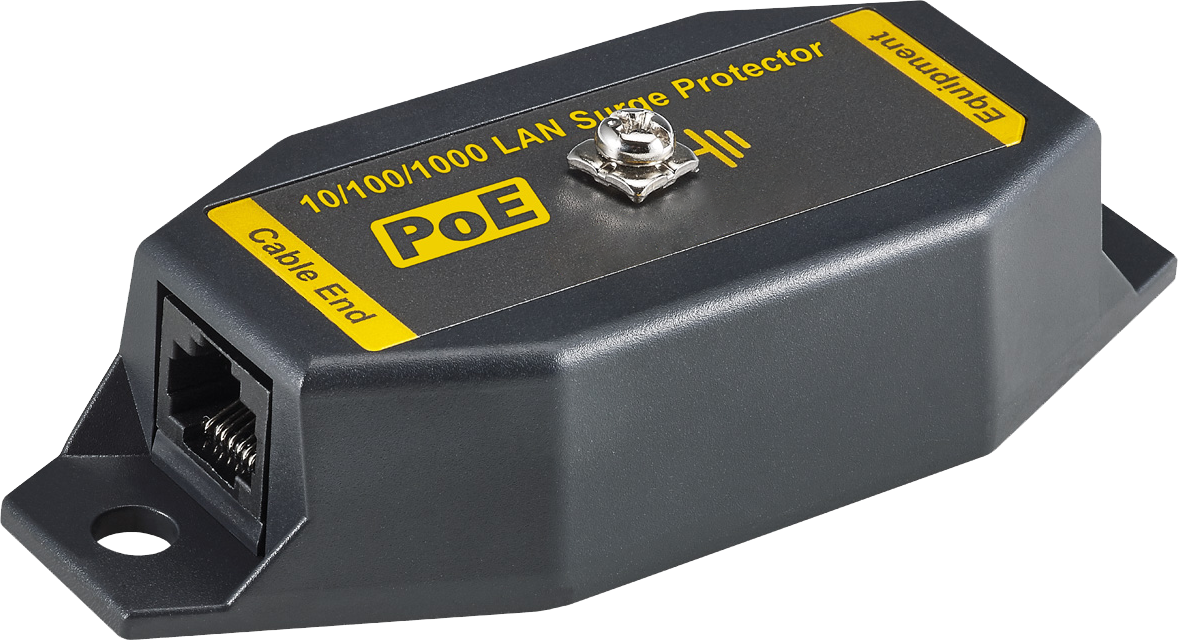

SP06PG POE LAN SURGE PROTECTOR

10/100/1000 4 PAIR 6KV POE

Code: 43151110

0.0840 kg
N/A
Each
13 IN
STOCK
$45.95 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

The SP06PG can be used for all kinds of LAN equipment, supporting the highest speeds (gigabit) and largest POE budgets including the latest 802.3bt. With IP CCTV and wireless access points being exposed to weather, ensure you place a SP06PG at the far ends of the cable runs, as close as possible to the hardware.

Features

  • 10/100/1000 Base-T PoE LAN surge protection
  • IEEE802.3af/at/bt and 4-pair PoE compatible
  • Mid-Span and End-Span signature supported
  • RJ45 Jack to RJ45 Jack
  • 6KV surge protection (IEC-61000-4-5)
  • 4-pair Power and signal line protection

Specifications

  • Surge Protection Attack Time: 1 ns
  • Maximum Surge Voltage: 6KV
  • Surge Life: 30000 times surges at 6KV
  • Normal Resistance Across Cord: 10,000 MO
  • Surge Resistance: Approx. 0O
  • Power Passing Capability: Max. DC 60V, Up to 90W depending on standard: Max. current 0.9A on data
  • Insertion Loss: Less than 0.5 dB
  • Return Loss (75 ohms): 16dB
  • Connectors Type: RJ45 Jack x 2 ( In - Out)

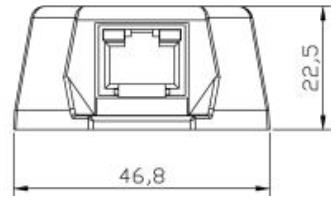

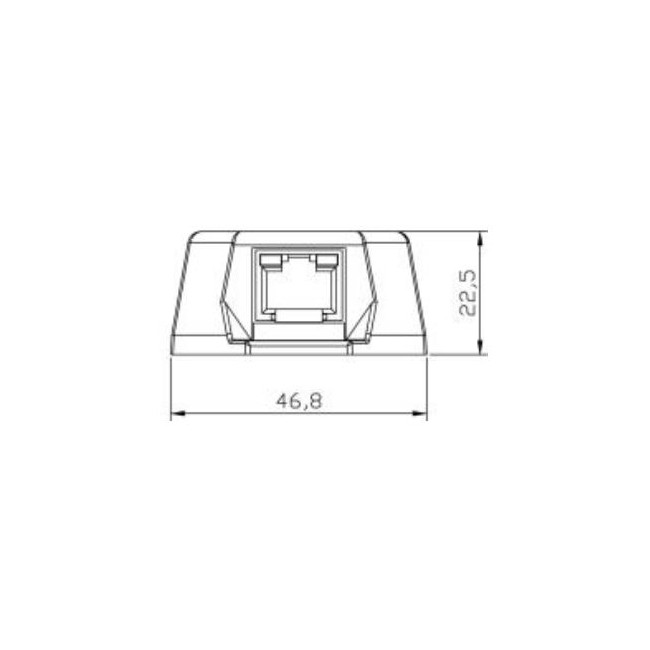

  • Dimensions (W × L × H): 46.8 x 22.5 x110.5 mm
  • Weight: < 50 g

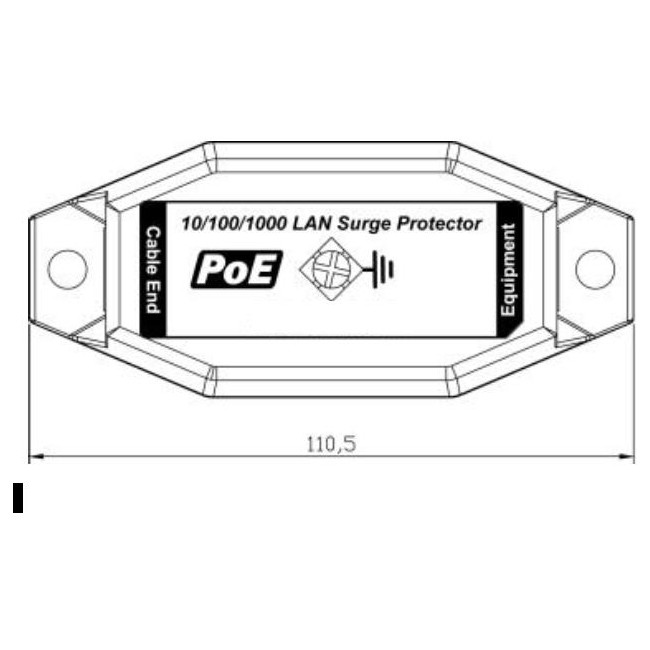

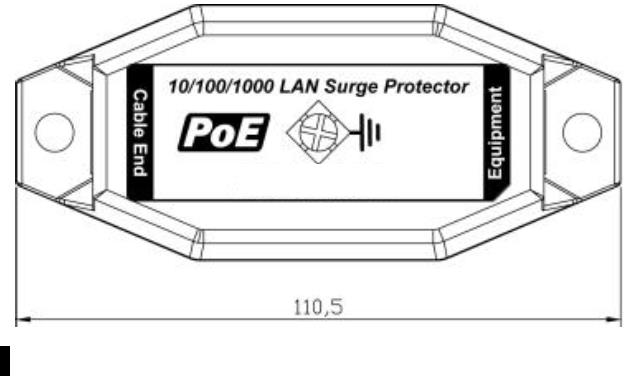

  • Drawing
