AUDAC CMA164 CLUSTER MOUNTING SET 4 X ATEO6 SPEAKER

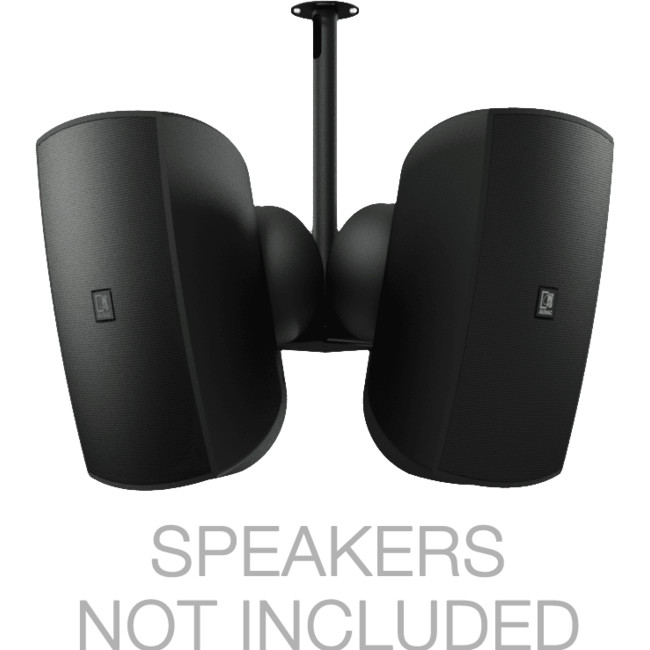

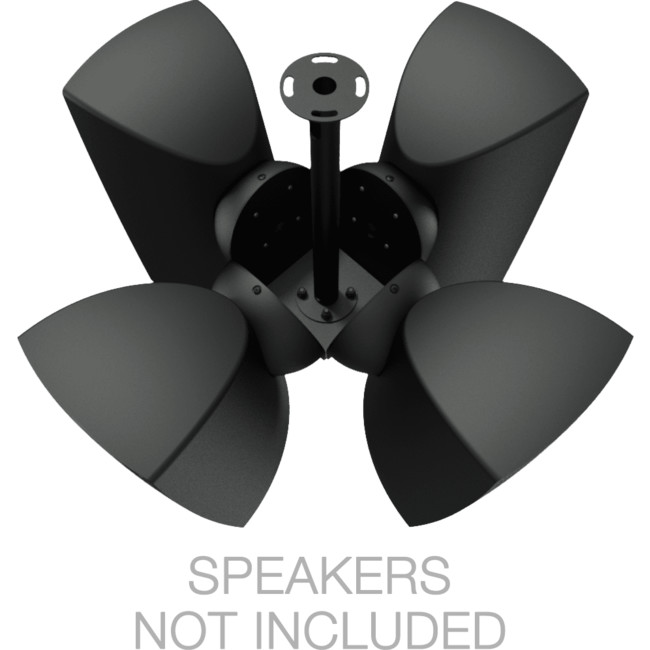

The CMA164 is a cluster mounting set, allowing assembly for 4 pcs of ATEO6 speakers to any ceiling.
This solution is designed for applications in large open indoor spaces where a uniform sound dispersion in all directions is required. Some typical application examples are sports facilities, gym's, large warehouses, hallways, and many more.
The CMA164 is constructed of solid steel and comes fullyassembled, including pole and ceiling mount.
The distance to the ceiling measures 360 mm and the poleallows cable integration, so a clean and elegant solution isoffered.
The tilted mounting plates in combination with the Clevermount™ bracket structure allows optimal directional placement in any application.
The CMA series also come in a 2 speaker model (CMA162), allowing mounting of speakers in both opposite directions and are available in both Black (/B) or White (/W) colours, to match the speakers colour and blend in with the environment.
The CMA164 comes delivered excluding the loudspeakers.
VARIANTS
- CMA164/B - Black
- CMA164/W - White
| PRODUCT FEATURES |
| Dimensions | 179.2 x 360 x 179.2 mm (W x H x D) |
| Construction | Steel |
| Finish | Structured powder coating |
| Max. load | 20 kg (5 kg / each side) |
| Suited for | ATEO6 loudspeakers |
| Accessories | Included | Speaker mounting screws |
