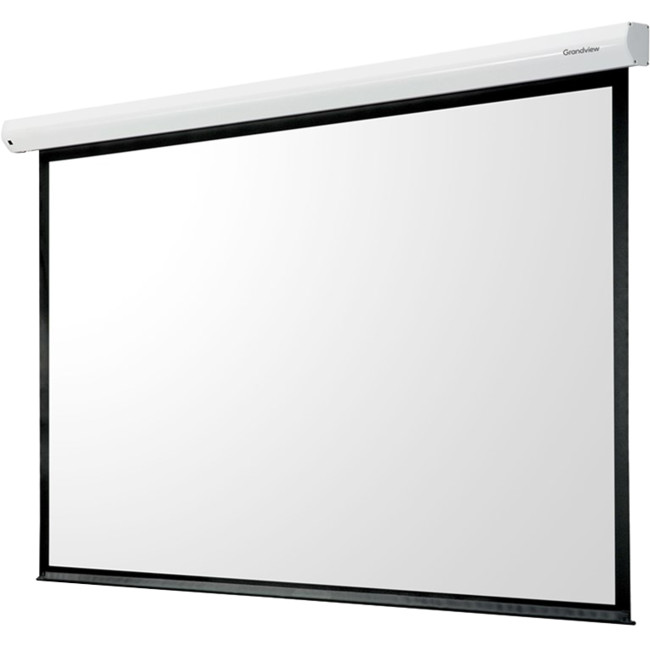

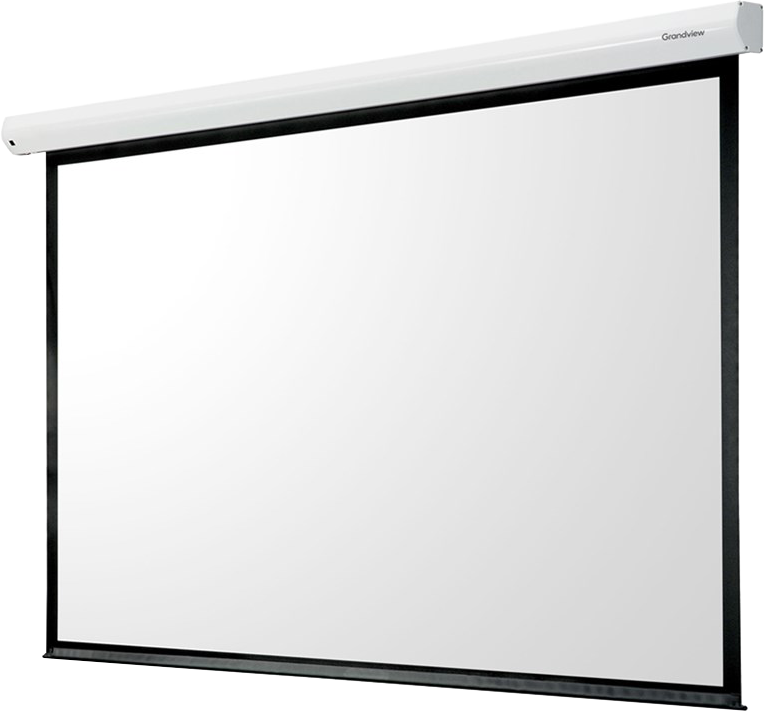

Grandview GRIP160C IP control Smart Screen 160" Image Size Diagonal 16:10 Aspect Ratio Large Casing Projector Screen
Grandview® GRIP160C Motorised IP Control Smart Screen, 160", White
The screens are fully equipped with integration options - IP Control on RJ45, IR remote, 12V trigger from your Projector, relay control or RS232 commands.
Being a Smart-Screen there's the choice or IR remote, 12V trigger from your projector, dry contact relay control, or even integrating with a control system using RS232 commands.
There is also a manual override switch.
The large Smart-Screen range uses larger roller sizes, and are in a bigger sized casing. Please check the specifications sheet for details.
The Large Smart-Screen range now has its own dedicated HideAway above ceiling pre-installation box. ( OPTIONAL )
Perfect for bigger home theatres, schools and smaller venues
The Grandview Smart-Screen is designed to be clever to make your installation easy.
Like always the screen has multiple mounting points and can be mounted on the wall or ceiling.
The best products can only be made with the best materials and the highest grade of screen fabrics.
Grandview Utilizes the most professionally made screen fabrics to reflect the truest, most vivid and dynamic images.
Features:
- As standard is supplied with IP Control, IR Remote, 12V Trigger, Close Contact, and a manual override switch.
- Simple mechanical limit setting adjustments via the motor.
- Install is simplified with multi fit brackets that canbe installed anywhere along the length of the casing allowing for mounting to wall stud positions.
- Brackets suit wall, ceiling or suspended installation.
- Projection surface is Plana R.
- Casing is extruded aluminium, finished in white.
Smart Features:
- IP Control,
- 12V Trigger Using1.5mm output on screen and 3.5 on the Projector end.
- External IR Cable with Jack plug 3.5mm with receiver eye.
- Close Contact Cable Provided in the box.
- RS232 control
- Manual Switch located on the bottom of the Casing (Push button), close to the Power cable outlet.
Specifications:
- Aspect Ratio: 16:10
- Diagonal (inches): 160"
- Image w x h (mm): 3445 x 2155
- Case Width (mm): 3746
- Hideaway Box: HH7
