PFW6875 VIDEO WALL POP OUT MODULE

PORTRAIT

Code: 43130788

8712285324840
Each
SPECIAL
BUY-IN
$1049 inc GST
Increase value Decrease value
Qty Each
PDF Flyer
Enter 4 digit postcode

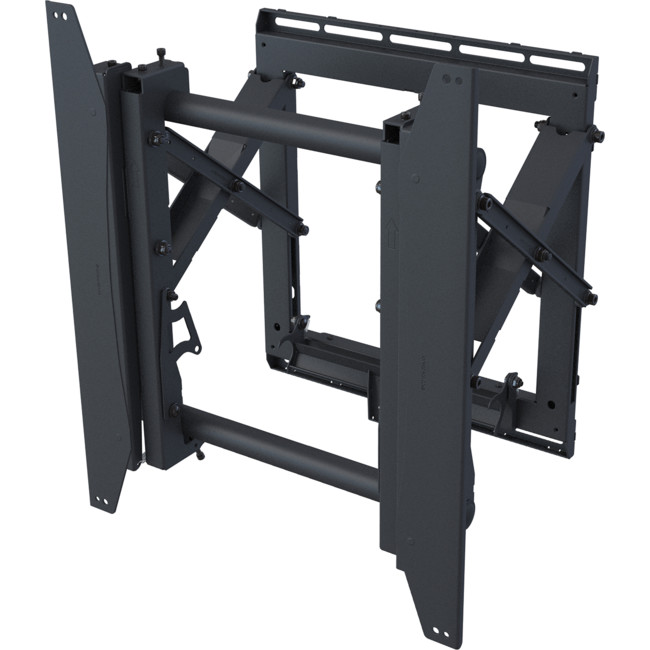

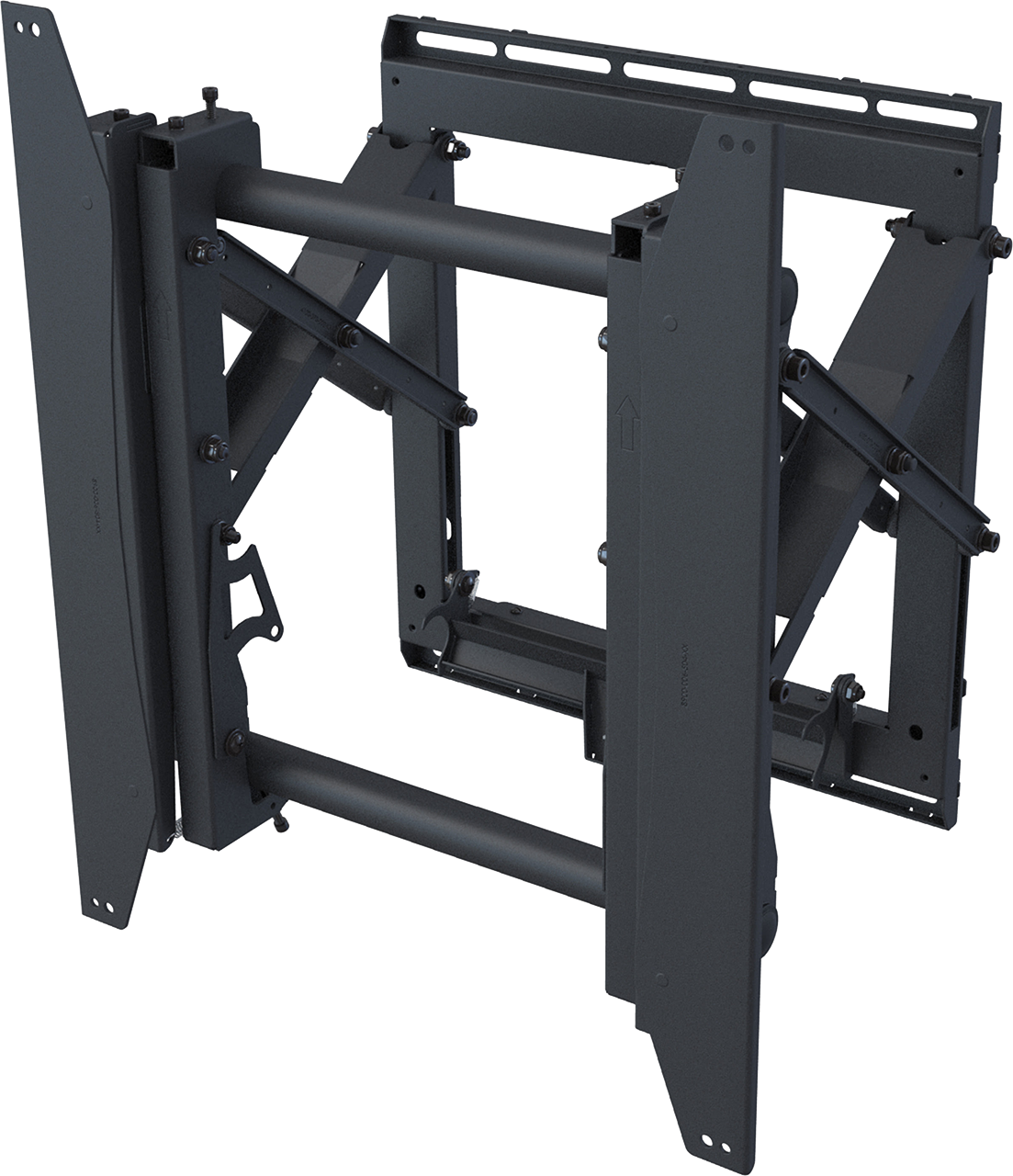

PFW 6875 Video wall pop-out portrait wall mount

The PFW 6875 is an adjustable pop-out video- wall mount for displays in portrait position.

The PFW 6875 can be used for displays up to 72kg with mounting patterns from 200 x 200 up to 500 x 600 mm.

It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.

Optional dedicated spacers dramatically reduce installation time. Spacers are availablefor the most used video wall displays or monitors.



Specifications

  • EAN single box
8712285324840
  • Product group
Video wall pop out
  • Guarantee
5 years
  • TÜV certified
Yes
  • Colour
Black
  • Suitable for screen type
LCD
  • Min. screen size (inch)
37
  • Max. screen size (inch)
65
  • Max. weight load (kg)
72
  • Orientation
Portrait
  • Hole pattern (VESA)
  • 200 mm x 200 mm
  • 300 mm x 200 mm
  • 300 mm x 300 mm
  • 400 mm x 200 mm
  • 400 mm x 300 mm
  • 400 mm x 400 mm
  • 400 mm x 600 mm
  • Service position
Yes
  • Min. horizontal hole pattern (mm)
200
  • Max. horizontal hole pattern (mm)
400
  • Min. vertical hole pattern (mm)
200
  • Max. vertical hole pattern (mm)
600
  • Min. distance to the wall (mm)
127
  • Max. distance to the wall (mm)
340
