TVM5705 ELITE SERIES FIXED 40"-110" 100KG TV WALL MOUNT

1.3CM ULTRA THIN BRACKET

Code: 43130598

EACH
ETA 2025-11-15
$219 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

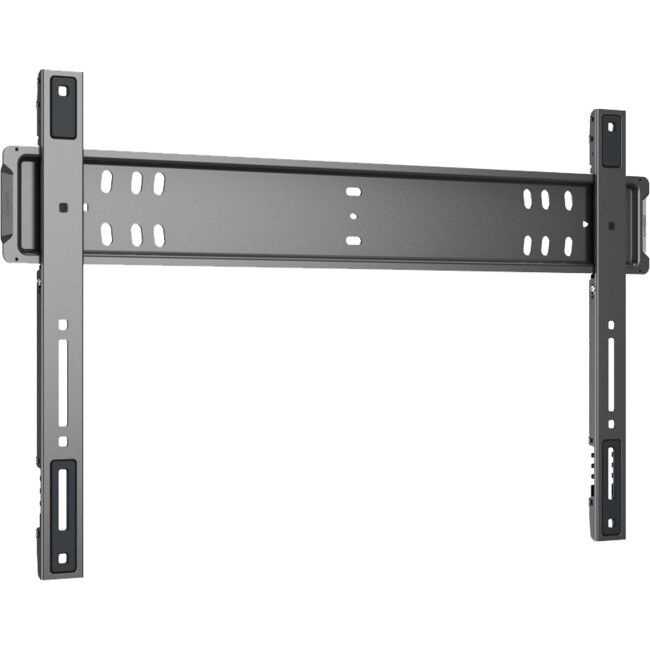

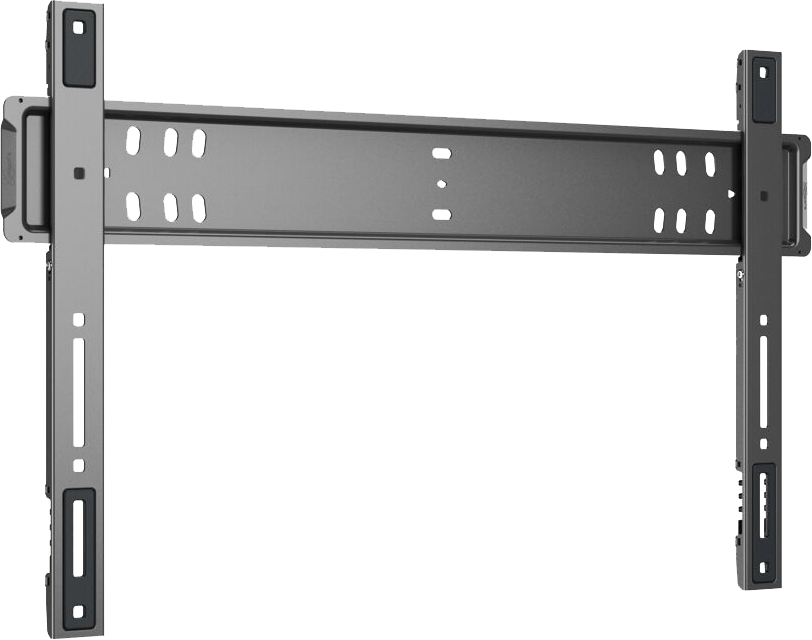

Vogel's TVM 5705 Fixed TV Wall Mount

Mount your XL TV tight to the wall for TVs up to 110 inches
The ELITE Fixed TV mount is the ultimate Fixed TV wall mount for those who want the best for their impressive premium TV, such as an OLED or QLED screen. This mount is specially designed for TVs measuring up to 110 inches, with an unprecedentedly small distance of just 1.3 cm from the wall. Minimalist design, maximum impact.

Innovative design combines strength and convenience

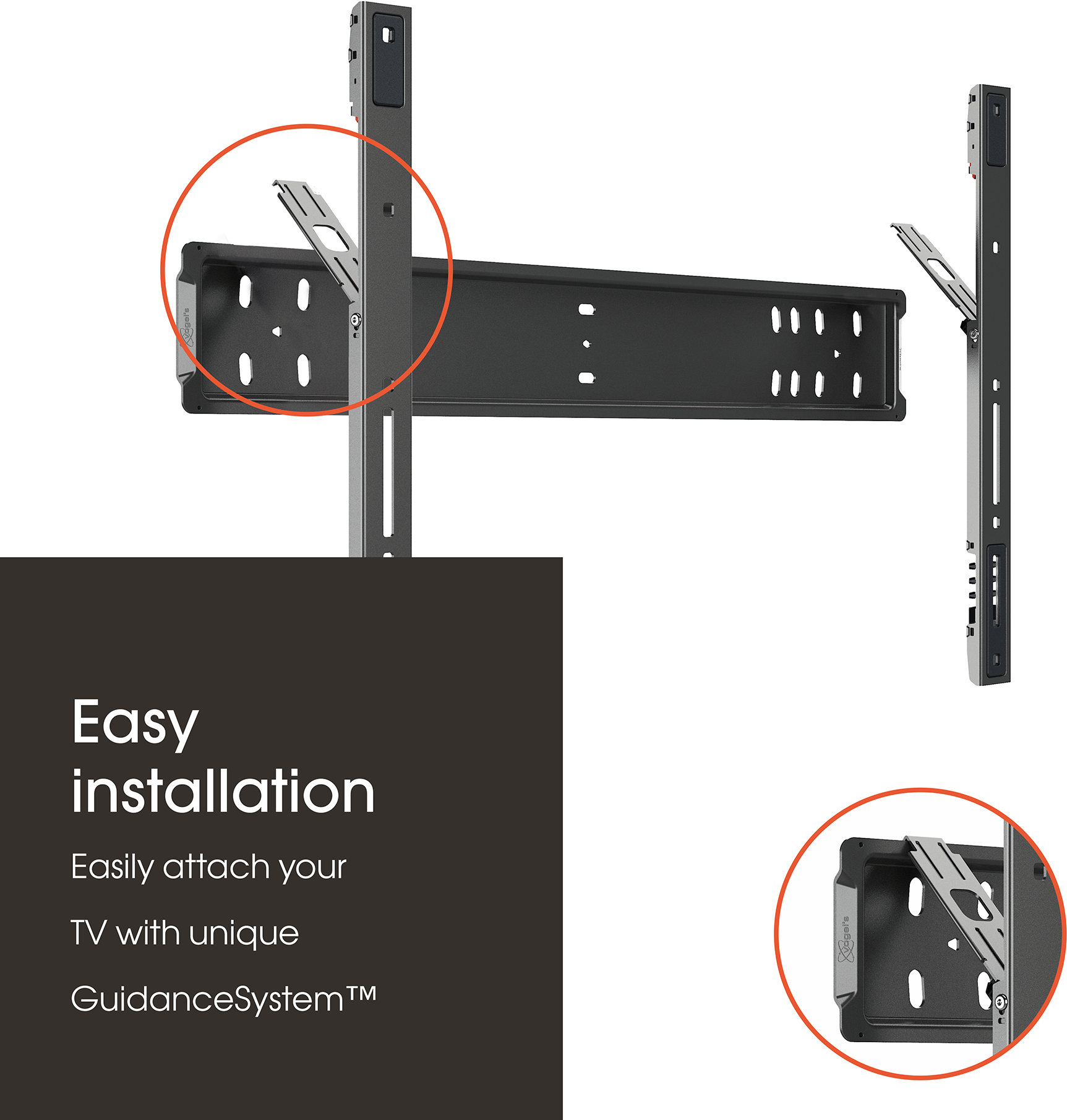

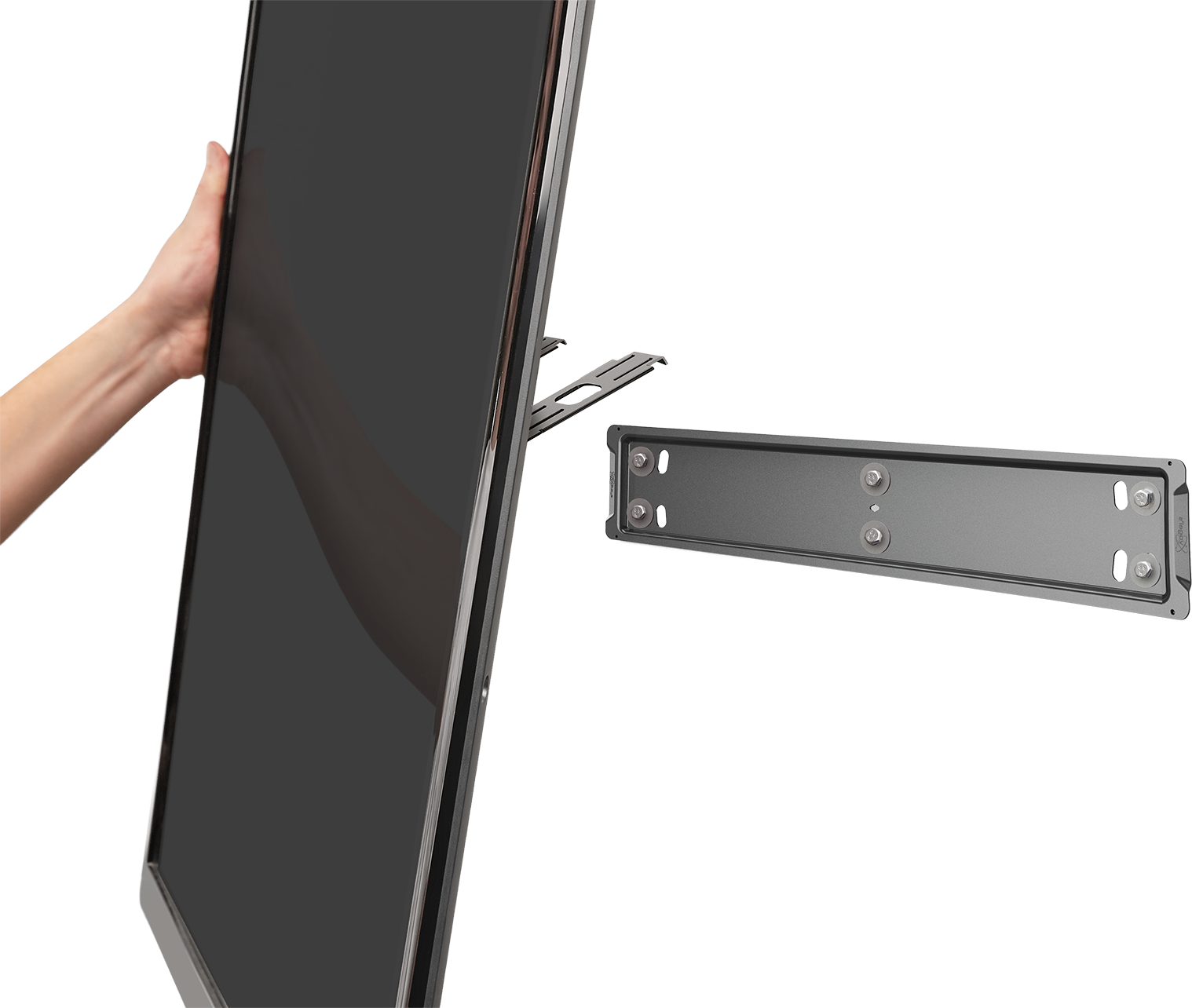

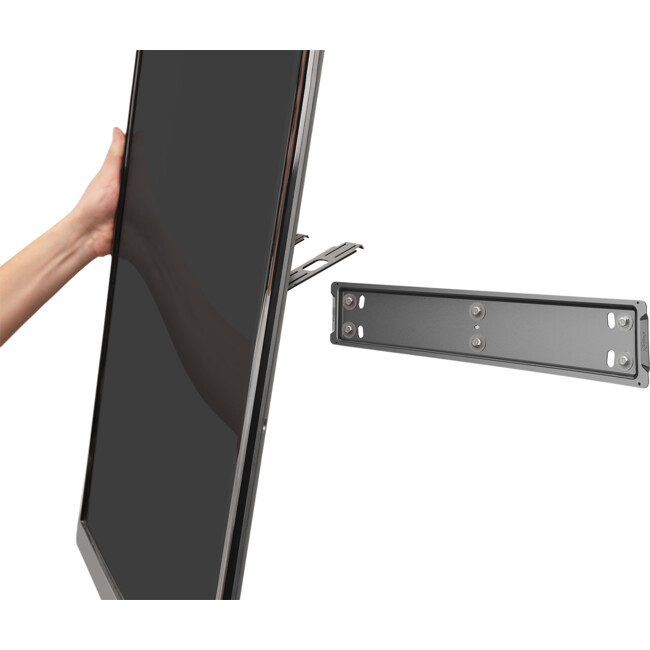

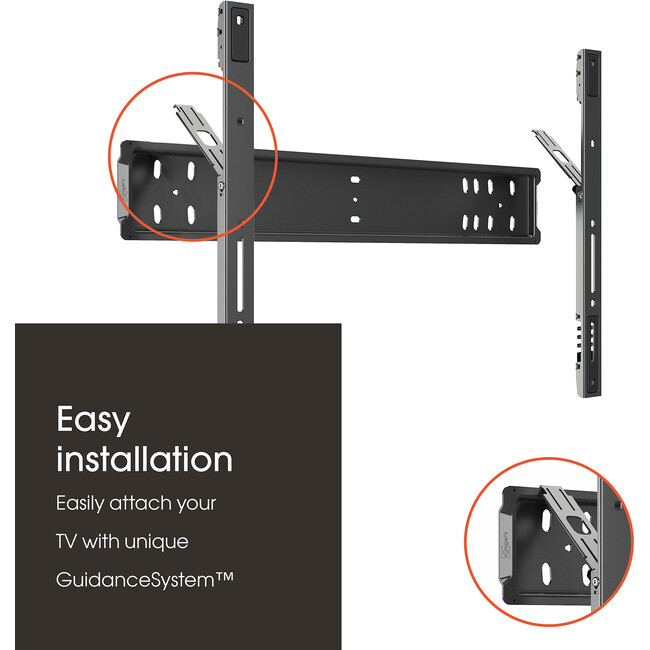

With the steel hooks of the unique GuidanceSystem™ (patent pending), you can position your TV on the wall plate of the TV mount with ease. The strips with hooks that you attach to the TV help guide the TV to the wall mount on the wall. Great for hanging your large TV more easily and more safely. The clever click-lock mechanism ensures your TV is securely fastened, no draw cords, no hassle. And when you want to take it off? Two people easily lift it straight up. Your TV is also side-locked for ultimate peace of mind.

Sustainable, smart and complete

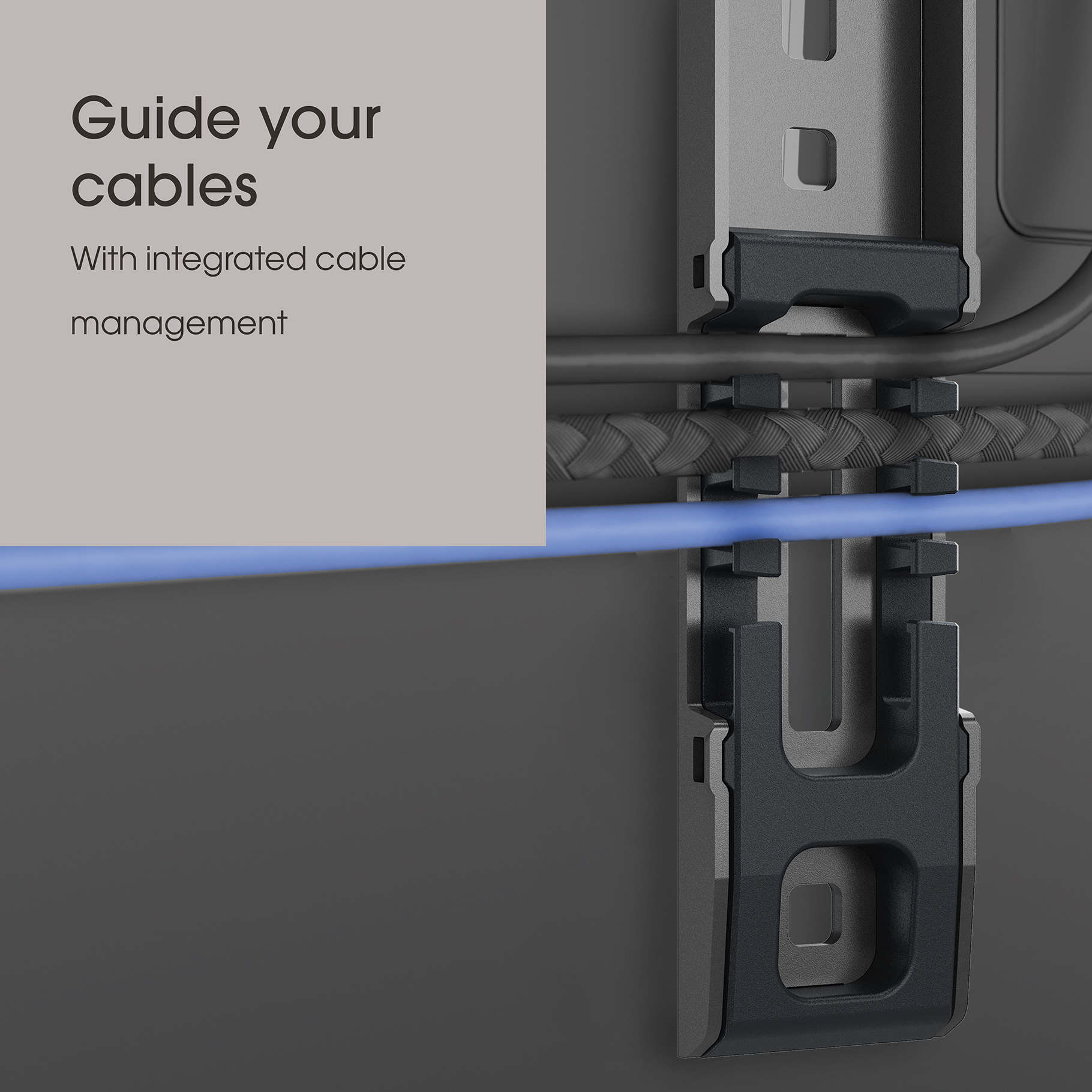

With integrated cable management, this mounting system keeps all your cables neatly out of sight. The wall plate is extra wide (700 mm) and suitable for mounting on wooden studs – super convenient thanks to the vertical double row of screw holes. Of course, it comes with a drilling template, plugs and use of our free DrillRight app. Plus: a 15-year warranty.

Conscious choice

At Vogel's, we want to know our products inside out. This includes their environmental impact. This product has a 7,2 kg CO2 equivalent. For more explanation or details, download this product's ecosheet.



Key Features

  • Hang your TV with confidence – thanks to the GuidanceSystem™
  • Only 1.3 cm from the wall – Our thinnest wall mount
  • Designed for premium large TVs
  • Super safe – Your TV is locked in place
  • Ideal for wooden studs – Thanks to double row of drill holes



Specifications

  • Series
 Elite
  • Guarantee
 15 years
  • T V certified
 Yes
  • Product size
 Large
  • Colour
 Black
  • Min. screen size (inch)
40
  • Max. screen size (inch)
110
  • Min. distance to the wall (mm)
 13
  • Max. weight load (kg)
 100
  • Min. distance to the wall (inch)
 0.51
  • Max. weight load (lbs)
 242.51

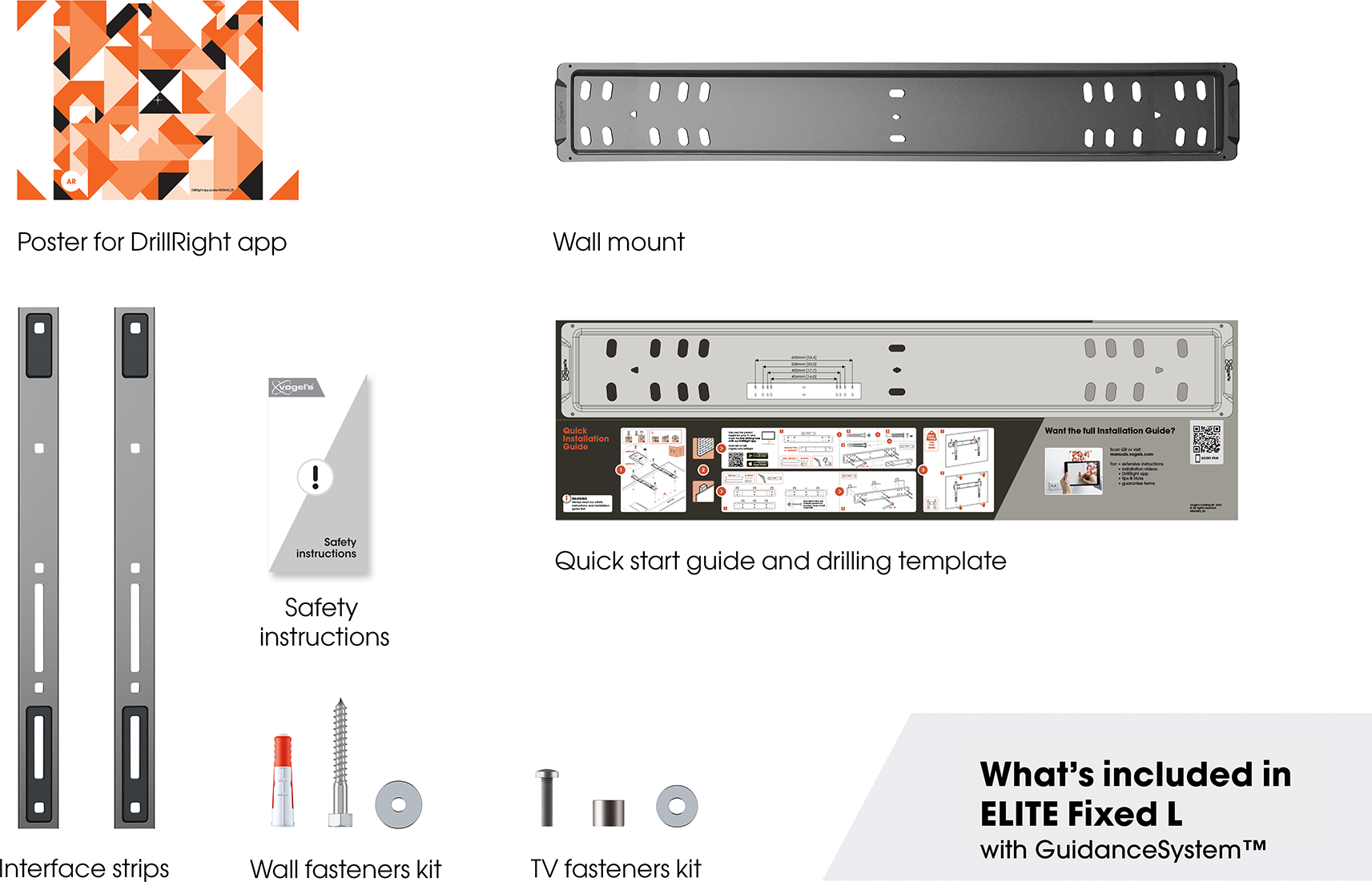

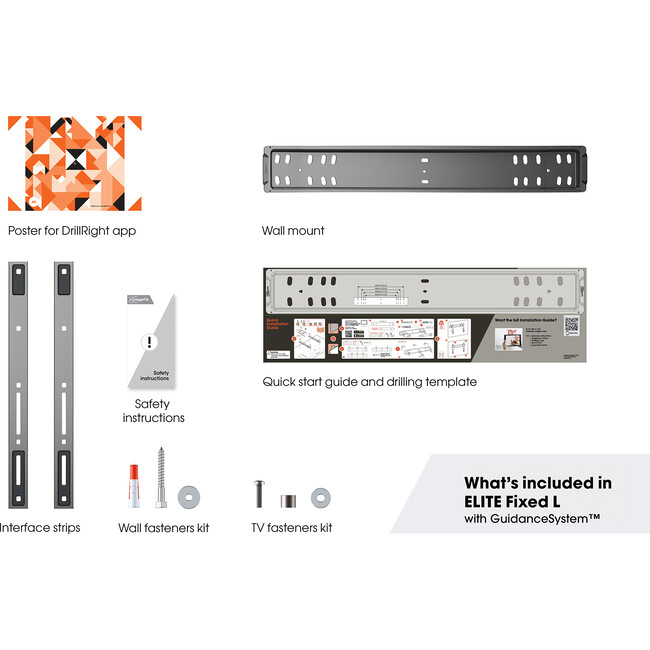

  • What's in the box
  • Wall mount
  • Wall mounting kit with fischer® Duo Power plugs
  • TV fasteners kit
  • Quick Installation Guide
  • DrillRight™ AR app
  • Drilling template
  • Vesa hole pattern

100 mm x 100 mm, 100 mm x 200 mm,

200 mm x 100 mm, 200 mm x 200 mm,

200 mm x 300 mm, 300 mm x 200 mm,

300 mm x 300 mm, 400 mm x 200 mm,

400 mm x 300 mm, 400 mm x 400 mm,

500 mm x 200 mm, 500 mm x 300 mm,

500 mm x 400 mm, 600 mm x 200 mm,

600 mm x 300 mm, 600 mm x 400 mm
