PPC1585W SMALL PROJECTOR CEILING KIT

WHITE - VOGELS

Code: 43130178

EACH
Special
Buy-In
TRADE ALERT!
$439 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

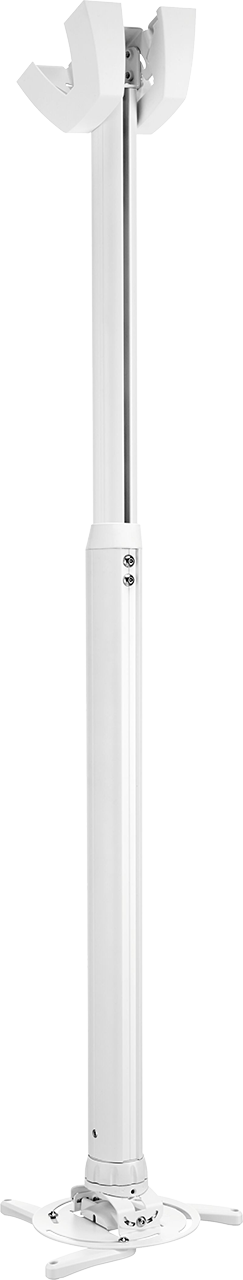

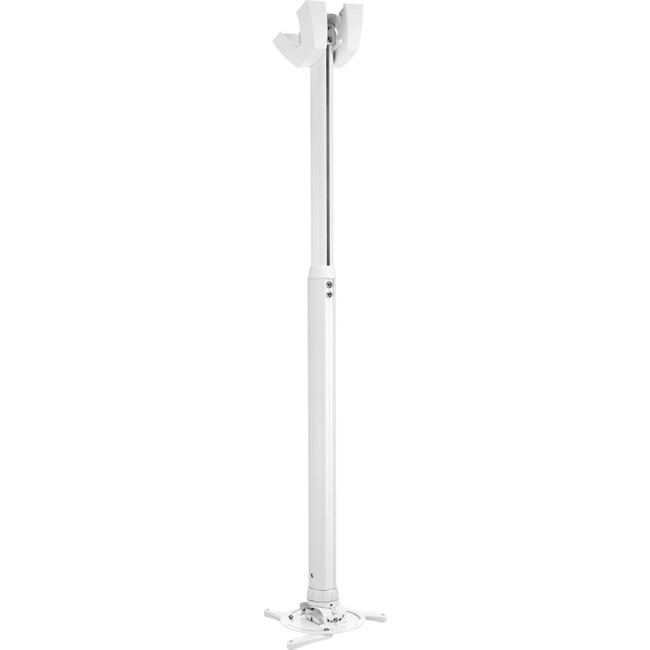

PPC 1585W - White projector ceiling mount

The PPC 1585 is a heightadjustable projector mount specially designed for the latestgeneration of projectors weighing up to 20 kg.

This projector interface is equipped with fine tuneadjustability for precise alignment to the projection surface.

Once aligned, the projector stays in position.

Turning the unique friction ring will eliminate allplay from the interface connections, making the mount a solid and very stable solution.

The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted.

These mounts come in 3 lengths offering variable height adjustment from 400 to 1350 mm.

The Cable Inlay System runs the full length of the pole and even allows for cable routing after installation.

This offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.



Key Features

  • Cables fully concealed
  • Fine tuning during installation
  • Fine tuning possible after installation
  • Theft prevention



Specifications

  • EAN single box

  • Series
General
  • Guarantee
5 years
  • Colour
White
  • T V certified
Yes
  • Min. distance to ceiling (mm)
850
  • Max. distance to ceiling (mm)
1350
  • Turn
Up to 360°
  • Tilt
Up to 15°
  • Roll
15
  • Max. weight load (kg)
20
  • Fischer inside
Yes
  • Cable management
Cable management integrated in arm
  • Height options
Manually adjustable height
  • Max. projector weight (kg)
Up to 15
  • Ceiling plate options

Flat / inclined 0-90° Range (diameter) 30 - 337 mm

  • Height range (mm)
850 - 1350 mm
