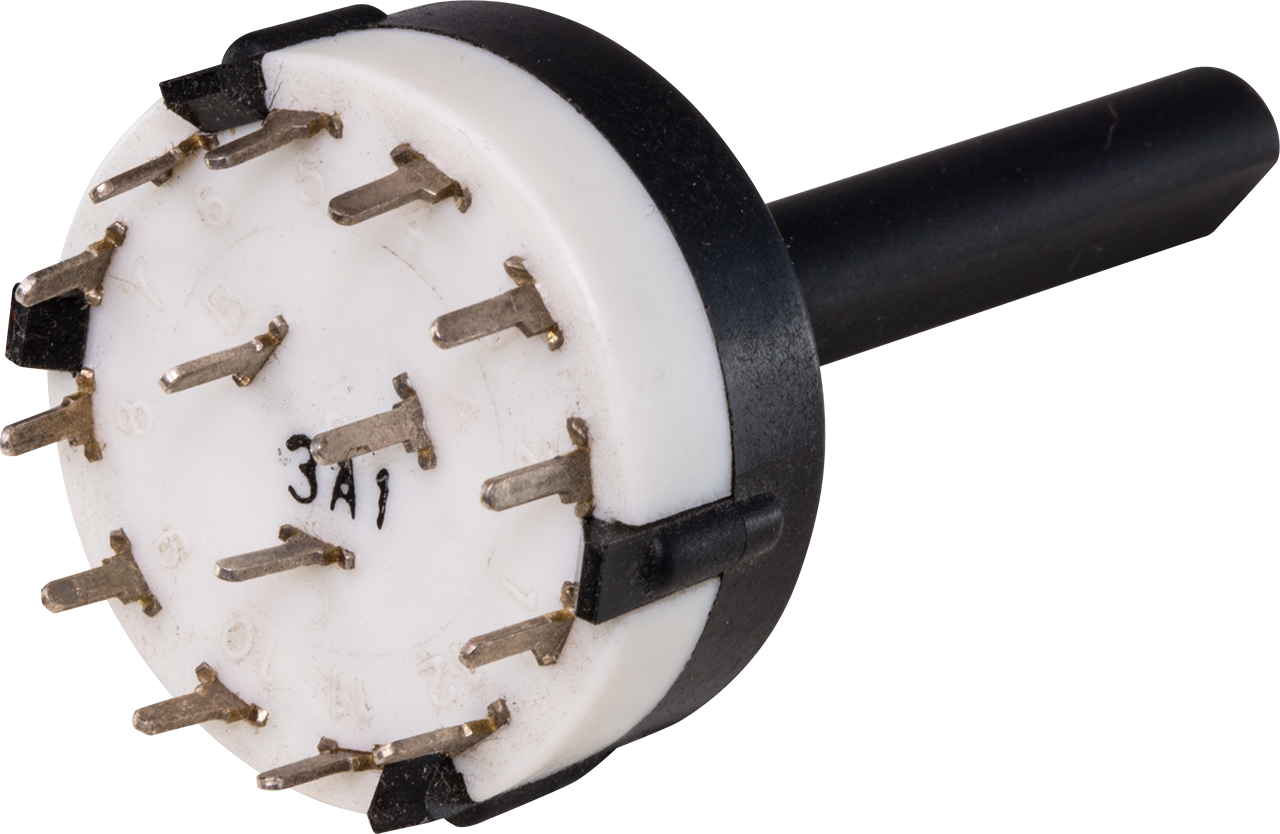

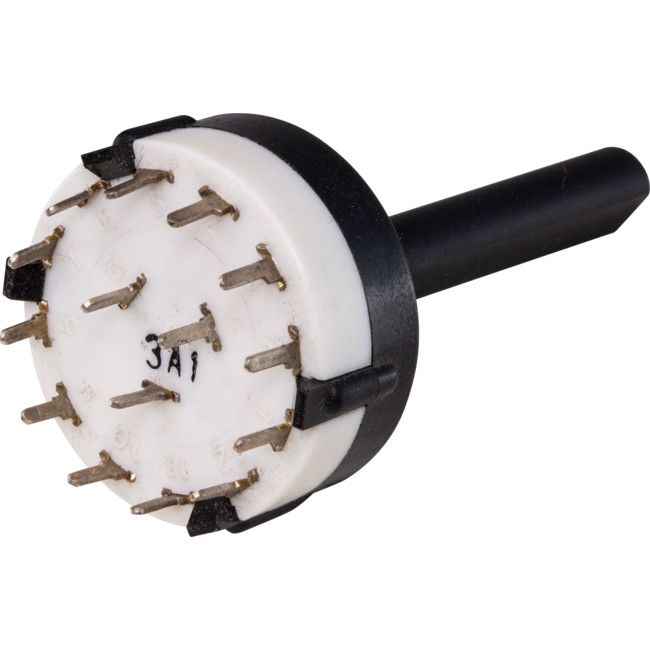

SR6032 3X4 ROTARY SWITCH

AC 125V 0.3A 3 POLE 4 POSTION

Code: 41276032

0.0100 kg
9321758012604
EACH
122 IN
STOCK
$3.85 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

All moulded plastic, enclosed design with round type shaft. Posidex indexing gives excellent positive movement.

Specifications

Rating AC 125V 0.3A
Contact Resistance 50 m ΩMax.
Insulation Resistance DC500V-100 MΩ Min.
Withstand Voltage AC500V-1 Minute
Contacts Silver plated brass
Connections Solder tag
Life >10,000 cycles
Rotation Torque 0.5±0.2 Kg-cm
Indexing 30°
Base Diametre 26.2mm
Shaft Length/Diam 42/ 6.3mm
Pole numbers 3
Positions 4
Dimension (m.m) Refer to the following drawings
