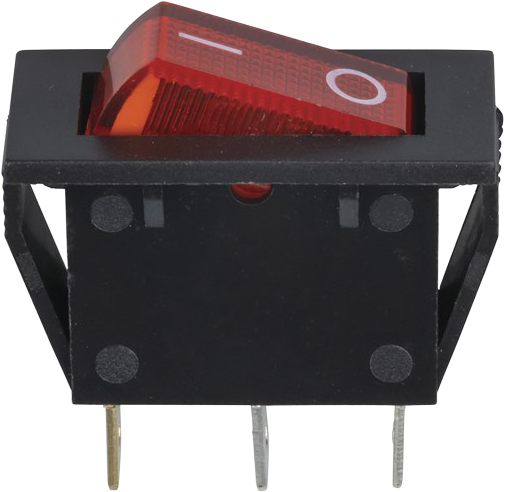

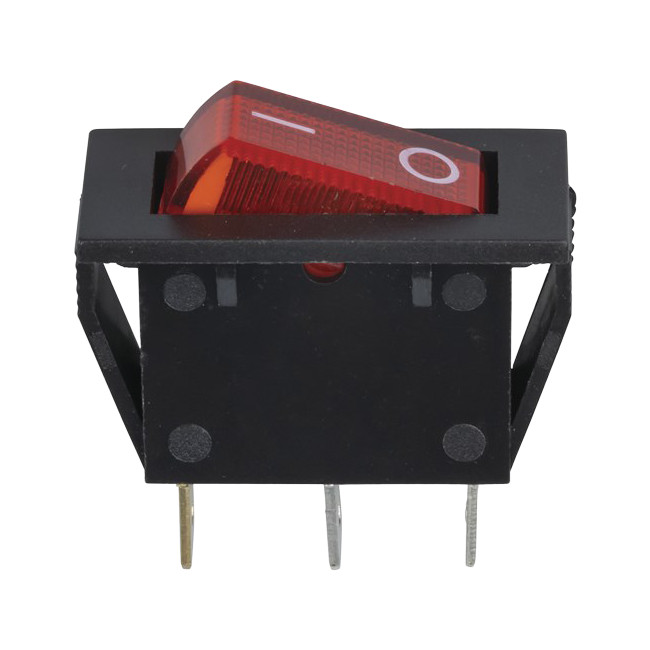

Name: SK0978 SPST ROCKER SWITCH RED ILLUMINATED 240VAC @ 15A
SKU: 41274604
Price: 3.95 AUD
Availability: InStock

240VAC @ 15A

Code: 41274604

0.0040 kg

9319236838983

EACH

Low Stock

$3.95 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features

Rocker Switch Illuminated Green SPST 15A 240VAC

SPST 240V 15A red illuminated rocker switch. Ideal replacement for appliances which use this size switch. Snap in fitting...

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator.
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979

Electromechanical Switch

Switch Type	Rocker
Poles / Contacts	1 pole
Throws / Positions	1pos
Switch Function	Locking On/Off
Mechanism Material	Plastic
Switch Connection	Spade Terminals
Switch Colour Coded	Red
Pole Throw Type	SPST
Cycle Life	10000 cycles
Contact Resistance	50m?
Insulation Resistance	100?
Dielectric Strength	1000V

Product Mounting

Mounting Method	Panel, Front of Panel
Square Mount Hole Width	13.5mm
Square Mount Hole Height	29mm
Attachment / Securing Method	Snap-in

AC Voltage Rating

AC Voltage rating

240V

AC Current Rating

AC current rating

15A

In-built Illumination

Illumination Colour	Red
Nominal Voltage	250V
Connection	Spade Terminals
Type	Neon

Product Dimensions

Width	13.8mm
Length	33.8mm
Height	19.9mm
