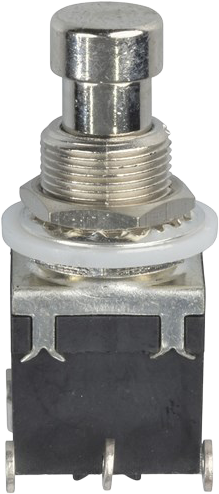

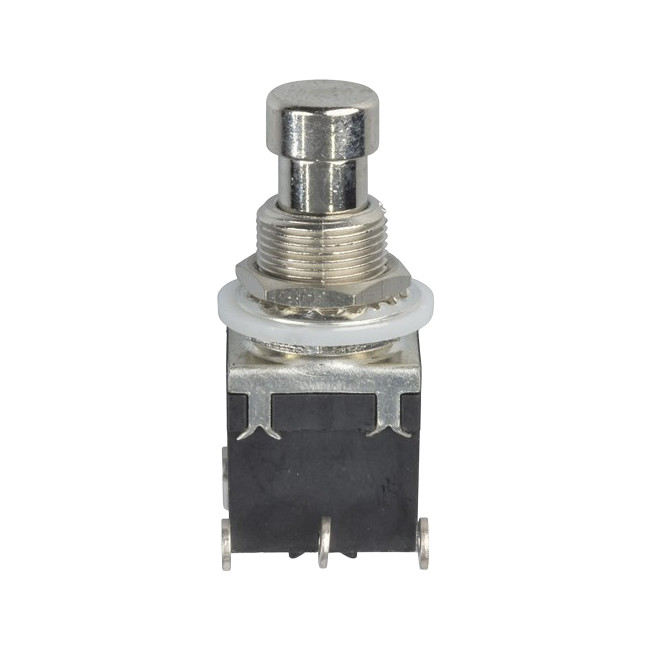

SP0764 HEAVY DUTY DPDT FOOT SWITCH

Code: 41164115

0.0190 kg
8319336852682
EACH
Low Stock
$9.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The alternative action switch (push on, push off). Contact rating with resistive load 2A/250VAC. Contact resistance <0.08 ohms

Specifications

AC current rating : 2A
AC Voltage rating : 250V
Packaged Volume : 0.08l
Packaged Weight : 0.18kg
Packaged Length : 7.3cm
Packaged Width : 5cm
Packaged Height : 2.2cm
Switch Type : Foot Pushbutton
Pole Throw Type : DPDT
Poles / Contacts : 2 pole
Throws / Positions : 2pos
Switch Function : Locking On/Off
Switch Connection : Solder Legs
Contact Resistance : 0.08?
Actuator Length : 24.4mm
Actuator Width : 12mm
Availability : Stocked item
