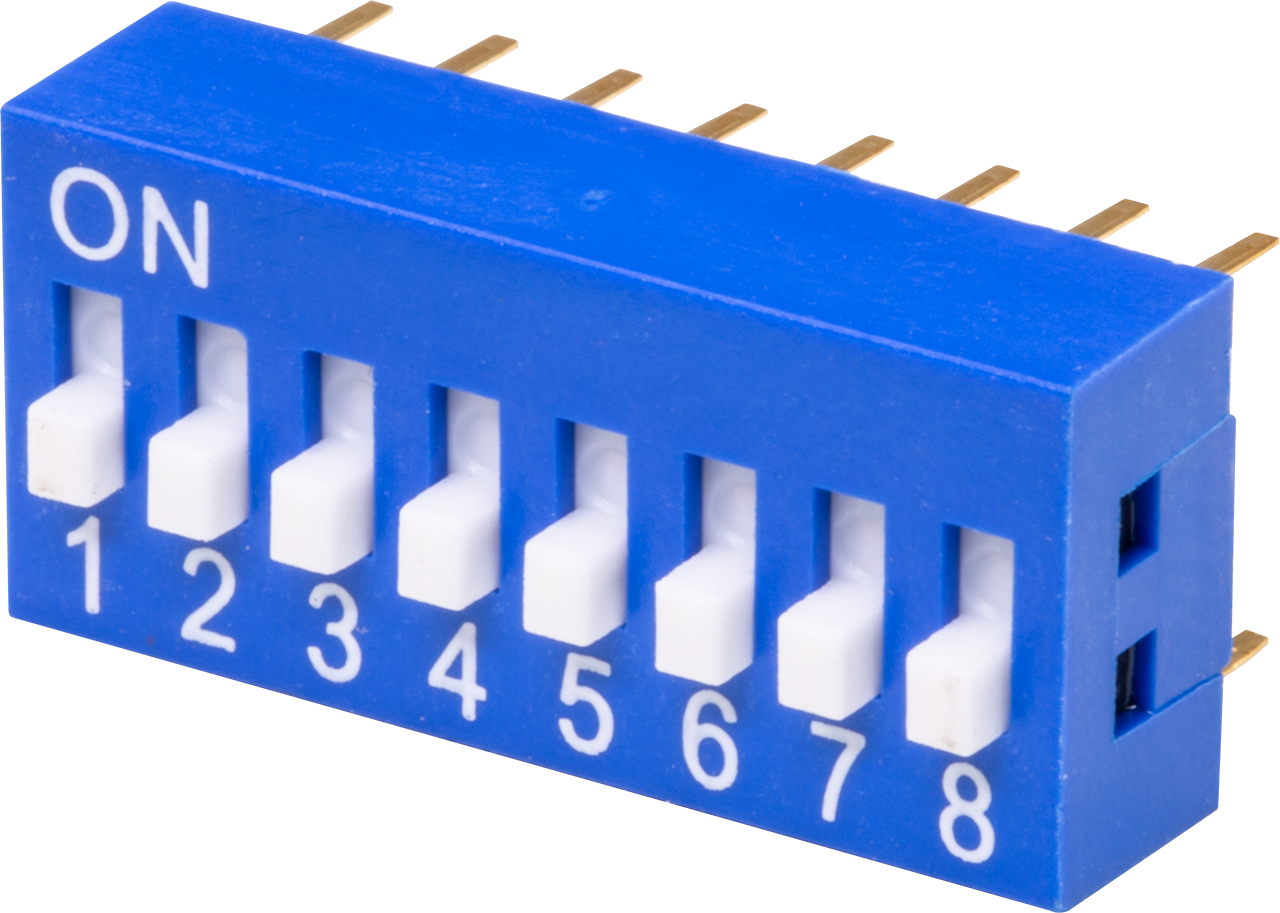

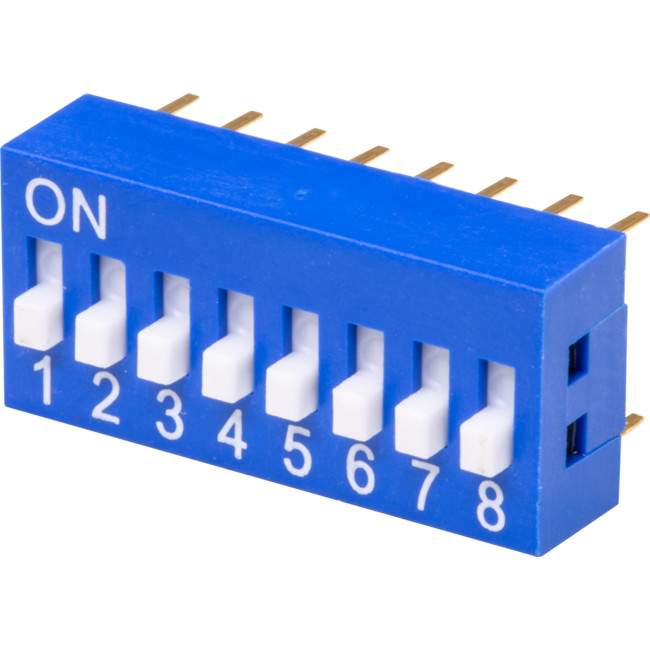

SD1008 8W DIP SWITCH

Code: 41011008

0.0010 kg
9321758076972
EACH
In Stock
TRADE ALERT!
$2.05 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
Features: (1) Standard 2.54mm pitch for direct PCB mounting. (2) The precision moulded case and operating mechanism is completely reliable through the use of UL approved material.(3) Sealed to allow auto soldering and to wash away soldering flux, will not breakdown during Ultrasonic weldingprocess es. (4) Gold plating on nickel underplate and a self-cleaning contact point function, give high performance and reliability. (Specifications): - 100mA 50V DC on load. -25m A 25V DC on switching - 100mA 5V DC on switching - Contact Resistance: 50m - Insulation Resistance: 500V DC 100M min - Dielectric Strength: 500V DC 100M min - Durability: 3,000 ops/min. - Operating Force: 500gm ax. - Type: 8 Way - Dimensions (WHD): 23 x 5.6 x 11mm
