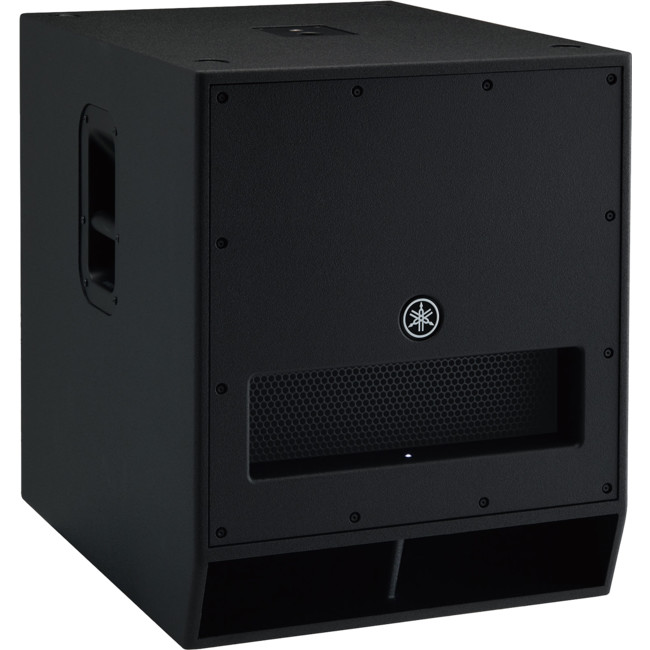

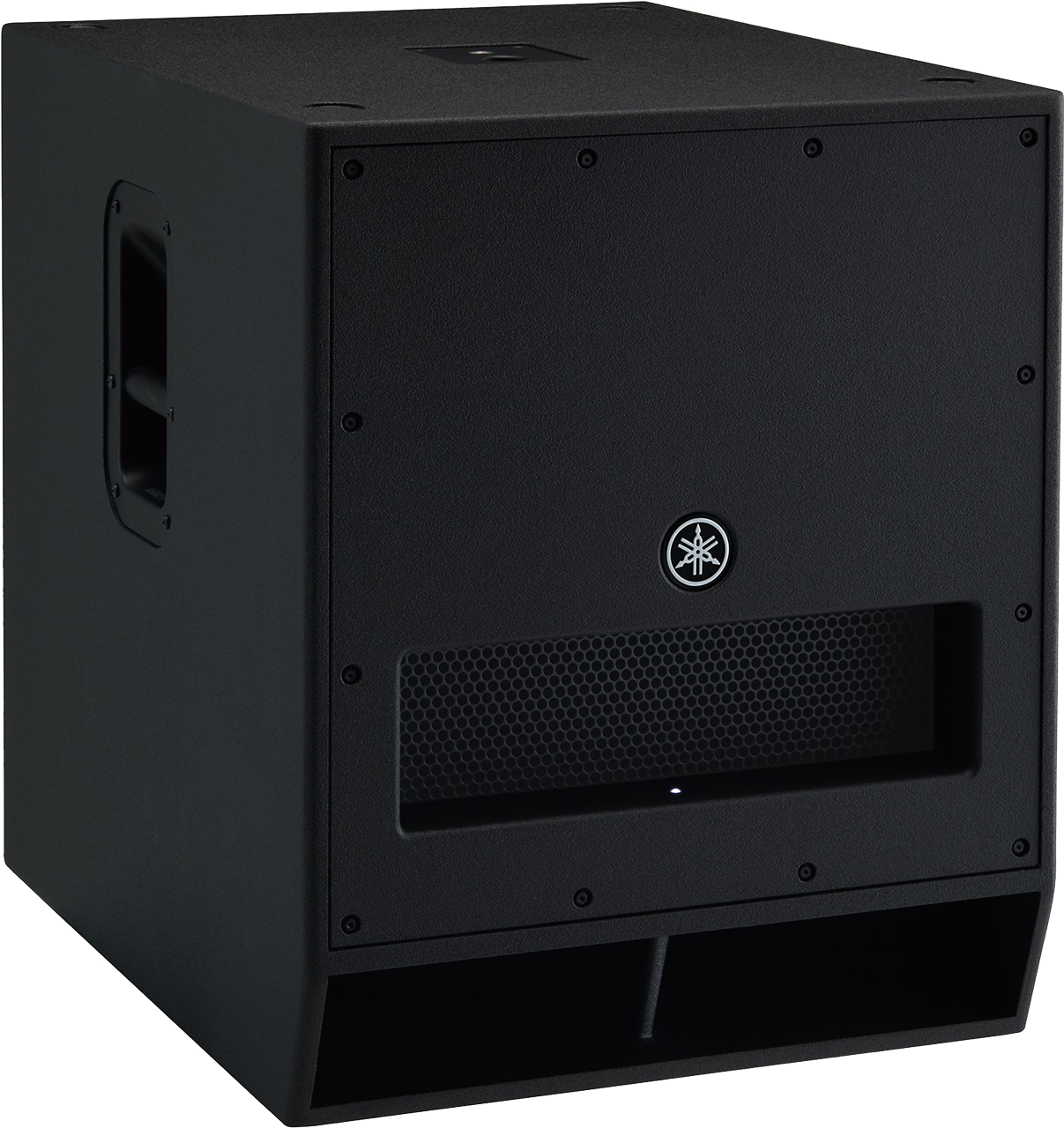

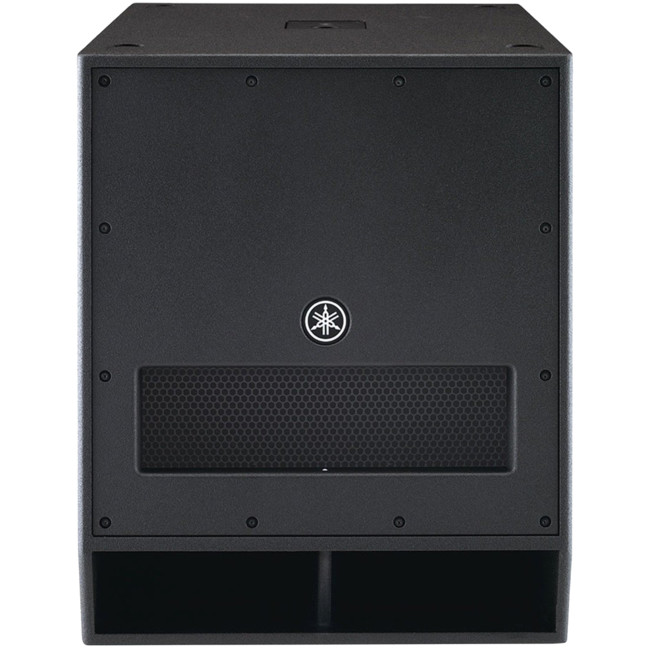

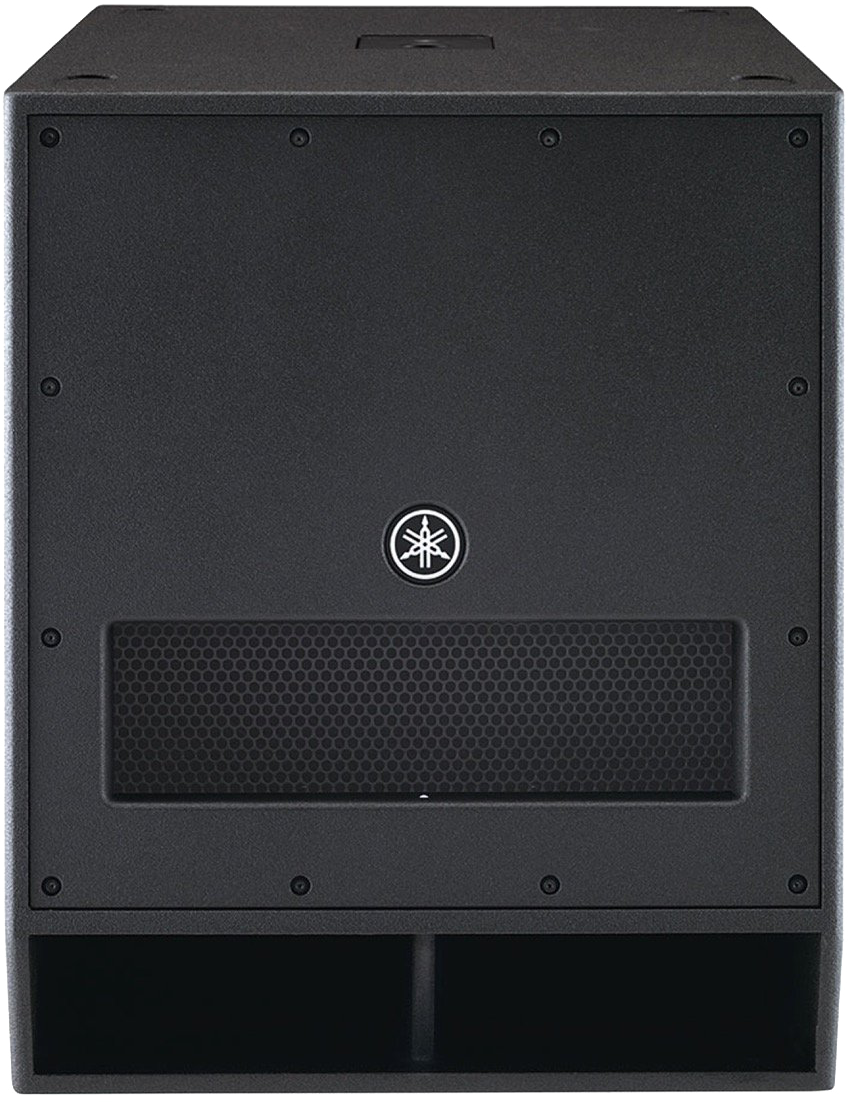

DXS18 18" POWERED SUBWOOFER

YAMAHA

Code: 39899175

4957812591065
EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
TRADE ALERT!
$2899 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The new DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency 32Hz in the lineup.

Equipped with a band-pass type enclosure and high power handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy

SERIOUS. BASS. PERFORMANCE.

Prepare to make a lasting impression on your audiencewith the addition of DXS Series high-output, powered subwoofers to your sound reinforcement system.

Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy enclosure with a band-pass construction, DXS subwoofers are able to deliver up to 1020W of raw power with minimal distortion and superb clarity.

Each of the three models that make up the series- thecompact DXS12 and DXS15, as well as the new, high output DXS18-comes equipped with Yamaha state-of-the-art DSP processing, protection functions, and flexible crossover control, ensuring versatile management of your bottom end and seamless compatibility with Yamaha’s entire lineupof full-range powered speakers.

DXS Series powered subwoofers offer a new level of flexibility, reliability, and power for engineers, artists and audiences that are serious about their bass.

Pushing the Limits of Portable Audio

"In the 1960's, Yamaha started producing professionalaudio equipment to create the best sound solutions that could keep up with the subtlety and intensity of every note created by their expertly designed musical instruments.

Then in 2005, Nexo and Yamaha formed a strategic partnership to co-develop products that would meaningfully elevate system solutions for the sound reinforcement industry.

Now after years of collaboration, driven by the passion for innovation of Yamaha's most skilled engineers, enhanced by the insight and design expertise of Nexo's engineers, our cooperation yielded some of the most powerfuland dependable high-performance digitally enhanced powered loudspeakers...ever.

Yamaha and Nexo, working in concert, sharing passion for performance!"

Specifications

General specifications   DXS18
Speaker type   18" Powered subwoofer, Band-pass type
Frequency range (-10dB)   32Hz – 120Hz
Components LF   18" cone, Voice Coil:4"
Output power   Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)   136dB SPL
I/O connectors   INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors   D-XSUB: BOOST, XTD LF, NORMAL
Cooling   Natural convection
Power requirements   100V – 240V, 50Hz/60Hz
Power consumption   100W
Pole socket   35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions W   563mm (22.2")
H   683mm (26.8")
D   721mm (28.4")
Net weight   49.7kg (110lbs)
Others   Material: Plywood (LINE-X®, Black)
