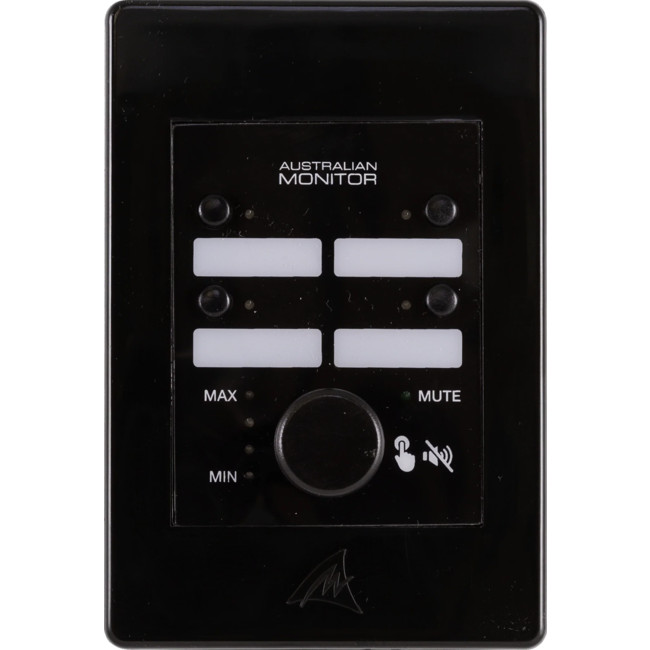

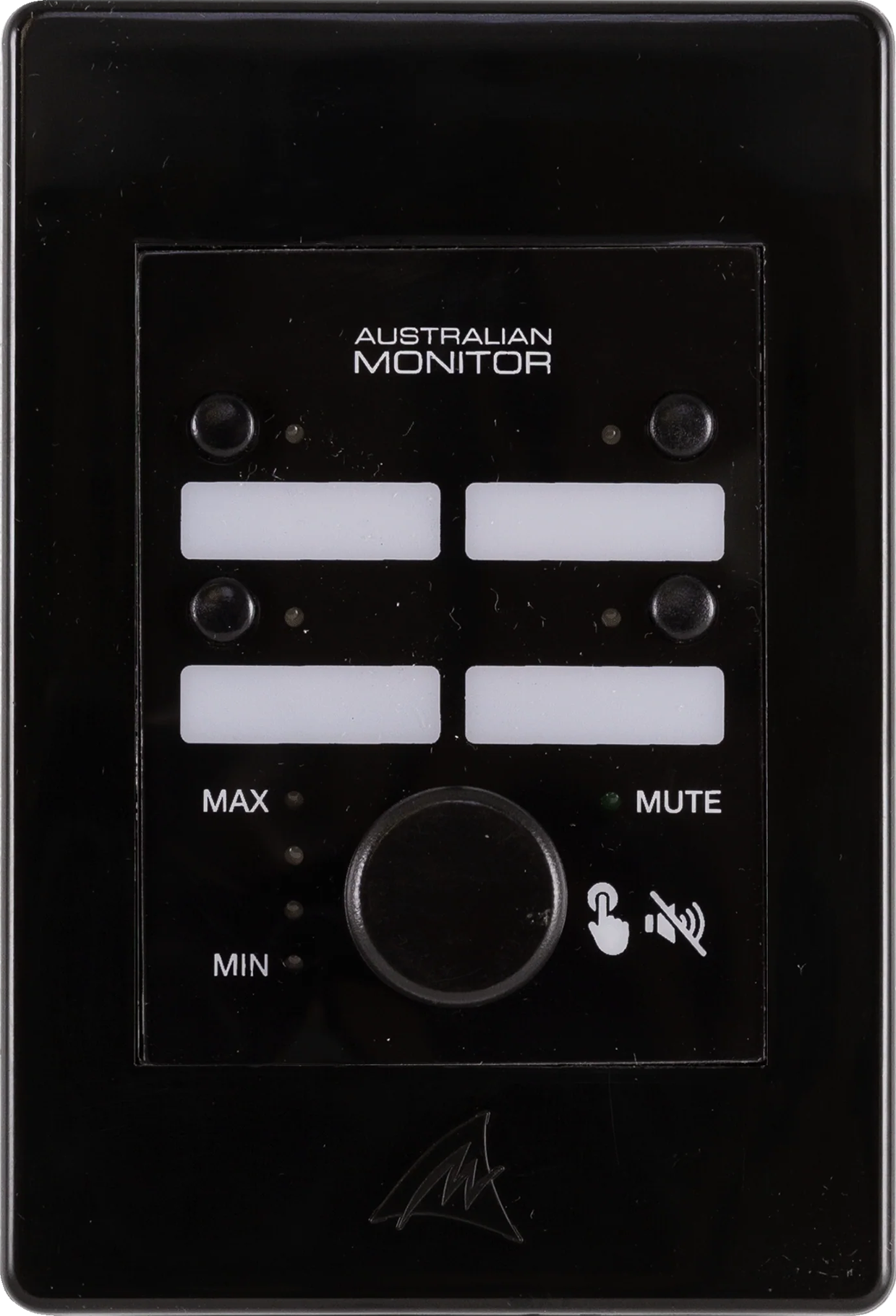

The WP4R wall panel is a 4 button controller with volume control knob for use with the ZONEMIX system.
Each button can be configured in software to provide a wide range of actions including source selection, volume control, muting, preset activation and more. The 3 rear general purpose outputs can be connected to external systems requiring logic control, for example a projector screen.
The WP4R has LED button status indicators, ample button label space and is connected to the ZONEMIX system via Cat5 cabling. The wall panel can also be optionally colour customised using HPM®VIVO™ cover plates to create a unique look for each installation.

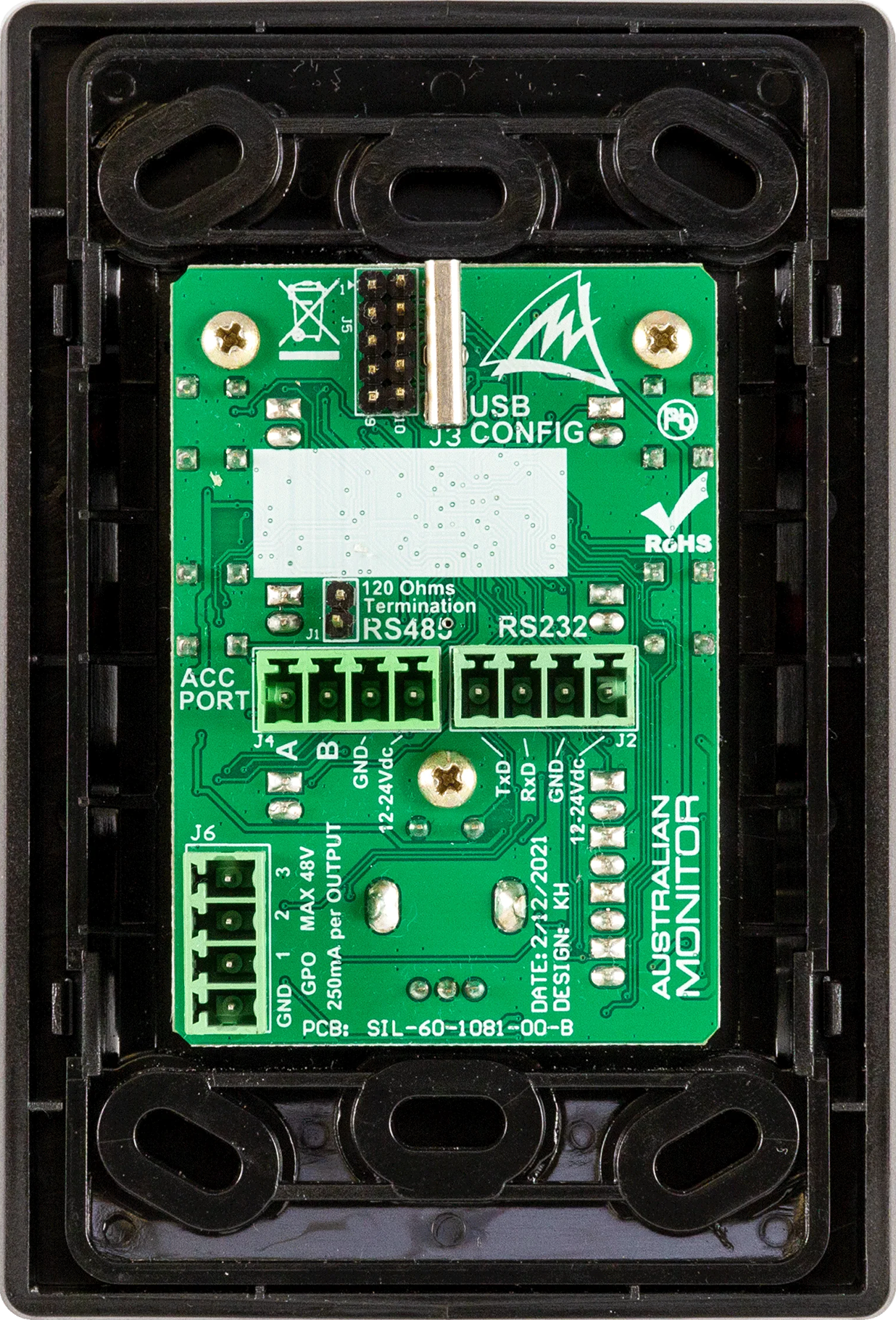

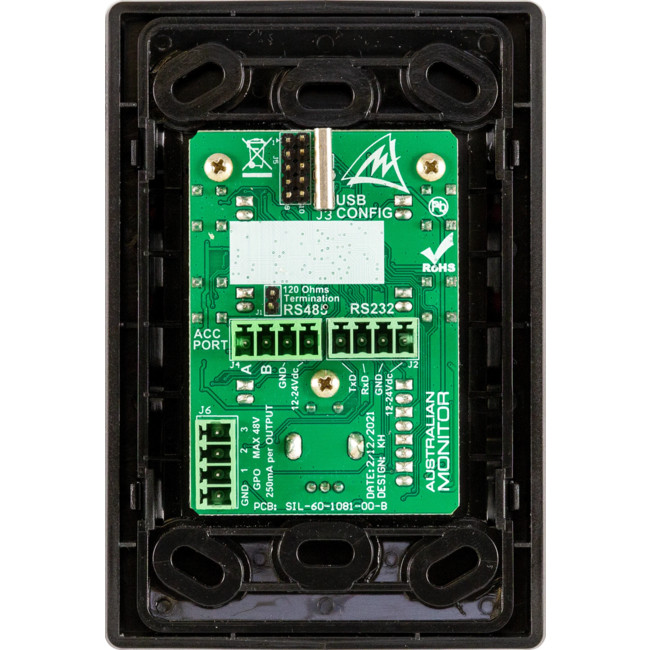

The WP4R has 3 general purpose open collector outputs capable of sinking 250mA per output at a maximum of 48V. The outputs are activated by programming a wall panel button to trigger the output via the ZONEMIX PC Control Software.
The WP4R is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created. Simply replace the included cover plate with the alternative colour desired for a unique colour solution.
