YVC1000B ADECIA UNIFIED COMMUNICATIONS MICROPHONE

& SPEAKER SYSTEM

Code: 39819688

4.50 kg
086792998923
EACH
Low Stock
$1599 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

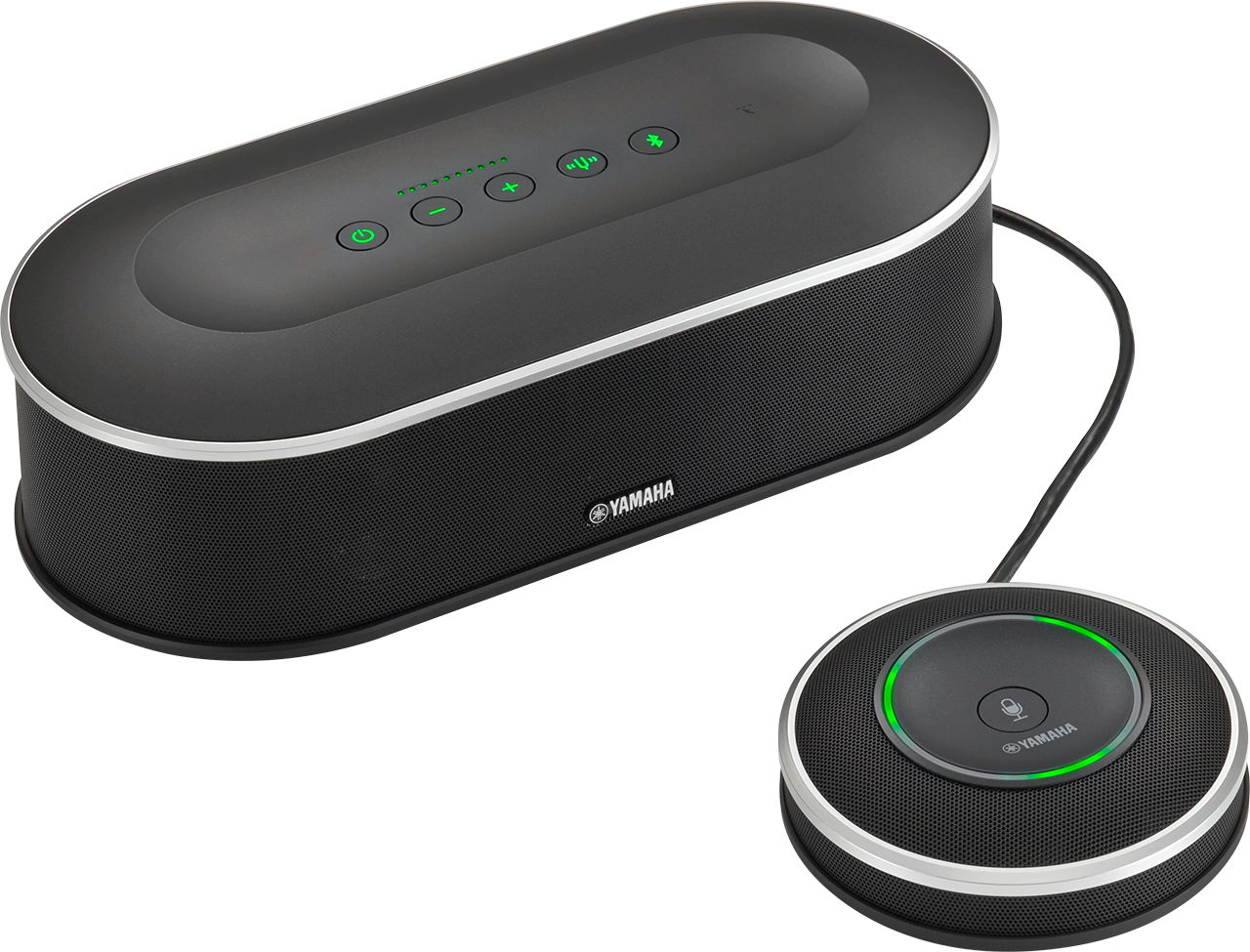

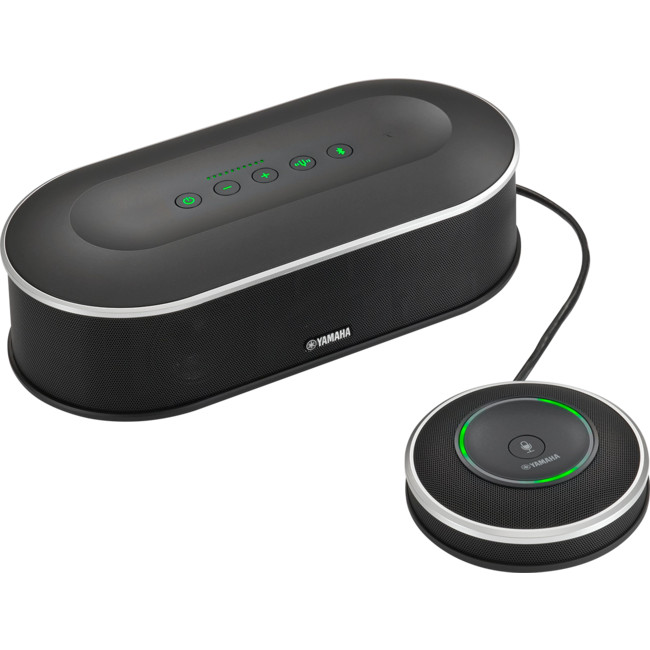

YVC-1000 Unified Communications Microphone & Speaker System

Bringing remote communications to life

The YVC-1000 features separate microphone and speaker units that smoothly integrate audio and video for natural, comfortable remote communication.

The high performance, full range speaker unit can be placed close to the display so that audio and video from the remote location blend naturally, while adaptive echo canceller and other Yamaha sound processing technologies facilitate stress-free conversation.

The YVC-1000 is also scalable and flexible, and designed to support the audio requirements of large meeting spaces and rooms with unique table configurations - such as classrooms for distance learning and remote training.

Find a speakerphone system that's optimized for your meeting room and conferencing preferences, all backed by Yamaha's industry-leading audio technology.



USB & Bluetooth speakerphone for larger meeting rooms

  • Excellent scalable and flexible solution for large meeting rooms with special table configurations, connecting daisy chain up to 5 microphones and support 2 external speakers
  • Ideal for applications for remote education classes or seminars with connecting handheld microphone
  • High-quality sound technologies with adaptive echo canceller and Human Voice Activity Detection (HVAD) to minimize background noise during call
  • Autotuning function analyzes the room environment and automatically adjusts acoustic settings to the optimal level
  • Meeting will be started by single connection with USB or smooth bluetooth connection including NFC technology
  • User-friendly design for fast, intuitive connection to remote communications

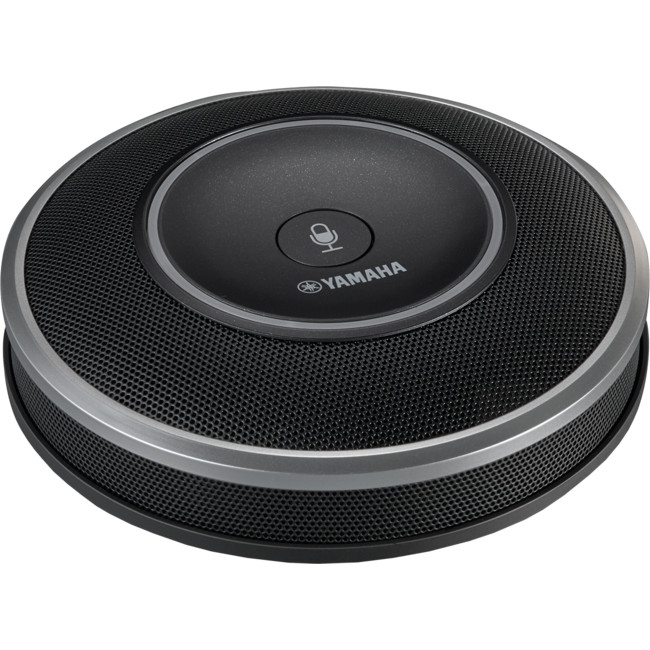

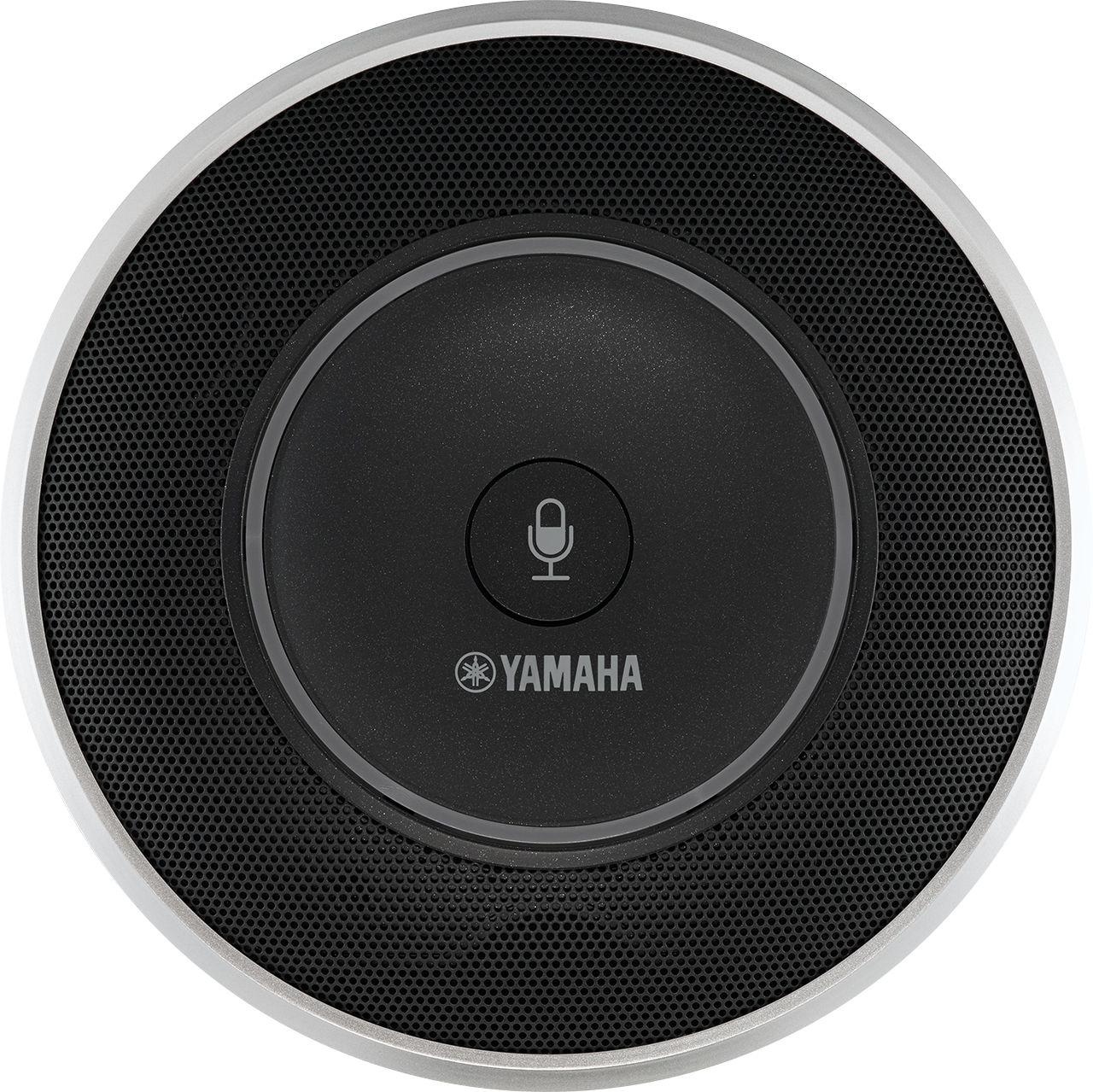

  • Optional expansion Microphone YVC-MIC1000EX- Max 5 mics per system



YVC-1000 brings remote communications to life for meetings with 6 to 40 people

Scalable and flexible solution engineered to support the audio requirements of large meeting rooms and rooms with special table configurations.

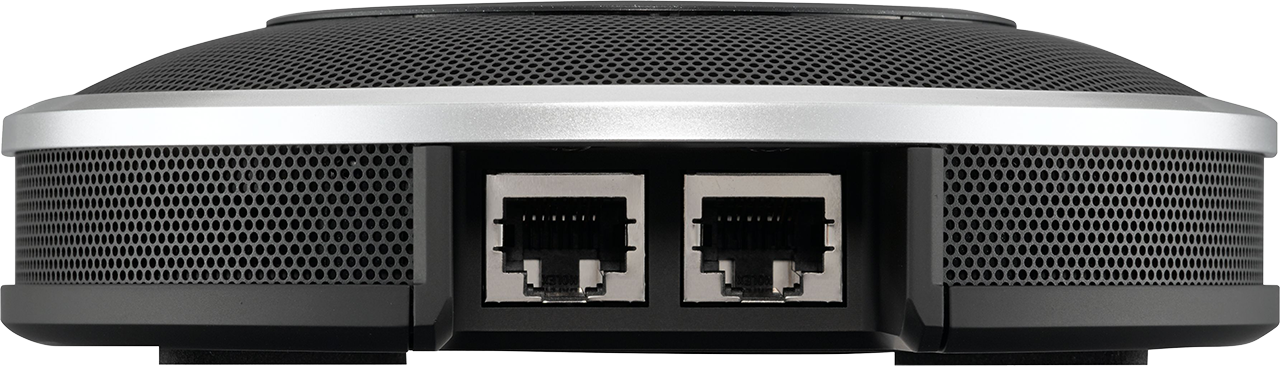

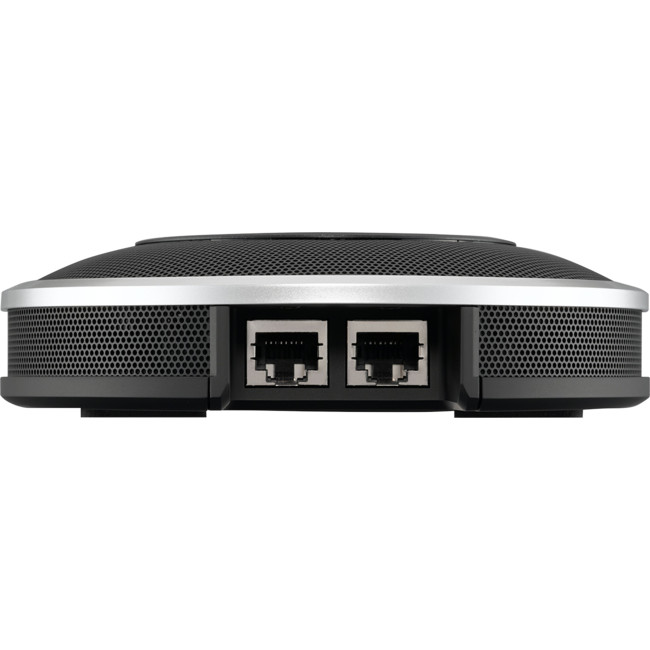

Daisy-chain up to five distinct microphones.

Equipped with external speakers and external microphone, YVC-1000 is ideal for applications such as remote education classes or seminars where a handheld microphone may be preferable within any UC applications.


Excellent scalability

Connect additional speakers and microphones for larger meetings

In its standard configuration*1 the YVC-1000 is ideal for small and medium-size meetings.

For conferencing on a larger scale, external speakers*2 and up to four additional microphones can be added to cover a wider area and accommodate more conference participants.

*1 The standard YVC-1000 configuration consists of one control unit and one microphone.

*2 You can connect up to two commercially available powered speakers.

Connect to an external microphone for more flexibility during remote class sessions or seminars

Equipped with an external microphone input, the YVC-1000 is ideal for applications such as remote classes or seminars where a handheld microphone may be preferable.

Simply connect an external microphone to output your voice through both the base unit speaker and speakers at remote destinations.

Connectable External Microphones

* YVC-1000 doesn’t have phantom power supply function.

* Boundary microphones cannot be used since it generates howling.

Wired microphones

  • Wired microphones can be connected to YVC-1000 directly.
  • Please use microphones which satisfy microphone sensitivity specification "-54.0 ± 6.0 dBV / Pa".

Wireless microphone systems

  • Both of Mic level/Line level Wireless microphone systems can be connected to YVC-1000.


A high quality conferencing experience

Innovative sound processing technologies combine to create a productive communications environment

The YVC-1000 incorporates many high-quality sound technologies that Yamaha has developed over the years, including a unique Human Voice Activity Detection (HVAD) capability used to detect human voices. “HVAD” is an important element of several different sound processing features that require fast and efficient sorting of noise and human voices in order to make speaking and listening a more relaxing, stress-free experience during remote conferencing.

"Adaptive echo canceller" – Delivering the clarity essential to efficient business communication

Intelligently eliminates the echoes generated when microphones pick up sounds from speakers in environments with varying reflective properties.

Adaptive echo canceller processes sounds of up to 20 kHz to facilitate clear, effective conversation.

"Automatic tracking" – Focusing on what’s important

The YVC-1000 utilizes a Automatic tracking function that allows it to detect and track the location of a person’s voice in order to provide the clearest sound pickup possible.

The ability to distinguish human voices from random background noise is particularly useful in conferences held in noisy environments with a large number of participants.

"Automatic gain control" – Ensuring that everyone can hear and be heard

This function automatically boosts or attenuates the gain for individual voices depending on their level and distance from the microphone.

Automatic gain control utilizes HVAD technology to ensure that only human voices are amplified, providing clear and concise communications even in noisy environments.

"Noise reduction" – Reducing noise for clearer communication

The noise reduction function suppresses or eliminates unwanted sounds emitted from sources such as projectors and air conditioners.

Continuous noise is removed from ambient sound picked up by the microphones in order to ensure that listeners hear only clear, intelligible voices.

"Dereverberation" – Clear, reverb-free sound

Naturally occurring reverberation can often wreak havoc on sound quality in remote conferencing situations.

Offering excellent vocal clarity even in spaces subject to excessive natural reverb, the YVC-1000 suppresses the reverberation caused by the varying sonic characteristics of different environments.

"Automatic room EQ" – The right sound for your room

Automatic room EQ optimizes speaker output in real time to match the dimensions and acoustic properties of any room.

Audio quality is adjusted automatically based on the audio signal of the current call to provide a more listenable tone and even reduce unwanted echoing.

With only connecting USB cable to PC, you’re ready to go

Start your remote meeting by connecting your YVC-1000 with a single USB connection.

Don't have your laptop with you?

The user-friendly design provides fast, intuitive connection to a smartphone by Bluetooth.

No matter how you connect, the specially engineered auto-tuning function developed by Yamaha detects and monitors the acoustics of the environment to optimize sound processing for the best audio experience on your remote communications.

Smooth Bluetooth connection using Near Field Communications (NFC)*3 technology

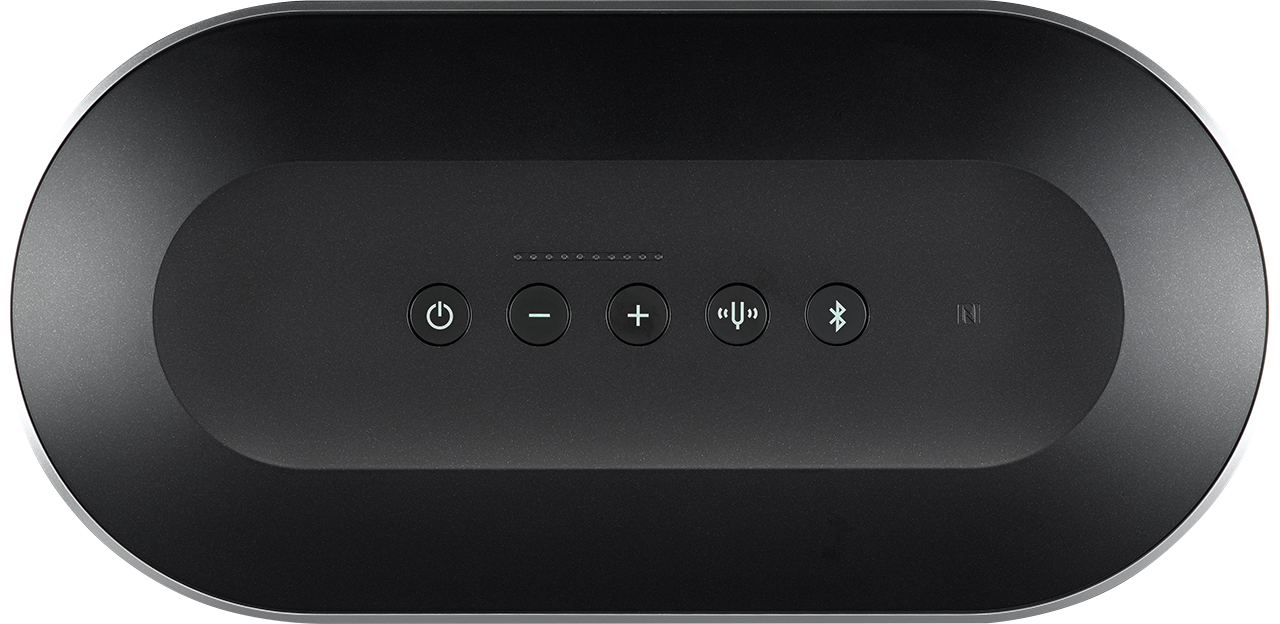

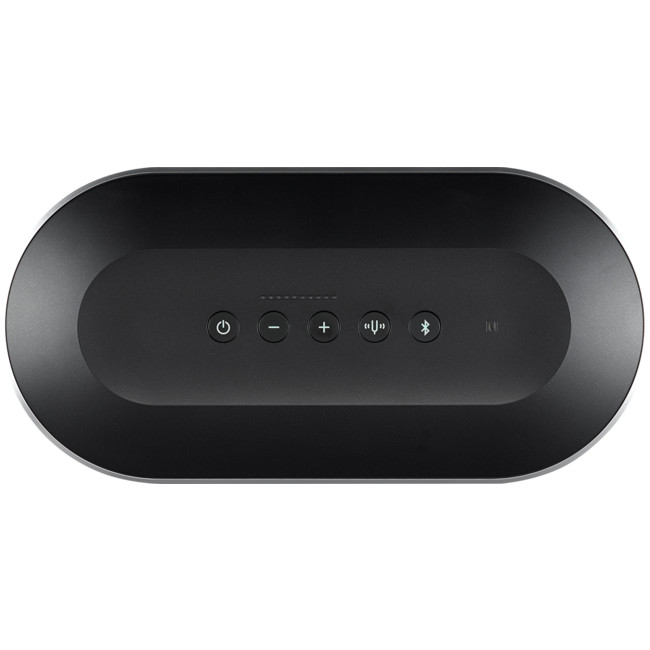

Connect simply and easily by placing an NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking*4.

*1 Supports the mSBC codec for transmission of broadband data.

*2 RCA pin plugs.

*3 NFC may not function correctly with some NFC-compatible devices.

*4 If you press the Bluetooth button once, it flashes in blue.

Flexible connectivity

Fast, easy connection to PCs, smartphones, tablets, and dedicated conferencing systems

Connect to the YVC-1000 via USB, Bluetooth*1, or the audio terminals*2 of a conferencing system for high quality audio in your conferences and meetings.

This range of connection options allows you to quickly adapt to a variety of communications environments, as well as situations where conferencing might otherwise be difficult due to the lack of a landline, or internet connectivity issues.

Communicate with various sources simultaneously

The audio mixing function mixes multiple voice input sources connected to each interface (USB, Bluetooth, and audio input/output) allowing simultaneous communication over different lines.

For example, while connected to a web conference via USB, you can also include more participants via smartphone using a Bluetooth connection by using the audio mixing function to combine the audio sources.

User-friendly design

Optimize acoustic settings with a single touch

The YVC-1000 automatically optimizes its acoustic settings by learning about the acoustic environment of a room as it operates.

When time requirements mean that speed is an issue, simply pressing the tuning fork button activates the automatic audio tuning function, immediately optimizing the acoustic settings for your current environment*1. If any acoustic problems are detected, the tuning fork button lights up orange to warn the user.

Details on acoustic problems can be accessed through the audio guidance function*2, which also provides announcements for other operations, such as when Bluetooth connections have been established.

*1 Automatically measures acoustic characteristics of the operation space and the placement of microphones and speakers, while adjusting the filter settings of the adaptive echo canceller to optimize internal parameters. (This function optimizes settings for the adaptive echo canceller and auto room EQ to correct the difference in delay between the internal and external speakers and correct for the frequency characteristics of the external speaker.)

*2 Supports English, Japanese, Chinese, Korean, French, Spanish, and German. The default setting is English.



Certified model for Zoom Rooms!

“With Yamaha’s audio technology and expertise, the YVC-1000 will help us in bringing more powerful and scalable collaborations to our customers’ Zoom Rooms experience,” Eric Yu, hardware partnership manager, Zoom.

  • HD Single/Dual works with YVC-1000's External Microphone Function



YVC-1000

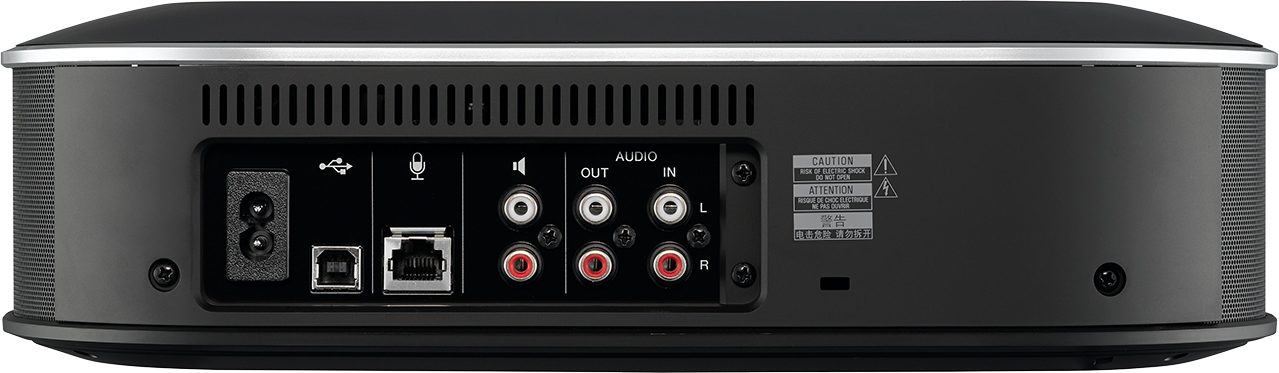

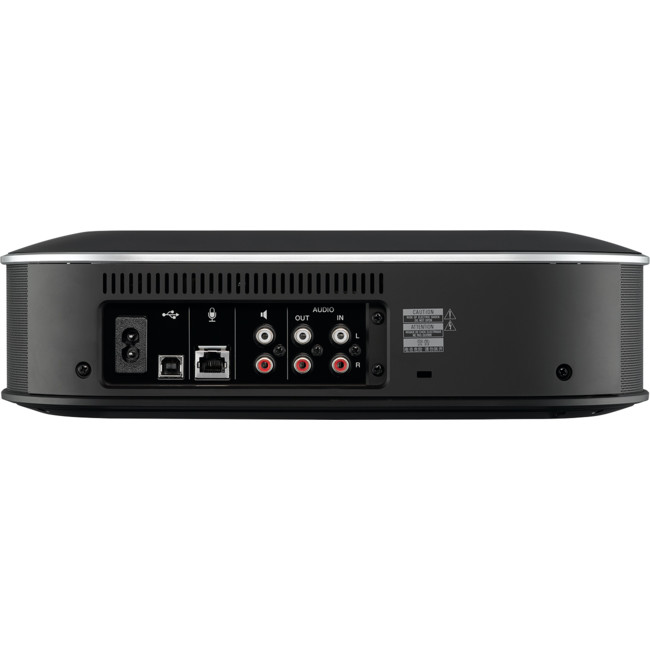

Interface Control Unit: USB 2.0 High Speed (B), Bluetooth, NFC (Near Field Communication), Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal, Microphone: Input and output terminals
Power consumption (max) 20 W (one connected microphone), 35 W (five connected microphones)
Power source [U.S.A. and Canada] AC 120 V (60 Hz), [UK, Europe and Russia] AC 220 - 240 V (50 Hz)
Operating environment Temperature: 0 - 40° C (32 - 104° F), Humidity: 20 - 85% (no condensation)

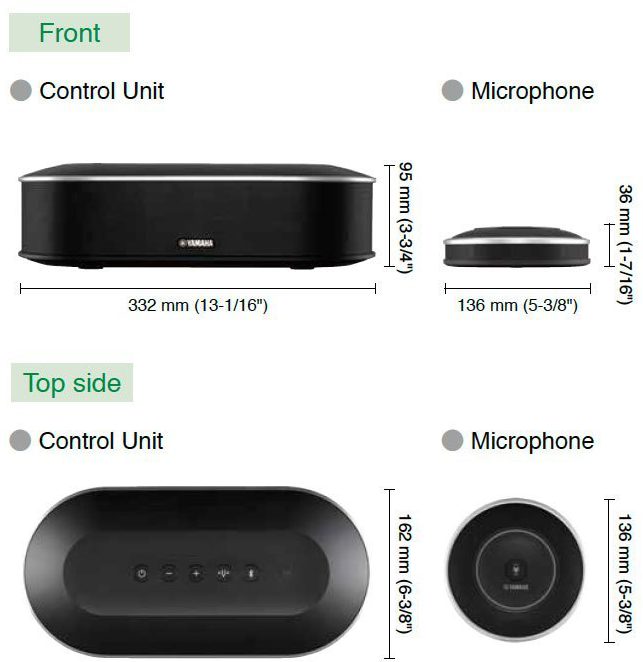

Dimensions Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in), Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in)
Weight Control Unit: 1.8 kg (4.0 lbs), Microphone: 0.4 kg (0.9 lbs)
Supported OS Windows 11?Windows 10(32bit/64bit)?Windows 8.1(32bit/64bit)?macOS 12?macOS 11?macOS 10.15
Voice guidance English, Japanese, Chinese, Korean, French, Spanish, German
Accessories Power cable 3 m (9.8 ft), USB cable 5 m (16.4 ft)), microphone cable 5 m (16.4 ft)), Quick Start Guide
Other Firmware update (transferred from PC/Mac through USB), Optional extension microphone (YVC-MIC1000EX)

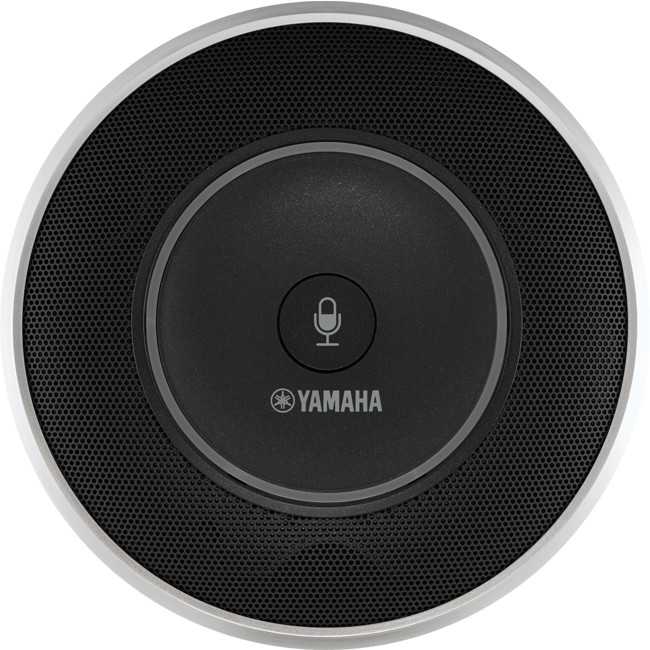

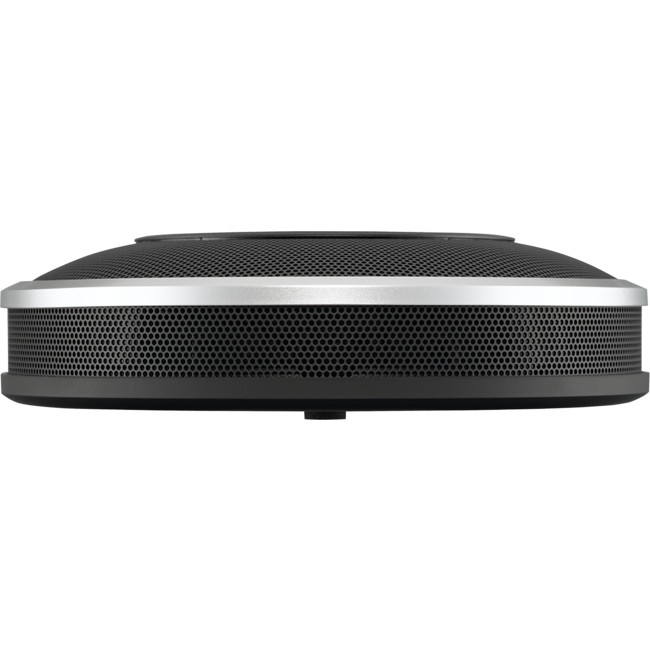

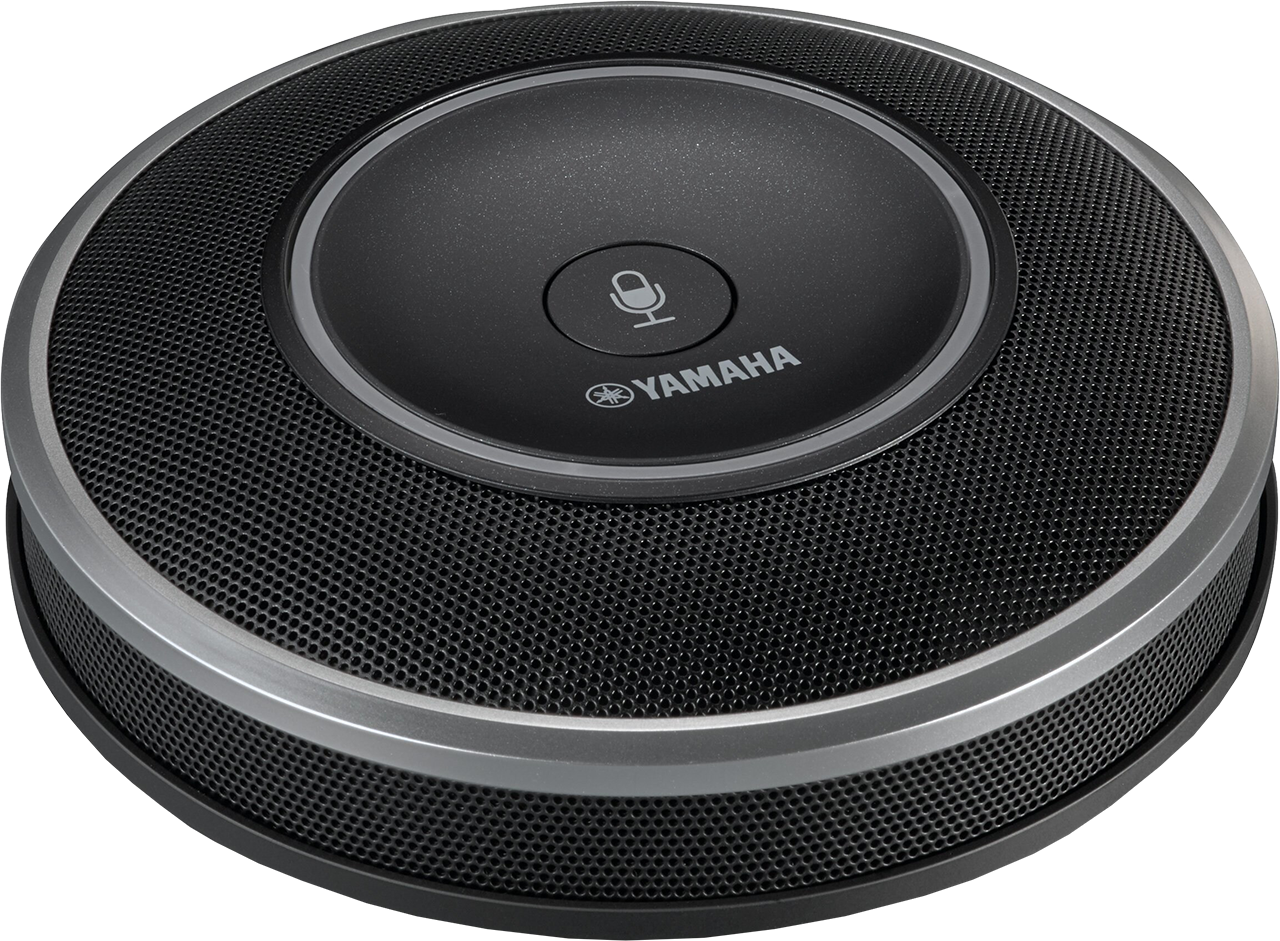

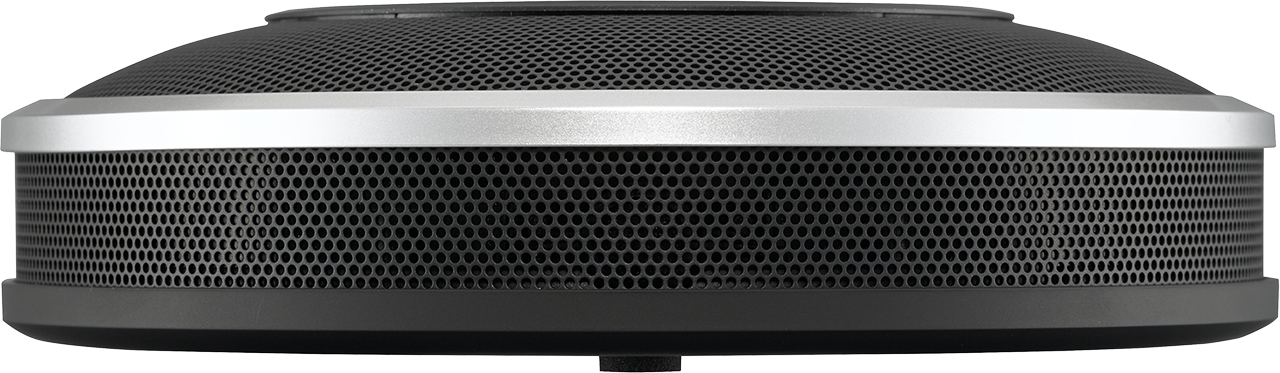

Microphones Unidirectional Microphones x 3, 360° coverage
Speakers Full-range Speaker x 1
Maximum volume 95 dB (0.5 m (1.6 ft))
Frequency bandwidth 100 Hz - 20,000 Hz
Signal processing Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning
