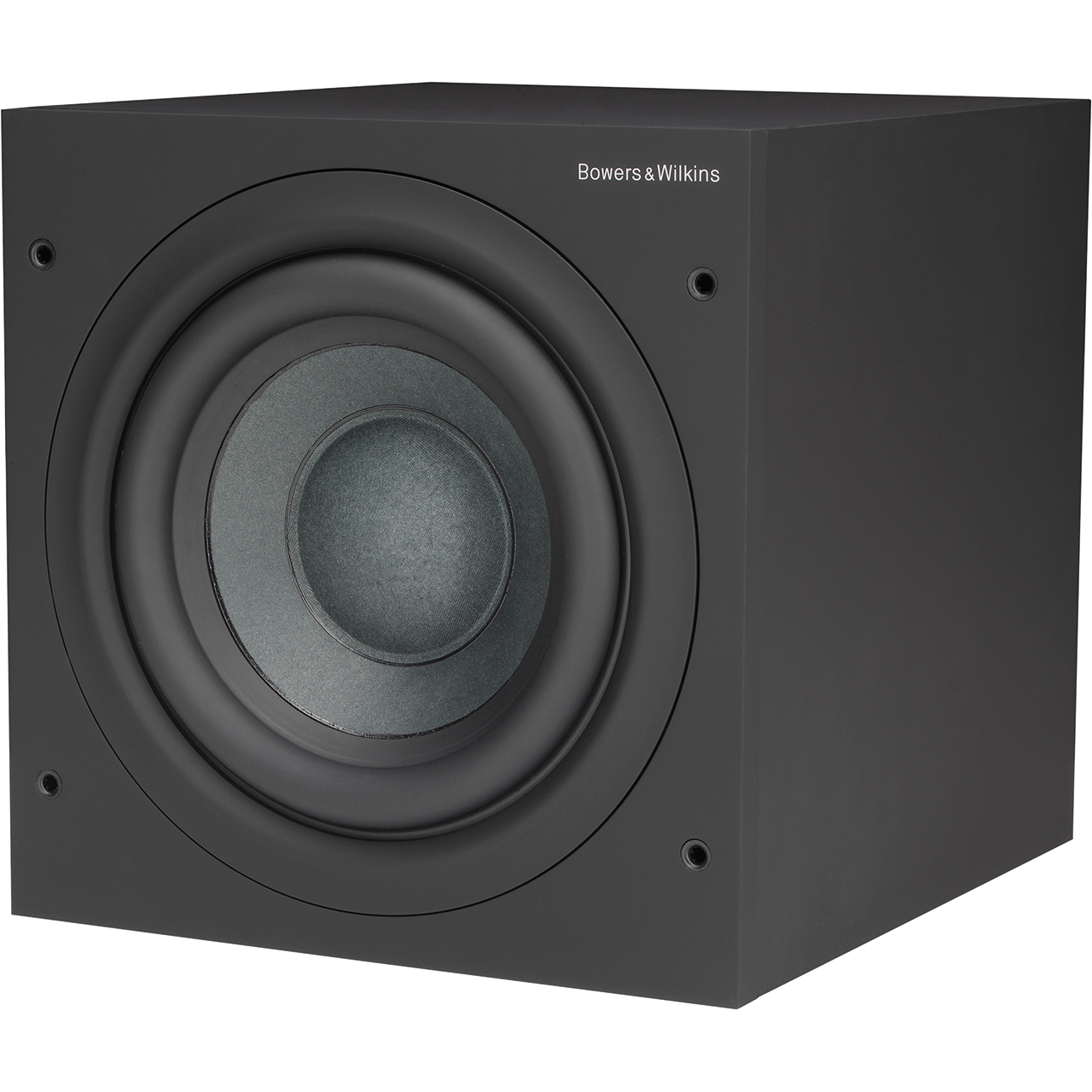

ASW610-B B&W 200W 10" SUB - BLACK

SUBWOOFER

Code: 39819196

13.80 kg
714346305575
EACH
2 IN
STOCK
$1299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw250mm driver allows the ASW610 to move the large volumes ofair needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which providesthe stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised;bass precision, power and enjoyment are maximised.

Specifications:

Woven Kevlar
Crossover Tuning
Nautilus Tapering Tube
Flowport
Mushrooms
FST
Tweeter on Top
Matrix
Rohacell
Diamond Tweeters
Sphere / Tube Enclosure
De-Coupling
Nautilus
Description Active closed-box subwoofer system
Drive unit ø250mm (10 in) paper/Kevlar® cone long-throw
Frequency range -6dB at 20Hz and 25/140Hz adjustable (EQ at A)
Frequency response ±3dB 27Hz – 40/140Hz adjustable (EQ at A)
Bass Extension -6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
Amplifier
Power output: 200W
Rated power consumption: 40W / 0.5W standby
Input impedance: 33kΩ
Signal / noise: >90dB
Functions: Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions Height: 310mm (12.2 in) not including feet
Width: 310mm (12.2 in)
Depth: 375mm (14.8 in) including grille and controls
Net weight 12.5kg (27.6 lb)
Finishes Black Ash Vinyl
Light Oak Vinyl
Red Cherry Vinyl
Wengé Vinyl
600 series
