8" 2 WAY INCEILING SPEAKERB&W

  • Code:

    39818027
  • Model:

    CCM682
  • Brand:

    B&W
  • Unit:

    Each
  • Weight:

    8.9000kg
  • Stock:

    3
  • +
Be the first to review!

Freight Estimator Enter 4 digit postcode


Your Price
$699.50

See nothing, hear everything

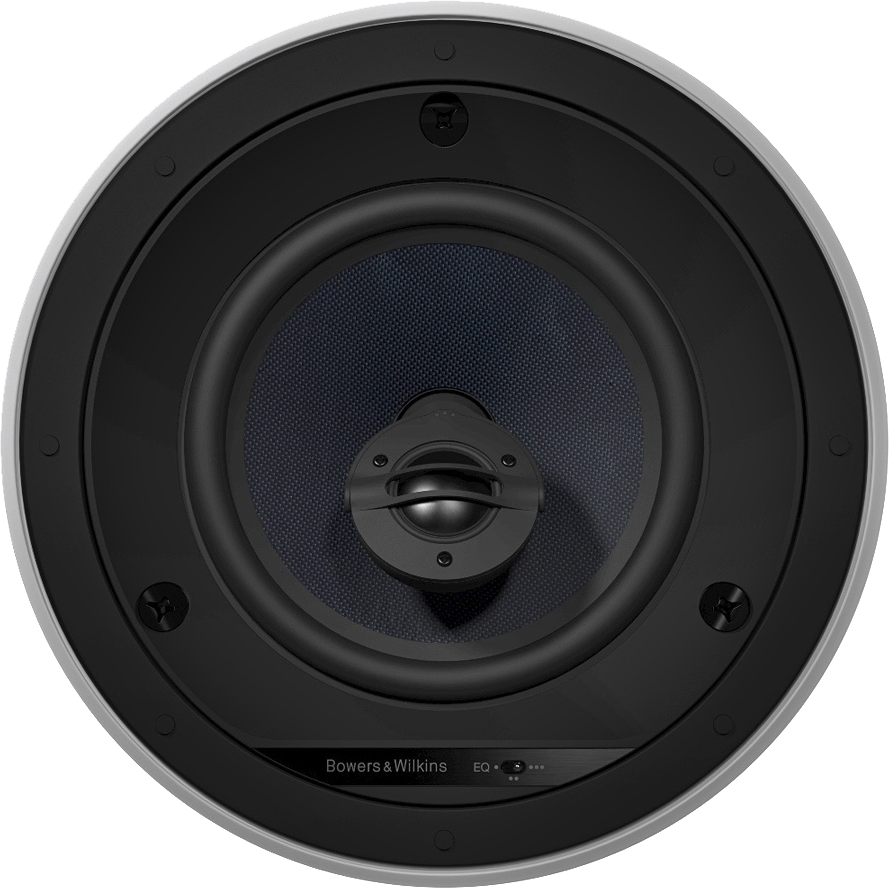

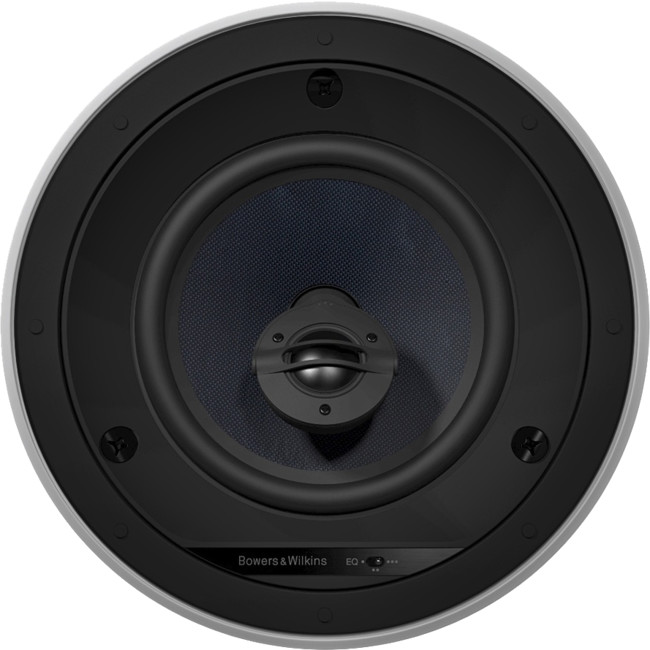

The CCM682 is a high performance ceiling-mount speaker that features
a 200mm (8in) Aramid Fibre cone bass/midrange driver and an
aluminium dome tweeter in aneat circular die-cast chassis. Its 30mm coil
and 100mmmagnet ensure an incredibly efficient and reliable speaker
with outstanding sound quality. The aluminium tweeter’s housing pivots for
adjustable off-axis treble response. The speaker also has a three-position
EQ switch for a better off-axis response. The bass/midrange driver’s diecast chassis provides extra rigidity which results in a cleaner, faster bass.

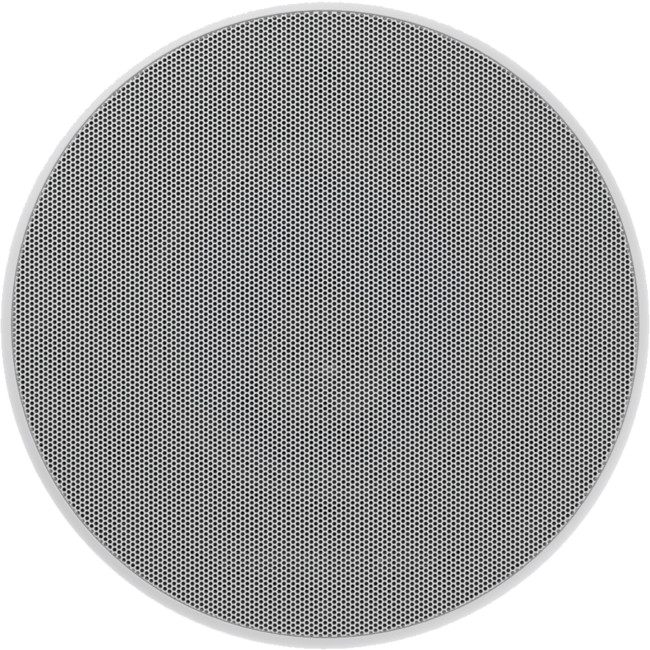

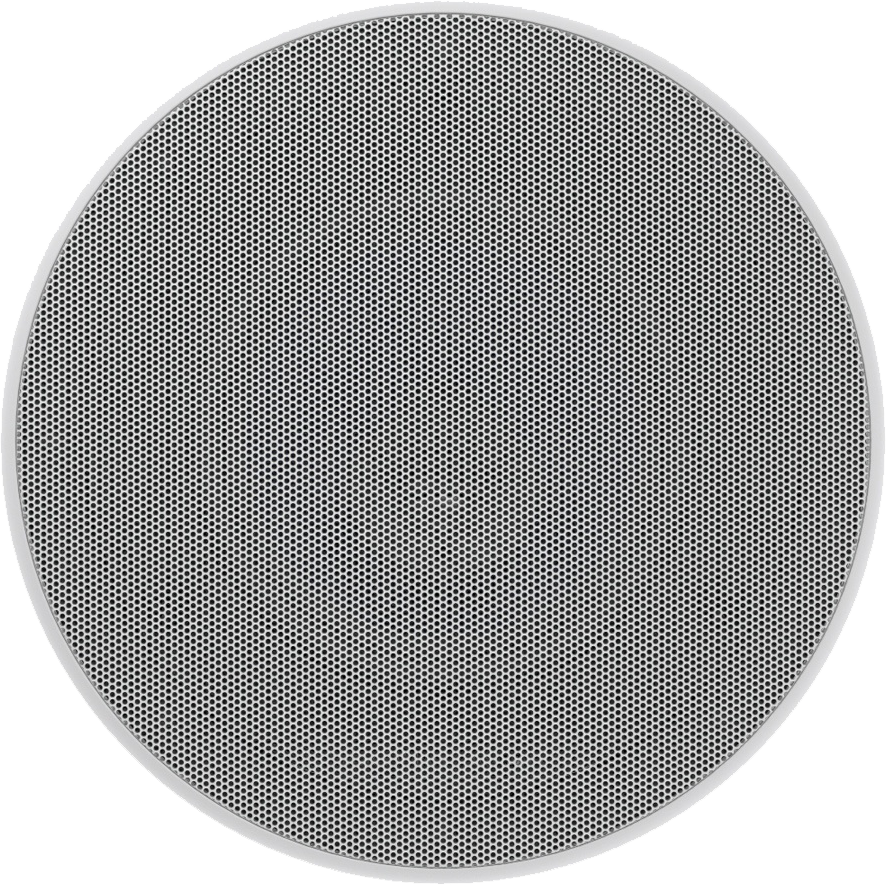

The blue Aramid Fibre cone means that the unit is well hidden behind the
grille but still produces a remarkably clearand dynamic sound.
Incorporating QuickDogs™ and plug-and-play functionality it is quick and
easy to install.

Description 2-way in-ceiling system
Drive units 1x ø25mm (1in) Nautilus™ swirl loaded aluminium
dome tweeter
1x ø200mm (8in) blueAramid Fibre cone bass/midrange
Frequency Range (-6dB) 35Hz – 50kHz
Recommended Amp Power 25 – 150w
Sensitivity SPL (2.83V, 1m) 89dB
Impedance Nominal (min) 8? (4.5?)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
PMK (Pre-Mounting Kit) C8
Back Box 6C
