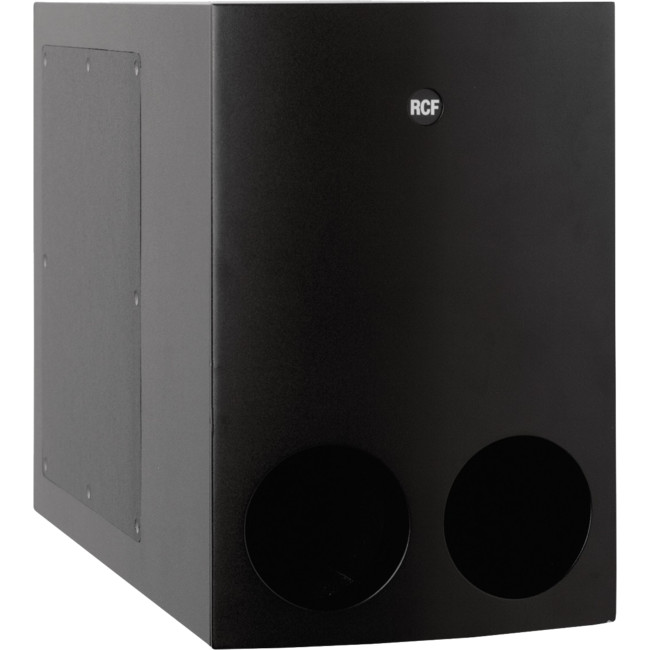

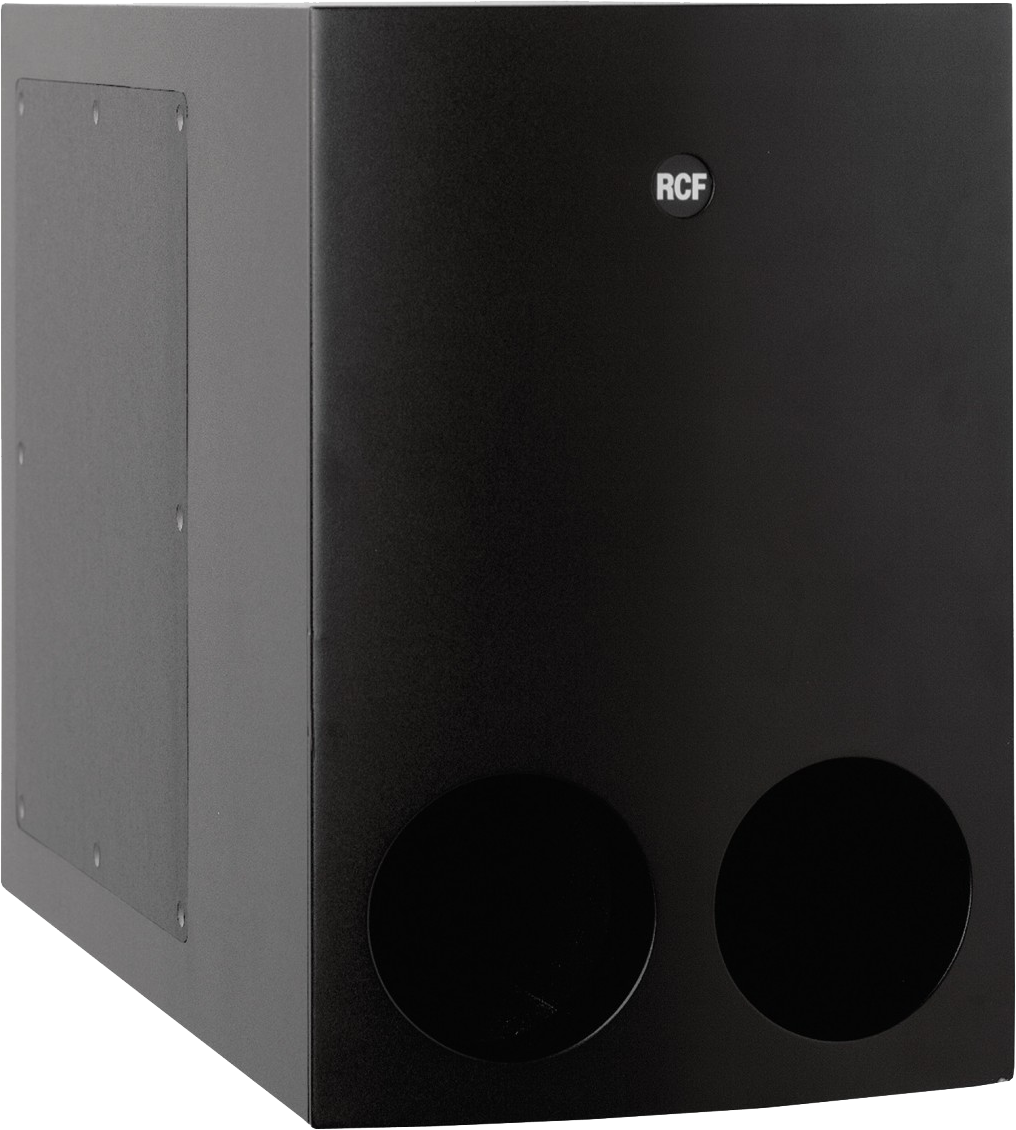

MQ90SB 8" COMPACT 100V LINE SUBWOOFER

MQ 90S is a compact band-pass 8” subwoofer.
It can be connected through a removable Euroblock plugthat allows the parallel connection of other loudspeakers.
The cabinet material is MDF with a scratch resistant surface.
The subwoofer has internally a transformer for constant voltage lines (100 or 70 V).
The power selection is made by means of its selector.
It is for indoor use only (avoid to use it in very humid places).
It should be put on the floor of a room where “satellite” loudspeakers (for mid / high frequencies) are already present. MQ 90S belongs to RCF Monitor Q series.

• Type of speaker: "band-pass" subwoofer
• Frequency Response: 70 Hz - 220 kHz
• Max SPL @ 1m: 107 dB
• Power Handling: 60 W RMS
• Peak Power Handling: 120 W PEAK
• System Sensitivity: 89 dB
• Impedance: 16 Ω
• Crossover frequencies: 200 Hz

• Speaker: 8"

• Input connector :Removable 4 pole Euroblock
• Constant voltage: 100 V, 70 V
• Power Selection: 60 - 30 - 15 - 7.5 W (100V)

• Hardware: Material PVC
• Colour: Black (Also available in White)

• Height: 300 / 11.81 mm/inch
• Width: 203 / 7.99 mm/inch
• Depth: 400 / 15.74 mm/inch
• Net weight: 8.06 / 17.76 kg/lbs

• Package height: 370 / 14.56 mm/inch
• Package width: 265 / 10.43 mm/inch
• Package depth: 470 / 18.50 mm/inch
• Shipping weight: 9.24 / 20.59 kg/lbs
