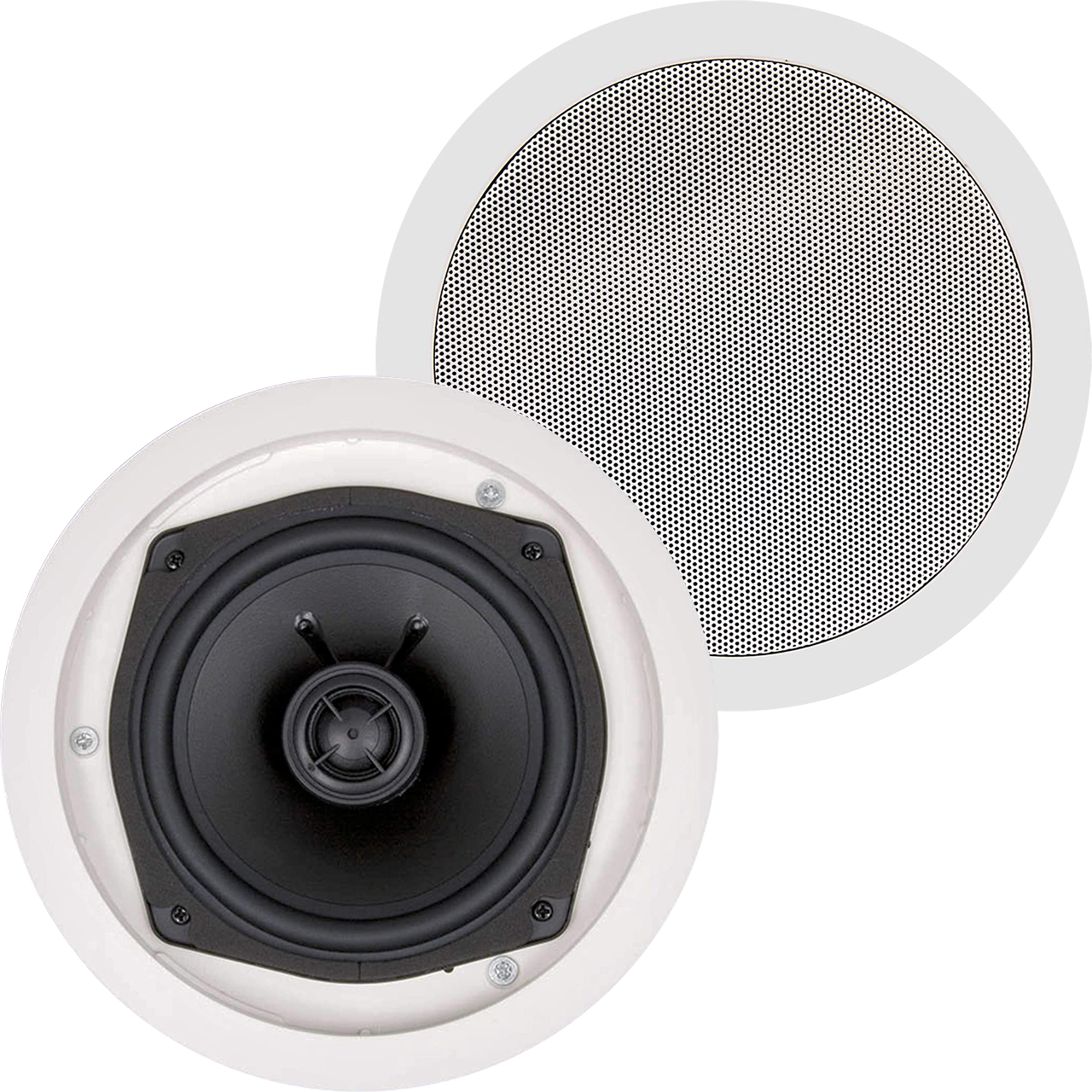

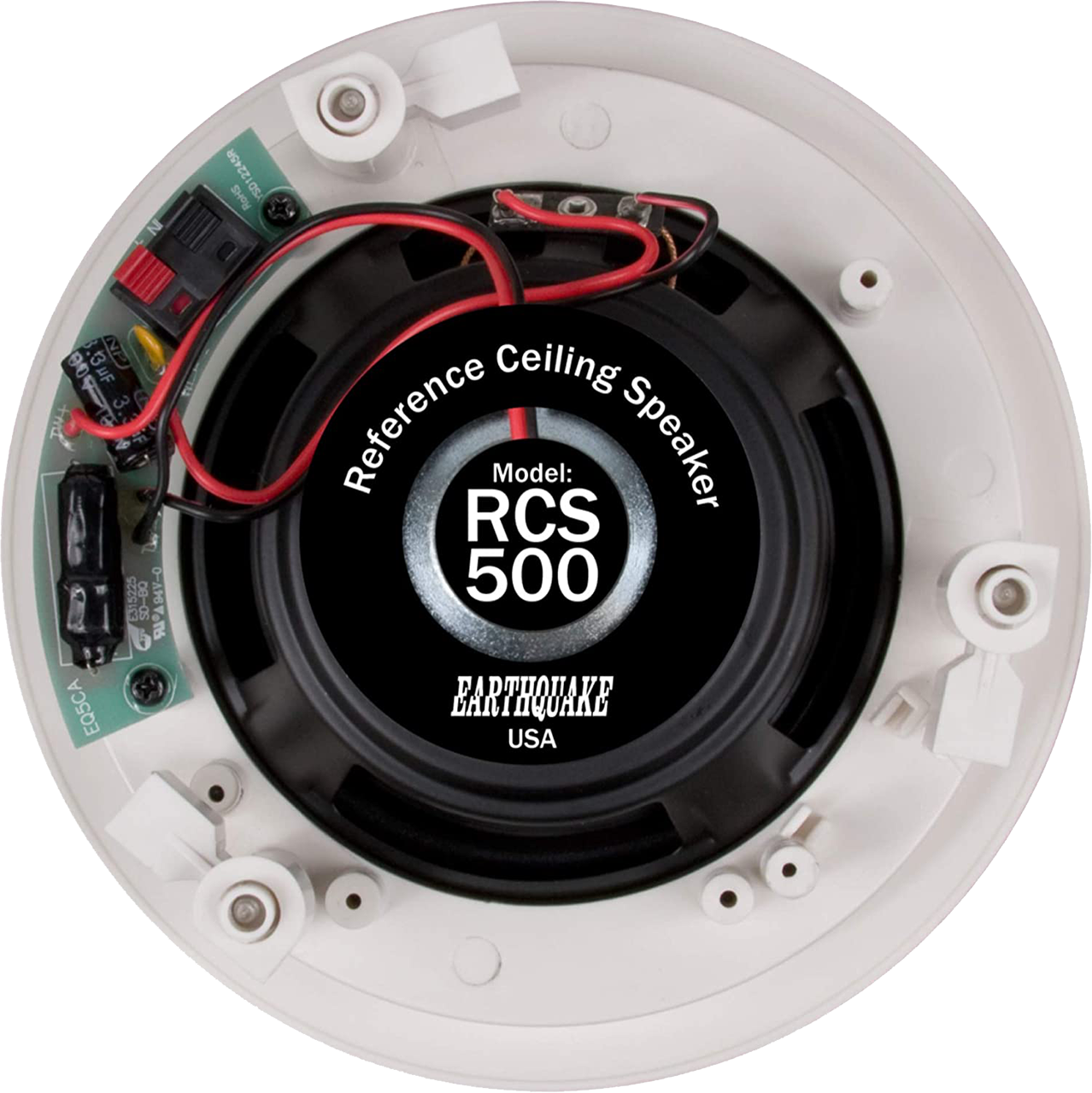

RCS500 5" REFERENCE CEILING SPEAKERS

The RCS Reference Ceiling Speakers are designed to deliver high-quality audio performance while maintaining affordability. The RCS series features polypropylene woofer cones for durability and low distortion. Each speaker has a 1 inch (25mm) silk dome swiveling NEO tweeter that can be aimed at the direction of the listeners for better sound staging.

The RCS speakers have 20% trimmer speaker frame for reduced visibility and come complete with paintable rust-resistant grilles that can be painted to blend in with any décor. Installation is also quick thanks to a 3-ear Turn ‘N’ Lock installation mechanism.

Features

• 1-inch silk dome swivel NEO tweeter
• Bumped back basket and t-yoke for high speaker excursion
• Wider surround for deeper bass and higher speaker excursion
• 12 dB/Octave filter network crossover
• Thermal tweeter protection
• Custom compact spring-loaded terminals
• Easy to use Turn ‘N’ Lock installation mechanism
• 20% trimmer speaker frame for better aesthetics
• Paintable rust-resistant grille

Specifications

• Impedance: 8 Ohm
• Tweeter size: 1" (25mm)
• Power handling RMS: 130 Watts
• Woofer: 5 1/4"
• Frequency response: 70Hz - 21kHz
• Weight: 2.48 lbs (1.12Kg)
• Frame diameter: 8" (203.8mm)
• Grille diameter: 6 3/4" (172mm)
• Cut out hole diameter: 6 1/2" (165mm)
• Mounting depth: 3" (77mm)
• Magnet diameter: 3 1/8" (80mm)
