XJ-300ST Amplifier: Compact Size but Big Power
In a world where space is a premium, Earthquake Sound gives you the XJ-300ST amplifier, the tiny amp that packs a punch! Coming from a family of power-packed amplifiers, the XJ-300ST is one of a kind. It's the ultimate combo of efficiency, flexibility, and space-saving design.
With its unique interlocking design, you can fasten two XJ-300STs together, creating a 4-channel amplifier that uses only 1U of rack space. And the best part? The XJ-300ST's small size doesn't compromise its power. It's got a cool-running system with an efficiency approaching 99%, making it perfect for tight racks with other surrounding components.
Designed to be tailored to suit your amplification needs, the XJ-300ST can be configured in countless ways, serving as a mono (bridged) amplification, 2.1-channel amplification, 2-channel amplification, 4/8/12-channel amplification, or 16-channel amplification. The versatility makes this amplifier the go-to choice for installers looking for convenience and flexibility.

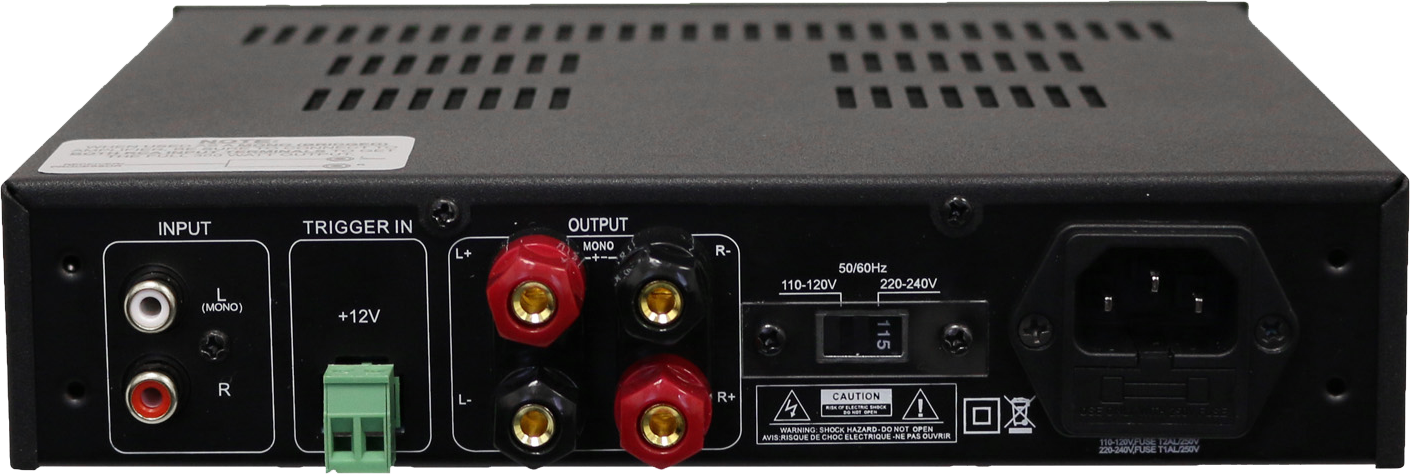

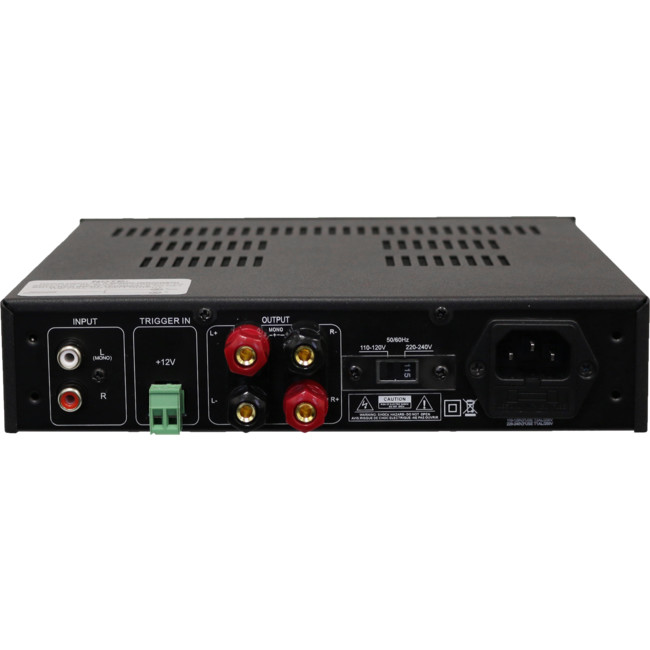

The XJ-300ST is even more user-friendly, thanks to its 12V trigger at the amplifier's rear. It makes turning on from other external sources a breeze. This compact and versatile class J amplifier is only one U high and a half-rack in width, making it the perfect choice for installers and integrators.
Specifications
- Wall or rack-mountable
- Class"J" stereo modular design
- Auto signal/music sensing
- Built-in room corrections and 0-180 phase adjustments
- RCA input
- 12V trigger
- Volume control
- 50-160Hz built-in crossover
- 110V/220V selectable
- Compact size: 1.87? x 8.5? x 8?
- Technology Integrator's 2016 Impact! Awards Finalist
- Output Power 2 x 110 Watts RMS @ 8-Ohm
2 x 170 Watts RMS @ 4-Ohm
1 x 170 Watts RMS @ 8-Ohm Mono
1 x 300 Watts RMS @ 4-Ohm Mono
(Do not use this amplifier in 2-Ohm) - Frequency Response 20Hz - 20kHz
- Total Harmonic Distortion < 0.08%
- Damping Factor > 400
- Signal to Noise Ratio > 97 dB
- Input Sensitivity for Full Output 0 - 5V
- Input Connections RCA
- Input Impedance 10-kOhm
- Output Connections 5-way binding posts
- Fuse Ratings 250V 220-240V~50Hz: Ø5x20mm, T5.0AL/250V
- Rack Mountable Yes (1U)
What is in the box?
- XJ-300ST Class “J” Amplifier x 1pc
- Short Mounting Ears x 4pcs
- Screws for Mounting Ears x 12pcs
- Back Bracket x 1pc
- Screws for the Back Bracket x 4pcs
- Rubber Feet x 4pcs
- Power Cord x 1pc
