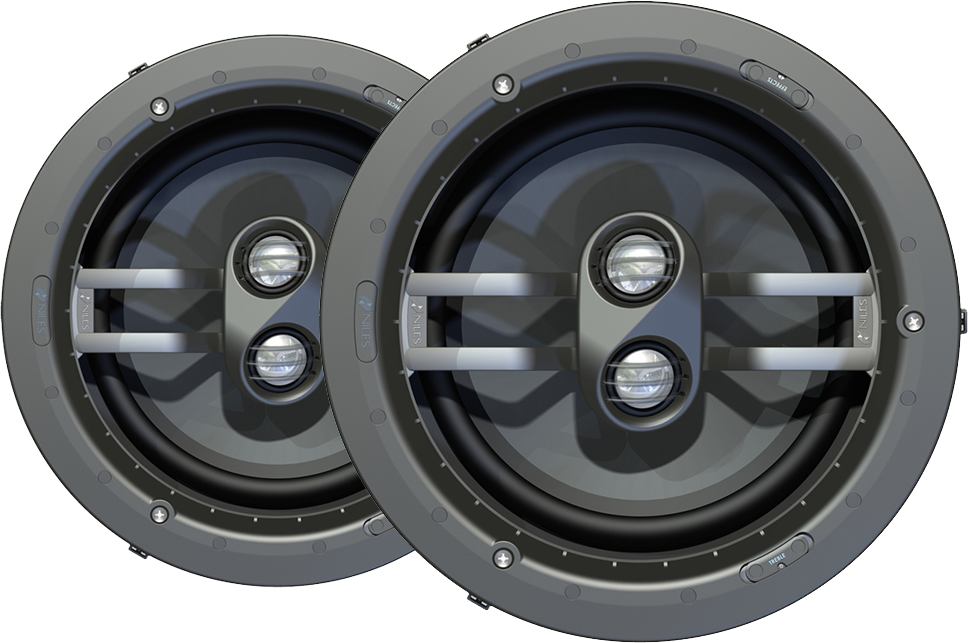

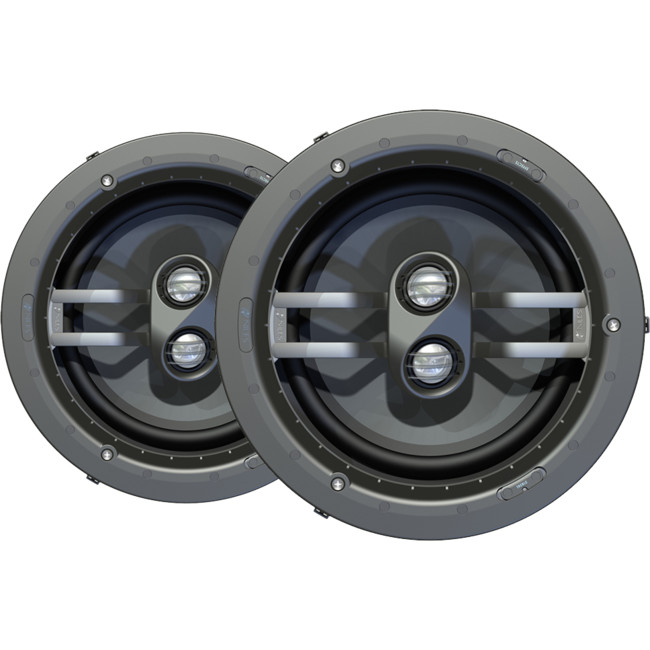

DS8FX 8" EFFECT DIRECTED SOUNDFIELD

8" Surround Effects Loudspeaker - For surround effects in multi-channel home theater applications

Surround effects loudspeakers are optimal for rear / sidesurround sound in 5.1 and 7.1 channel home theatre applications.

The DS8FX is designed to use with Niles DS8HD and DS8PR left/centre/right loudspeakers.

Advanced Impact ( Improved Aluminium Ceramic Technology )woofer cones and dual Impact tweeters on a multi axis array provide ultra-realistic surround sound effects.

FEATURES

• Patent-pending Fully Pivoting Woofer Assembly Focuses The Bass And Midrange Directly Into The Listening Area
• Integrated Baffle/frame Assembly Increases The Cone Area For Deeper Bass Than Competitive Speakers Of The Same Diameter
• 8" Aluminum Ceramic Woofer Cone With Curvilinear Profile And Extended Pole Provides Natural Flat Response AndMoves Any Ringing Frequencies To The Inaudible Range
• Dual 1" NCAT (Nano Coated Ceramic, Aluminum & Titanium) Dome Tweeter Utilizes A Vapor Deposited Coating To Move Any Ringing Frequencies Outside The Range OfHearing While Providing Additional Stiffening For Ultra-detailed High Frequencies
• Multi-axis Tweeter Array Positions The Two Tweeters On A Different Axis And At An Opposing Angle To Create Realistic Surround Sound Effects
• Bipole/Dipole Switch Provides Optimum Room Matching
• Kapton Non-conductive Voice Coil Former And Copper Shorting Caps Combine To Lower Distortion And Increase High Frequency Sound Pressure Levels
• Magnetically Attached, Rust-resistant Grille Covers Install Quickly And Provide A Low Profile Look
• Weather-resistant Construction Enables Installation In Wet Environments And Outdoors
• Optional Custom-tuned Rear Enclosure Is PreciselyShaped For Predictable Sound Performance And To Reduce SoundTransfer Into Adjacent Rooms Or Spaces

• Recommended Amplifier Power: 10 - 160 Watts
• Impedance: 8 Ohm Nominal; 6 Ohm Minimum
• Frequency Response: 48 Hz To 21 KHz / -3 DB
• Maximum SPL: 115 DB
• Voice Coil Size: 1-1/4"
• Crossover Frequency: 2.8 KHz
• Asymmetric 2nd Order 2-way Computer Optimized Linkwitz Riley
• Magnet Weight: 24.1 Oz.
• Frame Dimensions (with Grille): 11-1/4" (28.52 Cm) Diameter
• Hole Cutout Dimensions: 9-3/4" (24.76 Cm) Diameter
• Depth Behind Ceiling (5/8" Drywall): 5-5/16" (13.6 Cm)

• Lifetime Limited Warranty
