AWC280 ALL WEATHER 8" 2 WAY SPEAKER

C CAM BASS AND HI FREQ DRIVERS

Code: 39811355

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
TRADE ALERT!
$599 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

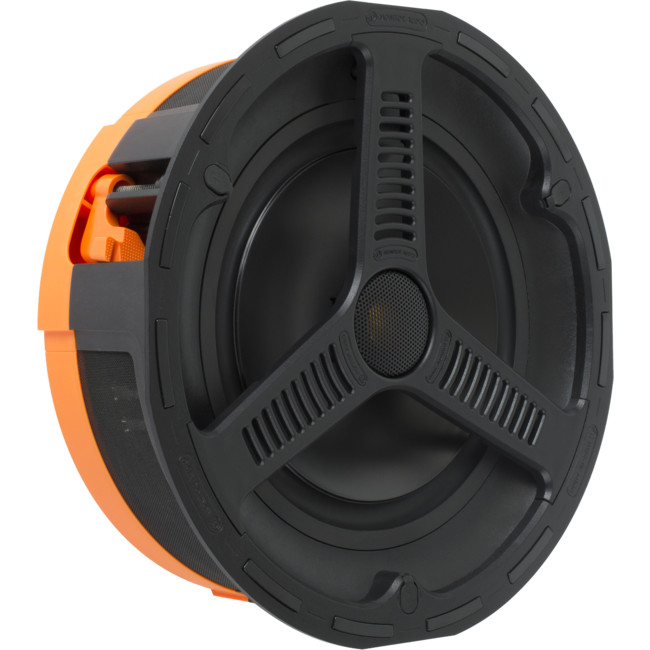

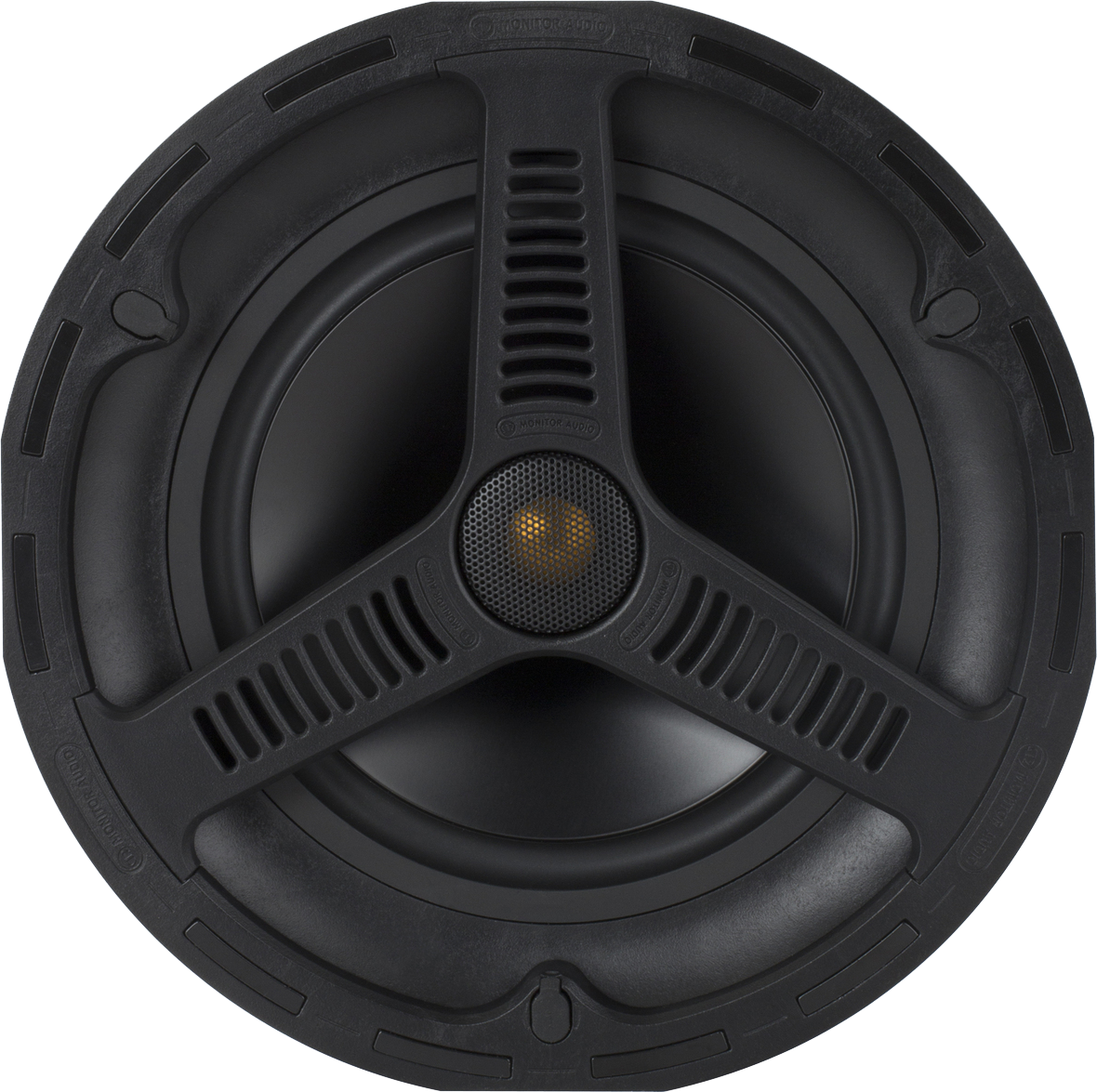

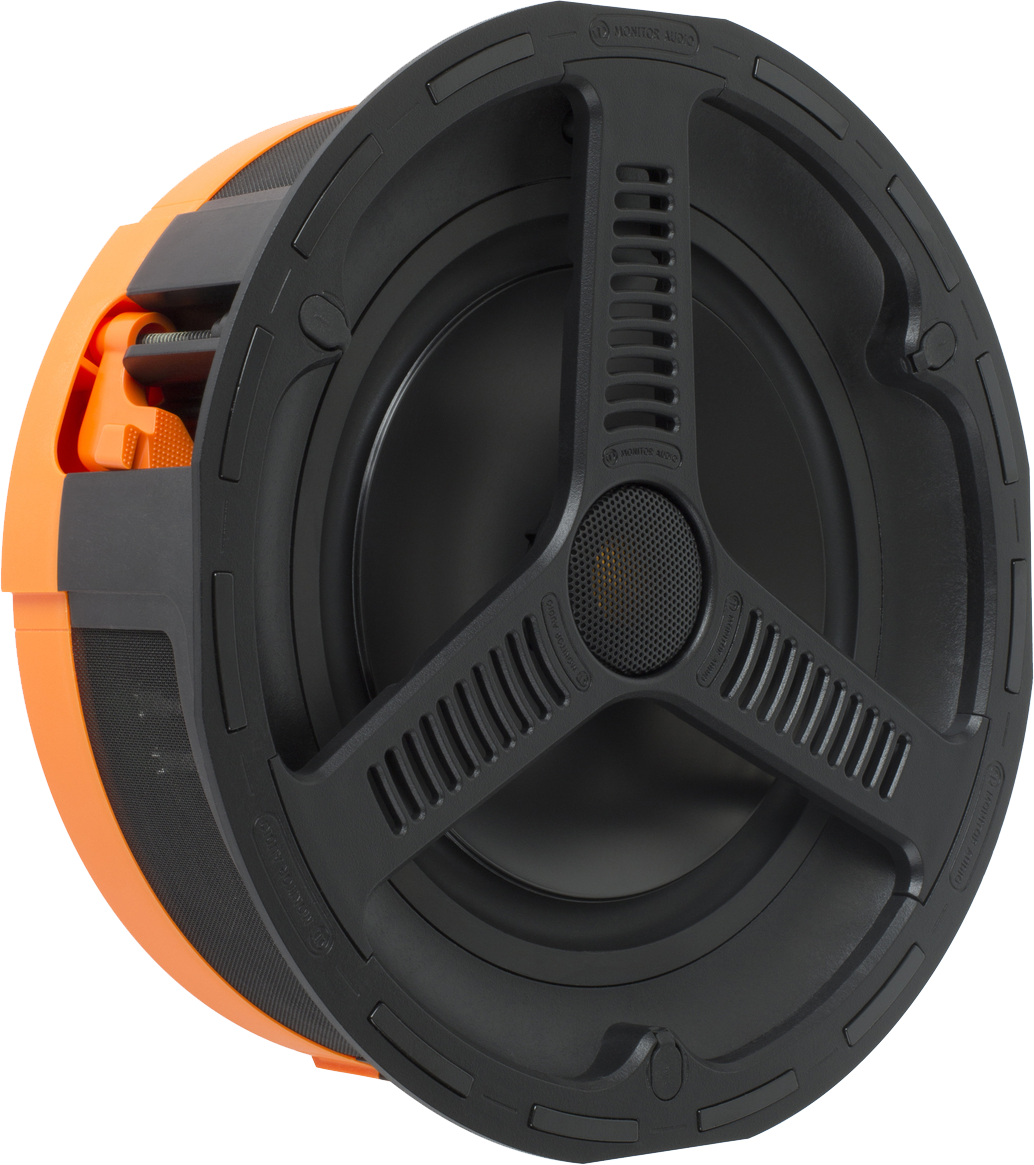

AWC280- ALL WEATHER- 2 WAY IN-CEILING SPEAKER

Developed using all C-CAM driver systems derived from Monitor Audio's critically acclaimed hi-fi speakers, the AWC280comprises a stylish two-way 8”C-CAMbass driver.

Technology

  • Quick and easy installation
  • High Performance C-CAM bass and high frequency drivers

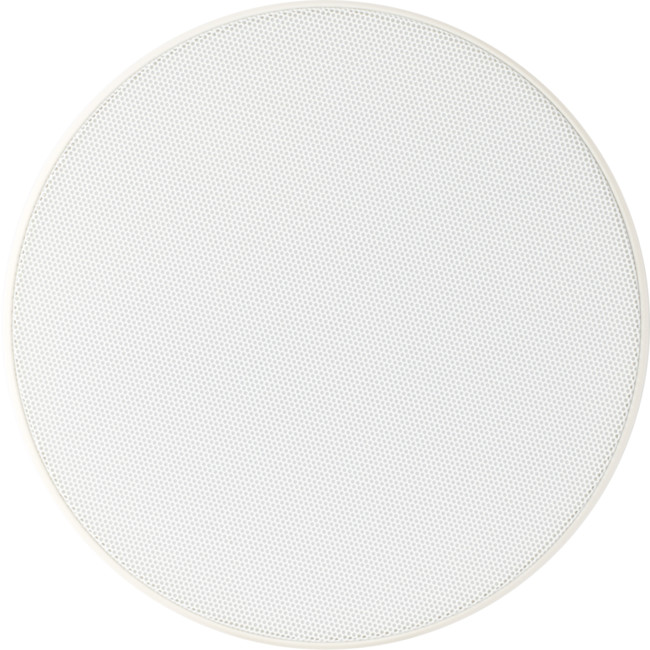

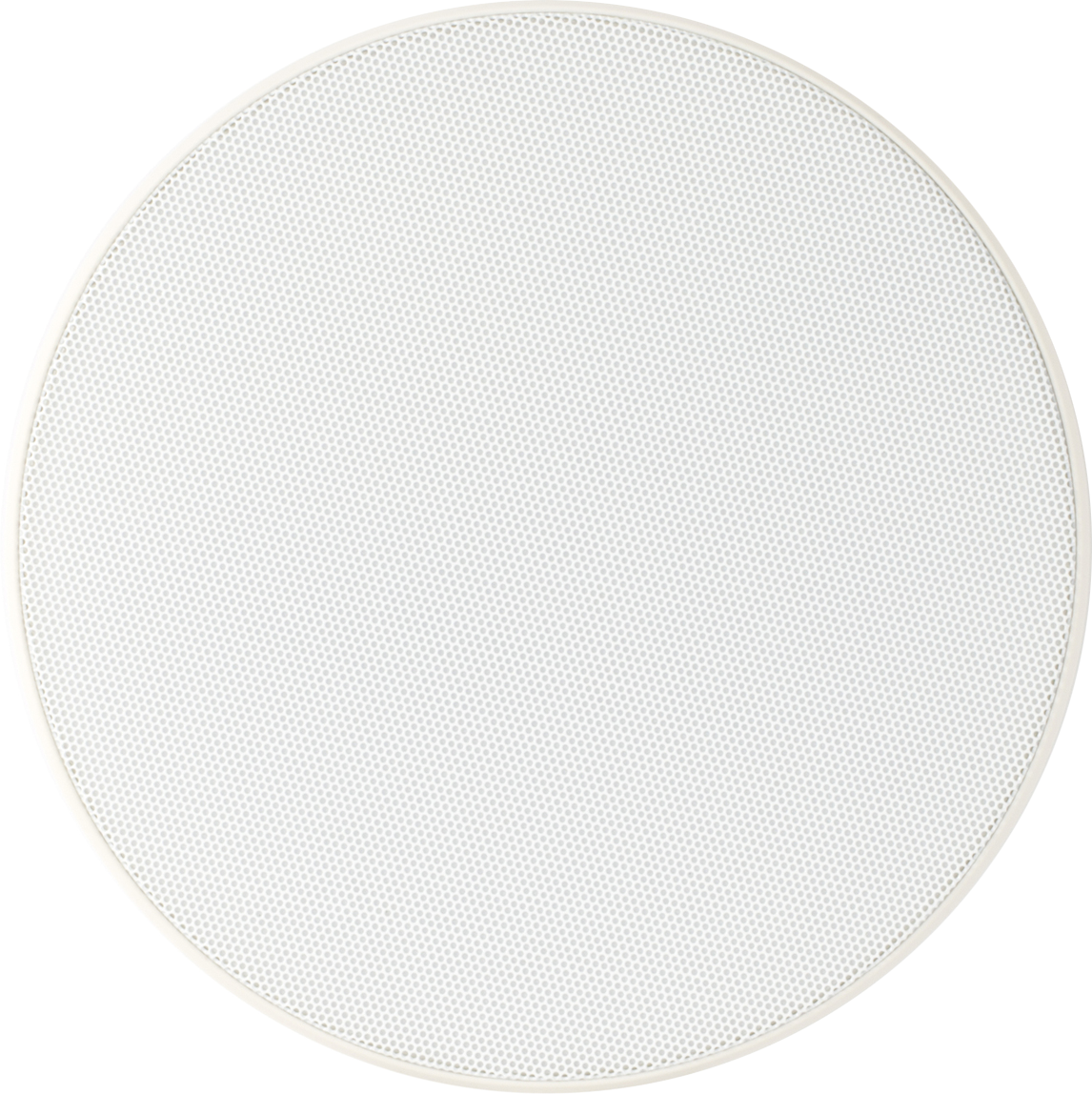

  • Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
  • Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
  • IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
  • Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
  • EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
  • Gold plated push terminals with silicon cover
  • Stainless fixing screws with Silicone covers
  • Tweeter level attenuation (internal) – set prior to installation
  • Applications: pool rooms, bathrooms, marine deck, universal outdoor installation



Specifications



Frequency response 50 Hz – 30 kHz

Nominal Impedance

8 ohms
Sensitivity (1W@1M) 89 db
Maximum SPL 109dBA
Power Handling (RMS) 100 Watt
Recommended Amplifier Requirements 20-100 Watts
Drive Unit Complement

8" C-CAMcone bass driver
1" C-CAMGold Dome tweeter (fixed angle)

Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Overall Diameter (Including Grille) 285 mm (111/4")
Mounting Depth

97.55 mm (37/8")

Cut-Out Hole Diameter 247 mm (93/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals
Grille SS430 Stainless Steel
Construction Material Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant,RoHS2 Compliant)
Weight 2.8 kg (6 lb 2 oz)
Pre- Construction bracket CB8Pre-Construction Bracket (Green)
Back Box CCBOX-R/CMBOX-R
