CS180R SLIM 8" 2 WAY CEILING SPEAKER

MMP11 BASS AND C-CAM TWEETER

Code: 39811345

3.43 kg
5060028972104
EACH
2 IN
STOCK
TRADE ALERT!
$329 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

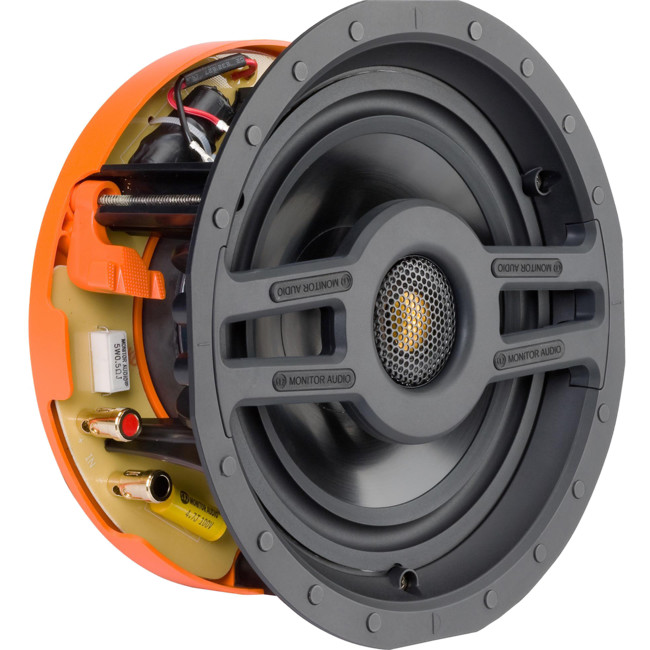

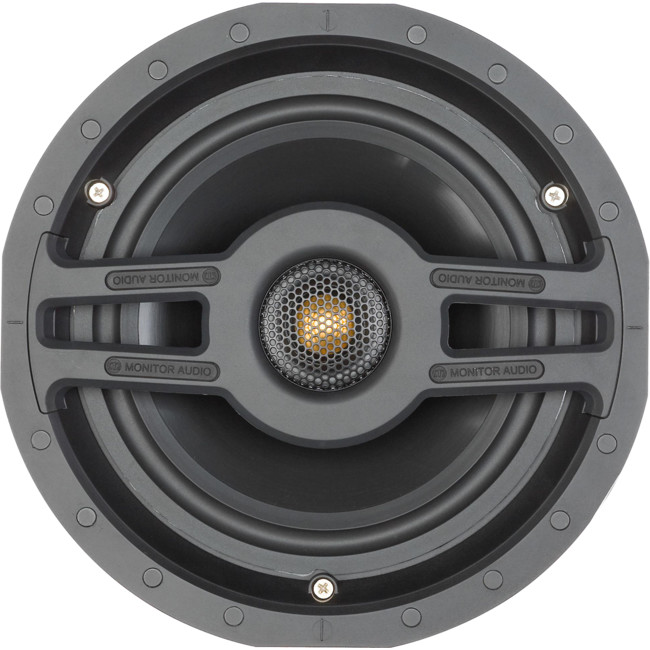

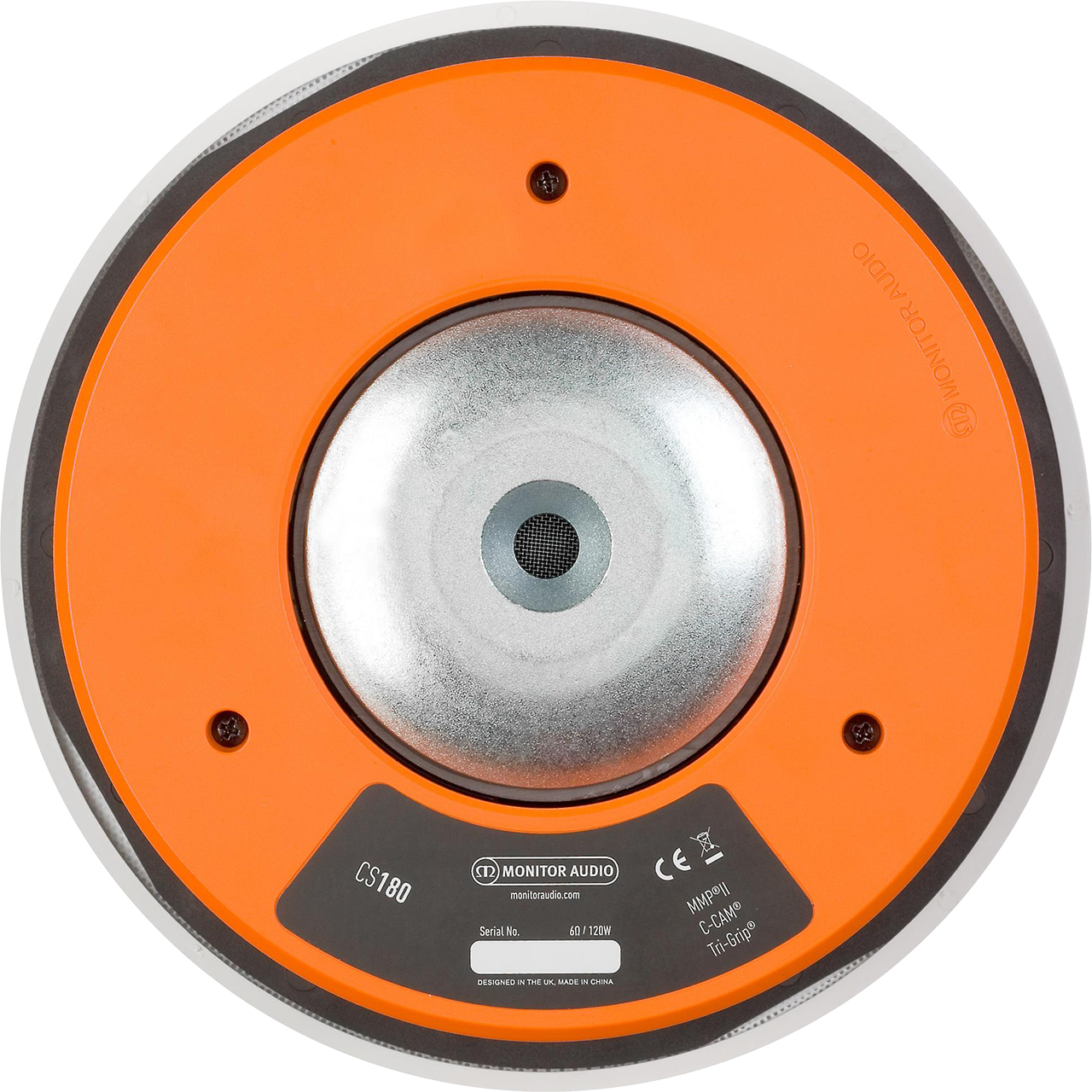

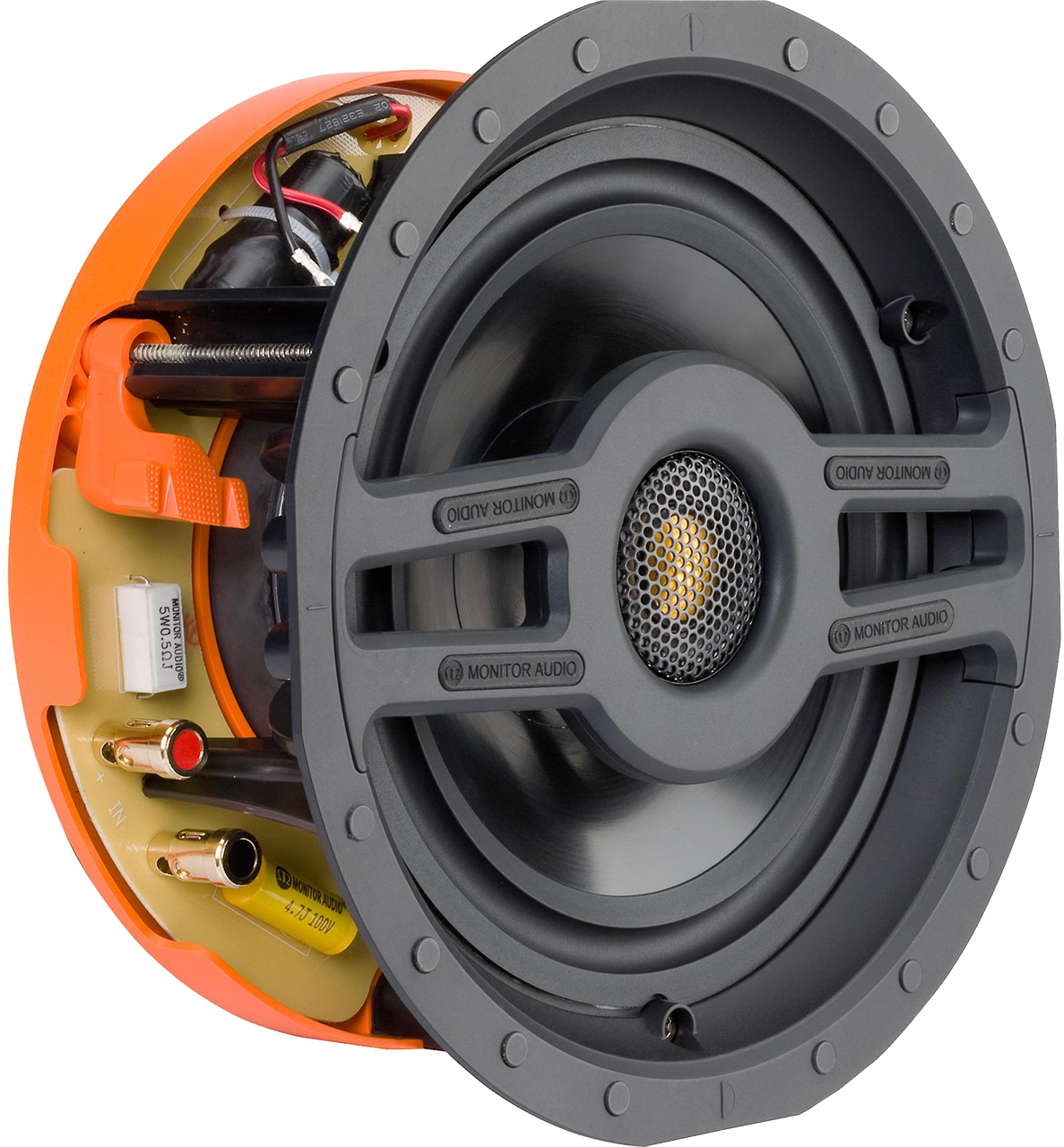

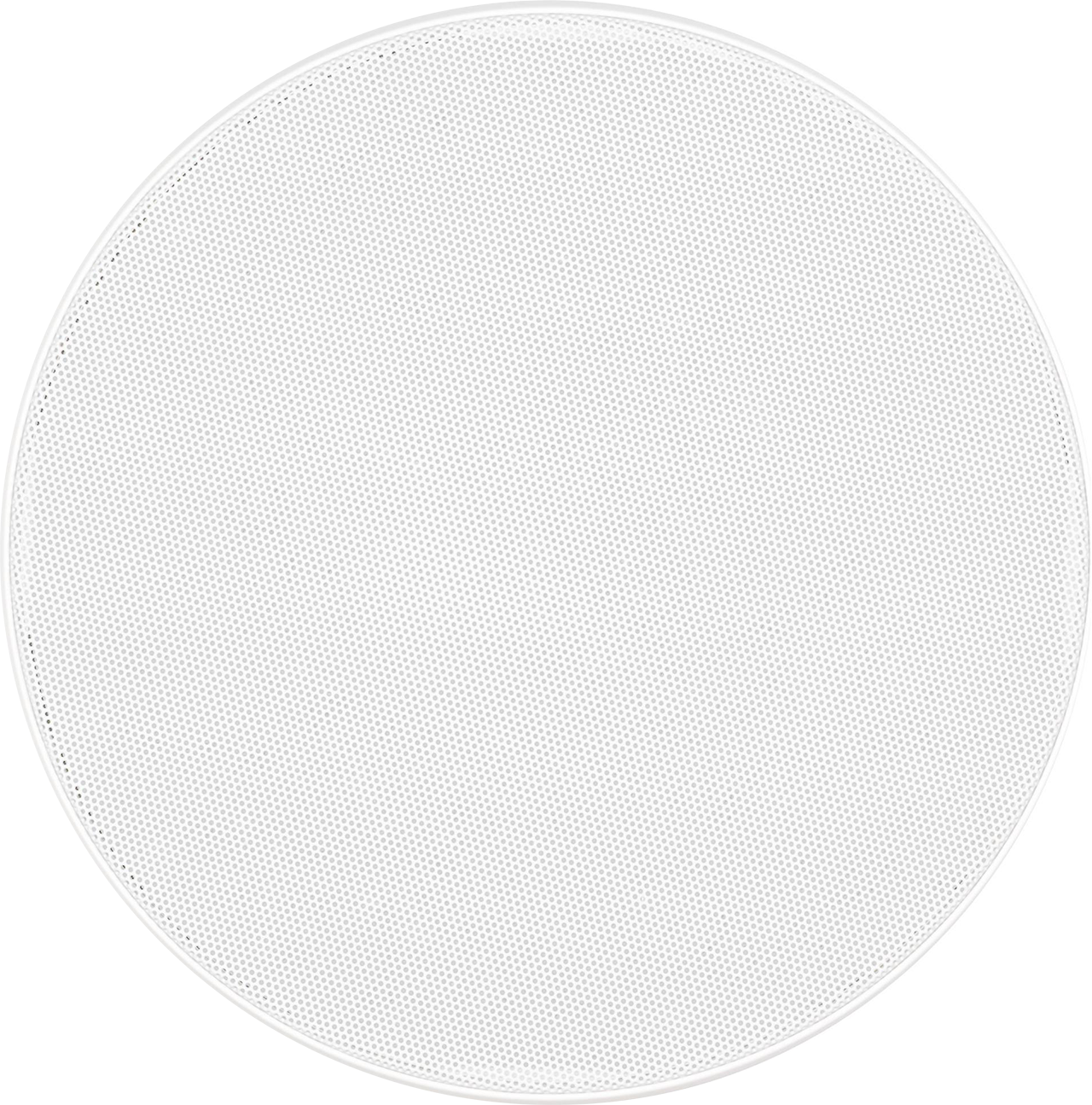

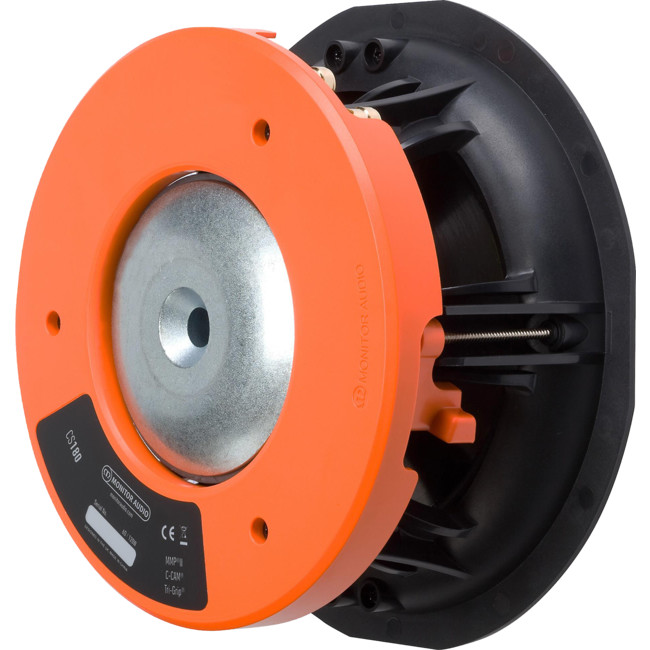

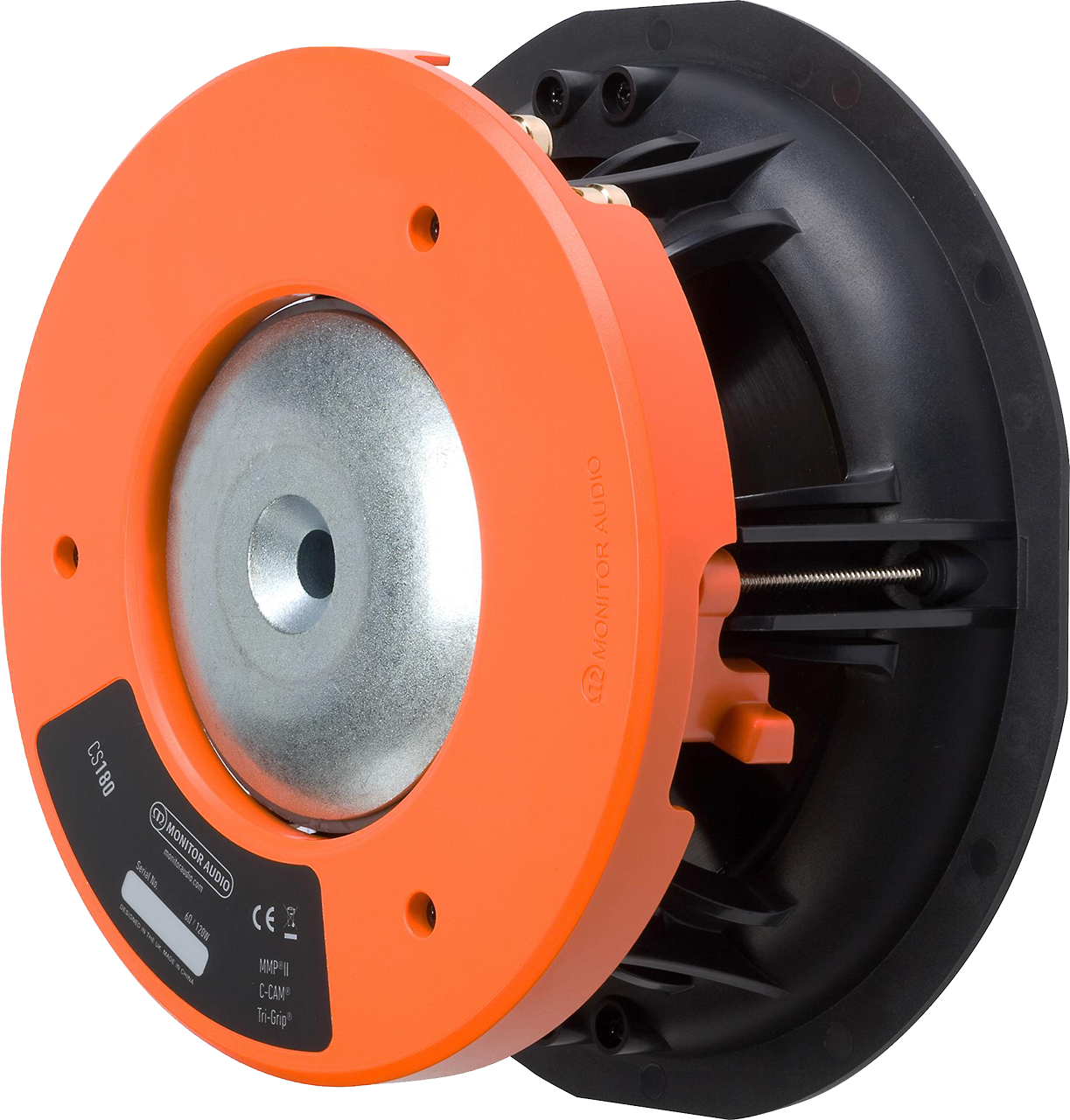

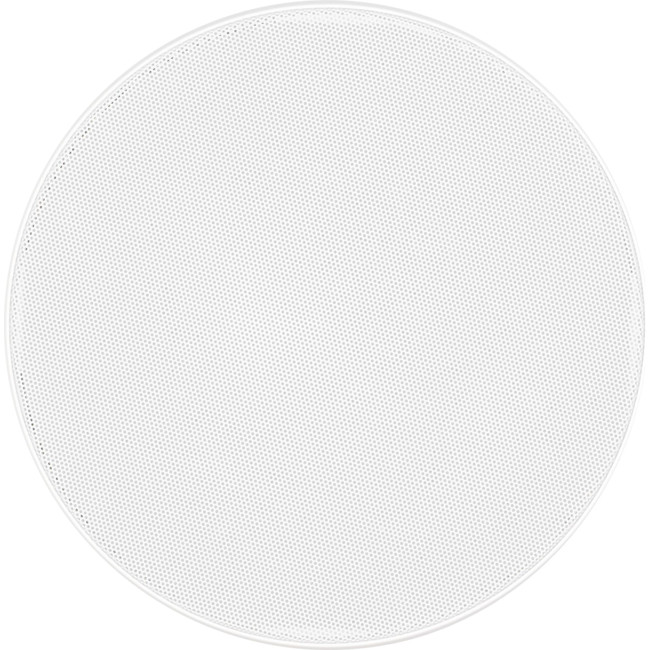

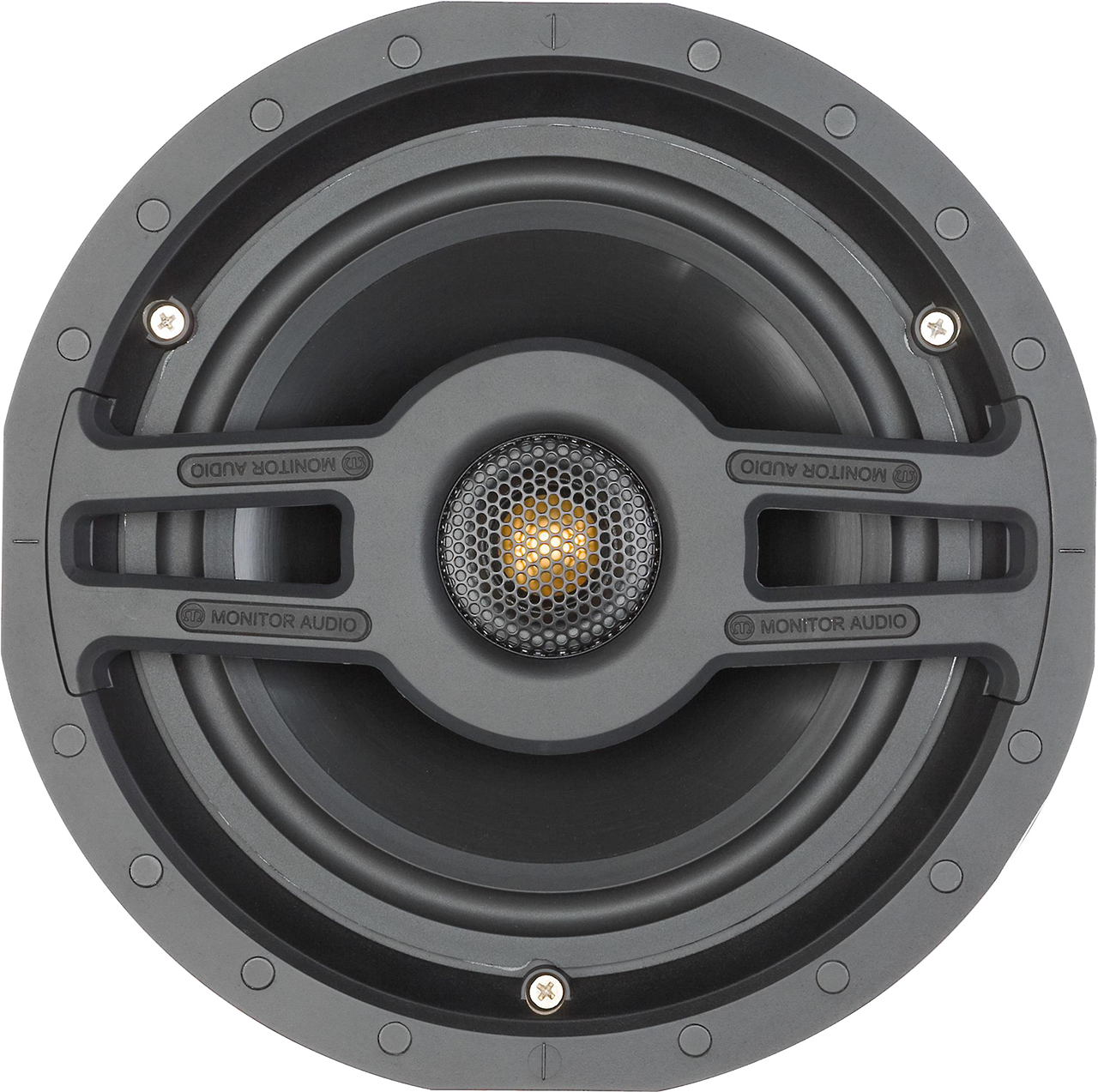

CS180R Slim 8" 2 way in-ceiling speaker with round grille

The CS180 in-ceiling model marries Monitor Audio's 8-inchMMP IIdriver with the CWT family’s pivotingC-CAMGoldDome tweeter.

Offering superlative dynamic delivery in a super-discreetformat, the CS180 will deliver fabulous full-range sound with stealthy versatility.

Also available with a square grille ( special order )

MMP II (Metal Matrix Polymer - 2nd Generation)

Metal Matrix Polymer driver cones have a polypropylene base loaded with metallic particles to offer a rigid and responsive structure.

They are manufactured using a sophisticated high-pressureinjection process, which modulates cone thickness at critical points to optimise stiffness and consistency, resulting in a superior sonic performance.

The Gold Dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics.

Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.



Specifications



Frequency response 48 Hz – 30 kHz

Nominal Impedance

6 ohms
Sensitivity (1W@1M) 90 db
Maximum SPL 110.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 – 120 W
Drive Unit Complement 1 x 8"MMP IIcone bass driver.
1 x 1" (25 mm)C-CAMpivoting Gold Dome tweeter
Acoustic Configuration 2 way
Overall Dimensions (Including Grille (H x W)) Round: 251.7 mm (915/16")
Square: 246.7 x 246.7 mm (911/16x 911/16")
Mounting Depth 99.4 mm (315/16”)
Cut-Out Hole Diameter 213 mm (83/8”)
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals
Grille attachment Magnetic
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.72 kg (6 lb)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R|CMBOX-R
