CS160R SLIM 6" 2 WAY CEILING SPEAKER

MMP11 BASS AND C-CAM TWEETER

Code: 39811335

2.68 kg
5060028972098
EACH
3 IN
STOCK
$279 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

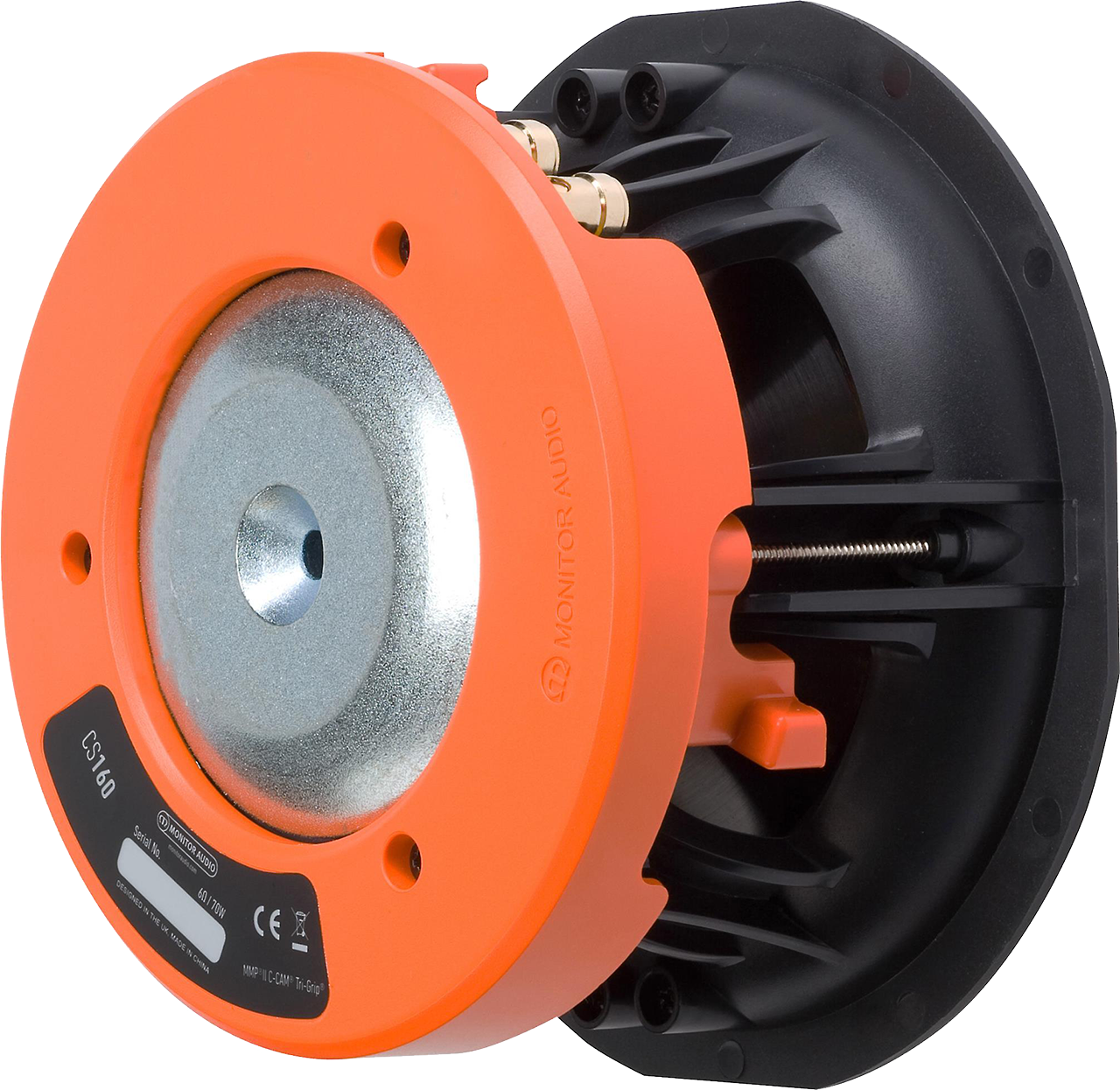

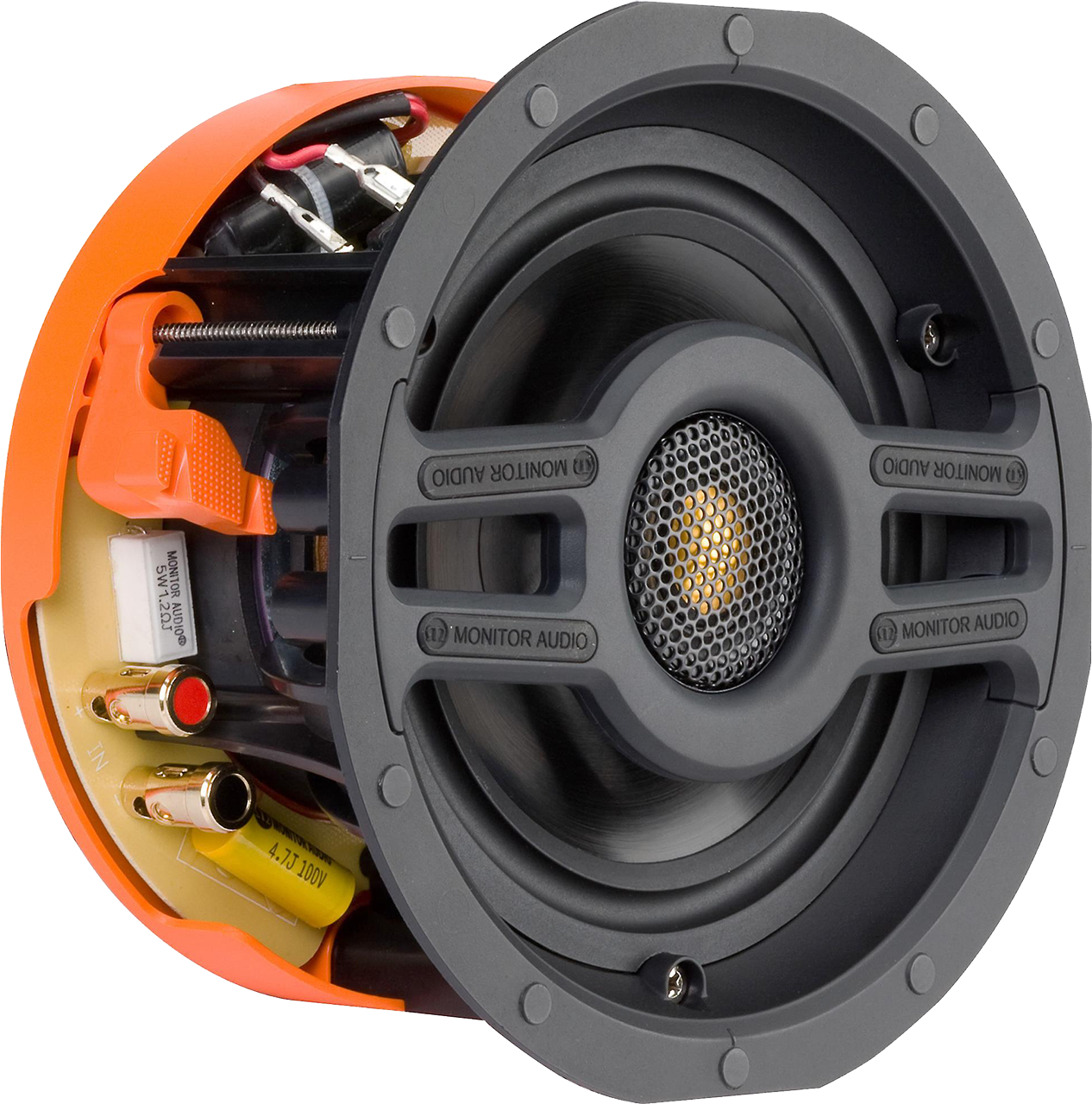

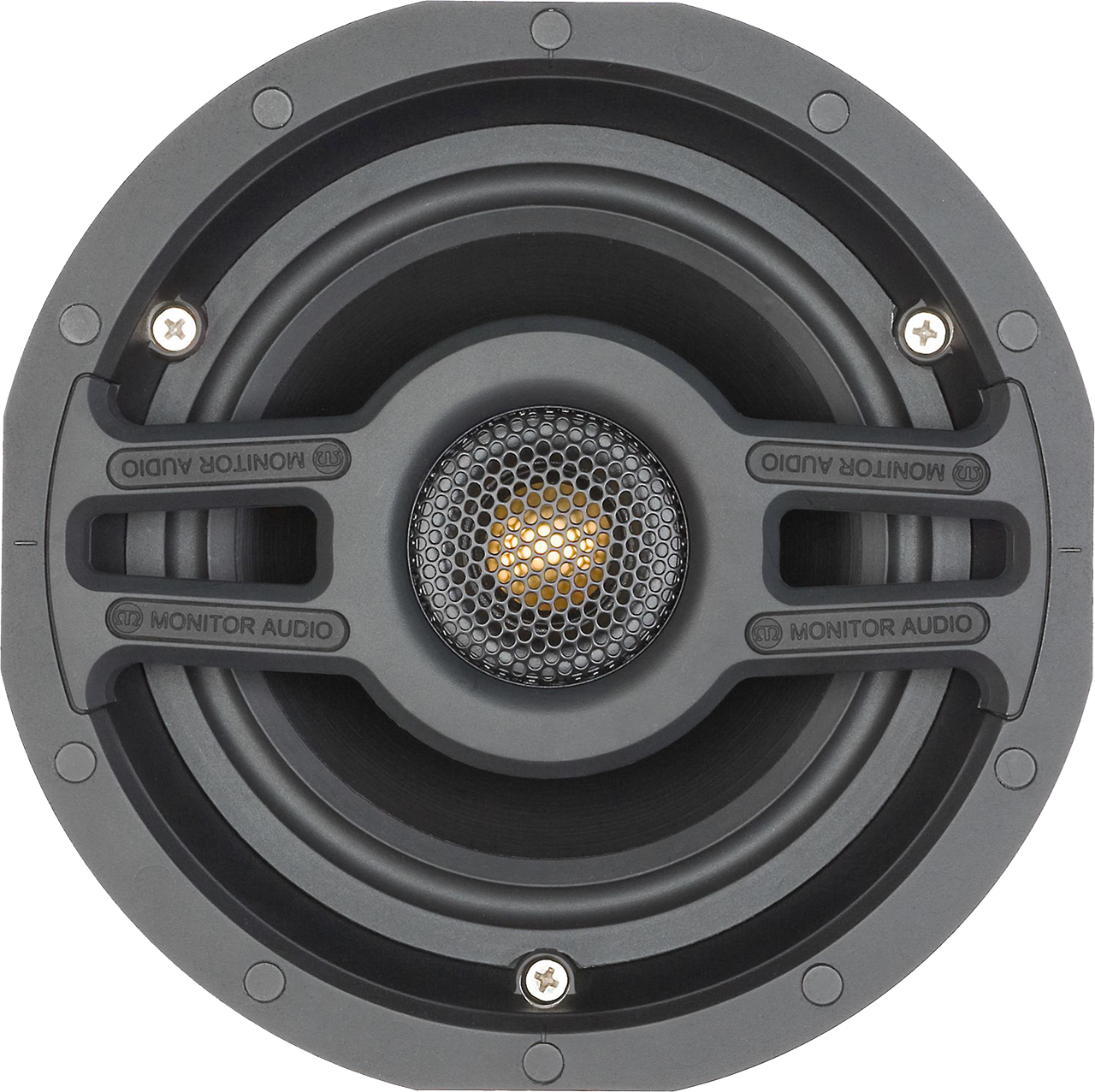

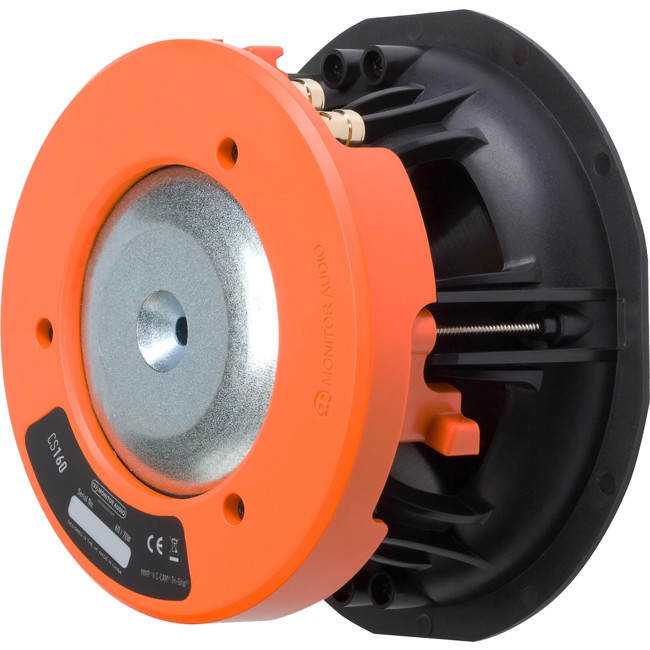

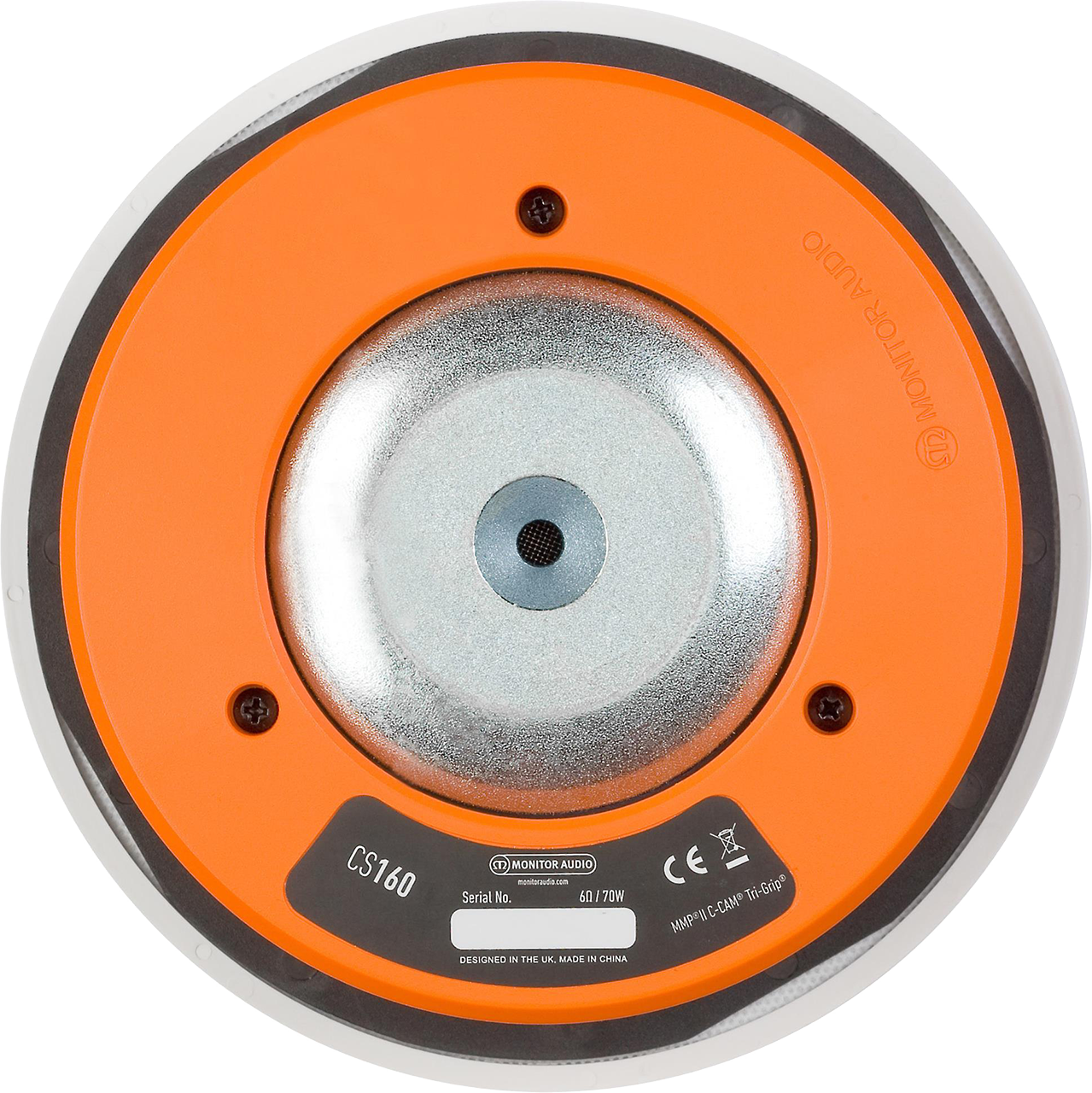

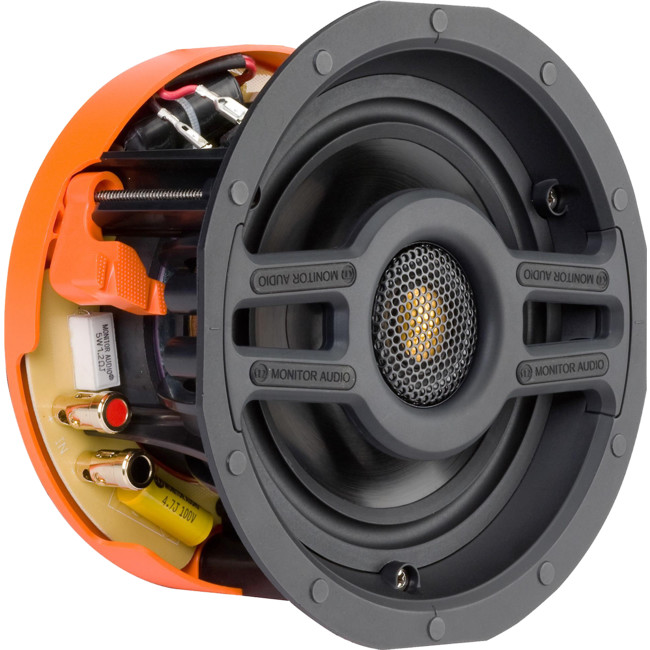

CS160R Slim 6" 2 way in-ceiling speaker with round grille

The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

Offering superlative dynamic delivery in a super-discreetformat, the CS160 will deliver fabulous full-range sound with stealthy versatility.

Also available with a square grille ( special order )

MMP II (Metal Matrix Polymer - 2nd Generation)

Metal Matrix Polymer driver cones have a polypropylene base loaded with metallic particles to offer a rigid and responsive structure.

They are manufactured using a sophisticated high-pressureinjection process, which modulates cone thickness at critical points to optimise stiffness and consistency, resulting in a superior sonic performance.

The Gold Dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics.

Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction.



Specifications



Frequency response 60 Hz – 30 kHz

Nominal Impedance

6 ohms
Sensitivity (1W@1M) 88 db
Maximum SPL 107.2 dBA
Power Handling (RMS) 70 W
Recommended Amplifier Requirements 15– 70 W
Drive Unit Complement 1 x 6"MMP IIcone bass driver.
1 x 1" (25 mm)C-CAMpivoting Gold Dome tweeter
Acoustic Configuration 2 way
Overall Dimensions (Including Grille (H x W)) Round: 204.2 mm (81/16")
Square: 199.2 x 199.2 mm (713/16 x 713/16")
Mounting Depth 99 mm (37/8”)
Cut-Out Hole Diameter 170 mm (611/16”)
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals

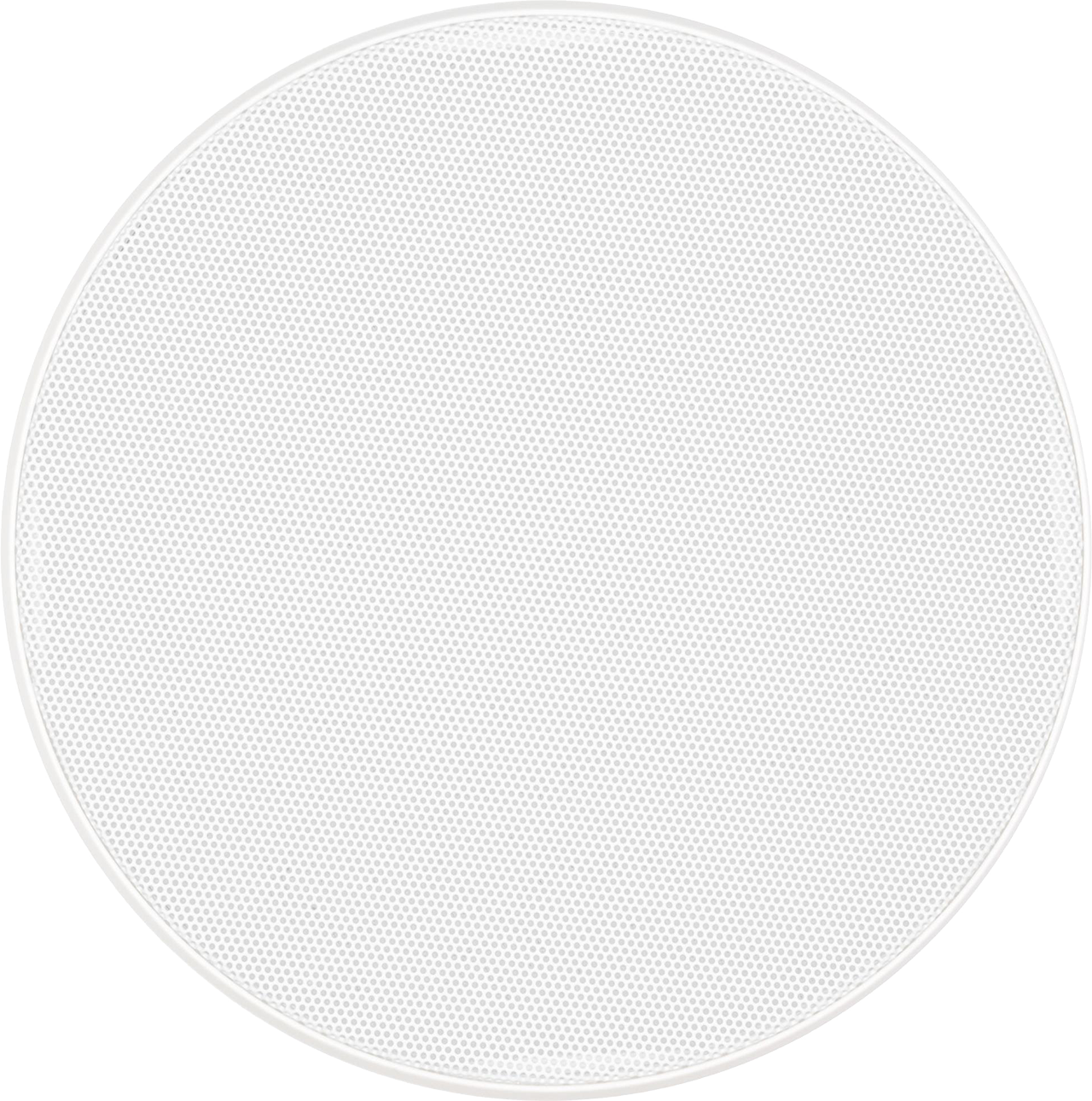

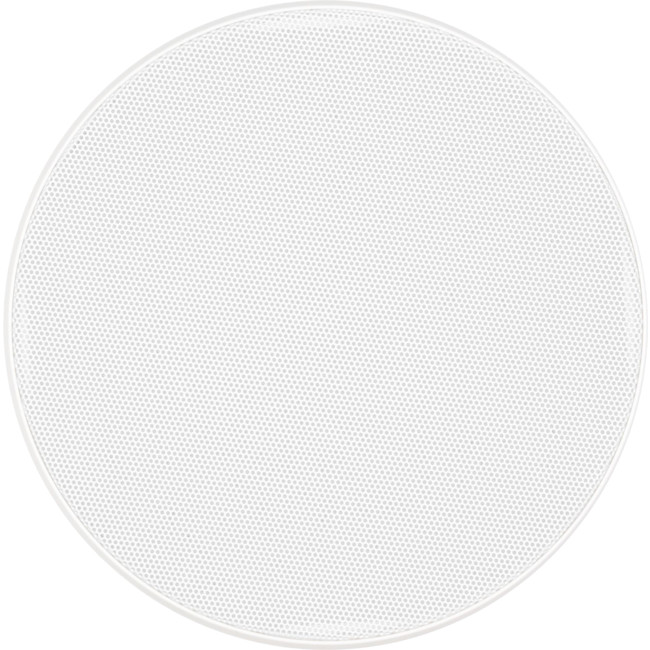

Grille attachment Magnetic
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.10 kg (4 lb 10 oz)
Pre- Construction bracket CB5Pre-Construction Bracket(Blue)
Back Box CCBOX-R|CMBOX-R
