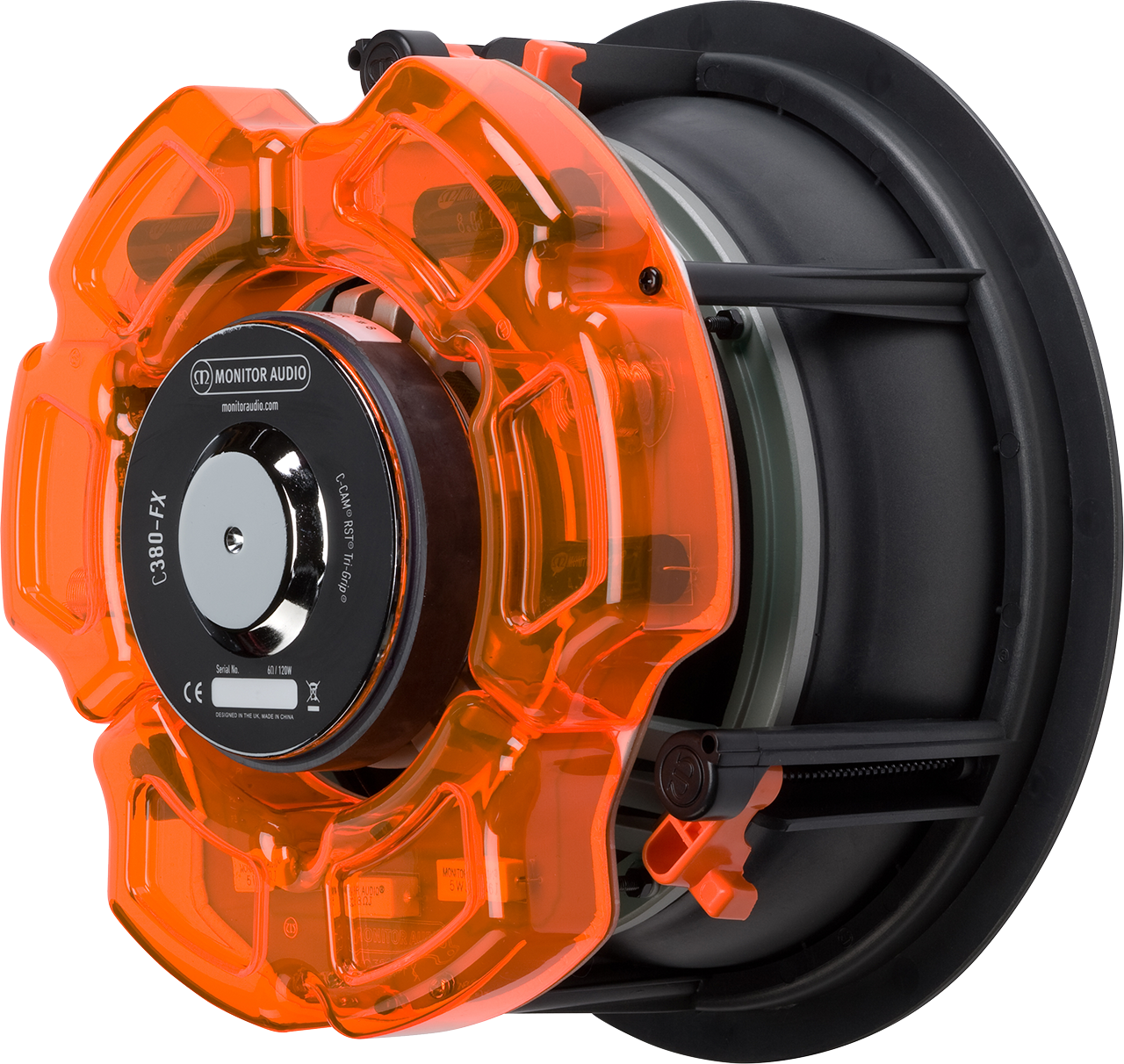

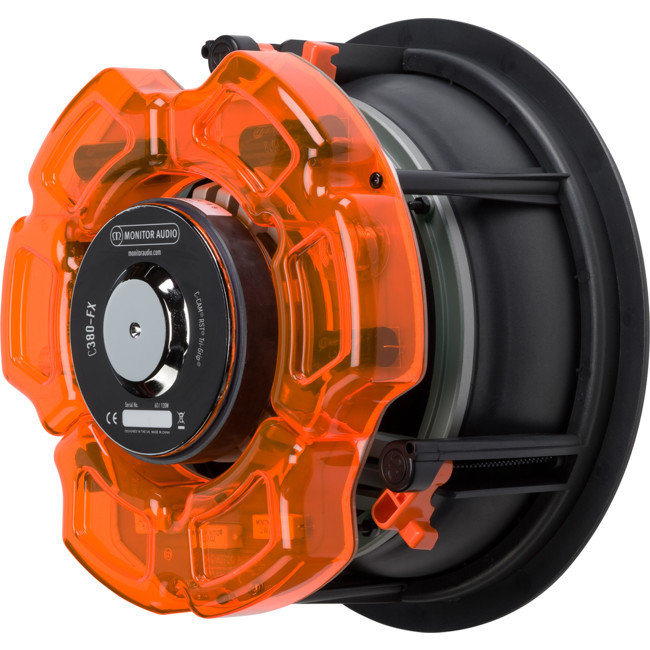

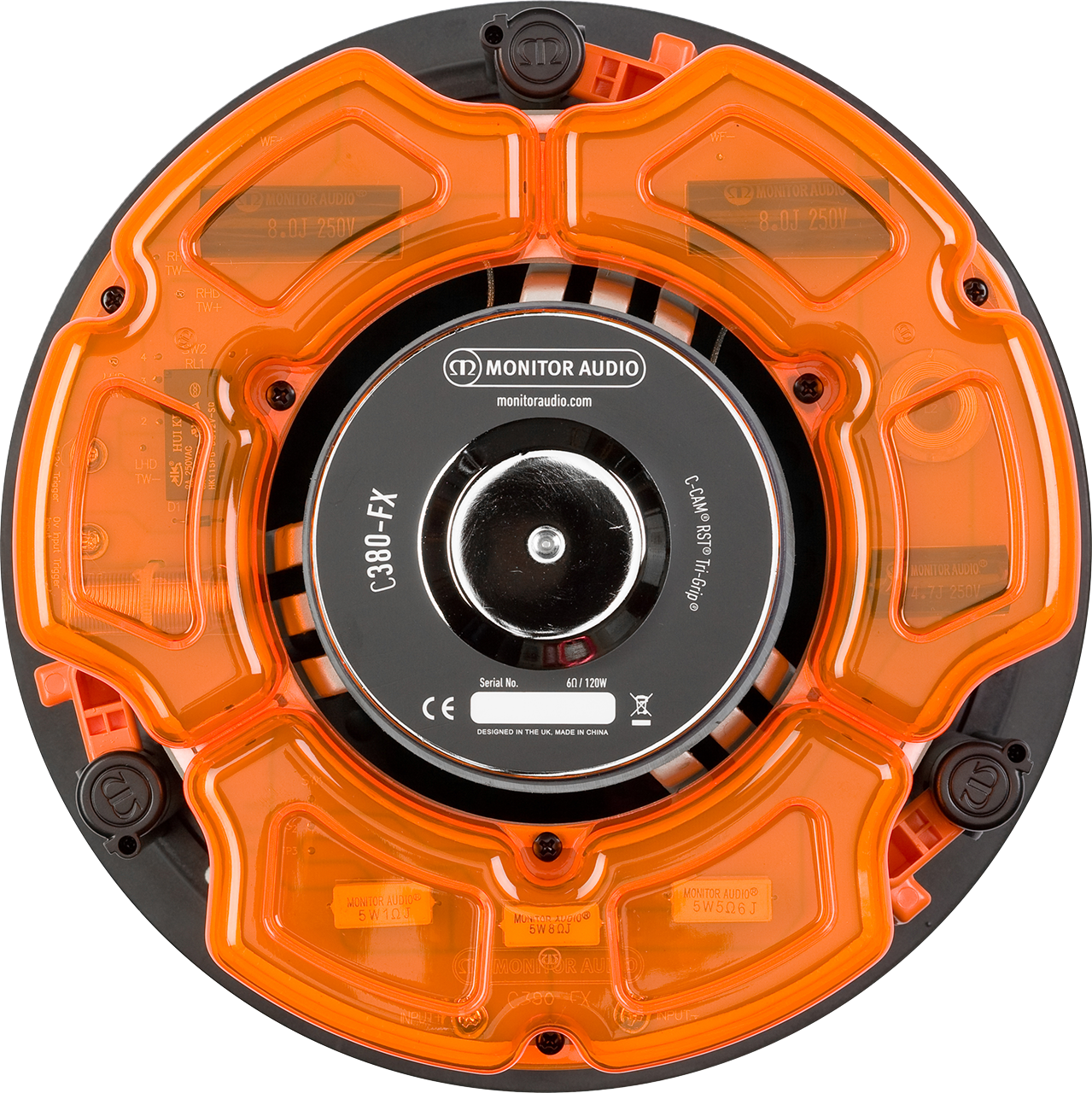

C380FX 8" DIPOLE / BIPOLE FX SPEAKER

CCAM BASS ANDDUAL CCAM TWEETERS

Code: 39811270

4.32 kg
5060028971589
EACH
1 IN
STOCK
TRADE ALERT!
$539 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

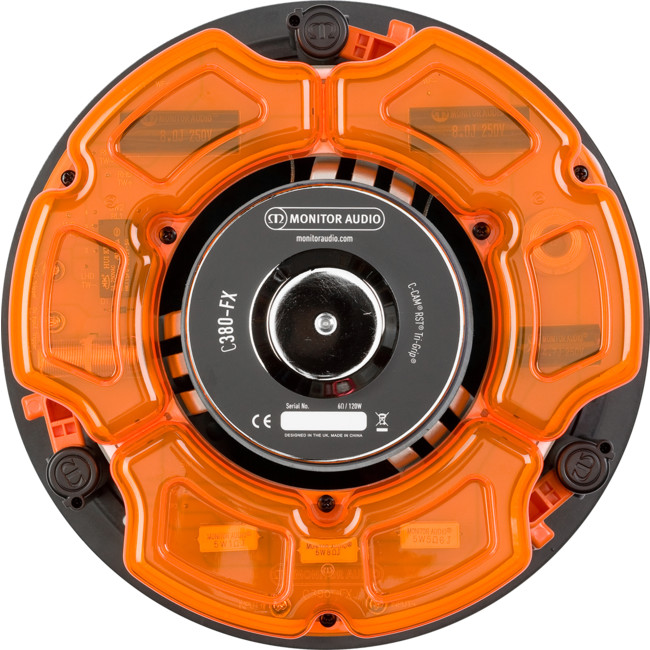

C380-FX- 2 WAY IN-CEILING SPEAKER

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreethome theatre sound.

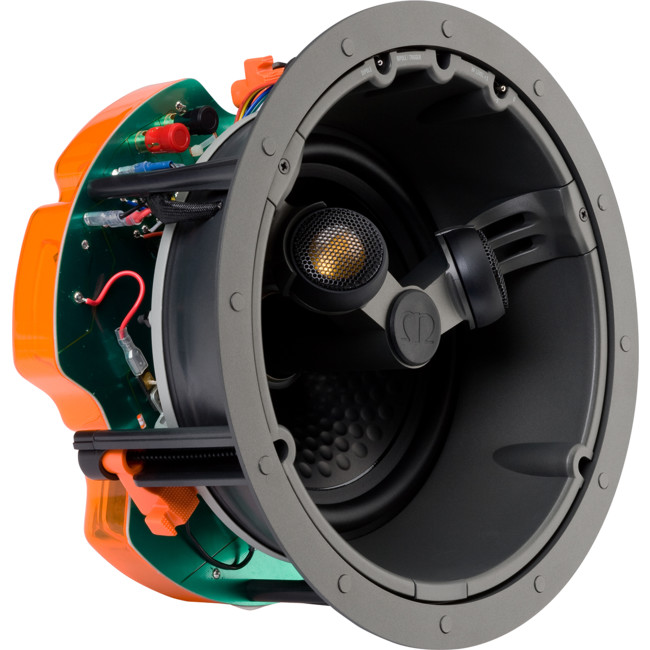

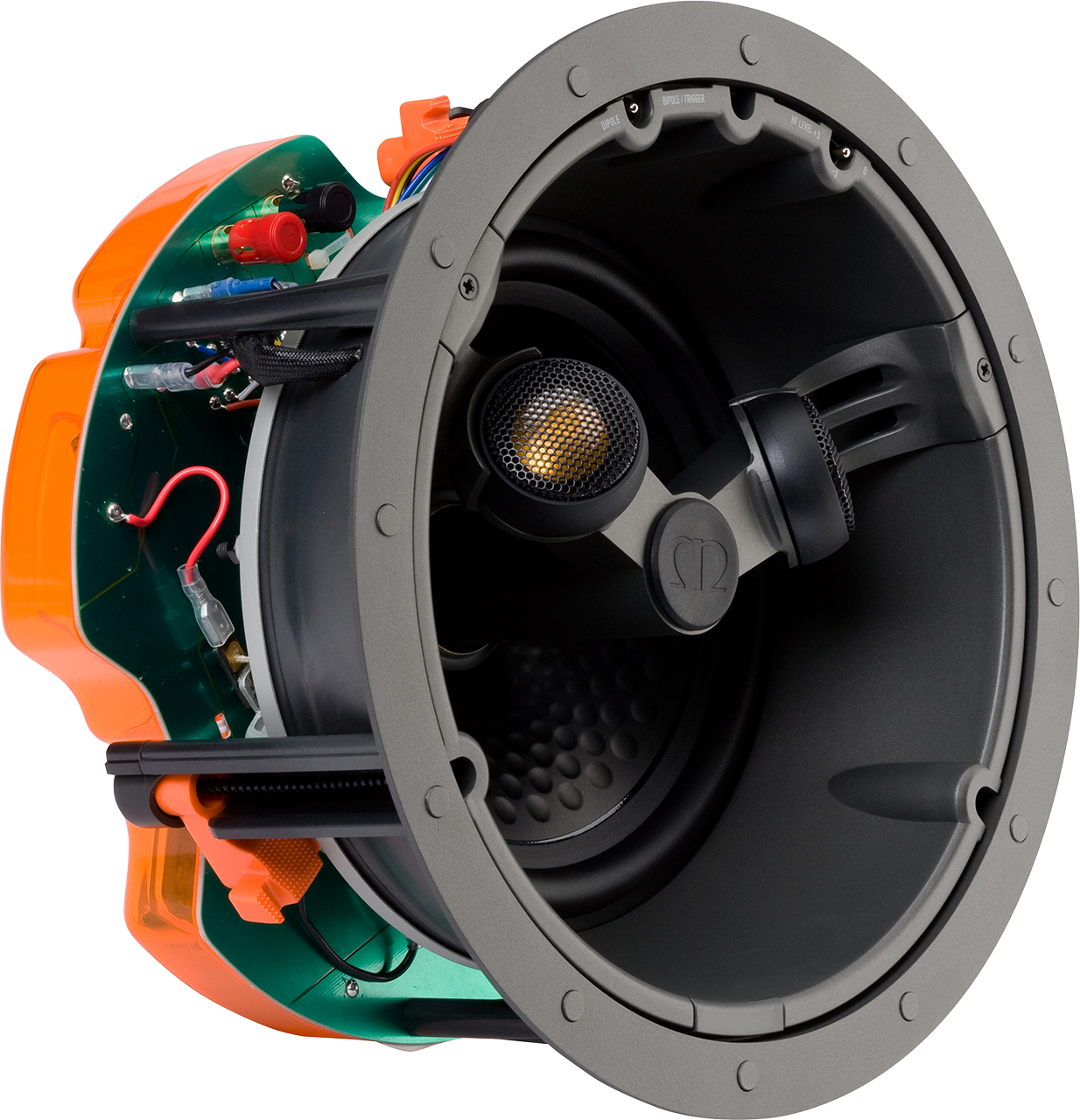

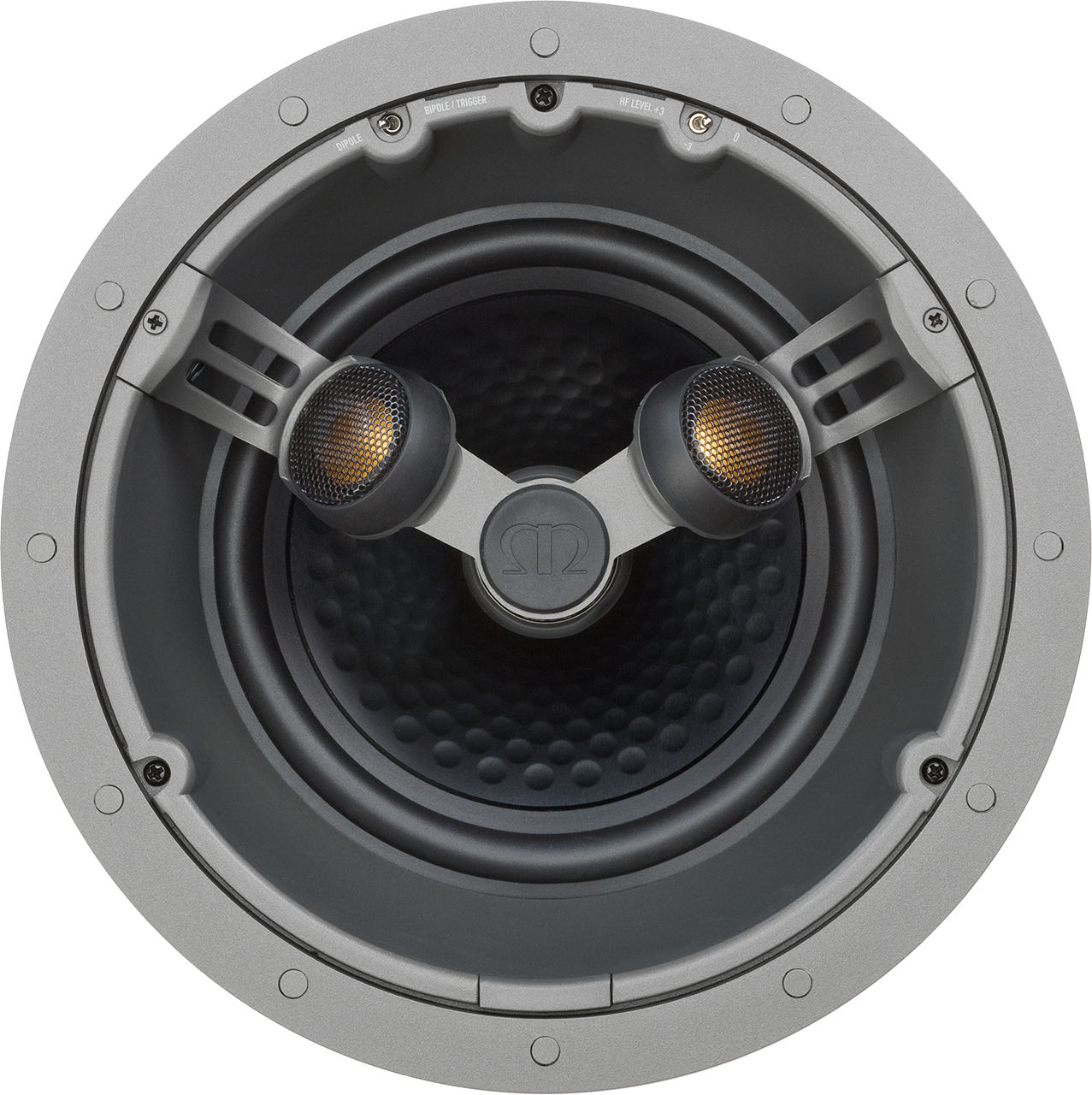

Incorporates an 8-inchC-CAMRSTbass driver and dual 1-inch C-CAMGold Dome tweetersmounted at aprecise fixed-angle for optimised performance.

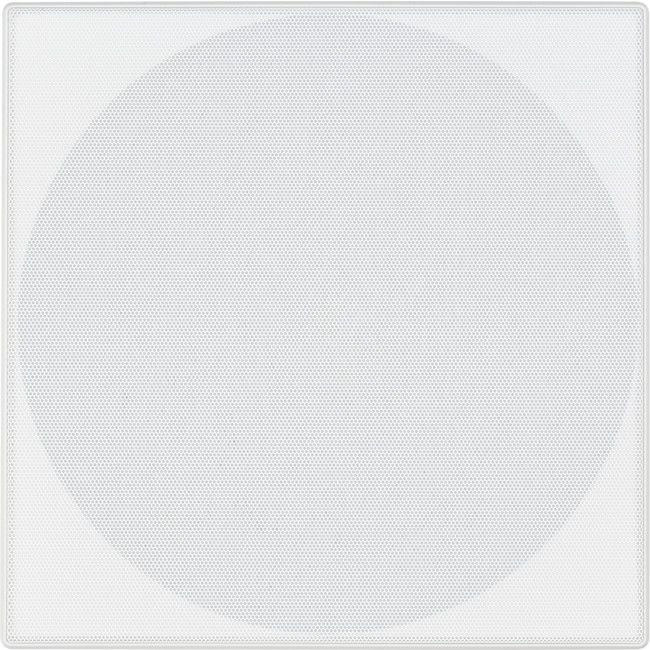

Optionalsquare grillecan be usedwith this model.

Key Features

  • Gold C-CAM Tweeter
  • C-CAM Drivers
  • 2-Way Design
  • Mode Switch
  • Paintable Grille
  • 8" Driver


Specifications



Frequency response 45 Hz – 30 kHz

Nominal Impedance

6 ohms
Sensitivity (1W@1M) 90 db
Maximum SPL 111.6dBA
Power Handling (RMS) 120 Watt
Recommended Amplifier Requirements 30-120 Watts
Drive Unit Complement

8" C-CAMcone bass driver featuring RST
2 x 1" C-CAMfixed angleGold Dome tweeters

Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch with Additional 12v Trigger Switching
Overall Diameter (Including Grille) 285 mm (111/4")
Mounting Depth 157 mm (63/16")
Cut-Out Hole Diameter 247 mm (93/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals

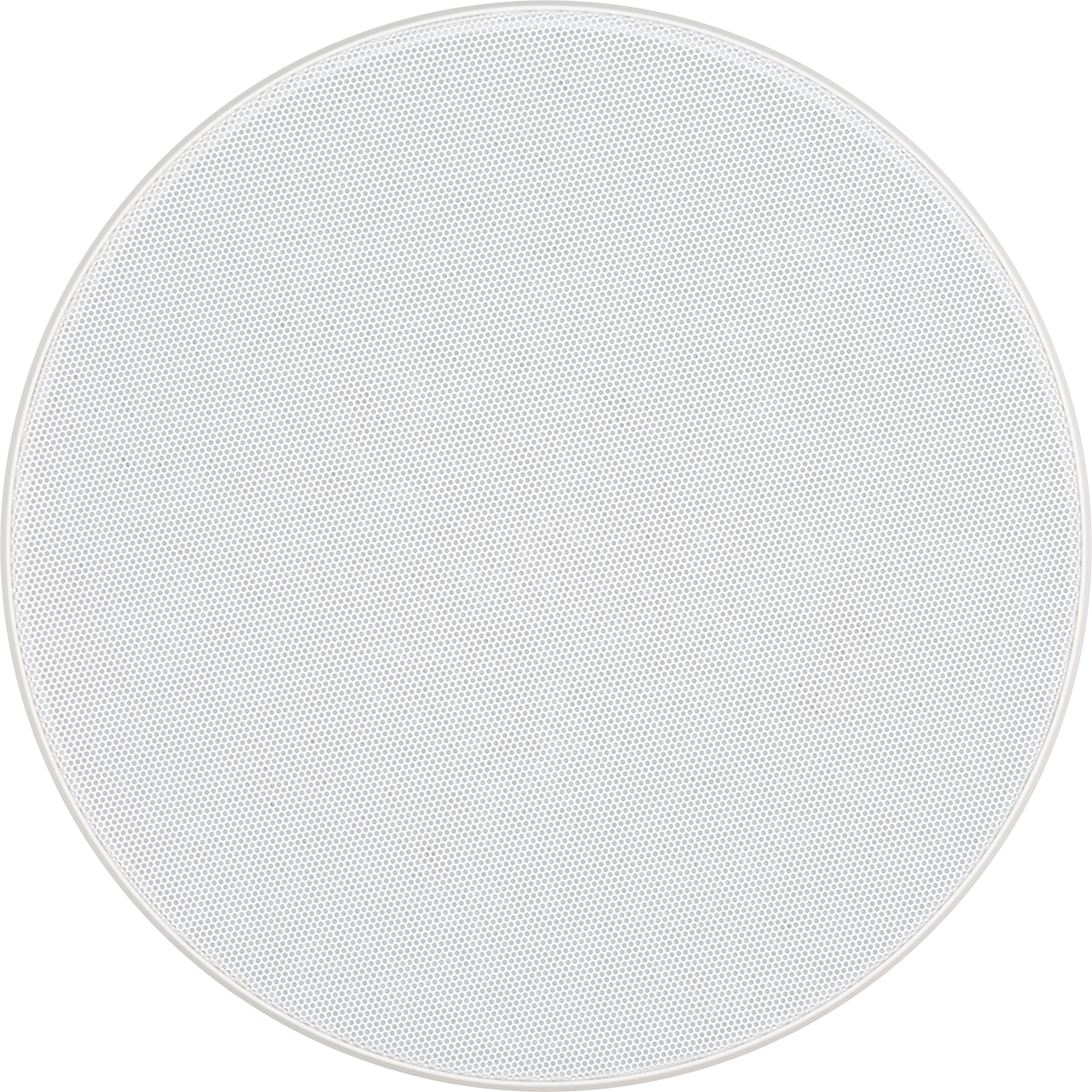

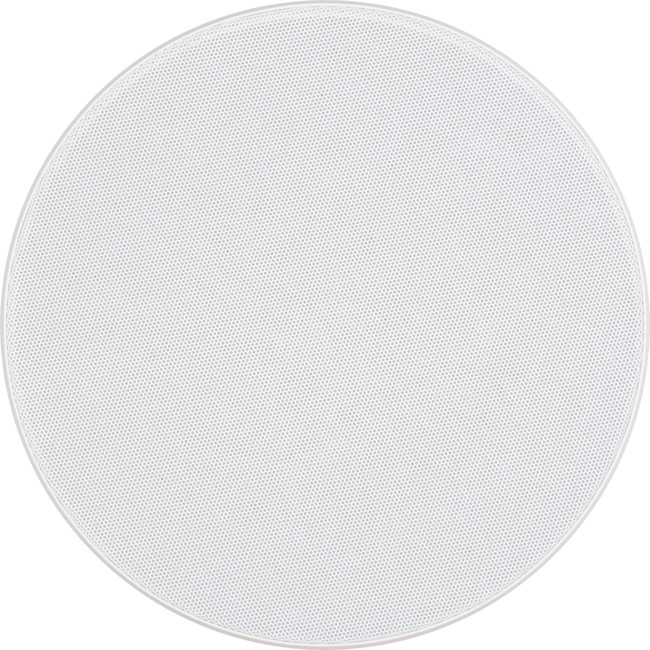

Grille attachment Magnetic - (optional square grille- outer dimmensions 285 x 285 mm (111/4"))
Construction Material Mineral filled ABS, RoHS compliant
Weight 3.2 kg (7 lb))
Pre- Construction bracket CB8Pre-Construction Bracket (Green)
Back Box CMBOX-R
