VXC3FW 3.5" CEILING SPEAKERS WHITE

8 OHM OR 100V LINE

Code: 39776301

PR
Special
Buy-In
$510 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

VXC Series "F model"

Low-profile ceiling speakers designed for superior music reproduction

Music can play an integral role in defining the aesthetic and atmosphere of a commercial space, greatly enhancing the overall experience for customers and clientele.

By combining Yamaha’s unrivaled acumen for developing state of the art musical instruments and professional audio technologies, with a flexible approach towards design and application, VXC-F ceiling speakers allowyou to streamline the installation process and seamlessly integrate high-quality audio into a restaurant, retail, or professional environment.

Featuring a newly designed speaker unit, optimally tuned for music playback, the VXC-F’s shallow, lightweight construction and flexible design can easily adapt to the strictest installation limitations, ensuring superb audio performance wherever they’re placed.

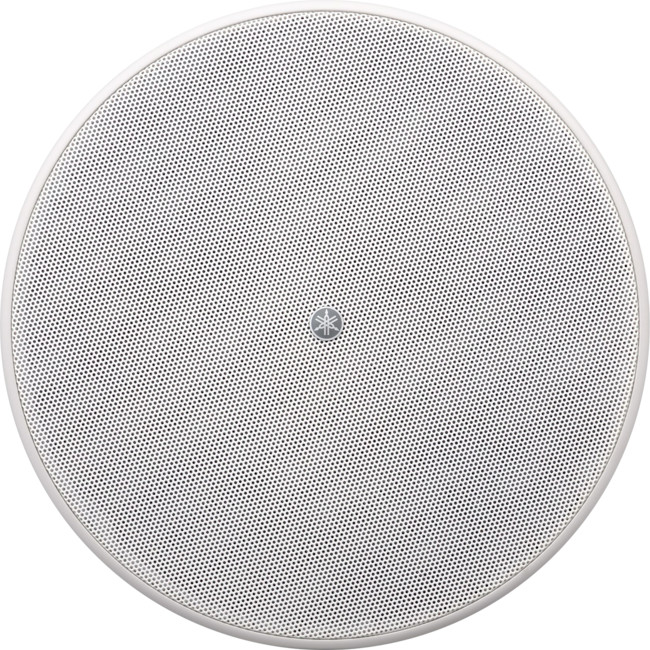

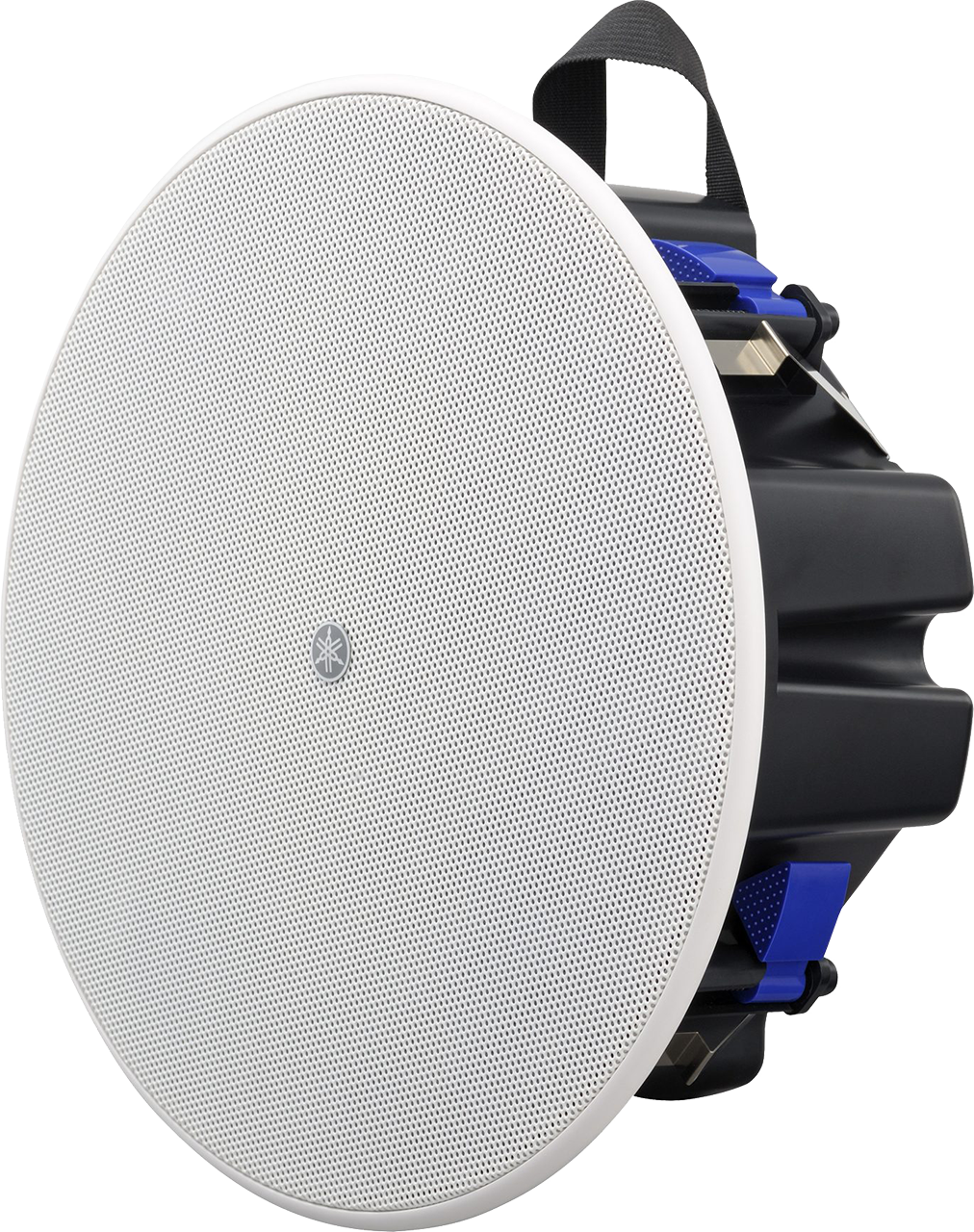

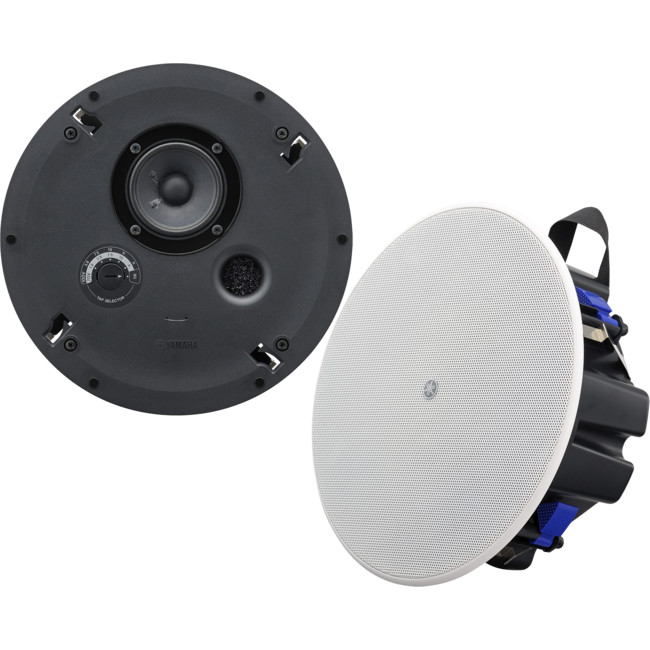

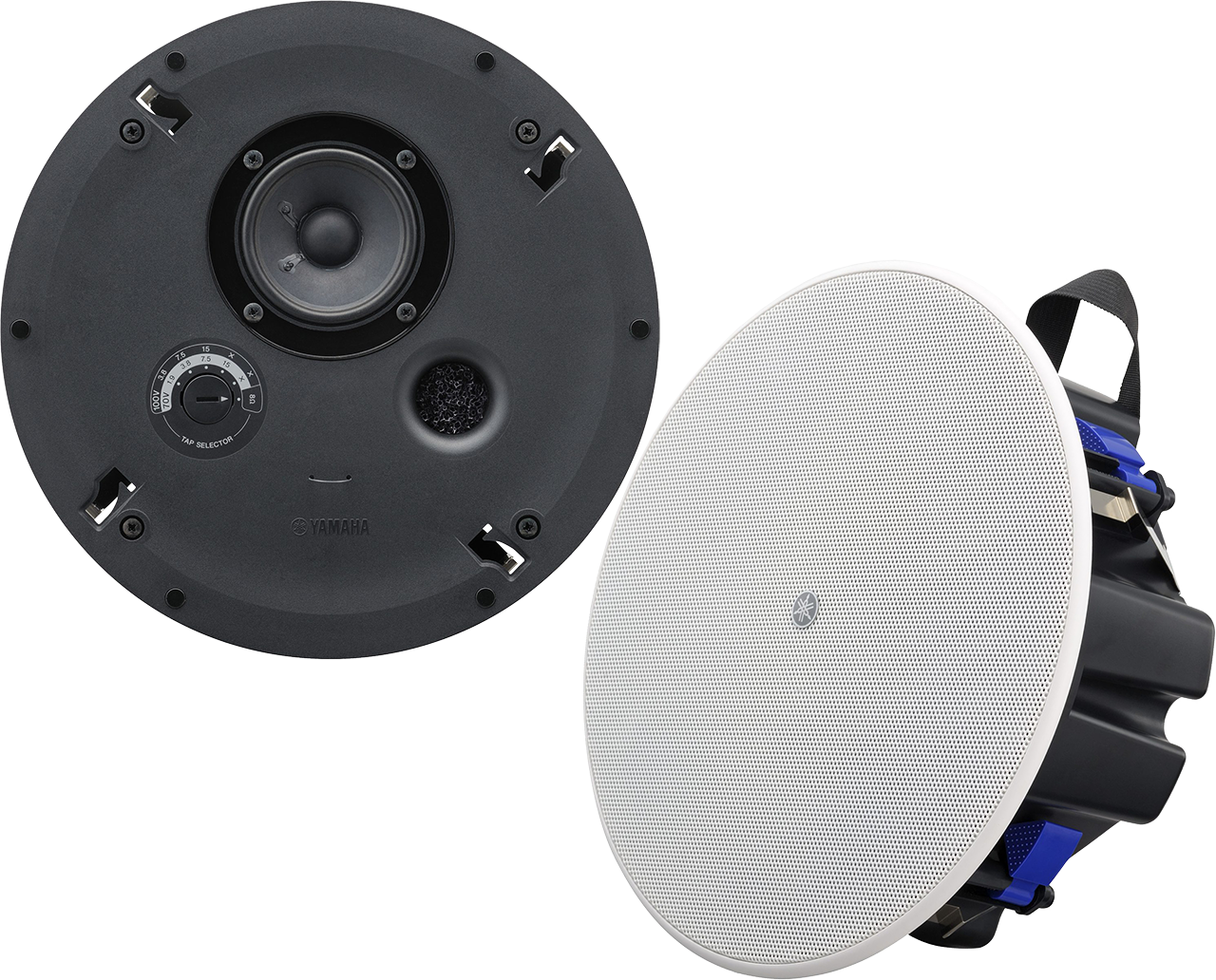

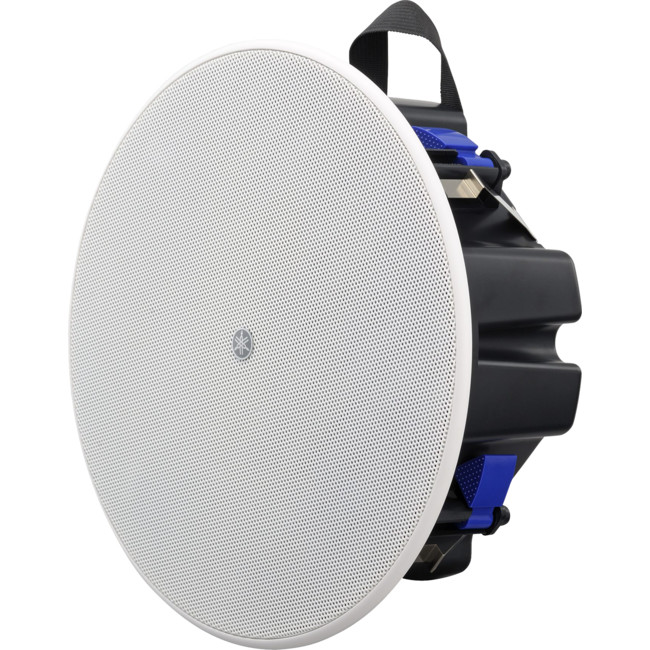

VXC3FW White Ceiling speaker

3.5" full-range ceiling loudspeaker
  • 3.5” full-range speaker unit
  • Engineered for optimum BGM reproduction
  • Wide coverage allows a single speaker to cover a wide area
  • Direct support for low-impedance or high-impedance connections
  • Low-profile design facilitates installation in limited ceiling spaces

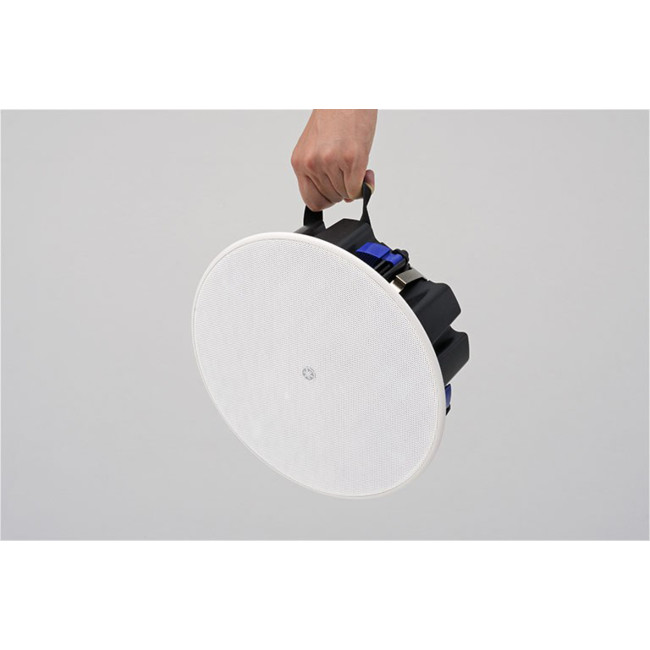

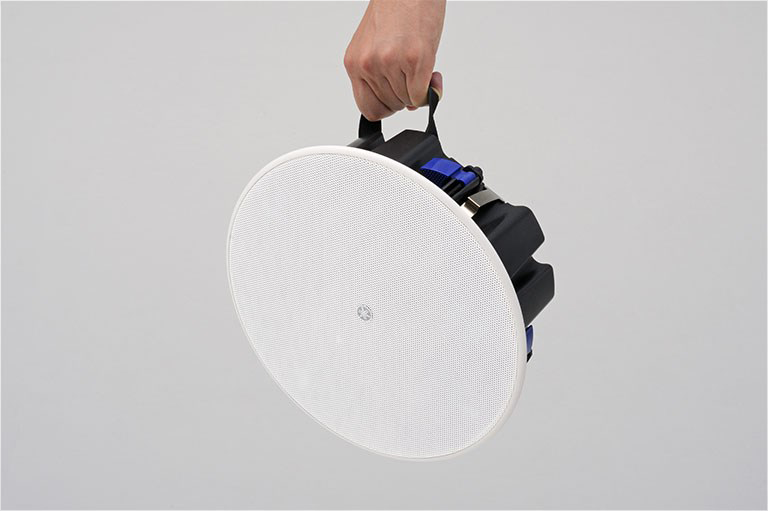

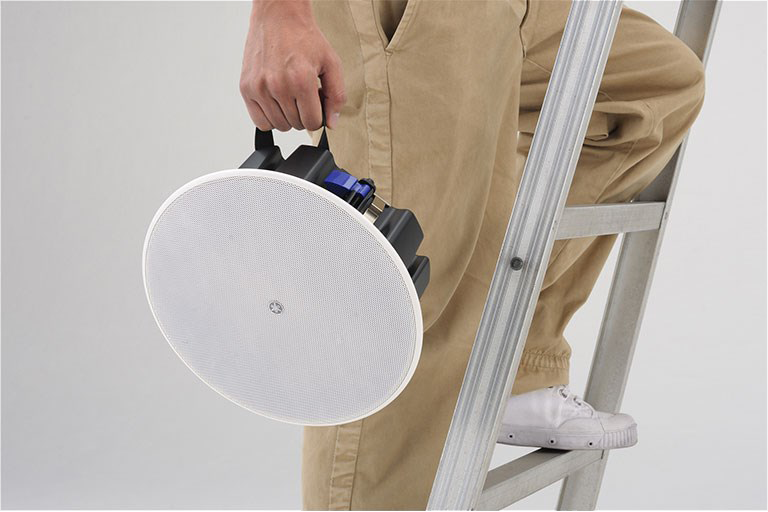

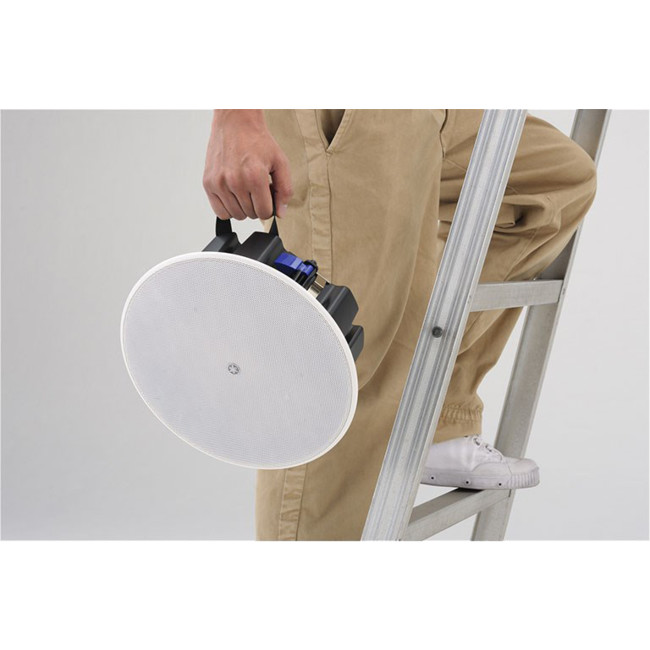

  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation

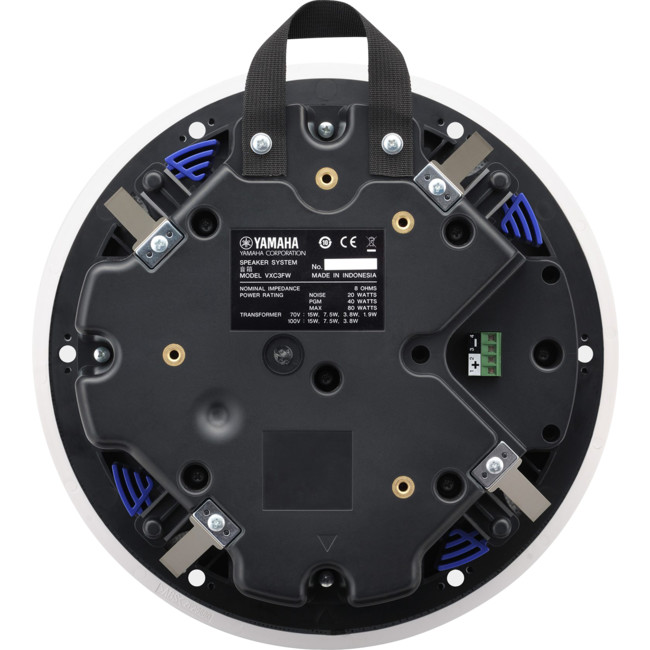

  • Double-threaded speaker clamp screws for speedy tightening

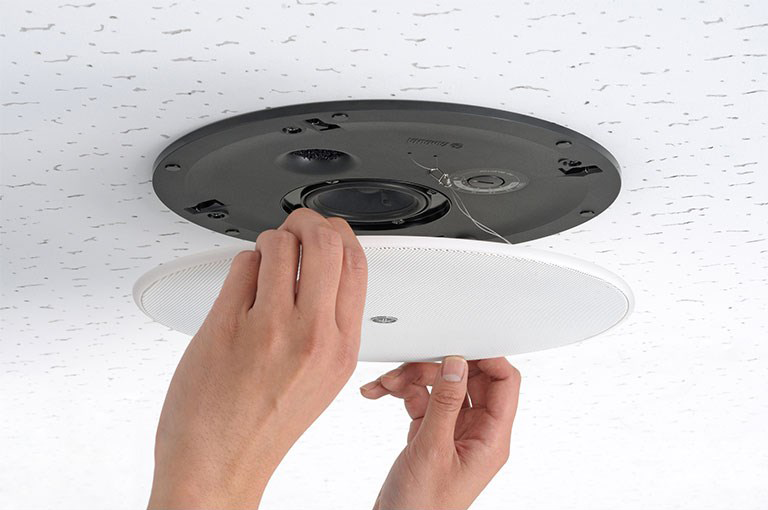

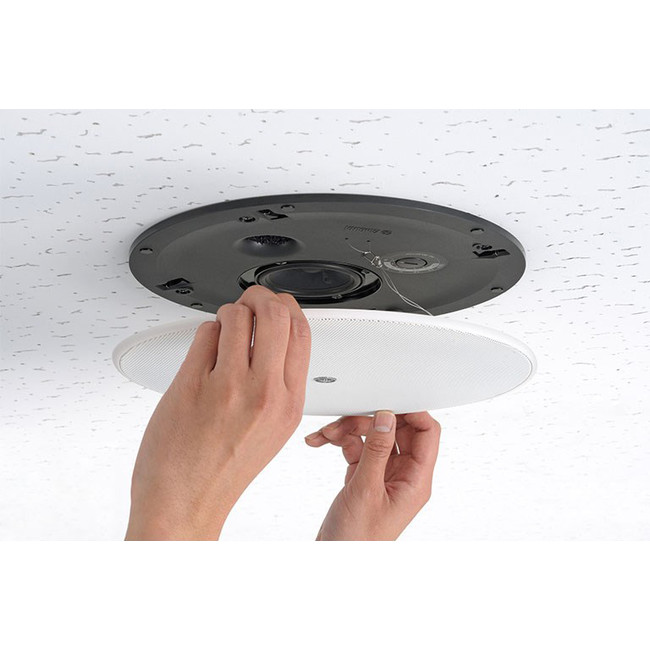

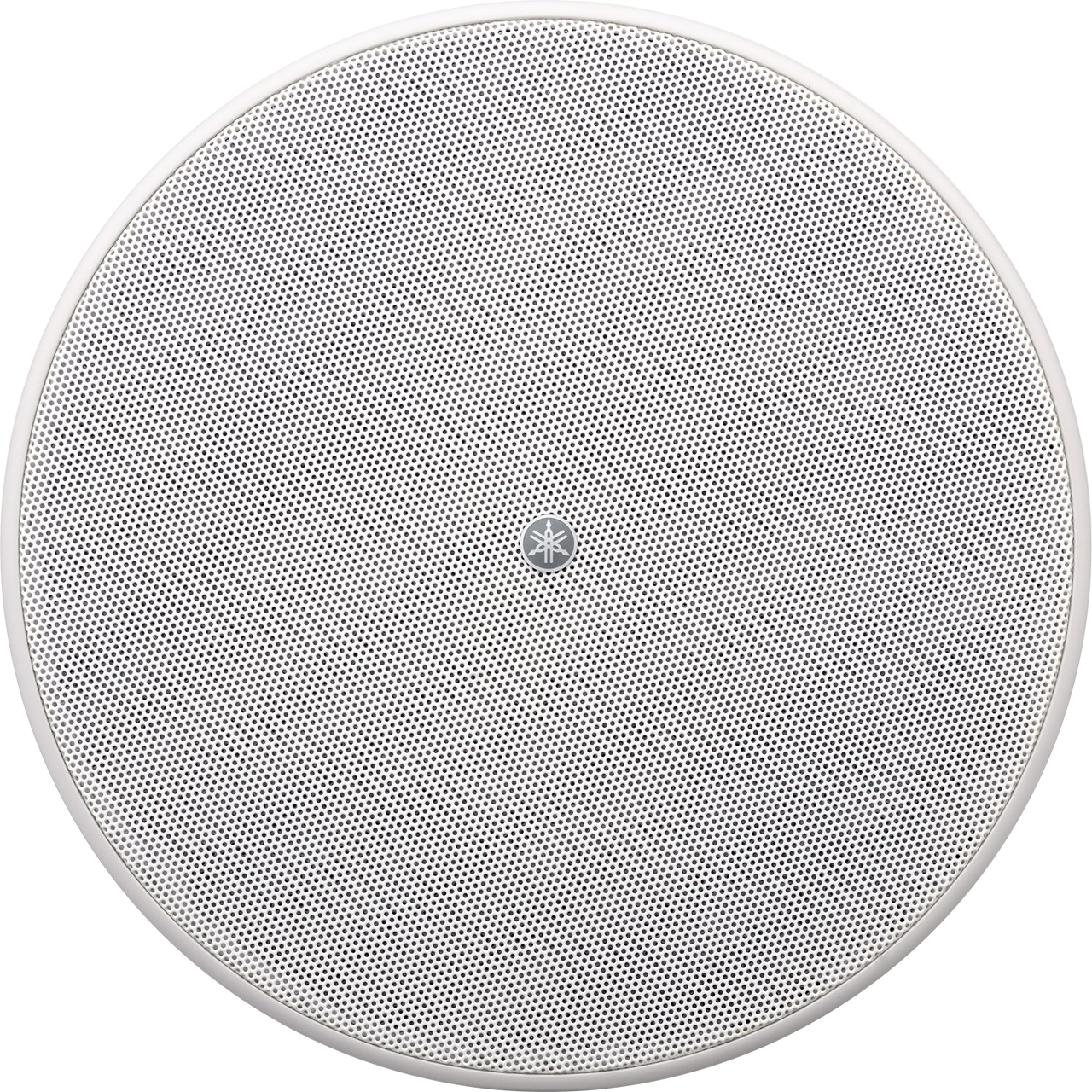

  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 2.5kg (5.5lbs), Ø285 x D112 mm (Ø11-1/4" x D4-7/16")



Specifications VXC3FW

  VXC3FW
Speaker type   Full range, Bass reflex
Frequency range (-10dB)   71 Hz – 20 kHz (Half-space:2p)
Nominal coverage   140°Conical (Half-space :2p)
Components LF-HF   3.5” Full range unit
Power rating NOISE   20 W
PGM   40 W
PEAK   80 W
Nominal impedance   8 Ω

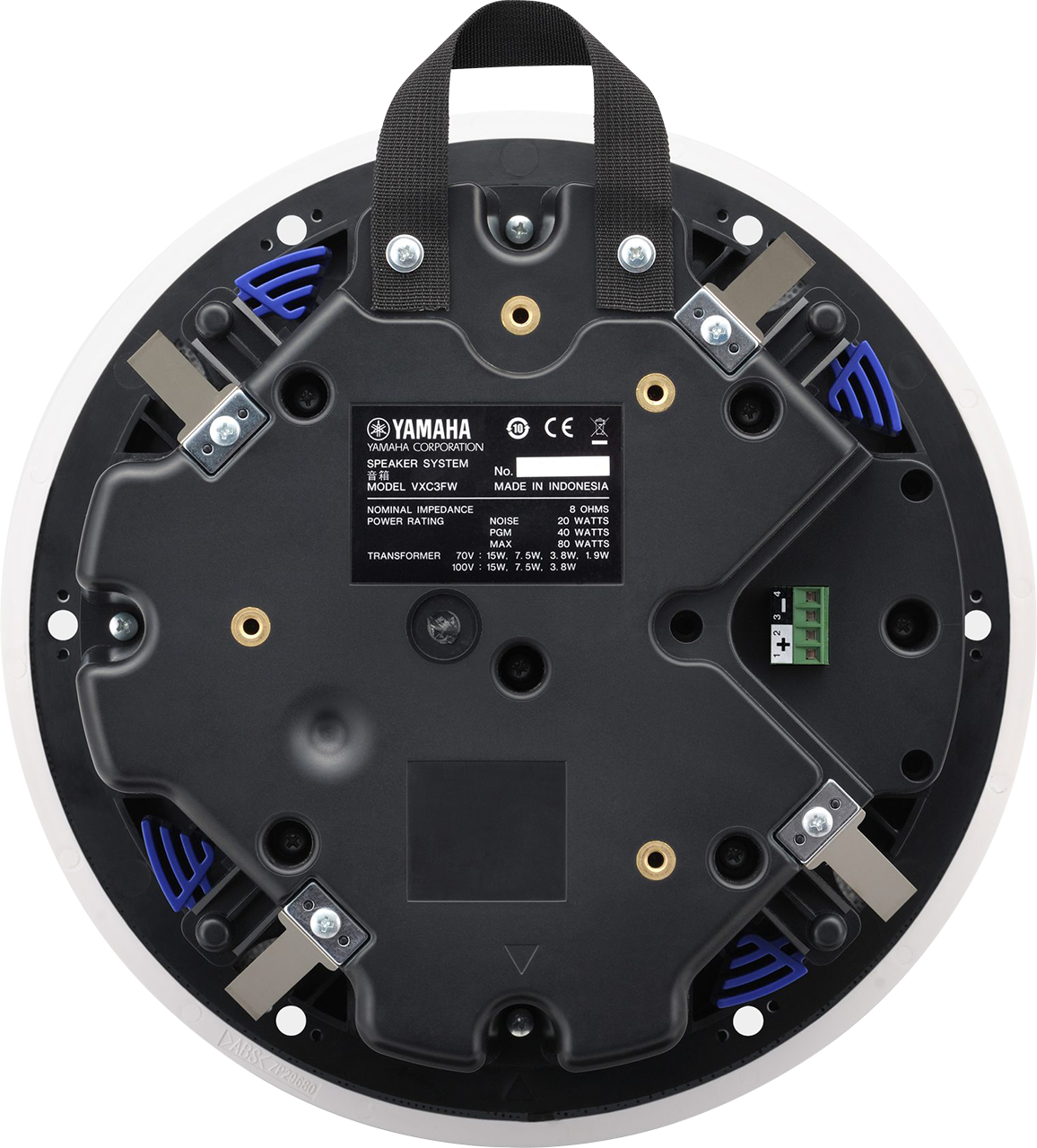

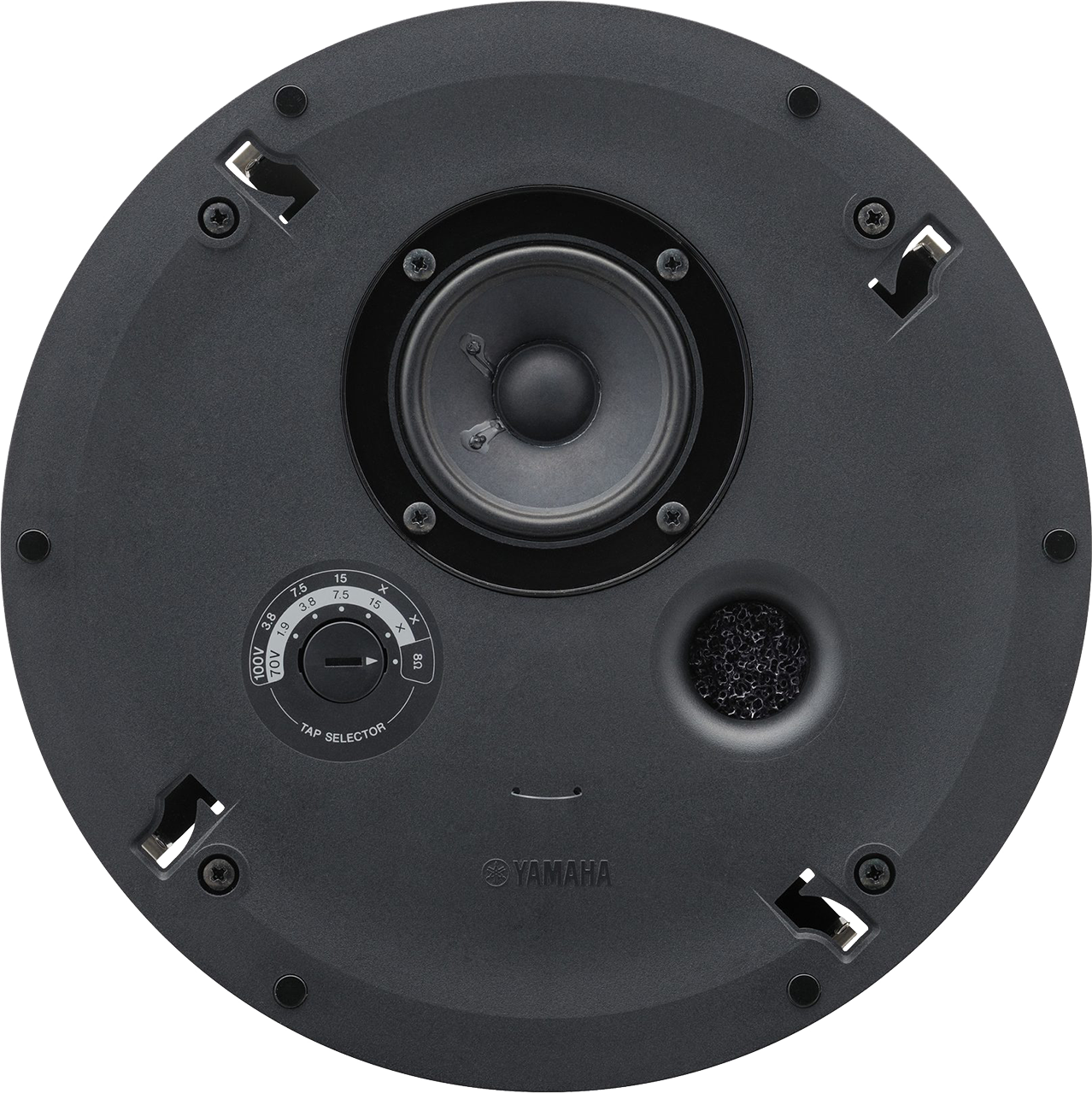

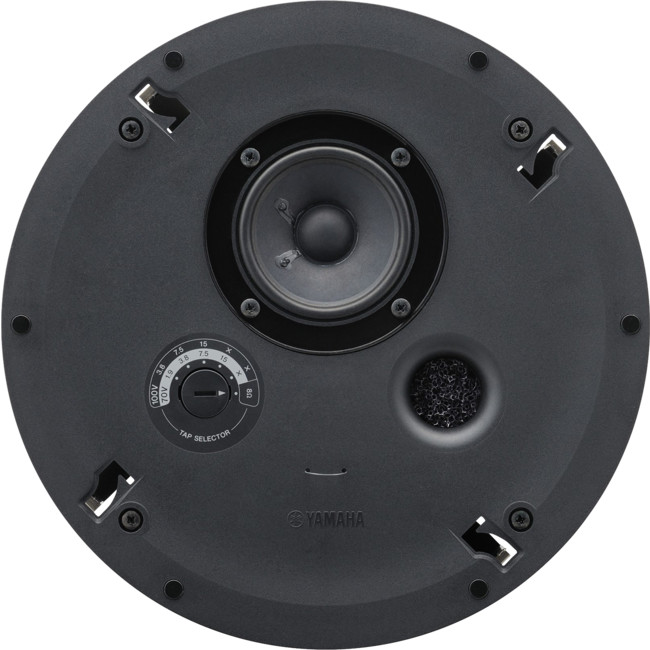

Transformer taps 100V   15W, 7.5 W, 3.8 W
70V   15 W, 7.5 W, 3.8 W, 1.9 W
SPL Sensitivity (1W; 1m on axis)   87 dB SPL (Half-space:2p)
Peak (Calculated)   106 dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

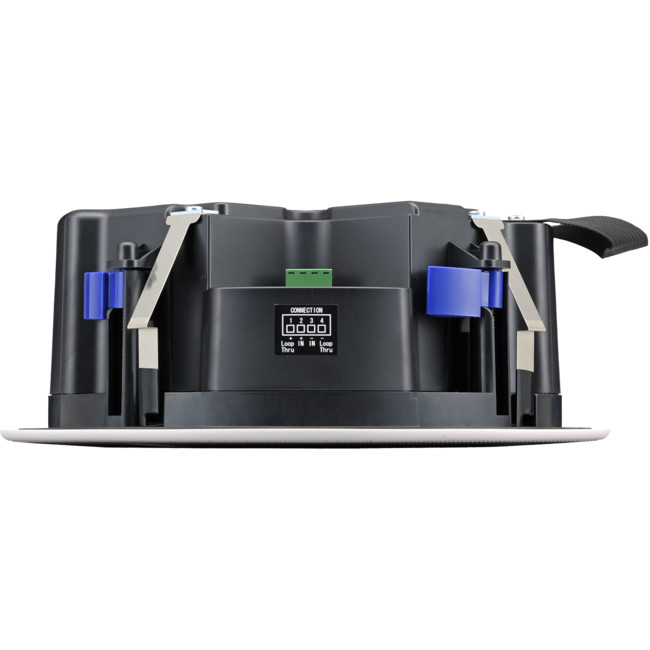

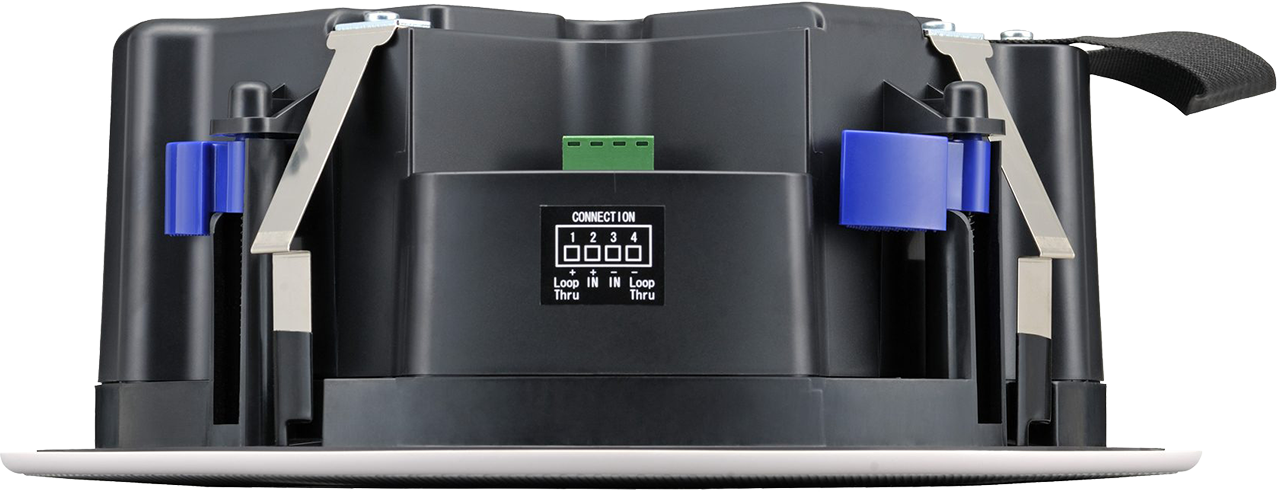

I/O connectors   Euroblock (4 pin) × 1 (input: /-, loop-thru: /-)
Protection circuit Load protection   Full-range power limiting to protect network and transducers
Finish   VXC3F: Black (approx. Munsell N3), VXC3FW: White (approx. Munsell N9.3)
Dimensions Diameter   285 (11-1/4")
D   112 mm (4-7/16")
Net weight   2.5 kg (5.5 lbs)
Cutout size   Ø247 mm (Ø9-3/4")
Required ceiling board thickness   5 mm – 37 mm
Accessories   O-ring, Tile Rail, Cutout Template, Euro Block (4pin), Terminal Cover
Packaging   Packaged in pairs
Certificate   UL1480, NFPA70, CE, EAC, RoHS
EN54-24 compliance   -
Others   Conduit tube: Ø15.4 mm - Ø21.3 mm
