QF80CS 8" CO-AXIAL 80W 100V SPEAKER

SEALED STEEL BACK CAN

Code: 39776148

9323383019508
EACH
Special
Buy-In
TRADE ALERT!
$358 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

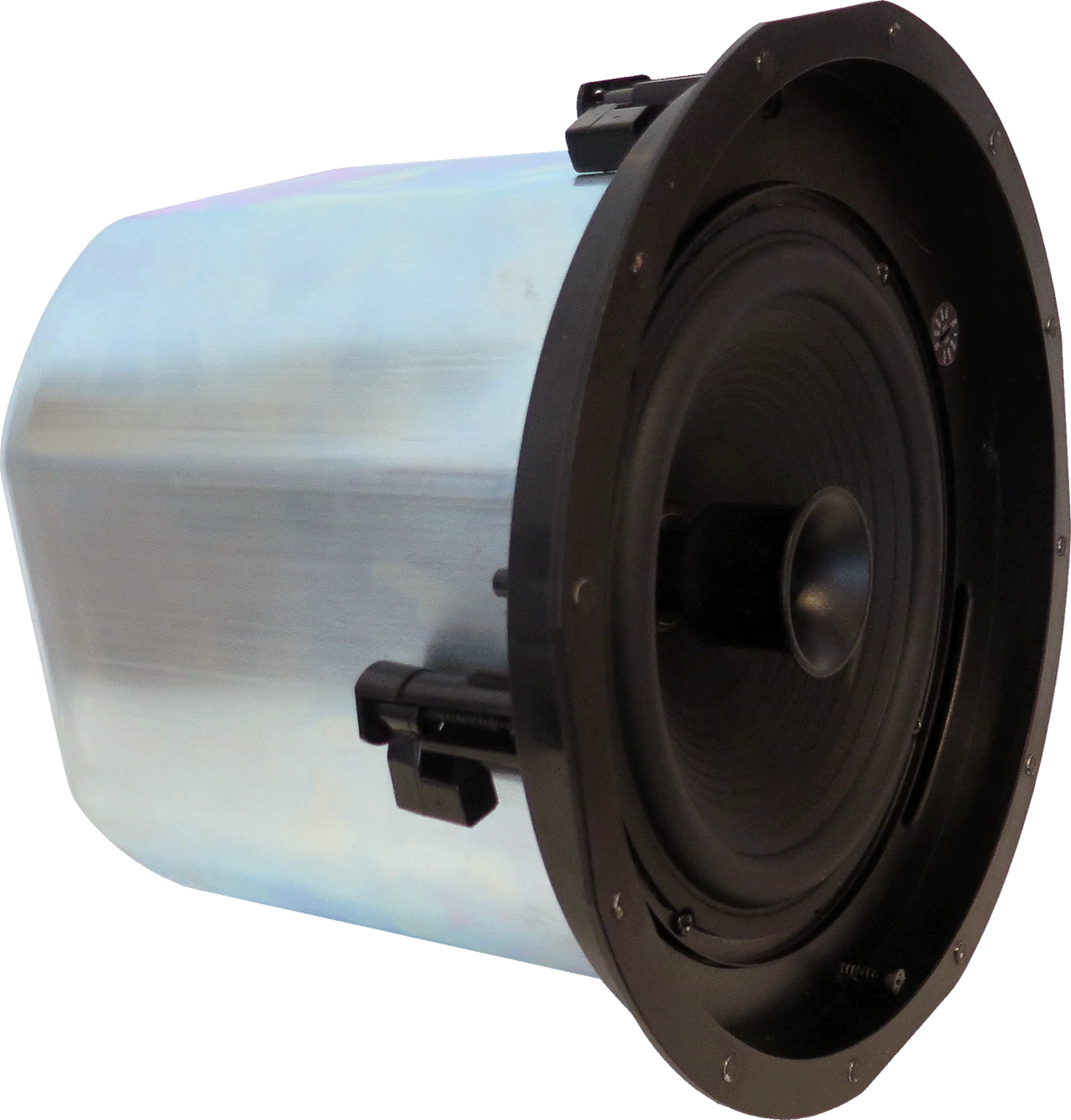

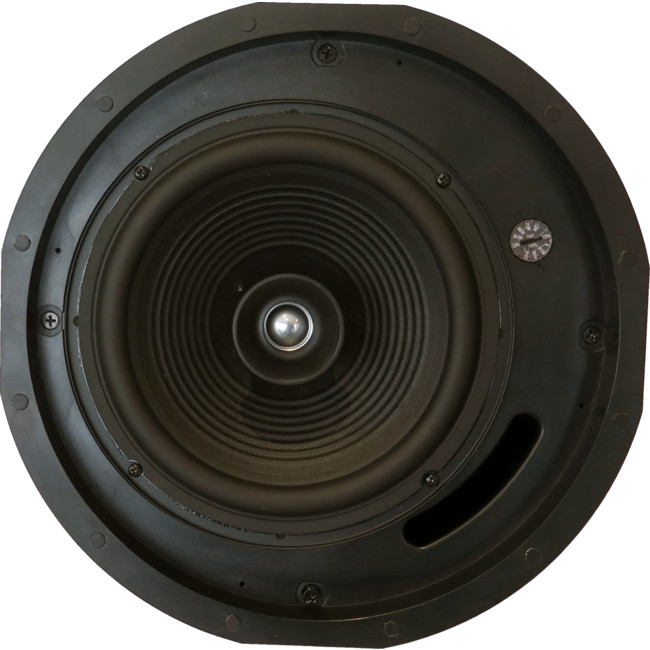

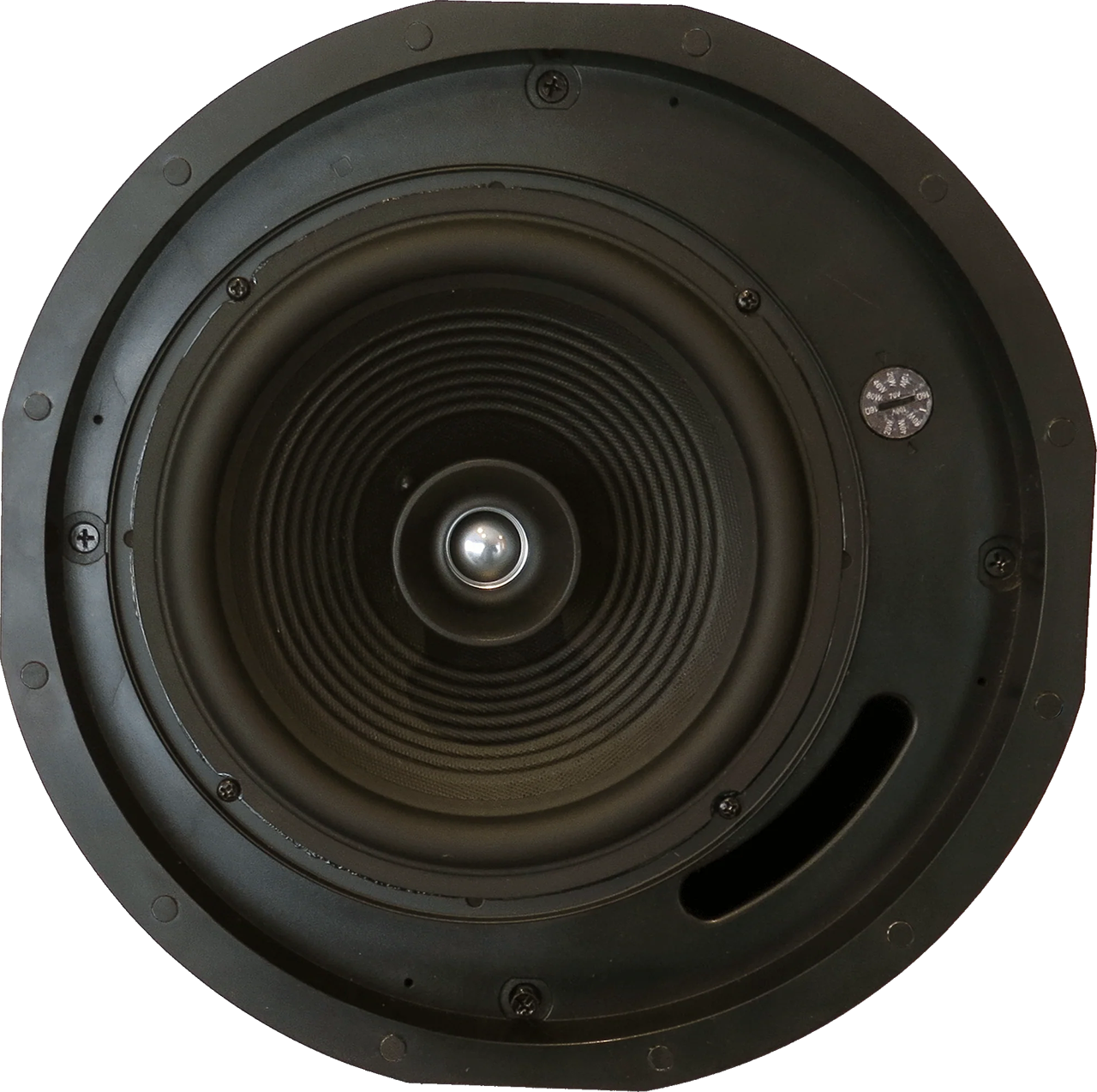

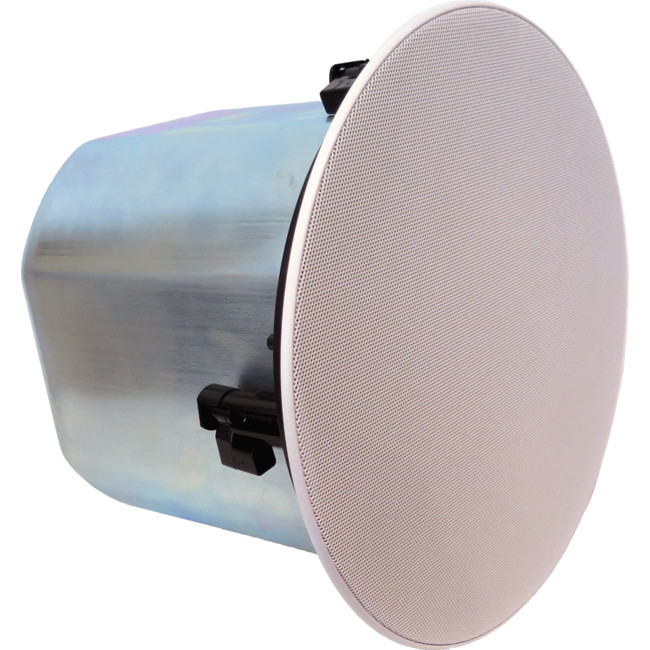

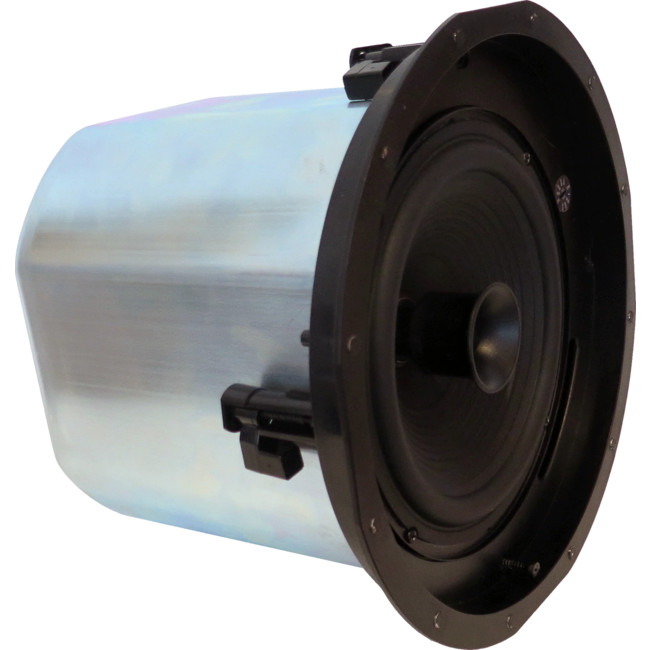

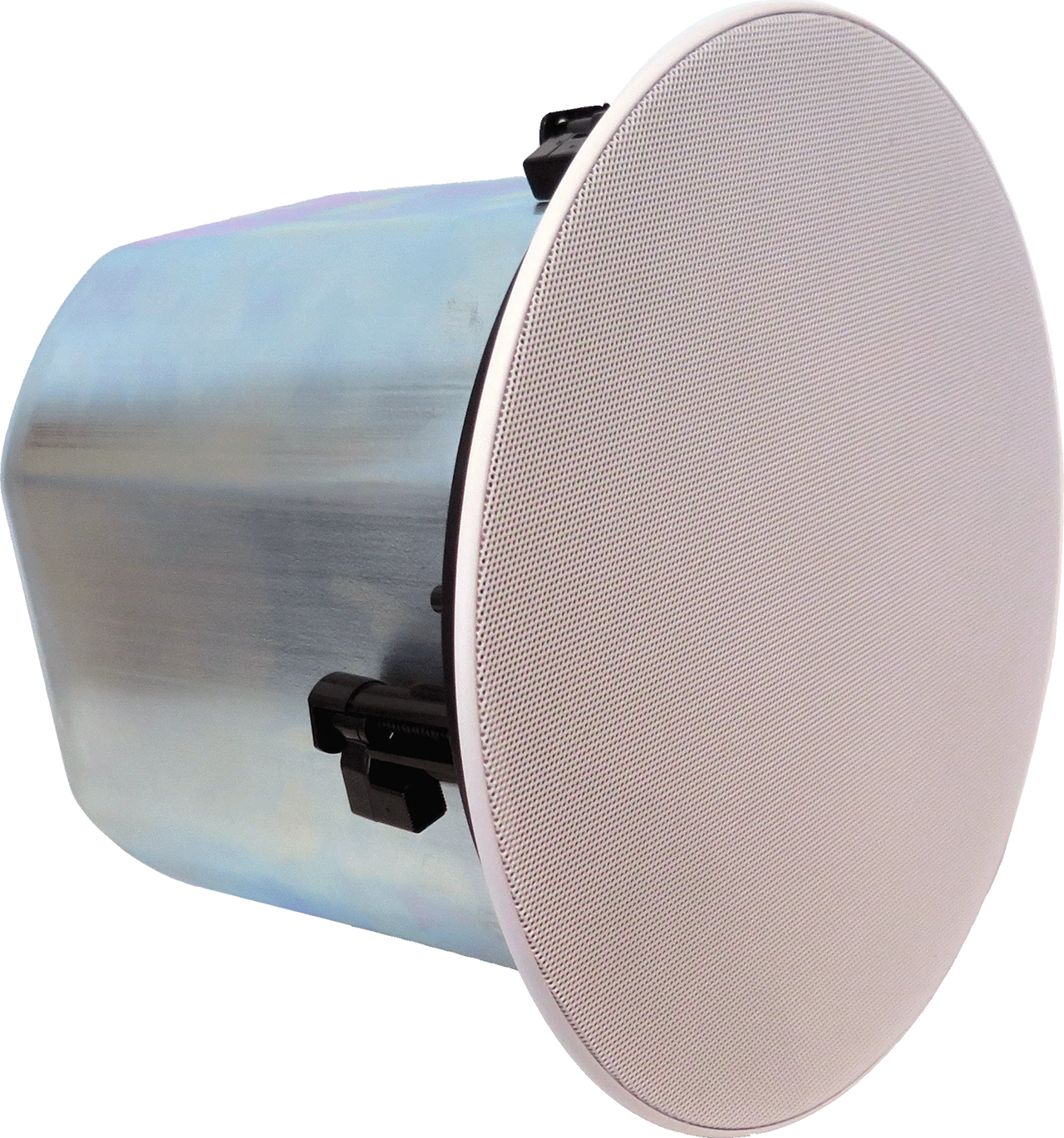

Australian Monitor QF80CS 8 inch (20mm) 80W 100v ceiling speaker

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

The QF20CS, QF60CS and QF80CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Pubs, clubs, bars, retail spaces, functions rooms, lecture rooms, boardrooms and many other commercial spaces requiring a premium high powered ceiling speaker solution.

Features

  • 8 inch & 20mm coaxial high powered driver
  • QuickFit white frameless powder coated steel grill

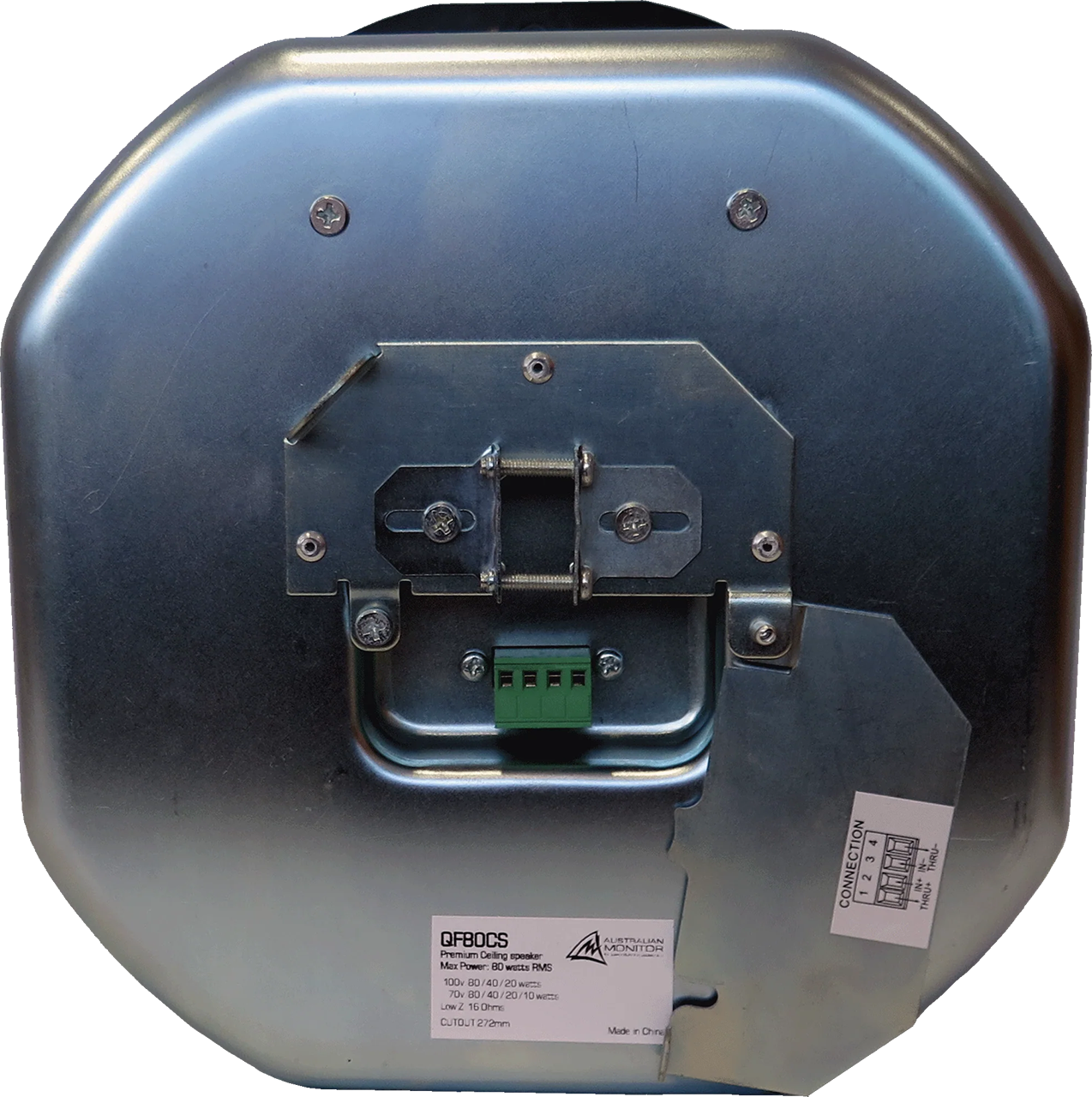

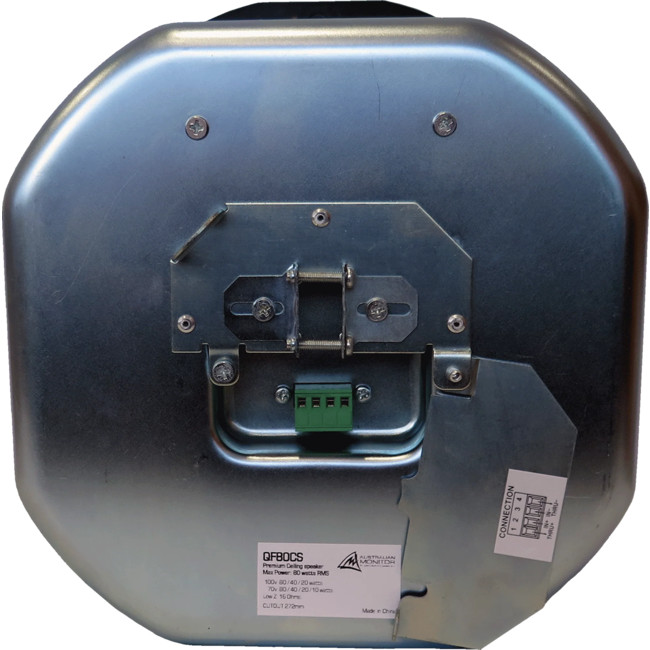

  • Sealed steel back can
  • 20, 40, 80 watt taps @ 100V
  • 80 Watts @ 16 Ohms
  • C/W Tile bridge

SPECIFICATIONS

  • Form Factor: Ceiling
  • Max Continuous Power: 80W
  • Tappings: 80W-40W-20W-10W
  • Max Program Power: 160W
  • IP Rating: No
  • Max Peak Power: 240W
  • EASE Model: Yes
  • SPL 1W/1m: 90dB
  • Powered: Passive
  • Max SPL RMS: 109dB
  • Driver Diameter: 8" & 20mm
  • Max SPL Peak: 115dB
  • Colour: White
  • Frequency Response (-3dB): 50Hz - 20kHz
  • Warranty: 5 years
  • Dispersion: 110deg
  • Product Dimensions:(W x D x H) 308mm x 244mm
  • Shipping Dimensions: (W x D x H) 348mm x 344mm x 270mm
  • Net Weight: 5.65 Kg
  • Shipping Weight: 6.2 Kg
