QF8CS 8" TWIN CONE 100V 15W CEILING SPEAKER

INCLUDES EVAC CAPACITOR

Code: 39776142

EACH
10
Low Stock
TRADE ALERT!
$74 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

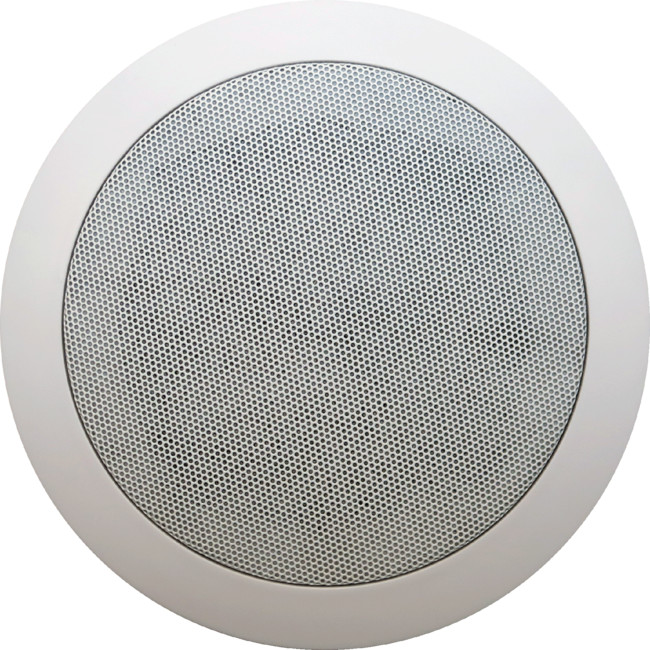

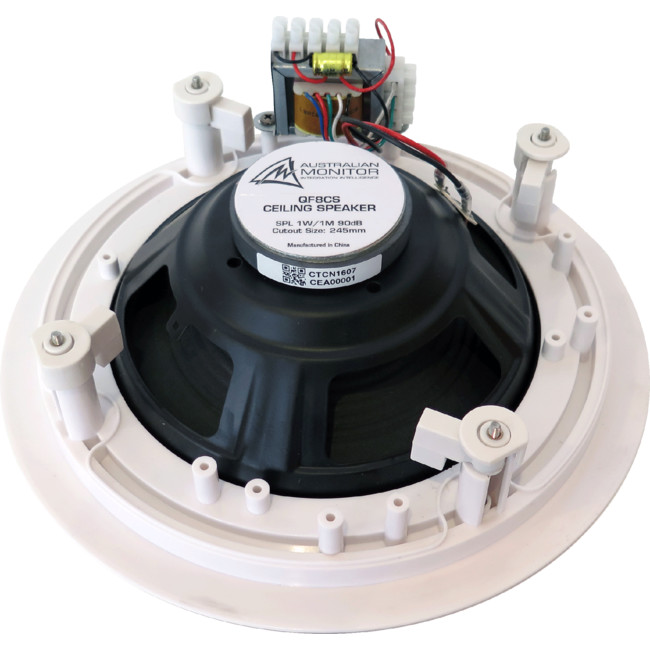

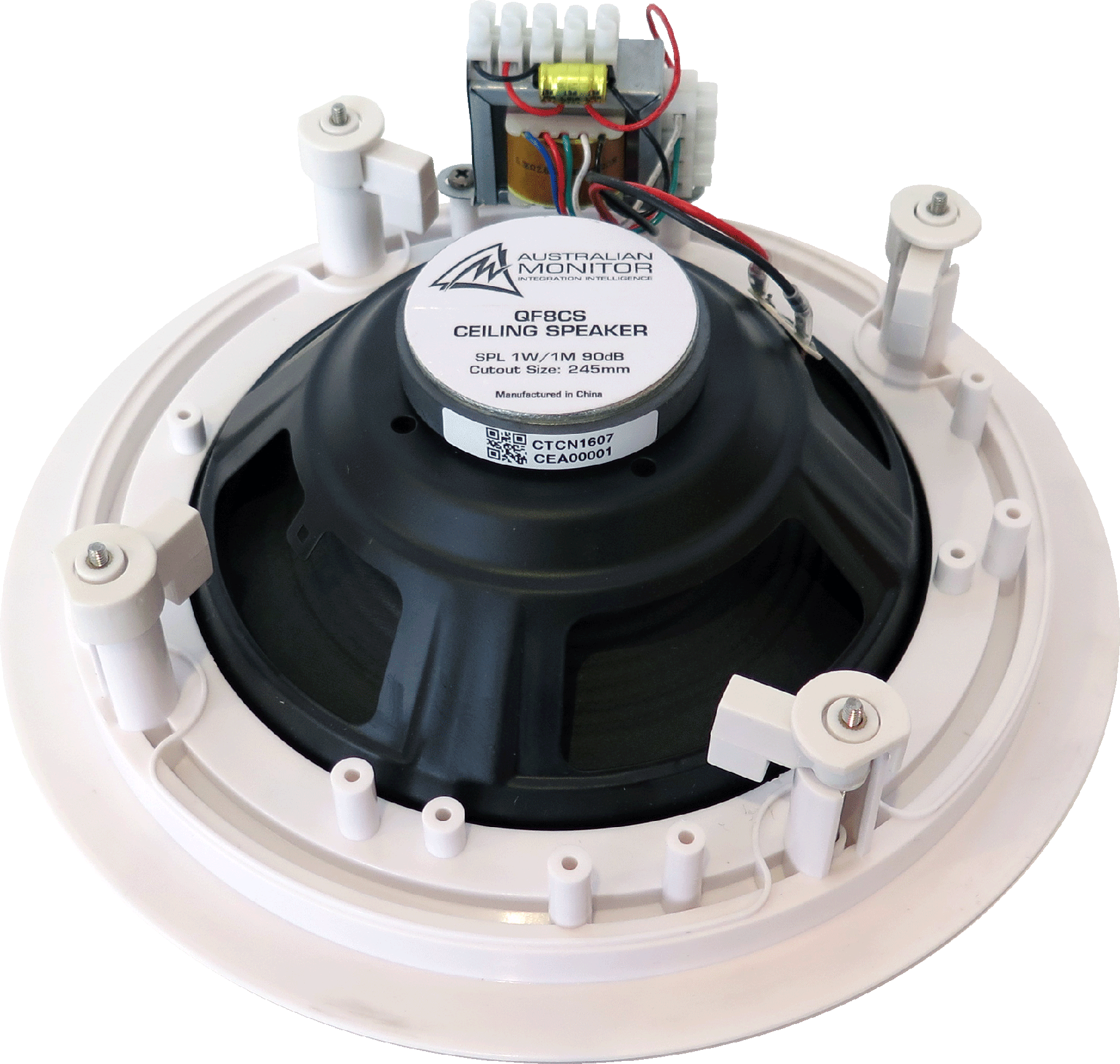

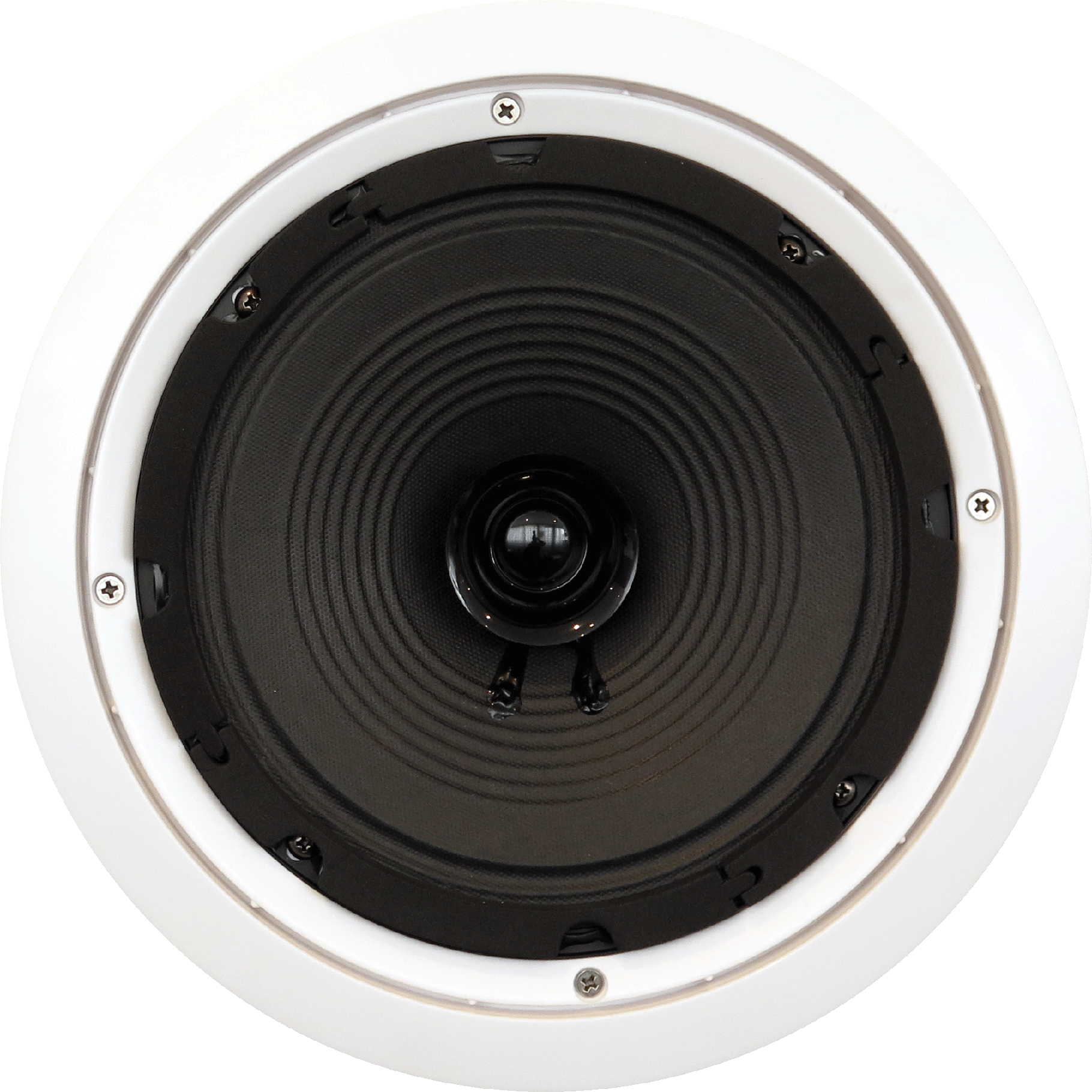

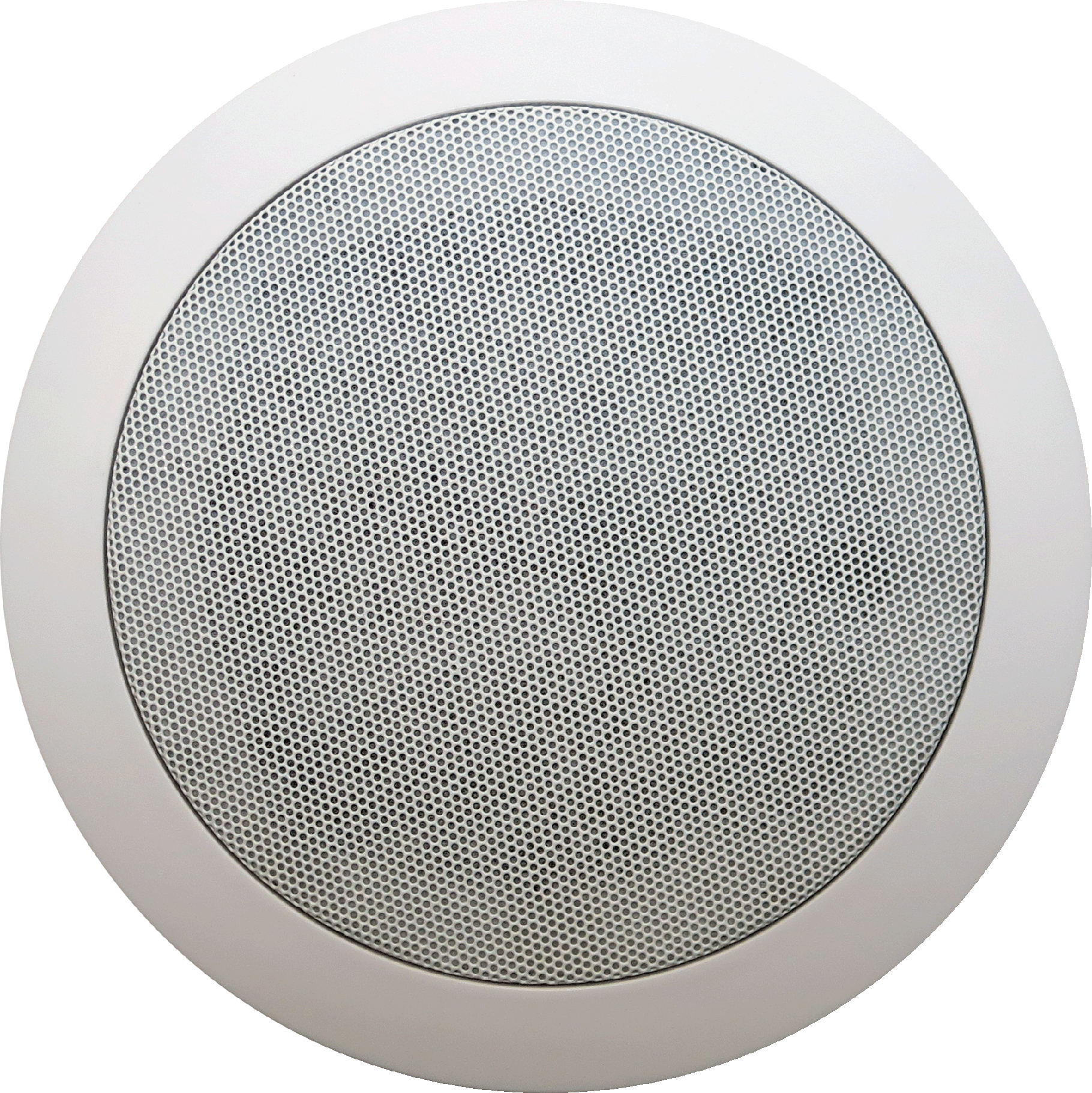

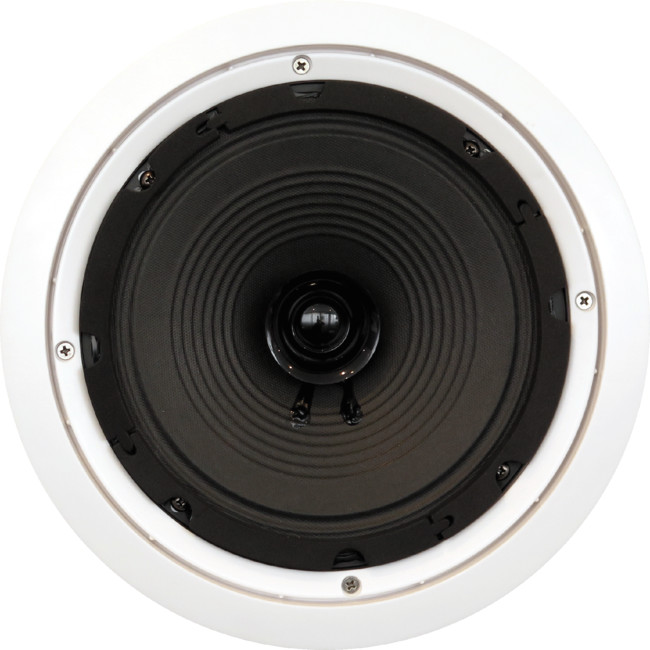

Australian Monitor QF8CS 8″ Dual cone 100v ceiling speaker

The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever. Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.

The QuickFit dual cone series QF5CS, QF6CS, QF6WRC, QF8CS and QF8CSB provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centres, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.


Features

  • 8 inch dual cone driver
  • QuickFit white ABS plastic baffle and powder coated steel grill
  • 1.87, 3.75, 7.5, 15 watt taps @ 100V
  • Evac. capacitor as standard

Specifications


Form FactorCeiling
Max Continuous Power15W
Tappings15W, 7.5W, 3.75W, 1.87W, 0.93W
Max Program Power30W
IP RatingNo
Max Peak Power60W
EASE ModelYes
SPL 1W/1m90dB
PoweredPassive
Max SPL RMS102dB
Driver Diameter8″
Max SPL Peak108dB
ColourWhite (RAL 9010)
Frequency Response (−3dB)80Hz – 20kHz
Warranty5 years
Dispersion100°
Product Dimensions (W×D×H)280mm × 80mm
Shipping Dimensions (W×D×H)105mm × 280mm × 285mm
Net Weight1.4kg
Shipping Weight1.5kg
GTIN EAN9323383019409
