PC658R 6W 6" CEILING SPEAKER TOA

Code: 39776113

EACH
Special
Buy-In
TRADE ALERT!
$39 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

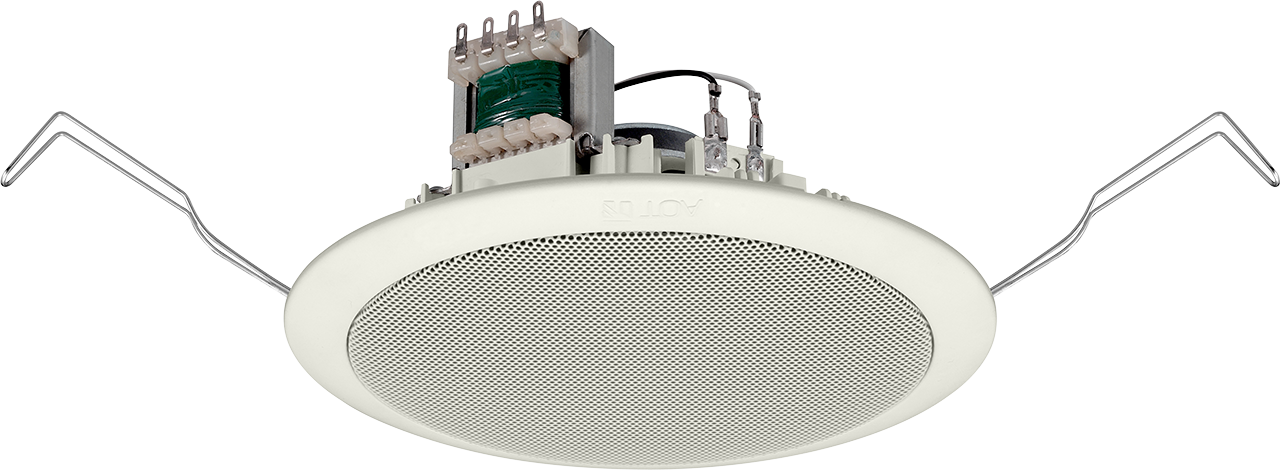

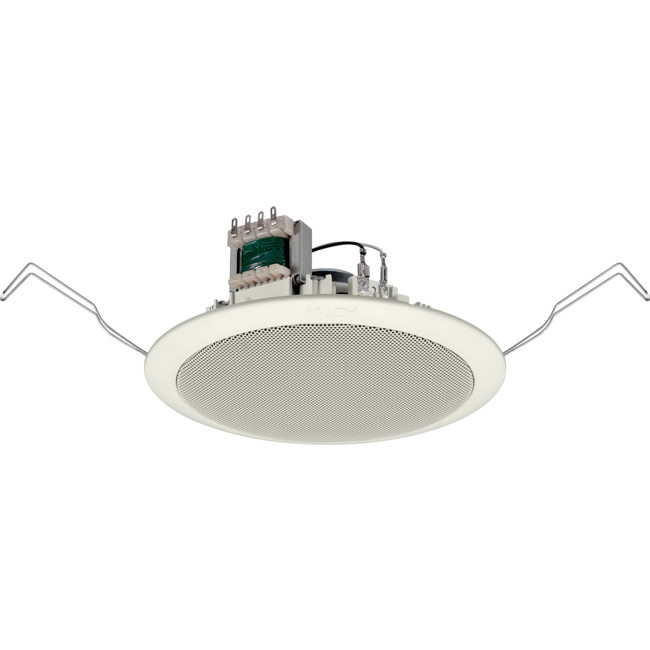

Toa PC658R 6 watt 6 inch Single Cone Speaker with Metal grille and Spring Catch Mounting

Integrated with a resin panel and speaker frame, the PC-658R is the ceiling mount speaker with a metal attached.

It features spring clamp mechanism for easy speaker mounting to the ceiling.

The input impedance can be easily changed by changing thetap position of the transformer.



Specification

Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 65 Hz - 18 kHz (peak -20 dB)
Speaker Component 16 cm (6") cone-type
Dimensions for Fixing Hole Mounting hole: Φ170±5 mm (Φ6.69"±0.2")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, white (RAL 9016 equivalent)
Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Dimensions Φ192 × 73 (D) mm (Φ7.56" × 2.87")
Weight 500 g (1.1 lb)
Accessory Paper pattern ?1
