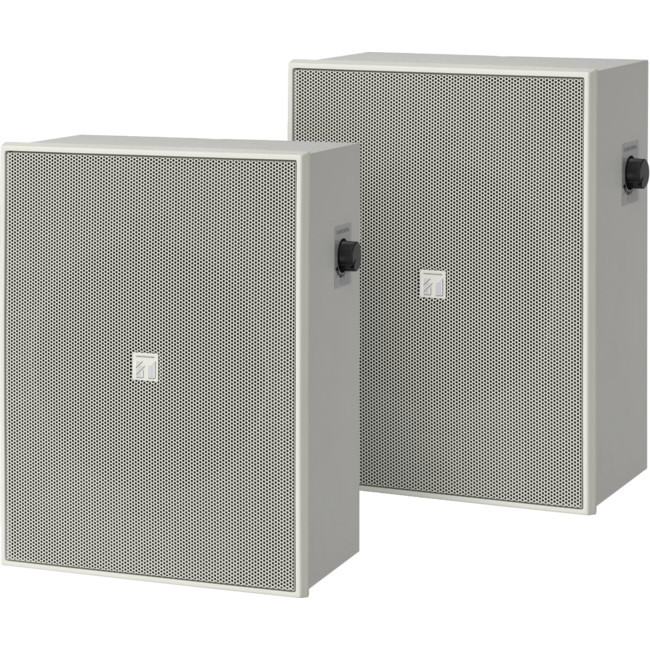

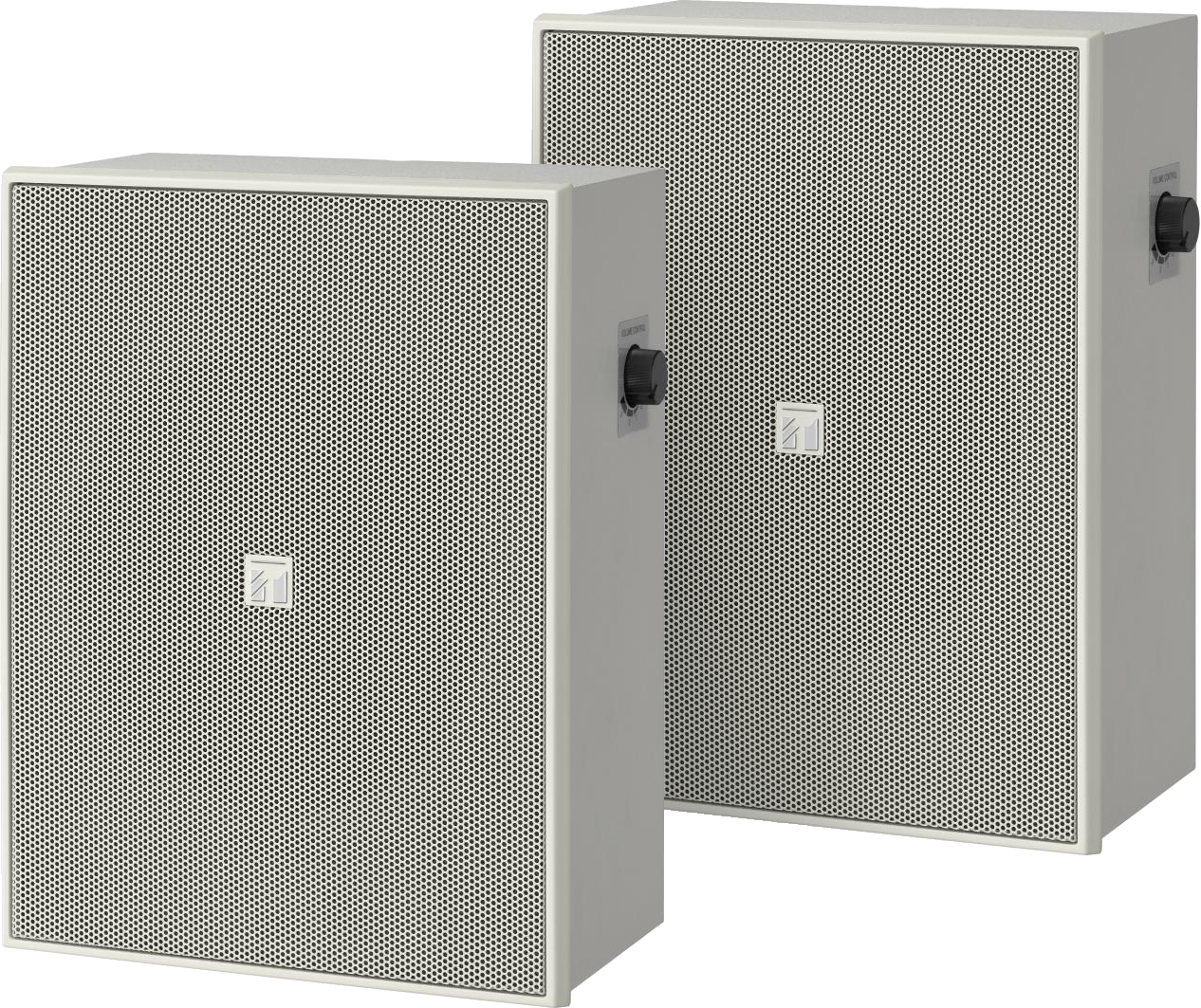

BS678T 1PR x 6W 100V WOOD SPEAKER BOX

WITH VOLUME CONTROL - TOA

Code: 39776079

3.00 kg
PR
Low Stock
$198 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

2 X ( 1PR ) BS-678T WALL MOUNT BOX SPEAKERS



BS-678T BS-678T

NOTE: SOLD ONLY AS A PAIR ( 2 in outerbox )



The BS-678T, of which cabinet is made of wood, can be installed in a vertical or horizontal orientation.

Either concealed in-wall wiring or exposed wiring canbe used for speaker cable connection.

The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to.

The input impedance can be easily changed by changingthe tap position of the transformer.

Two built-in 6-inch double cone speaker units deliverhigh quality sound.

The push-in type input connector makes cable connections easy and allows bridge wiring.

BS-678T have a built-in attenuator and can be connected to a 2-wire or 3-wire system.



Specifications

Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 150 Hz - 20 kHz (peak -20 dB)
Speaker Component 16 cm (6") double cone-type
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid wire: Φ0.8 - Φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted wire: 0.75 - 1.25 m? (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal)
Attenuation OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB)
Finish Baffle: HIPS, off-white (RAL 9010 or equivalent color)
Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)
Dimensions 250 (W) × 190 (H) × 110 (D) mm (9.84" × 7.48" × 4.33")
(excluding volume control knob)
Weight 1.7 kg (3.75 lb)
Accessory Speaker mounting screw (4 × 35 (0.16" × 1.38")) ?2

NOTE: SOLD ONLY AS A PAIR ( 2 in outerbox )
