BS633AT 6 WATT 5" 100V BOX SPEAKERS

WITH VOLUME CONTROL ( PR )

Code: 39776077

EACH
SPECIAL
BUY-IN
6 IN STOCK
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
TRADE ALERT!
$108 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

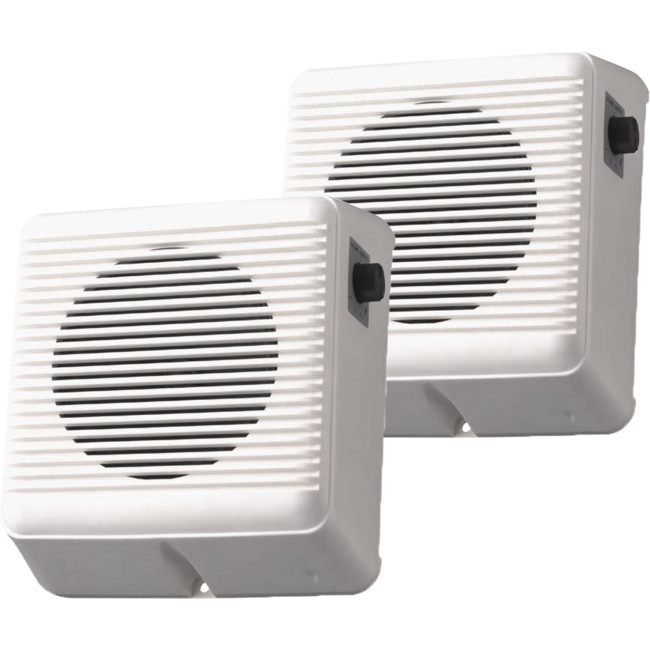

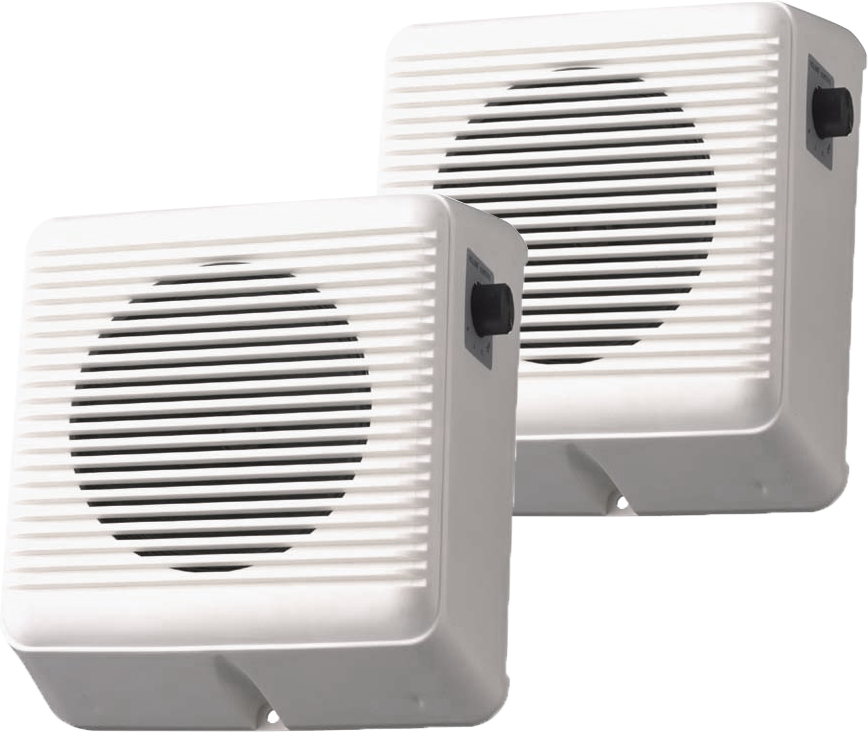

2 X ( 1PR ) BS-633AT WALL MOUNT BOX SPEAKERS

The BS-633AT is a wall mount speaker made of ABS resin and can be hooked or mounted directly on the wall.

The push-in type input terminal makes cable connections easy and allows bridge wiring.

The input impedance can be easily changed by changingthe tap position of the transformer from the rear side of the speaker.

The BS-633AT has a built-in attenuator and can be connected to a 2-wire and 3-wire systems.



NOTE: SOLD ONLY AS A PAIR ( 2 in outerbox )



Specifications

a 2-wire and 3-wire systems.
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
Sensitivity 91 dB (1 W, 1 m)
Frequency Response 120 - 15,000 Hz (-20 dB)
Speaker Component 12 cm (5") cone-type
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 - Φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 m? (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal)
Attenuation Level 3 W: OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB)
6 W: OFF, 1 (-13 dB), 2 (-7 dB), 3 (0 dB)
Operating Temperature -10°C to 50°C (14?F to 122?F)
Finish Case: ABS resin, off-white
Rear board: Hard board
Dimensions 173 (W) × 195 (H) × 101 (D) mm (6.81" × 7.68" × 3.98")
(excluding volume control)
Wall Mounting Dimensions Case front mount: 184 mm (7.24")
Fixing hole mount: 120 mm (4.72")
Weight 810 g (1.79 lb)
Accessory Speaker mounting screw (4 × 35 (0.16" × 1.38")) ? 2,
Speaker mounting screw (4 × 16 (0.16" × 0.63")) ? 2
