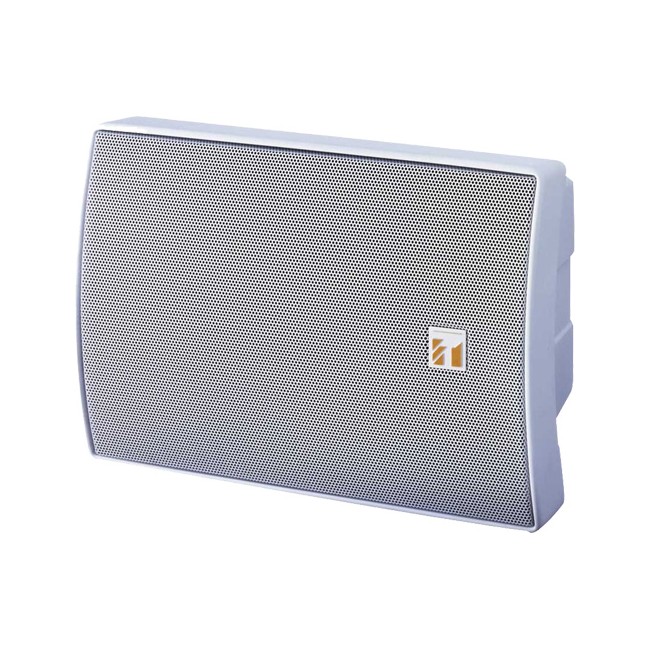

BS1030W 30W ENCLOSED PA SPEAKER WHITE

8 OHM OR 100V LINE TOA

Code: 39776076

3.52 kg
EACH
Low Stock
TRADE ALERT!
$189 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Music / Paging Speakers, Indoor/Outdoor, Two-Way, Mounting Bracket Included - TOA

THE TOA BS-1030 MUSIC/PAGING SPEAKER has exceptional sound quality and value for a wide variety of applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille.

The two-way, bass-reflex design features a 4.72” (12 cm) cone woofer, 1” (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation.

Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.

The BS-1030 speakers are backed with a five year warranty.

  • TOA's BS-1030B 2-way 12cm black dynamic cone speaker has been designed for low and midrange sound output
  • The BS-1030B features a bass reflex enclosure, a2.5cm balanced dome tweeter for high frequency sound.
  • A rear-panel mounted rotary switch facilitates selection of impedance (HIGH/LOW), line voltage (70V/100V), and power input(5W, 10W, 15W, 20W, 30W), permitting fine adjustment to match intended use and type ofevent.
  • In addition the BS-1030 features weather-resistant construction and is available in black or white.

FEATURES:

  • Compact Speaker for Music and Voice Paging Distribution
  • Clear, Natural Sound Reproduction
  • TOA Quality and Reliability
  • Wide Variety of Indoor/Outdoor Applications
  • Available in Black (BS-1030B) and White (BS-1030W)
  • Weather-Resistant (IEC IP-X4 Rating)
  • Mounting Bracket Included
  • Horizontal or Vertical Mounting with rotatable logo badge
  • Durable ABS Resin UV-Resistant Paintable Enclosure
  • Two-Way, Bass-Reflex Design
  • 4.72” Cone Woofer and
  • 1” Dome Tweeter
  • Steel Mesh Grille
  • Power Handling: 90 W (Continuous Program)
  • Sensitivity: 90 dB SPL (1 W/1 m)
  • Frequency Response: 80 Hz to 20 kHz
  • Built-in Multi-tap Transformer (70.7/100 V)
  • Screwdriver-Adjustable Power Tap Settings: 5, 10, 15, 20 and 30 W
  • Direct 8-Ohm Mode
  • Five Year Warranty

APPLICATIONS:

  • Audio/Visual
    Airports
  • Bars/Lounges/Nightclubs
  • Convention Centers
  • Corporate Boardrooms
  • Hotels/Hospitality
  • Houses of Worship
  • Museums
  • Offices
  • Patios
  • Residential Spaces
  • Restaurants
  • Retail Stores
  • Schools
  • Theaters
  • Theme Parks

SPECIFICATIONS:

Enclosure 2-way bass reflex type
Rated Input 30W
Impedance
100V line; 330Ω (30W), 500Ω (20W), 670Ω (15W), 1kΩ (10W),
2kΩ (5W)
70V line; 170Ω (30W), 25Ω (20W), 330Ω (15W), 500Ω (10W),
1kΩ (5W)
Sensitivity 90dB (1W/1m, in anechoic chamber)
Frequency Response 80 - 20,000Hz
Speaker Components 12 cm dynamic cone-type speaker 2.5 cm balanced dome tweeter
Speaker Cable 2-core cabtyre cable (diameter 6mm)
Operating Temperature -10ºC to 50ºC
Water Resistance IP-X3 (installed vertically or horizontally)
Material/Finish BS-1030B
Enclosure: ABS resin, black, paint
Grille: surface treated steel plate, black, powder coating
Bracket: surface treated steel plate, black, powder coating
BS-1030W
Enclosure: ABS resin, white, paint
Grille: surface treated steel plate, white, powdercoating
Bracket: surface treated steel plate, white, powder coating
Dimensions 196 (W) × 290 (H) × 150 (D) mm (without bracket)
Weight 2.5kg (without bracket)
Accessories Bracket × 1, Bracket mounting screw × 2, Bracket mounting washer × 2
Options Bracket:
BS-1030B
; WCB-12, TMB-1, SP-410
BS-1030W
; WCB-12W, TMB-1W, SP-410, SP-420Stand: ST-16
