BS1015BSB 15W BLACK 2 WAY 100V SPEAKER

AS 7240.24 2018

Code: 39775939

EACH
SPECIAL
BUY-IN
TRADE ALERT!
$298 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

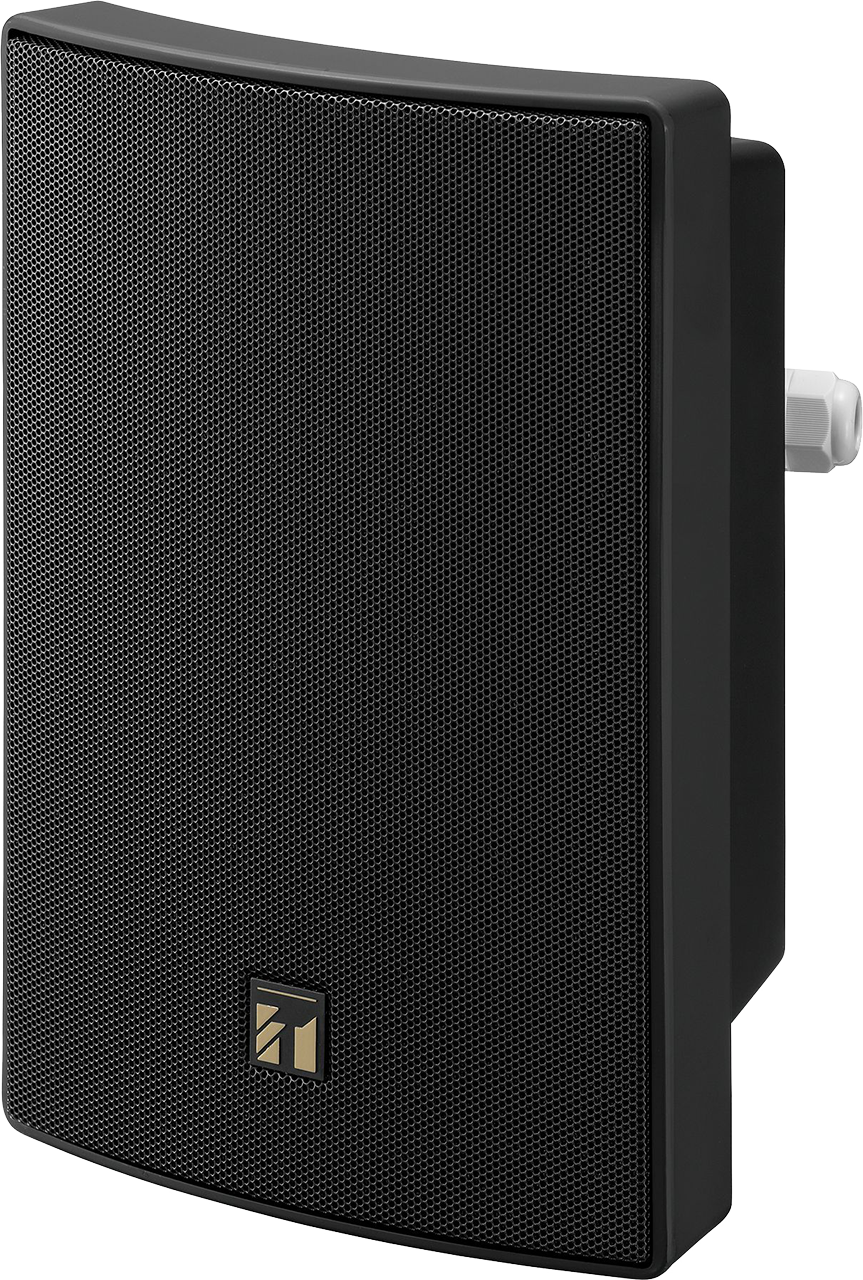

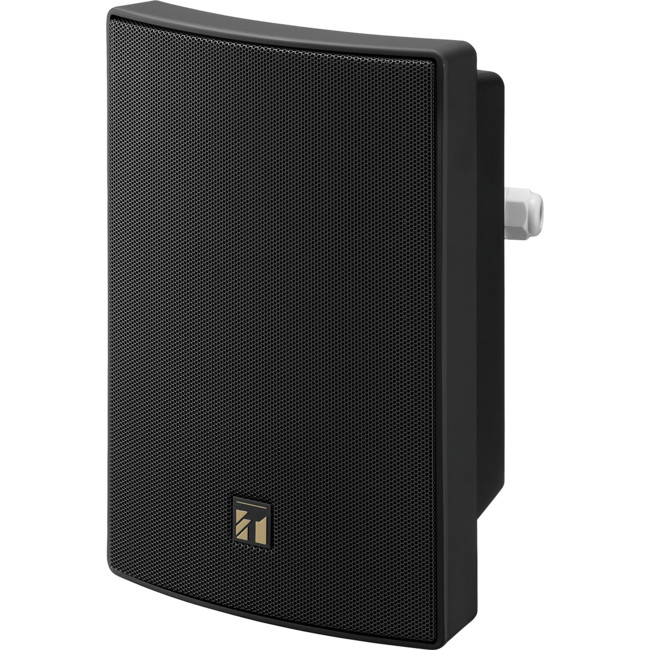

TOA BS-1015BSB 15W 2 WAY BOX SP BLACK- AS 7240.24:2018.

The BS-1015BSB is a voice alarm certificated 2 way speaker to Australian Standards AS 7240.24:2018.

With a wide frequency range, it is suitable for announcements and music.

The speaker's design, harmonizes with the venue's architecture and decor.

  • 2-way hi-fi speaker
  • 15W, 100V line
  • Easy and quick installation
  • Fits architecturally sophisticated environments
  • Certified to AS 7240.24:2018
  • Indoor Type A



Application examples for this product:

  • Supermarkets
  • Office buildings
  • Health and fitness clubs
  • Hotels



Specifications



BS-1015BSB BS-1015BSW
Frequency response

80 Hz - 20 kHz

80 Hz - 20 kHz


Connection

Ceramic screw terminals, thermal fuse

Ceramic screw terminals, thermal fuse


Sensitivity (1 W, 1 m)

90 dB (500 Hz - 5 kHz, pink noise)

90 dB (500 Hz - 5 kHz, pink noise)


Maximum sound pressure level (1 m) (value)

98 dB

98 dB


Speaker component

Low: 5" cone-type High balanced dome tweeter

Low: 5" cone-type High balanced dome tweeter


Rated input (High Impedance)

15 W (100 V), 7.5 W (70 V)

15 W (100 V), 7.5 W (70 V)


Tappings

100 V line: 670 Ω (15 W) / 1 kΩ (10W) / 2 kΩ (5 W)

70 V line: 670 Ω (7.5 W)/ 1 kΩ (5 W)/2 kΩ (2.5 W)

100 V line: 670 Ω (15 W) / 1 kΩ (10W) / 2 kΩ (5 W)

70 V line: 670 Ω (7.5 W)/ 1 kΩ (5 W)/2 kΩ (2.5 W)


Operating temperature

-10°C to 50°C

-10°C to 50°C


Finish

ABS resin, paint, black (RAL 9011 or equivalent)

ABS resin, paint, off-white (RAL 9010 or equivalent)


Dimensions

196 x 290 x 186 mm (W x H x D)

196 x 290 x 186 mm (W x H x D)


Weight

2.4 kg

2.4 kg


Accessory (included)

Bracket x 1, bracket mounting screw x 2, rear cover x 1

Bracket x 1, bracket mounting screw x 2, rear cover x 1
