ATEO2B AUDAC BLACK 2" 8 OHM 10W SPK

CLEVER MOUNT BRACKET

Code: 39772026

PR
Special
Buy-In
$200 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

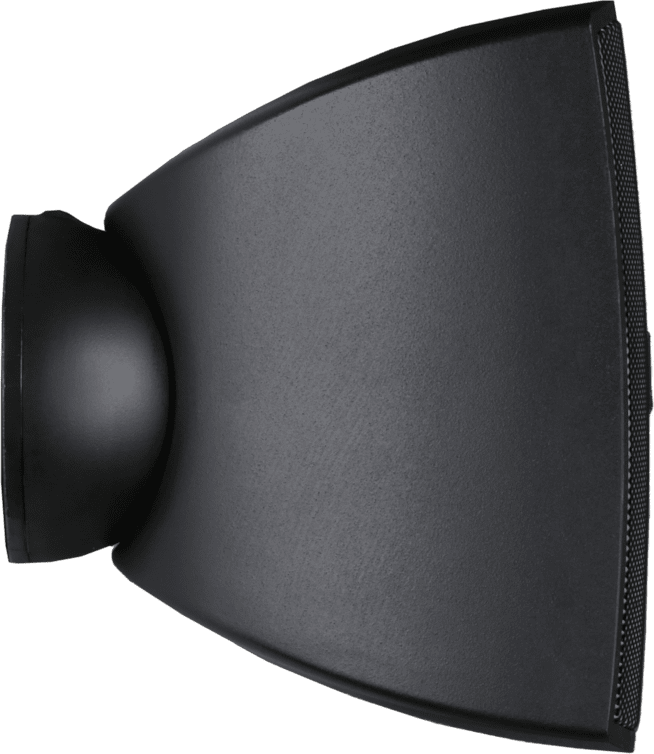

AUDAC ATEO2 COMPACT WALL SPEAKER WITH CLEVERMOUNT™2"

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO2 is the ultra-compact model of this series whichsmoothly integrates into any interior like no other loudspeaker.

The sound originates from a 2” aluminum cone driverwhich provides a full-range, warm and detailed sound, with an improved response in the low frequencies due to the ported design.

This way, smooth sound reproduction with clear and crisp sound is guaranteed.

The internal self-resetting network provides optimal overload protection.

It features a stunningly designed and elegant looking ABShousing which is fitted with high-quality components.

What makes this loudspeaker range so exceptional is the specially designed mounting bracket using Clevermount™technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity.

The mounting and connection of the loudspeaker are done by mounting the wall-plate to the desired location.

The terminal block connector should be fitted to the wires coming from the amplifier and plugged into the counterpart on the speakers’ side.

The only next step is clipping the speaker onto the wall plate and tightening it by a quarter turn until it's fixed.

VARIANTS

  • ATEO2/B - Black version - 8Ω
  • ATEO2/W - White version - 8Ω
  • ATEO2D/B - Black version - 16Ω
  • ATEO2D/W - White version - 16Ω



Key Features

  • Patented Clevermount™ mounting system
  • 2" full range aluminium cone speaker
  • Vertical and Horizontal mounting
  • Stunning designed and elegant looking ABS enclosure



SYSTEM SPECIFICATIONS
Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 ? (ATEO2)
16 ? (ATEO2D)
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Ingress Protection rating IP40
Connectors 2-pin Euro Terminal Block
Drivers 2” Aluminium full range
Incline angle Left 25°
Right 25°
Bottom 25°
Top 15°
Frequency Response (± 3 dB) 120 Hz - 20 kHz
Range (-10 dB) 100 Hz - 20 kHz
Dispersion Horizontal 145°
Vertical 170°
PRODUCT FEATURES
Dimensions 80 x 136 x 115 mm (W x H x D)
Weight 0.390 kg
Operating temperature -20 °C ~ 60 °C
Mounting Clevermount™
Construction ABS
Front finish Steel grill
Colours Black (RAL9005) (ATEO2/B, ATEO2D/B)
White (RAL9003) (ATEO2/W, ATEO2D/W)
Accessories Optional WTR06 - 6W 100V line transformer
