QSA200I 8" 2 WAY ACTIVE SPEAKER

WITH DUAL INPUTS

Code: 39654260

EACH
Special
Buy-In
TRADE ALERT!
$915 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Compact Powered Speaker System

Small band fold-back or PA, audio visual presentation, high SPL compact audio monitor, mid power distributed systems, where ever you need compact portable or fixed full bandwidth audio, the QSA200i is a tremendously versatile powered PA package.

The high sonic output and small size is a result of the sophisticated Quest analogue engine electronics and purpose designed, heavy-duty Quest speaker components.

  • 2-channel independent XLR mic/line inputs
  • XLR line out with mix add function
  • Long lasting heavy-duty Quest speaker components
  • Uniform high frequency coverage with custom designed rotating HF horn
  • Great sonic performance through analogue engine signalprocessing
  • Micro fan cooled multi way power amplifiers
  • Steel protective full front grill

Impact Resistant Plastic and Rotate the Horn

For a small speaker system, the QSA200i is packed with pro features. Multiple XLR inputs with mix output or straight through mean you can use operate the amplifier without need for a mixer on small jobs. Both line and mic level with independent level control are a handy feature.

For horizontal installation the HF horn that can be rotated to horizontal dispersion plane and an optional pan-tilt bracket can be added for both temporary or permanent installation.

Power Me Up

The QSA200i is loaded with drivers with a high power handling capacity. The cast frame ceramic mid/bass driver can take some serious power and the high frequency horn/driver combination is seriously heavy duty. The Amplification is a class A/B system for high quality analogue sound with 50 watts HF and 100 watts powering the woofer. The mini-fan cooled 2-way amplifier system is controlled by an analogue processing engine to make the QSA 200i a high output flexible and reliable choice for both live mobile audio and permanent fixes installation environments.

Specifications

Frequency response -3dB: 70 - 20K Hz
HF Coverage Angle 90° x 45° revolving horn flare
Max SPL: 123dB Peak
Amplifier Power: HF 50
Watts LF: 100 Watts
Transducer: 1x 3/4" Compression driver 1 x 8" Long coil bass driver
Enclosure: Injection molded plastic
Protective Grill: Perforated steel acoustic foam covering
Installation Options: Wall bracket/floor stand

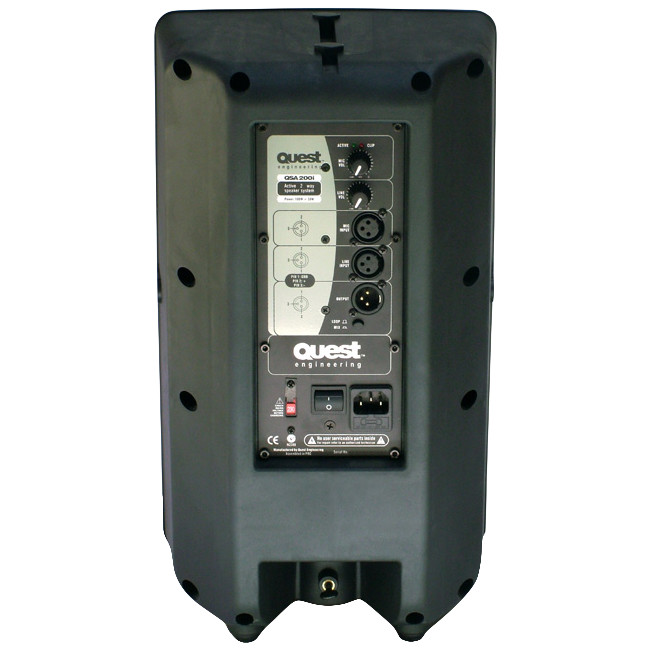

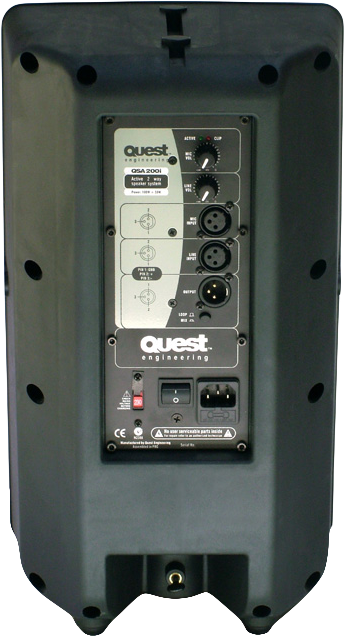

Input Connections: 2 channels XLR in XLR through out
Dimensions HxWxD 250mm x 240mm x 430mm
Net Weight: 7.8Kg
